PDP150N15BH POTENS

Document overview

  • Manufacturer or author: Provided By www.digicamel.com(FREE DATASHEET DOWNLOAD SITE)
  • PDF pages: 5

Technical content

Features

Absolute Maximum Ratings Tc=25℃ unless otherwise noted Thermal Characteristics D G S G  Networking  Load Switch  LED applications  Quick Charger D S

Potens semiconductor corp. Ver.2.00 PDP150N15BH 150V N-Channel MOSFETs Off Characteristics Symbol Parameter Conditions Min. Typ. Max. Unit BVDSS Drain-Source Breakdown Voltage VGS=0V , ID=250µA 150 --- --- V IDSS Drain-Source Leakage Current VDS=120V , VGS=0V , TJ=25℃ --- --- 1 µA VDS=120V , VGS=0V , TJ=85℃ --- --- 10 µA IGSS Gate-Source Leakage Current VGS=±20V , VDS=0V --- --- ±100 nA On Characteristics RDS(ON) Static Drain-Source On-Resistance3 VGS=10V , ID=30A --- 4.3 5.2 m VGS(th) Gate Threshold Voltage VGS=VDS , ID =250µA 2.5 3.5 4.5 V gfs Forward Transconductance VDS=10V , ID=3A --- 15 --- S Dynamic and switching Characteristics3 Qg Total Gate Charge VDS=75V , VGS=10V , ID=80A --- 120 180 nC Qgs Gate-Source Charge --- 31 45 Qgd Gate-Drain Charge --- 34 50 Td(on) Turn-On Delay Time VDD=75V , VGS=10V , RG=6 ID=80A --- 30 45 ns Tr Rise Time --- 35 55 Td(off) Turn-Off Delay Time --- 35 55 Tf Fall Time --- 45 70 Ciss Input Capacitance VDS=75V , VGS=0V , F=1MHz --- 7330 11000 pF Coss Output Capacitance --- 680 1050 Crss Reverse Transfer Capacitance --- 18 30 Rg Gate Resistance VGS=0V, VDS=0V, F=1MHz --- 2.7 ---  Symbol Parameter Conditions Min. Typ. Max. Unit IS Continuous Source Current VG=VD=0V , Force Current --- --- 160 A ISM Pulsed Source Current --- --- 320 A VSD Diode Forward Voltage VGS=0V , IS=1A , TJ=25℃ --- --- 1 V trr Reverse Recovery Time3 VR=100V, IS=20A di/dt=100A/µs , TJ=25℃ --- 110 --- ns Qrr Reverse Recovery Charge3 --- 520 --- nC Note : 1. Repetitive Rating : Pulsed width limited by maximum junction temperature. 2. VDD=50V,VGS=10V,L=1mH,IAS=60A.,RG=25,Starting TJ=25℃.. 3. Essentially independent of operating temperature. Electrical Characteristics (TJ=25 ℃, unless otherwise noted) Drain-Source Diode Characteristics and Maximum Ratings

Potens semiconductor corp. Ver.2.00 PDP150N15BH 150V N-Channel MOSFETs 0.4 0.6 0.8 1.2 1.4 -50 0 50 100 150 0.5 1.5 2.5 -50 0 50 100 150 120 150 0 2 4 6 8 10 VGS=5V VGS=5.3V VGS=5.5V VGS=5.7V VGS=6V VGS=10V 0 2 4 6 8 10 Tc=25℃ ID=30A 3.0 3.5 4.0 4.5 5.0 5.5 6.0 5 25 45 65 85 105 Tc=25℃ VGS=8V VGS=10V 120 150 180 25 50 75 100 125 150 ID , Continuous Drain Current (A) Fig.1 Typical Output Characteristics ID , Continuous Drain Current (A) TC , Case Temperature (℃) Fig.2 Continuous Drain Current vs. TC Normalized On Resistance TJ , Junction Temperature (℃) Fig.3 Normalized RDSON vs. TJ Normalized Gate Threshold V oltage TJ , Junction Temperature (℃) Fig.4 Normalized Vth vs. TJ RDS(ON) , Turn-On Resistance (mohm) Fig.5 Turn-On Resistance vs. VGS Fig.6 Turn-On Resistance vs. ID RDS(ON) , Turn-On Resistance (mohm) VDS ,Drain to Source V oltage (V) VGS , Gate to Source V oltage (V) ID , Drain Current (A)

Potens semiconductor corp. Ver.2.00 PDP150N15BH 150V N-Channel MOSFETs Fig.10 Maximum Safe Operation Area Fig.11 Switching Time Waveform Fig.12 EAS Waveform Fig.8 Gate Charge Characteristics Td(on) Tr Ton Td(off) Tf Toff VDS VGS 90% 10% 0.01 0.1 NOTES: DUTY FACTOR: D = t1/t2SINGLE PULSE 0.5 0.2 0.1 0.05 0.02 0.01 IAS VGS BVDSS VDD EAS= 1

2 L x IAS

ID=80A VDS=75V 100 1000 10000 0.1 1 10 100 Ciss Coss Crss 0.01 0.1 100 1000 0.1 1 10 100 TC=25℃ DC 100ms 10ms 100us 10us 1ms VDS , Drain to Source V oltage (V) Qg , Gate Charge (nC) Normalized Thermal Response VGS , Gate to Source V oltage (V) (mohm) Fig.9 Normalized Transient Impedance Square Wave Pulse Duration (s) VDS , Drain to Source V oltage (V) ID , Continuous Drain Current (A) Capacitance (pF) Fig.7 Capacitance Characteristics

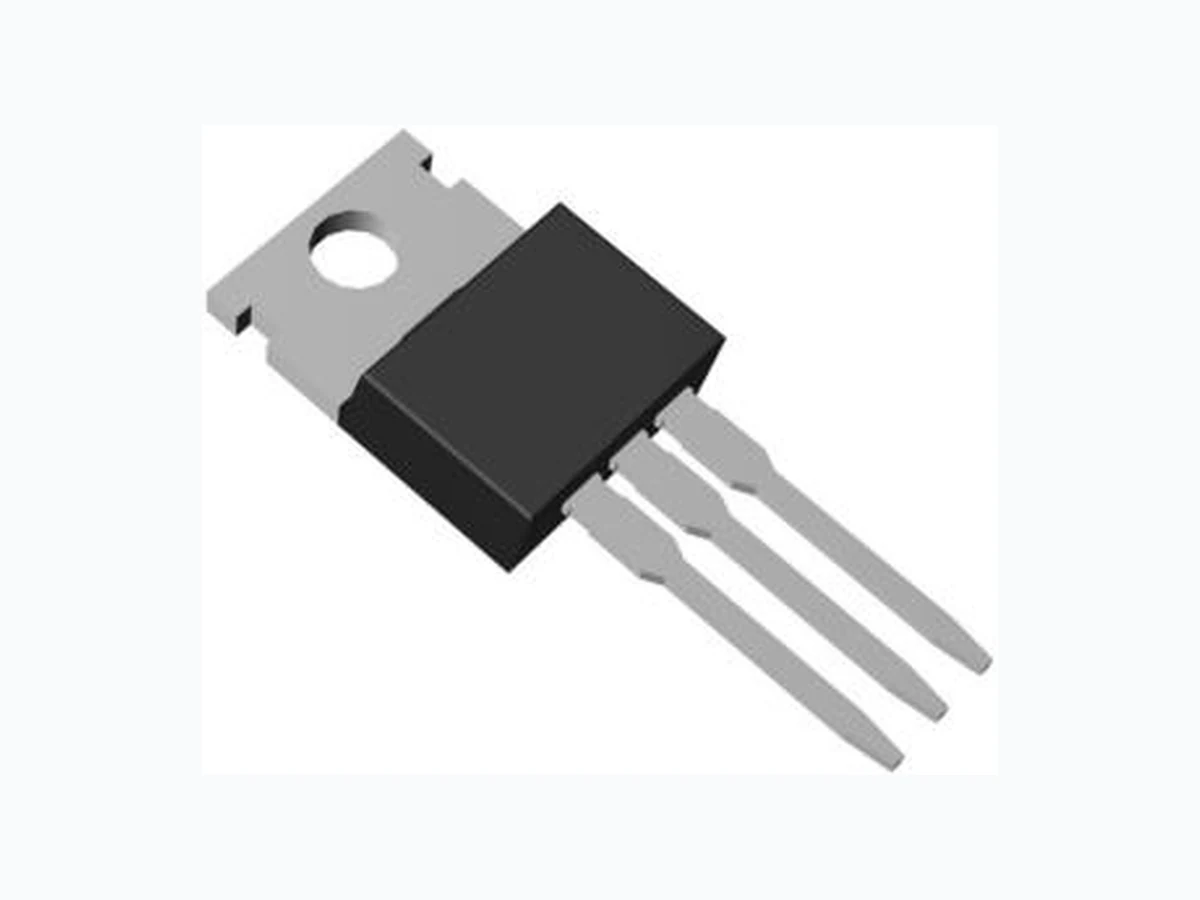

Potens semiconductor corp. Ver.2.00 PDP150N15BH 150V N-Channel MOSFETs Symbol Dimensions In Millimeters Dimensions In Inches MAX MIN MAX MIN A 10.400 9.700 0.409 0.382 A1 8.900 7.400 0.350 0.291 A2 1.400 0.800 0.055 0.031 B 16.500 14.500 0.650 0.571 C 4.750 4.200 0.187 0.165 C1 1.500 1.100 0.059 0.043 D 1.000 0.600 0.039 0.024 E 4.000 3.300 0.157 0.130 E1 3.800 3.400 0.150 0.134 G 9.400 8.400 0.370 0.331 H 0.600 0.200 0.024 0.008 H1 6.850 6.200 0.270 0.244 K 2.850 2.100 0.112 0.083 L 14.000 12.500 0.551 0.492 L1 4.000 2.700 0.157 0.106 M 1.750 1.100 0.069 0.043 N 2.640 2.440 0.104 0.096 TO220 PACKAGE INFORMATION
