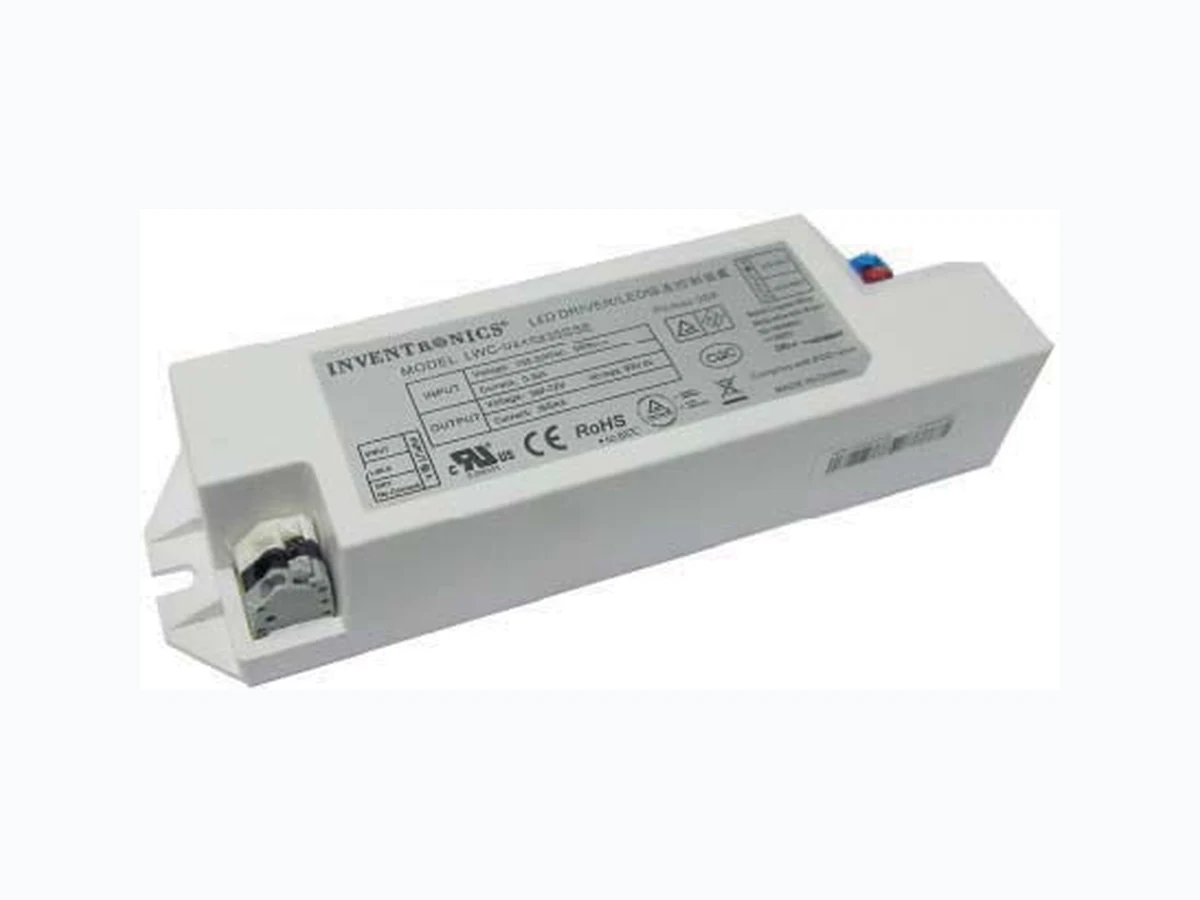

LWC-018SXXXSSE INVENTRONICS

Document overview

Manufacturer or author: Provided By www.digicamel.com(free datasheet download site)
PDF pages: 8

Technical content

Features

/g120 Support Customized Output Current /g120 Constant Current Output /g120 High Efficiency (Up to 86%) /g120 Active Power Factor Correction /g120 All-Around Protection: OLP, SCP and Open Lamp Protection /g120 SELV

Description

The LWC-018SxxxSSE series operates from a 90 ~ 264 Vac input range. They are designed to be highly efficient and reliable. Features include open lamp, short circuit and over load protections. Models Output Current Input Voltage Range(1) Output Voltage Range Max. Output Power Efficiency (2) Power Factor (2) Model Number 350 mA 90 ~ 264 Vac 25~51Vdc 18 W 86% 0.95 LWC-018S035SSE (3) 500 mA 90 ~ 264 Vac 18~36Vdc 18 W 85% 0.95 LWC-018S050SSE (3)(4) 700 mA 90 ~ 264 Vac 13~26Vdc 18 W 84% 0.95 LWC-018S070SSE (3)(4) 1050 mA 90 ~ 264 Vac 8~17Vdc 18 W 83% 0.95 LWC-018S105SSE (3)(4) Notes: (1) Certified input voltage range: 100-240Vac. (2) Measured in 220 Vac input at full load. (3) UL Class 2 (US). (4) CUL Class 2 (Canada). Input Specifications Parameter Min. Typ. Max. Notes Input Voltage 90 Vac - 264 Vac Input Frequency 47 Hz - 63 Hz Leakage Current - - 0.5 mA At 220Vac, 50Hz input Input AC Current - - 0.22 A Measured at full load and 120 Vac input Inrush Current(I2t) - - 0.128 A 2s At 220Vac input, 25/g113C cold start, duration=240 /g541s, 10%Ipk-10%Ipk. See Inrush Current Waveform for the Details. Power Factor 0.90 - - At 100-220Vac, 70% -100%load

Specifications are subject to changes without notice. LWC-018SxxxSSE Rev. L www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 18W Constant Current IP20 Driver Output Specifications Parameter Min. Typ. Max. Notes Output Current Tolerance -10%Io - 10%Io Output Current Ripple - 30%Io 50%Io At full load condition Output Current Overshoot / Undershoot - - 10%Io At full load condition No Load Output Voltage: IO = 350 mA IO = 500 mA IO = 700 mA IO = 1050 mA 59 V 42 V 33 V 24 V Line Regulation - - f5% Measured at full load Load Regulation - - f5% Turn-on Delay Time - 0.8 s 1.0 s Measured at 120Vac input, 70%load-100% load - 0.4 s 0.6 s Measured at 220Vac input, 70%load-100% load Temperature coefficient of loset - - 0.03%//g113C Case temperature = 0 /g113C ~Tc max Note: All specifications are tested by YW-PWH01 and typical at 25°C unless otherwise stated. General Specifications Parameter Min. Typ. Max. Notes Efficiency at 120 Vac input: IO = 350 mA IO = 500 mA IO = 700 mA IO = 1050 mA 84% 83% 82% 81% 85% 84% 83% 82% Measured at full load and steady-state temperature in 25/g113C ambient; (Efficiency will be about 1.0% lower if measured immediately after startup.) Efficiency at 220 Vac input: IO = 350 mA IO = 500 mA IO = 700 mA IO = 1050 mA 85% 84% 83% 82% 86% 85% 84% 83% Measured at full load and steady-state temperature in 25/g113C ambient; (Efficiency will be about 1.0% lower if measured immediately after startup.) No Load Power Dissipation - - 1 W MTBF - 433,900 Hours - Measured at 120Vac input, 80%load and 25ć ambient temperature (MIL-HDBK- 217F) Lifetime - 77,800 Hours - Measured at 120Vac input, 80%load and 60ć case temperature; See lifetime vs. Tc curve for the details. Operating Case Temperature for safety Tc_s -20 /g113C - +85 /g113C Operating Case Temperature for Warranty Tc_w -20 /g113C - +65 /g113C Humidity: 10% RH to 90% RH; No Condensation Storage Temperature -30 /g113C - +85 /g113C Humidity: 5% RH to 90% RH

Specifications are subject to changes without notice. LWC-018SxxxSSE Rev. L www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 18W Constant Current IP20 Driver General Specifications (Continued) Parameter Min. Typ. Max. Notes Dimensions Inches (L × W × H) Millimeters (L × W × H) 5.30 × 1.63 × 1.18 134.5 × 41.5 × 30 Net Weight - 170 g - Note: All specifications are tested by YW-PWH01 and typical at 25°C unless otherwise stated. Safety & EMC Compliance Safety Category Standard CE EN 61347-1, EN61347-2-13 KS KS C 7655 EMI Standards Notes EN 55015(1) Conducted Emission Test & Radiated Emission Test EN 61000-3-2 Harmonic Current Emissions Class C EN 61000-3-3 Voltage Fluctuations & Flicker FCC Part 15(1) ANSI C63.4:2009 Class B This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference, and [2] this device must accept any interference received, including interference that may cause undesired operation. EMS Standards Notes EN 61000-4-2 Electrostatic Discharge (ESD): 8 kV air discharge, 4 kV contact discharge Level 3, Criteria A EN 61000-4-3 Radio-Frequency Electromagnetic Field Susceptibility Test-RS Level 3, Criteria A EN 61000-4-5 Surge Immunity Test: AC Power Line: Line to Line 1 kV EN 61000-4-6 Conducted Radio Frequency Disturbances Test-CS Level 3, Criteria A EN 61000-4-8 Power Frequency Magnetic Field Test 3A/m , Criteria A EN 61000-4-11 Voltage Dips Criteria B EN 61547 Electromagnetic Immunity Requirements Applies to Lighting Equipment Note: (1) This LED driver meets the EMI specifications above, but EMI performance of a luminaire that contains it depends also on the other devices connected to the driver and on the fixture itself.

Specifications are subject to changes without notice. LWC-018SxxxSSE Rev. L www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 18W Constant Current IP20 Driver Lifetime vs. Case Temperature Curve Inrush Current Waveform Efficiency vs. Load LWC-018S035SSE LWC-018S050SSE

Specifications are subject to changes without notice. LWC-018SxxxSSE Rev. L www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 18W Constant Current IP20 Driver LWC-018S070SSE LWC-018S105SSE Power Factor Protection Functions Parameter Notes Short Circuit Protection Auto Recovery. No damage shall occur when any output operating in a short circuit condition. The power supply shall be self-recovery when the fault condition is removed.

Specifications are subject to changes without notice. LWC-018SxxxSSE Rev. L www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 18W Constant Current IP20 Driver Mechanical Outline Unspecified tolerance:±1 PROJ: Tc Note: Input/output wires: Solid copper wires; strip wire 6mm min; 22-16AWG, ı300V RoHS Compliance Our products comply with the European Directive 2011/65/EC, calling for the elimination of lead and other hazardous substances from electronic products.

Specifications are subject to changes without notice. LWC-018SxxxSSE Rev. L www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 18W Constant Current IP20 Driver

Revision History

Date Rev. Description of Change Item From To 2011-09-28 A Release / / 2011-10-10 B Derating Curve, Life time Curve / Update 2011-12-15 C Photo / Changed 2011-12-21 D Typ.PF at 220V 0.92 0.95 2011-12-27 E PF Curve / Changed 2012-6-15 F Output Voltage of LWC-018S035SSE corrected 25~51 Vdc 26~51 Vdc Input AC Current corrected 0.32 A 0.22 A Dimensions corrected / / 2012-7-17 G Max Case Temperature / Updated 2012-8-1 H Derating Curve / Updated 2012-8-30 I Inrush Current(I2t) / Added Power Factor Min / Added THD Max / Added Temperature coefficient / Added Typical life time and MTBF / Added 2013-01-11 J Other model of efficiency curve except 350mA / Added Other model of PF curve except 350mA / Added 2016-12-15 K Output Voltage Range(350mA) 26~51Vdc 25~51Vdc Output Voltage Range(1050mA) 9~17Vdc 8~17Vdc No Load Output Voltage / Updated Turn-on Delay Time at 220Vac input, 70%load- 100%load / Added Warranty Tc_w / Added Environmental Specifications / Deleted CQC Certificate / CCC Certificate KS Certificate / Added KC Certificate / Added PSE Certificate / Deleted Derating Curve / Deleted PF Curve except 1050mA / Deleted Inrush Current Waveform / Added

Specifications are subject to changes without notice. LWC-018SxxxSSE Rev. L www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 18W Constant Current IP20 Driver Change Date Rev. Description of Change Item From To 2016-12-15 K Note of EMI Standard / Added 2019-08-20 L CCC Logo / Deleted KC Logo / Deleted Safety & EMC Compliance KS Updated

Selected Specification

Inventronics Inc. LWC-018S035SSE overview.

Summary

18W Constant Current IP20 Driver Rev. L

Description

The LWC-018SxxxSSE series operates from a 90 ~ 264 Vac input range. They are designed to be highlyefficient and reliable. Features include open lamp, short circuit and over load protections.
