ESM-480SXXXMX INVENTRONICS
Document overview
- Manufacturer or author: Provided By www.digicamel.com(free datasheet download site)
- PDF pages: 20
Technical content
Features
Description

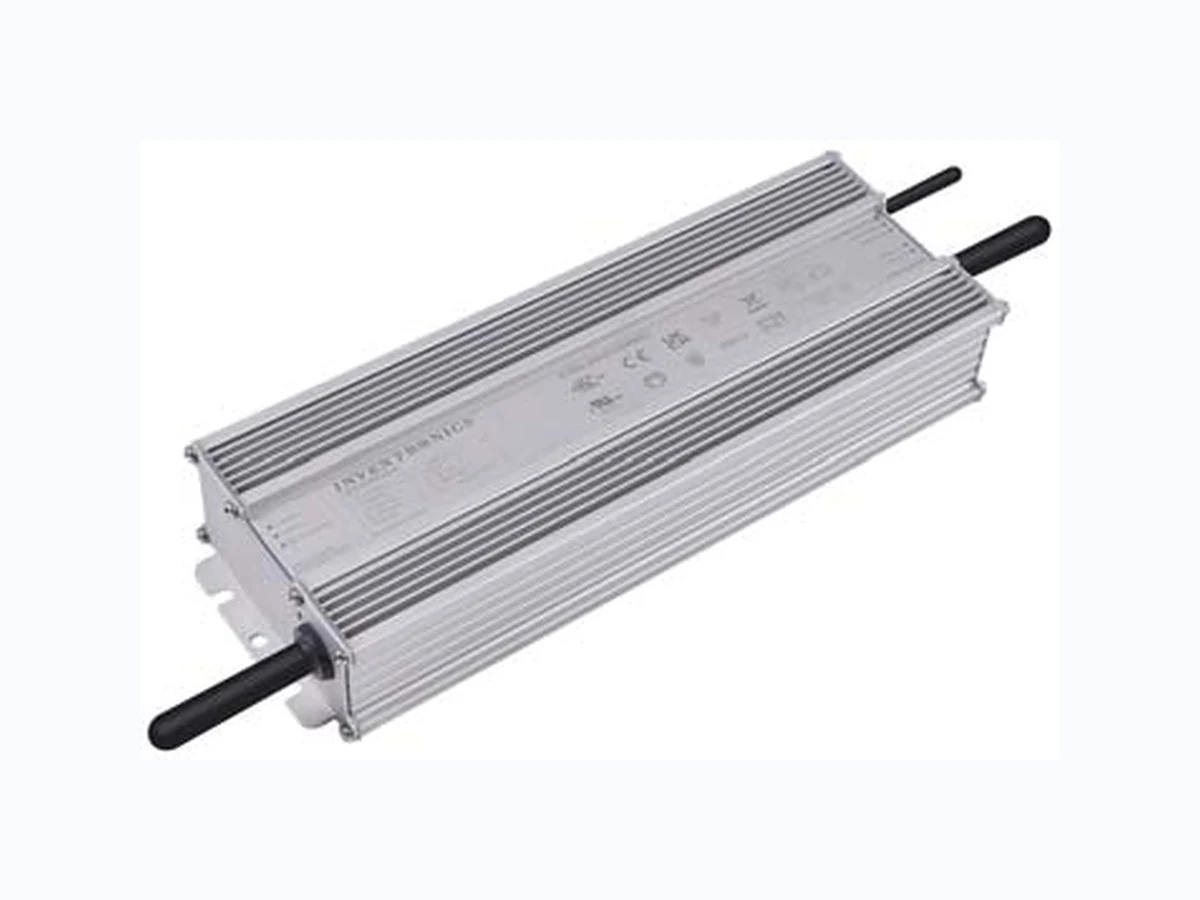

The ESM-480SxxxMx series is a 480W, constant-current, programmable and IP66/IP67 rated LED driver that operates from 249-528Vac input with excellent power factor. Created for many lighting applications including high mast, sports, UV-LED, aquaculture and horticulture, etc. It provides an auxiliary voltage and dim-to-off functionality for powering low voltage, wireless controls. The dimming contro l supports 0-10V dimming as well as two-way communication via Digital Dimming, a UART based communication protocol. The high efficiency of these drivers and compact metal case enables them to run cooler, significantl y improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, input under voltage, input over voltage, output over voltage, short circuit, and over temperature. Models Adjustable Output Current Range Full-Power Current Range(1) Default Output Current Input Voltage Range(2) Output Voltage Range Max. Output Power Typical Efficiency (3) Typical Power Factor Model Number (4) 277Vac 480Vac 352~500Vdc 171 ~ 457Vdc 480 W 95.5% 0.99 0.96 ESM-480S140Mx 352~500Vdc 86 ~ 228Vdc 480 W 95.5% 0.99 0.96 ESM-480S280Mx 352~500Vdc 57 ~ 152Vdc 480 W 95.0% 0.99 0.96 ESM-480S420Mx 352~500Vdc 43 ~ 110Vdc 480 W 95.0% 0.99 0.96 ESM-480S560Mx 0.86-10A 8.6-10A 10 A 249~528Vac 352~500Vdc 24 ~ 56Vdc 480 W 95.0% 0.99 0.96 ESM-480S10AMx Notes: (1) Output current range with constant power at 480W. (2) Certified voltage range: 277-480Vac (3) Measured at 100% load and 480Vac input (see below “General Specifications” for details). (4) x = G are UL Recognized, ENEC etc. models; x = T are UL Class P, etc. models. Hot-plugging Protection Parallel LED Protection Adjustable Output Curren t (AOC) with Programmability Isolated 0-10V/PWM/Resistor Dimmable Adjustable Dimming Curve INV Digital Dimming, UART Ba sed Communication Protocol D i m - t o - O f f Minimum Dimming Level wit h 5% or 10% Selectable Hold time Adjustable Fade Time Adjustable Always-on Auxiliary P ower: 12Vdc, 250mA Low Inrush Current Output Lumen Compensation End-of-Life Indicator Input Surge Protection: DM 6kV, CM 10kV All-Around Protection: IOVP, IUVP, OVP, SCP, OTP IP66/IP67 and UL Dry/Damp/Wet Location TYPE HL, for Use in a Class I, Division 2 Hazardous (Classified) Location 5 Years Warranty
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 480W Programmable Driver with INV Digital Dimming ESM-480SxxxMx Rev.A www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com I-V Operating Area ESM-480S140Mx ESM-480S280Mx ESM-480S420Mx ESM-480S560Mx ESM-480S10AMx (1400 , 343 ) (1400 , 206 ) (630 , 457 ) (1050 , 457 ) (Ioset,480/Ioset) (10%Ioset,480/Ioset) (105, 457) (1400, 171) 184 276 368 460 552 0 280 560 840 1120 1400 1680 Output Voltage(V) Output Current (mA) Note: 1050mA≤Ioset≤1400mA Good Performance Area Programmed Operating Area Allowed Operating Area (2800 , 171 ) (2800 , 103 ) (1260 , 228 ) (2100 , 228 ) (Ioset,480/Ioset) (Ioset, 86)(280, 86) (10%Ioset,480/Ioset) (210, 228) (2800, 86) 138 184 230 276 0 560 1120 1680 2240 2800 3360 Output Voltage(V) Output Current (mA) Note: 2100mA≤Ioset≤2800mA Good Performance Area Programmed Operating Area Allowed Operating Area (4200 , 114 ) (4200 , 69 ) (1890 , 152 ) (3150 , 152 ) (Ioset,480/Ioset) (Ioset, 57)(420, 57) (10%Ioset,480/Ioset) (315, 152) (4200, 57) 124 155 186 0 840 1680 2520 3360 4200 5040 Output Voltage(V) Output Current (mA) Note: 3150mA≤Ioset≤4200mA Good Performance Area Programmed Operating Area Allowed Operating Area (5600 , 86 ) (5600 , 51 ) (2610 , 110 ) (4350 , 110 ) (Ioset,480/Ioset) (Ioset, 43)(560, 43) (10%Ioset,480/Ioset) (435, 110) (5600, 43) 110 132 0 1120 2240 3360 4480 5600 6720 Output Voltage(V) Output Current (mA) Note: 4350mA≤Ioset≤5600mA Good Performance Area Programmed Operating Area Allowed Operating Area (10000 , 48 ) (10000 , 29 ) (5160 , 56 ) (8600 , 56 ) (Ioset,480/Ioset) (10%Ioset,480/Ioset) (860, 56) (10000, 24) 0 2000 4000 6000 8000 10000 12000 Output Voltage(V) Output Current (mA) Note: 8600mA≤Ioset≤10000mA Good Performance Area Programmed Operating Area Allowed Operating Area
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 480W Programmable Driver with INV Digital Dimming ESM-480SxxxMx Rev.A www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Input Specifications Parameter Min. Typ. Max. Notes Input AC Voltage 249 Vac - 528 Vac Input DC Voltage 352 Vdc - 500 Vdc Input Frequency 47Hz - 63Hz Leakage Current - - 0.75 MIU UL 8750; 480Vac/ 60Hz - - 0.70 mA IEC 60598-1; 480Vac/ 60Hz, grounding effectively Input AC Current - - 2.02 A Measured at 100% load and 277 Vac input. - - 1.18 A Measured at 100% load and 480 Vac input. Inrush Current(I2t) - - 1.75 A 2s At 480Vac input, 25℃ cold start, duration=6.96 ms, 10%Ipk-10%Ipk. See Inrush Current Waveform for the details. PF 0.90 - - At 277-480Vac, 50-60Hz, 60%-100% Load (288- 480W) THD - - 20% Output Specifications Parameter Min. Typ. Max. Notes Output Current Tolerance -5%Ioset - 5%Ioset 100% load Output Current Setting(Ioset) Range ESM-480S140Mx ESM-480S280Mx ESM-480S420Mx ESM-480S560Mx ESM-480S10AMx 105 mA 210 mA 315 mA 435 mA 860 mA 1400 mA 2800 mA 4200 mA 5600 mA 10000 mA Output Current Setting Range with Constant Power ESM-480S140Mx ESM-480S280Mx ESM-480S420Mx ESM-480S560Mx ESM-480S10AMx 1050 mA 2100 mA 3150 mA 4350 mA 8600 mA 1400 mA 2800 mA 4200 mA 5600 mA 10000 mA Total Output Current Ripple (pk-pk) - 5%Iomax 10%Iomax 100% load, 20 MHz BW Output Current Ripple at < 200 Hz (pk-pk) - 2%Iomax 100% load Startup Overshoot Current - - 10%Iomax 100% load No Load Output Voltage ESM-480S140Mx ESM-480S280Mx ESM-480S420Mx ESM-480S560Mx ESM-480S10AMx 500 V 280 V 190 V 120 V 60 V Line Regulation - - ±0.5% 100% load Load Regulation - - ±1.5%
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 480W Programmable Driver with INV Digital Dimming ESM-480SxxxMx Rev.A www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Output Specifications (Continued) Parameter Min. Typ. Max. Notes Turn-on Delay Time - - 0.5 s 277-480Vac inpu t, 60%-100% Load Temperature Coefficient of Ioset - 0.03%/C - Case temperature = 0C ~Tc max 12V Auxiliary Output Voltage 10.8 V 12 V 13.2 V 12V Auxiliary Output Source Current 0 mA - 250 mA Return terminal is “Dim−“ 12V Auxiliary Output Transient Peak Current@6W - - 500 mA 500mA peak for a maximum duration of 2.2ms in a 6.0ms period during which time the average should not exceed 250mA. 12V Auxiliary Output Transient Peak Current@10W - - 850 mA 850mA peak for a maximum duration of 1.3ms in a 5.2ms period during which time the average should not exceed 250mA. General Specifications Parameter Min. Typ. Max. Notes Efficiency at 277 Vac input: ESM-480S140Mx Io= 1050 mA Io= 1400 mA ESM-480S280Mx Io= 2100 mA Io= 2800 mA ESM-480S420Mx Io= 3150 mA Io= 4200 mA ESM-480S560Mx Io= 4350 mA Io= 5600 mA ESM-480S10AMx Io= 8600 mA Io= 10000 mA 92.5% 92.5% 92.5% 92.5% 92.0% 92.0% 92.0% 91.5% 92.0% 92.0% 94.5% 94.5% 94.5% 94.5% 94.0% 94.0% 94.0% 93.5% 94.0% 94.0% Measured at 100% load and steady-state temperature in 25C ambient; (Efficiency will be about 2.0% lower if measured immediately after startup.) Efficiency at 400 Vac input: ESM-480S140Mx Io= 1050 mA Io= 1400 mA ESM-480S280Mx Io= 2100 mA Io= 2800 mA ESM-480S420Mx Io= 3150 mA Io= 4200 mA ESM-480S560Mx Io= 4350 mA Io= 5600 mA ESM-480S10AMx Io= 8600 mA Io= 10000 mA 93.0% 93.5% 93.0% 93.0% 92.5% 92.5% 92.5% 92.0% 92.5% 93.0% 95.0% 95.5% 95.0% 95.0% 94.5% 94.5% 94.5% 94.0% 94.5% 95.0% Measured at 100% load and steady-state temperature in 25C ambient; (Efficiency will be about 2.0% lower if measured immediately after startup.)
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 480W Programmable Driver with INV Digital Dimming ESM-480SxxxMx Rev.A www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com General Specifications (Continued) Parameter Min. Typ. Max. Notes Efficiency at 480 Vac input: ESM-480S140Mx Io= 1050 mA Io= 1400 mA ESM-480S280Mx Io= 2100 mA Io= 2800 mA ESM-480S420Mx Io= 3150 mA Io= 4200 mA ESM-480S560Mx Io= 4350 mA Io= 5600 mA ESM-480S10AMx Io= 8600 mA Io= 10000 mA 93.5% 93.5% 93.5% 93.5% 93.0% 92.5% 93.0% 92.5% 93.0% 93.0% 95.5% 95.5% 95.5% 95.5% 95.0% 94.5% 95.0% 94.5% 95.0% 95.0% Measured at 100% load and steady-state temperature in 25C ambient; (Efficiency will be about 2.0% lower if measured immediately after startup.) Standby Power - 1.5 W - Measur ed at 480Vac/50Hz; Dimming off MTBF 300,000 Hours - Measured at 480Vac input, 80%Load and 25C ambient temperature (MIL-HDBK- 217F) Lifetime 100,000 Hours - Measured at 480Vac input, 80%Load and 70C case temperature; See lifetime vs. Tc curve for the details 50,000 Hours - Measured at 277Vac input, 100%Load and 40C ambient temperature Operating Case Temperature for Safety Tc_s -40°C - +90°C Operating Case Temperature for Warranty Tc_w -40°C - +80°C Case temperature for 5 years warranty Humidity: 10%RH to 95%RH Storage Temperature -40°C - + 85°C Humidity: 5%RH to 95%RH Dimensions Inches (L × W × H) Millimeters (L × W × H) 9.57 × 3.54 × 1.71 243 × 90 × 43.5 With mounting ear 262 × 90 × 43.5 Net Weight - 1900 g - Dimming Specifications Parameter Min. Typ. Max. Notes Absolute Maximum Voltage on the Vdim (+) Pin -20 V - 20 V Source Current on Vdim (+)Pin 90 uA 100 uA 110 uA Vdim(+) = 0 V Dimming Output Range with 10%-100% (Default) ESM-480S140Mx ESM-480S280Mx ESM-480S420Mx ESM-480S560Mx ESM-480S10AMx 10%Ioset - Ioset 1050 mA ≤ Ioset ≤ 1400 mA 2100 mA ≤ Ioset ≤ 2800 mA 3150 mA ≤ Ioset ≤ 4200 mA 4350 mA ≤ Ioset ≤ 5600 mA 8600 mA ≤ Ioset ≤ 10000 mA ESM-480S140Mx ESM-480S280Mx ESM-480S420Mx ESM-480S560Mx ESM-480S10AMx 105 mA 210 mA 315 mA 435 mA 860 mA - Ioset 105 mA ≤ Ioset ＜ 1050 mA 210 mA ≤ Ioset ＜ 2100 mA 315 mA ≤ Ioset ＜ 3150 mA 435 mA ≤ Ioset ＜ 4350 mA 860 mA ≤ Ioset ＜ 8600 mA
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 480W Programmable Driver with INV Digital Dimming ESM-480SxxxMx Rev.A www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Dimming Specifications (Continued) Safety &EMC Compliance Safety Category Standard UL/CUL UL 8750,CAN/C SA-C22.2 No. 250.13 ENEC & CE EN 61347-1, EN 61347-2-13 UKCA BS EN 61347-1, BS EN 61347-2-13 CB IEC 61347-1 , IEC 61347-2-13 global-mark AS/NZS 613 47.1, AS/NZS 61347.2.13 Performance Standard ENEC EN 62384 EMI Standards Notes BS EN/EN IEC 55015(1) Conducted emission Test &Radiated emission Test Parameter Min. Typ. Max. Notes Dimming Output Range with 5%-100% (Settable) ESM-480S140Mx ESM-480S280Mx ESM-480S420Mx ESM-480S560Mx ESM-480S10AMx 5%Ioset - Ioset 1050 mA ≤ Ioset ≤ 1400 mA 2100 mA ≤ Ioset ≤ 2800 mA 3150 mA ≤ Ioset ≤ 4200 mA 4350 mA ≤ Ioset ≤ 5600 mA 8600 mA ≤ Ioset ≤ 10000 mA ESM-480S140Mx ESM-480S280Mx ESM-480S420Mx ESM-480S560Mx ESM-480S10AMx 53 mA 105 mA 158 mA 218 mA 430 mA - Ioset 105 mA ≤ Ioset ＜ 1050 mA 210 mA ≤ Ioset ＜ 2100 mA 315 mA ≤ Ioset ＜ 3150 mA 435 mA ≤ Ioset ＜ 4350 mA 860 mA ≤ Ioset ＜ 8600 mA Recommended Dimming Input Range 0 V - 10 V Default 0-10V dimming mode. Dim off Voltage 0.35 V 0.5 V 0.65 V Dim on Voltage 0. 55 V 0.7 V 0.85 V Hysteresis - 0.2 V - PWM_in High Level 3 V - 10 V Dimming mode set to PWM in Inventronics Programing software. PWM_in Low Level -0.3 V - 0.6 V PWM_in Frequency Range 200 Hz - 3 KHz PWM_in Duty Cycle 1% - 99% PWM Dimming off (Positive Logic) 3% 5% 8% PWM Dimming on (Positive Logic) 5% 7% 10% PWM Dimming off ( Negative Logic) 92% 95% 97% PWM Dimming on ( Negative Logic) 90% 93% 95% Hysteresis - 2% -
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 480W Programmable Driver with INV Digital Dimming ESM-480SxxxMx Rev.A www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Safety &EMC Compliance (Continued) EMI Standards Notes BS EN/EN IEC 61000-3-2 Harmonic current emissions BS EN/EN 61000-3-3 Voltage fluctuations & flicker FCC Part 15(1) ANSI C63.4 Class B This device complies with Part 15 of the FCC Rules. Operation i s subject to the following two conditions: [1] this device may not cause harmful interference, and [2] this device must accept any interference received , including interference that m ay cause undesired operation. EMS Standards Notes BS EN/EN 61000-4-2 Electrostatic Discharge (ESD): 8 kV air disc harge, 4 kV contact discharge BS EN/EN 61000-4-3 Radio-Frequency Electromagnetic Field Suscep tibility Test-RS BS EN/EN 61000-4-4 Electrical Fast Transient / Burst-EFT BS EN/EN 61000-4-5 Surge Immunity Test: AC Power Line: Differential Mode 6 kV, Common Mode 10 kV BS EN/EN 61000-4-6 Conducted Radi o Frequency Disturbances Test-CS BS EN/EN 61000-4-8 Power Frequency Magnetic Field Test BS EN/EN 61000-4-11 Voltage Dips BS EN/EN 61547 Electromagnetic I mmunity Requirements Applies To Lighting Equipment Note: (1) This LED driver meets the EMI specifications above, but EMI performance of a luminaire that contains it depends also on the other devices connected to the driver and on the fixture itself. Lifetime vs. Case Temperature
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 480W Programmable Driver with INV Digital Dimming ESM-480SxxxMx Rev.A www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Inrush Current Waveform Efficiency vs. Load ESM-480S140Mx(lo=1050mA) ESM-480S140Mx(lo=1400mA) ESM-480S280Mx(lo=2100mA) ESM-480S280Mx(lo=2800mA)
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 480W Programmable Driver with INV Digital Dimming ESM-480SxxxMx Rev.A www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com ESM-480S420Mx(lo=3150mA) ESM-480S420Mx(lo=4200mA) ESM-480S560Mx(lo=4350mA) ESM-480S560Mx(lo=5600mA) ESM-480S10AMx(lo=8600mA) ESM-480S10AMx(lo=10000mA)
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 480W Programmable Driver with INV Digital Dimming ESM-480SxxxMx Rev.A www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Power Factor Total Harmonic Distortion Hot-plugging Protection This feature protects LEDs when connecting to a driver that is already powered on. This is disabled by default and can be enabled through the Inventronics Programing software. LED threshold voltage (Vth) is the minimum voltage required for current to flow through the LED load. After this threshold is m et, the LED forward voltage (Vf) increases as the current increases. Set Vth close to, but higher than the actual LED threshold voltage for optimized performance. The great er the difference between the V th setting and the actual LED threshold voltage, the higher the overshoot current will be. The Vth setting must be lower than Vf. Please test, program, and tune this feature for each LED load design.
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 480W Programmable Driver with INV Digital Dimming ESM-480SxxxMx Rev.A www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Hot-plugging Protection (Continued) Parameter Min. Typ. Max. Notes Hot- plugging Protection LED Threshold Voltage Setting Range ESM-480S140Mx 257V - 457V Set Vth close to, but higher than the actual LED threshold voltage ESM-480S280Mx 129V - 228V ESM-480S420Mx 86V - 152V ESM-480S560Mx 64V - 110V ESM-480S10AMx 36V - 56V Setting Tolerance -2% - 2% Parallel LED Protection This feature helps protect parallel LEDs from a high, overcurrent condition by limiting the voltage. This is disabled by default and can be enabled through the Inventronics Programing software. Set V_overload close to, but higher than the maximum forward voltage for optimized performance. The greater the difference between the V_overload setting and the maximum forward voltage, the higher the overload stress will be. The V_overload setting must be higher than Vf. Please test, program, and tune this feature for each LED load design. Parameter Min. Typ. Max. Notes Parallel LED Protection Overload Voltage Setting Range ESM-480S140Mx 257V - 480V Set V_overload close to, but higher than the maximum LED forward voltage ESM-480S280Mx 129V 240V ESM-480S420Mx 86V 160V ESM-480S560Mx 64V 115V ESM-480S10AMx 36V 57V Setting Tolerance -2% - 2%
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 480W Programmable Driver with INV Digital Dimming ESM-480SxxxMx Rev.A www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Protection Functions Parameter Min. Typ. Max. Notes Over Temperature Protection Decr eases output current, returning to normal after over temperature is removed. Short Circuit Protection Auto Recovery. No damage will occur when any output is short ci rcuited. The output shall return to normal when the fault condition is removed. Over Voltage Protection Limits output voltage at no load and in case the normal voltage limit fails. Input Under Voltage Protection (IUVP) Input Protection Voltage 220 Vac 230 Vac 240 Vac Turn off the output when the input voltage falls below protection voltage. Input Recovery Voltage 230 Vac 240 Vac 250 Vac Auto Recovery. The driver will restart when the input voltage exceeds recovery voltage. Input Over Voltage Protection (IOVP) Input Over Voltage Protection
550 Vac 570 Vac 590 Vac Turn off the output when the input voltage
protection voltage. Input Over Voltage Recovery
530 Vac 550 Vac 570 Vac
Auto Recovery. The driver will restart when the input voltage falls below recovery voltage. Max. of Input Over Voltage - - 590 Vac The driver can survive for 8 hours with a stable input voltage stress of 590Vac. Input Under Voltage Protection Diagram Io Protection Recovery
230 Vac 240 Vac
Input Over Voltage Protection Diagram Io Protection Recovery
550 Vac 570 Vac
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 480W Programmable Driver with INV Digital Dimming ESM-480SxxxMx Rev.A www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Dimming 0-10V Dimming The recommended implementation of the dimming control is provided below Dim+ Dim- Dimmer Inventronics LED Driver L N Vac Vaux Implementation 1: Positive logic Dim+ Dim- Dimmer Inventronics LED Driver L N Vac Vaux Implementation 2: Negative logic Notes: 1. Do NOT connect Dim− to the out put V− or V+, otherwise the driver will not work properly. 2. The dimmer can also be replac ed by an active 0-10V voltage source signal or passive components like zener. 3. When 0-10V negative logic dimming mode and Dim+ is open, the driver will dim to off and be standby. PWM Dimming The recommended implementation of the dimming control is provided below. Dim+ Dim- Inventronics LED Driver Vac Vaux PWM Signal L N Implementation 3: Positive logic
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 480W Programmable Driver with INV Digital Dimming ESM-480SxxxMx Rev.A www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Dim+ Dim- Inventronics LED Driver Vac Vaux PWM Signal L N Implementation 4: Negative logic Notes: 1. Do NOT connect Dim− to the out put V− or V+, otherwise the driver will not work properly. 2. When PWM negative l ogic dimming mode and Dim+ is open, the driver will dim to off and be standby. Resistor Dimming The recommended implementation of the dimming control is provided below. Dim+ Dim- Inventronics LED Driver V-L N Vac Vaux Rx Implementation 5: Positive logic Dim+ Dim- Inventronics LED Driver V-L N Vac Vaux Rx Implementation 6: Negative logic Notes: 1. Do NOT connect Dim− to the out put V− or V+, otherwise the driver will not work properly. 2. When resistor negative logic dimming mode and Dim+ is open, the driver will dim to off and be standby.
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 480W Programmable Driver with INV Digital Dimming ESM-480SxxxMx Rev.A www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Adjustable Dimming Curve 0-10V, PWM and resistor dimming curve can be set as correspondi ng dimming voltage by Inventronics Multi Programmer. Take the 0-10V positive logic dimming mode as an example, the recommended implementation of the dimming control is provided below. Dim+ Dim- Dimmer Inventronics LED Driver L N Vac Vaux Implementation 7: Positive logic Notes: 1. Do NOT connect Dim− to the out put V− or V+, otherwise the driver will not work properly. 2. The dimmer can also be replac ed by an active 0-10V voltage source signal or passive components like zener. 3. When dimming voltage X point is set to be smaller than Y point, the dimming curve is positive logic; conversely, when X point is set to be bigger than Y point, the dimming curve is negative logic. 4. For best dimming accuracy, the difference between X point and Y point is advised not less than 4V. Output Lumen Compensation Output Lumen Compensation (OLC) may be used to maintain constant light output over the life of the LEDs by driving them at a reduced current when new, then gradually i ncreasing the drive current over time to counteract LED lumen degradation. Minimum Dimming Level with 5% or 10% Selectable The minimum dimming level can be set as 5% or 10% by Inventronics Multi Programmer,10% is default. Hold Time Adjustable When AC power is first applied to the LED driver, enabling a “Hold” period can allow devices powered by the Auxiliary voltage to stabilize before the driver fades up to th e maximum dimming level. During this period, the driver will not respond to external dimming commands but wi ll respond again after the hold time ends. Both the initial dimming percentage and the duration of this hold period can be adjusted by the Inventronics Multi Programmer. This function is disabled by default Fade Time Adjustable There is a “Fade” period after the “Hold” period. The soft-start time and dimming slope applied to all dimming transitions can be adjusted individually. It is adjusted by the Inventronics Multi Programmer. This function is disabled by default. End Of Life End-of-Life (EOL) is providing a visual notification to a user that the LED module has reached the end of manufacturer-specified life and that the replacement is recommended. Once active, an indication is given at each power-up of the driver, which the driver indicates this th rough a lower light output during the first 1 minute before normal operation is continued. Digital Dimming Inventronics Digital Dimming is a UART (Universal Asynchronous Receive Transmitter) based communication protocol. Please refer to Inventronics Digital Dimming file for details
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 480W Programmable Driver with INV Digital Dimming ESM-480SxxxMx Rev.A www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Programming Connection Diagram Note: The driver does not need to be powered on during the programming process. Please refer to PRG-MUL2 (Programmer) datasheet for details. Mechanical Outline ESM-480S140MG Unspecified tolerance:±1 PROJ: L (BRN) N (BLU) (YLW/GRN) Vaux (BLK/WHT) Dim+ (PUR) Dim- (PNK) V+ (BRN) V- (BLU) DIMMING(UL21996 22AWG/3C 5.0)INPUT(UL SOOW 17AWG/3C & VDE H07RN-F 3*1.0mm2 9.8) Tc OUTPUT(UL SOOW 17AWG/2C & VDE H07RN-F 2*1.0mm2 9.3)
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 480W Programmable Driver with INV Digital Dimming ESM-480SxxxMx Rev.A www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com ESM-480S280MG/ESM-480S420MG/ESM-480S560MG Unspecified tolerance:±1 PROJ: L (BRN) N (BLU) (YLW/GRN) Vaux (BLK/WHT) Dim+ (PUR) Dim- (PNK) V+ (BRN) V- (BLU) DIMMING(UL21996 22AWG/3C 5.0)INPUT(UL SOOW 17AWG/3C & VDE H07RN-F 3*1.0mm2 9.8) Tc OUTPUT(UL SJOW 17AWG/2C & VDE H05RN-F 2*1.0mm2 7.8) ESM-480S10AMG Unspecified tolerance:±1 PROJ: L (BRN) N (BLU) (YLW/GRN) Vaux (BLK/WHT) Dim+ (PUR) Dim- (PNK) V+ (RED) V- (BLU) OUTPUT(UL SJTW 14AWG/2C 8.8) DIMMING(UL21996 22AWG/3C 5.0)INPUT(UL SOOW 17AWG/3C & VDE H07RN-F 3*1.0mm2 9.8) Tc
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 480W Programmable Driver with INV Digital Dimming ESM-480SxxxMx Rev.A www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com ESM-480S140MT Unspecified tolerance:±1 PROJ: L1/L (BRN) L2/N (ORG/GRY) (YLW/GRN) Vaux (BLK/WHT) Dim+ (PUR) Dim- (PNK) V+ (RED) V- (BLU) DIMMING(UL21996 22AWG/3C 5.0)INPUT(UL STW 18AWG/3C 9.5) Tc OUTPUT(UL STW 18AWG/2C 8.9) ESM-480S280MT/ESM-480S420MT/ESM-480S560MT Unspecified tolerance:±1 PROJ: L1/L (BRN) L2/N (ORG/GRY) (YLW/GRN) Vaux (BLK/WHT) Dim+ (PUR) Dim- (PNK) V+ (RED) V- (BLU) DIMMING(UL21996 22AWG/3C 5.0)INPUT(UL STW 18AWG/3C 9.5) Tc OUTPUT(UL SJTW 18AWG/2C 7.3)
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 480W Programmable Driver with INV Digital Dimming ESM-480SxxxMx Rev.A www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com ESM-480S10AMT Unspecified tolerance:±1 PROJ: L1/L (BRN) L2/N (ORG/GRY) (YLW/GRN) Vaux (BLK/WHT) Dim+ (PUR) Dim- (PNK) V+ (RED) V- (BLU) OUTPUT(UL SJTW 14AWG/2C 8.8) DIMMING(UL21996 22AWG/3C 5.0)INPUT(UL STW 18AWG/3C 9.5) Tc RoHS Compliance Our products comply with reference to RoHS Directive (EU) 2015/ 863 amending 2011/65/EU, calling for the elimination of lead and other hazardous substances from electronic products.
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 480W Programmable Driver with INV Digital Dimming ESM-480SxxxMx Rev.A www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com
Revision History
Date Rev. Description of Change Item From To 2023-09-01 A Datasheet Release / /
