EUV-250SXXXSV INVENTRONICS
Document overview
- Manufacturer or author: Provided By www.digicamel.com(free datasheet download site)
- PDF pages: 10
Technical content
Features
Description

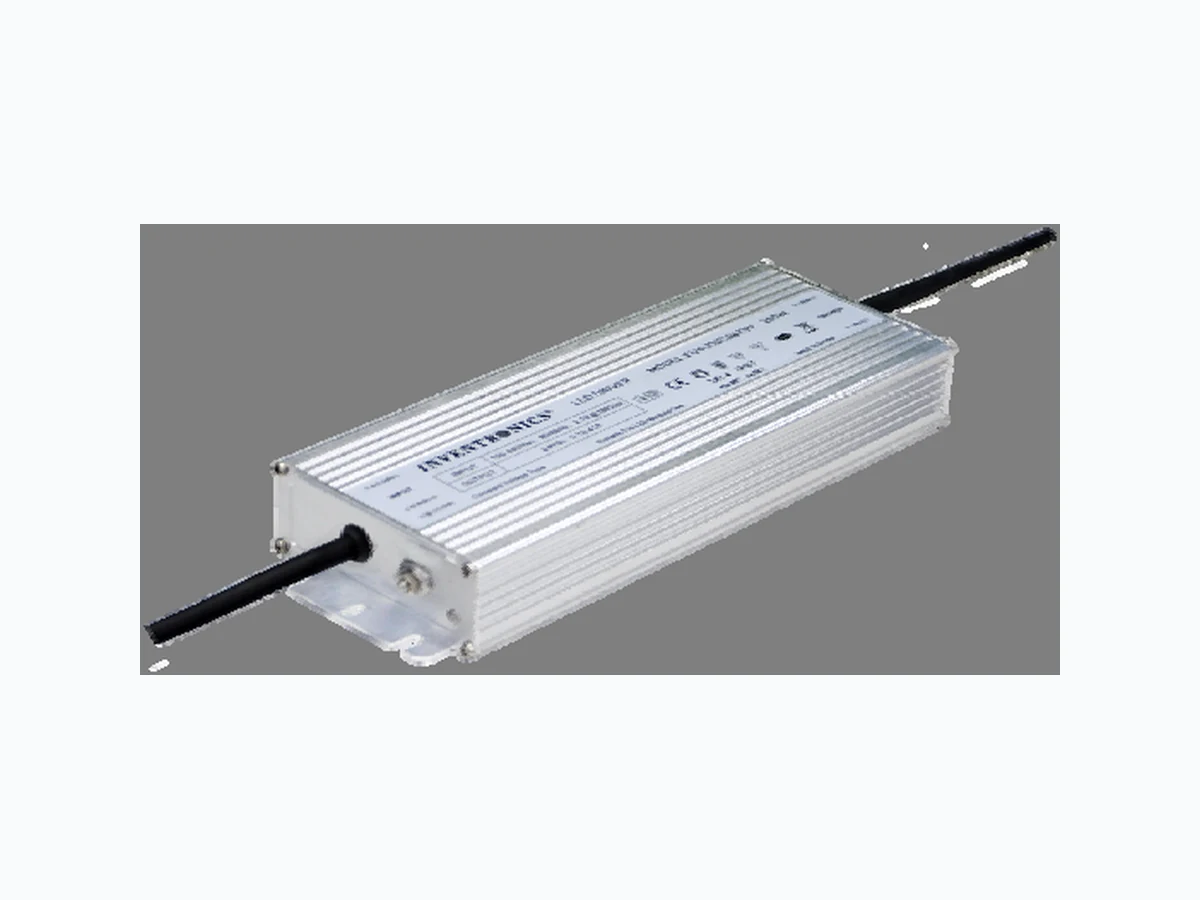

The EUV-250SxxxSV series is a 250W, constant-voltage LED driver that operates from 90-305 Vac input with excellent power factor. It is created for architecture lighting, decorative lighting, high bay, high mast, arena and roadway lights, etc. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, over current, short circuit, and over temperature. Models Output Voltage Input Voltage Range(1) Output Current Range Max. Output Power Typical Efficiency (2) Power Factor Model Number (3) (5) 120Vac 220Vac 12 Vdc 90 ~ 305 Vac 0~18.33 A 220 W 91.5% 0.99 0.93 EUV-250S012SV 24 Vdc 90 ~ 305 Vac 0~10.41 A 250 W 92.0% 0.99 0.96 EUV-250S024SV 28 Vdc 90 ~ 305 Vac 0~8.93 A 250 W 92.0% 0.99 0.96 EUV-250S028SV 36 Vdc 90 ~ 305 Vac 0~6.94 A 250 W 92.5% 0.99 0.96 EUV-250S036SV 42 Vdc 90 ~ 305 Vac 0~5.95 A 250 W 92.5% 0.99 0.96 EUV-250S042SV 48 Vdc 90 ~ 305 Vac 0~5.20 A 250 W 93.0% 0.99 0.96 EUV-250S048SV (4) 54 Vdc 90 ~ 305 Vac 0~4.62 A 250 W 93.5% 0.99 0.96 EUV-250S054SV Notes: (1) Certified input voltage range: 100-240Vac; (2) Measured at 100% load and 220 Vac input. (3) All the models are certificated to Global-mark, except EUV-250S012SV. (4) EUV-250S048SV are certificated to BIS. (5) SELV output. (6) For BIS models add suffix -3000. Input Specifications Parameter Min. Typ. Max. Notes Input Voltage 90 Vac - 305 Vac Input Frequency 47 Hz - 63 Hz Leakage Current - - 0.75 mA At 240Vac/60Hz input , grounding effectively High Efficiency (Up to 93.5%) Constant Voltage Output Input Surge Protection: DM 4kV, CM 6kV All-Around Protection: OVP, OCP, SCP, OTP IP67 SELV Output 5 Years Warranty
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 250W Constant Voltage IP67 Driver EUV-250SxxxSV Rev. N www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Input Specifications (Continued) Parameter Min. Typ. Max. Notes Input AC Current - - 3.0 A Measured at 100% load and 100 Vac input. - - 1.4 A Measured at 100% load and 220 Vac input. Inrush Current(I2t) - - 2.33 A 2s At 220Vac input, 25 ℃ cold start, duration=3 ms, 10%Ipk-10%Ipk. PF 0.90 - - At 100-240Vac, 50-60Hz, 75%-100% Load Output Specifications Parameter Min. Typ. Max. Notes Output Voltage Tolerance -5% - 5% At 100% load condition. Ripple and Noise (pk-pk) - - 2% V O Measured by 20 MHz bandwidth oscilloscope and the output paralleled a 0.1 uF ceramic capacitor and a 10 uF electrolytic capacitor. Output Overshoot / Undershoot - - 10% When power on or off. Line Regulation - - ±1% At 100% load condition. Load Regulation - - ±3% Turn-on Delay Time - 0.4 s 1.0 s Measured at 120Vac input, 75%-100% Load - 0.4 s 1.0 s Measured at 220Vac input, 75%-100% Load Load Dynamic Response Output Deviation - - 5% V O R/S: 1 A / uS Load: 25% ~ 75% 100% load. Settling Time - - 10 mS Temperature coefficient - 0.03%/C - Case temperature = 0C ~Tc max General Specifications Parameter Min. Typ. Max. Notes Efficiency at 120 Vac input: VO = 12 V VO = 24 V VO = 28 V VO = 36 V VO = 42 V VO = 48 V VO = 54 V 89.0% 89.5% 89.5% 90.0% 90.0% 90.5% 91.0% 89.5% 90.0% 90.0% 90.5% 90.5% 91.0% 91.5% Measured at 100% load and steady-state temperature in 25C ambient; (Efficiency will be about 1.5% lower if measured immediately after startup.) Efficiency at 220 Vac input: VO = 12 V VO = 24 V VO = 28 V VO = 36 V VO = 42 V VO = 48 V VO = 54 V 91.0% 91.5% 91.5% 92.0% 92.0% 92.5% 93.0% 91.5% 92.0% 92.0% 92.5% 92.5% 93.0% 93.5% Measured at 100% load and steady-state temperature in 25C ambient; (Efficiency will be about 1.5% lower if measured immediately after startup.)
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 250W Constant Voltage IP67 Driver EUV-250SxxxSV Rev. N www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com General Specifications (Continued) Parameter Min. Typ. Max. Notes Efficiency at 277 Vac input: VO = 12 V VO = 24 V VO = 28 V VO = 36 V VO = 42 V VO = 48 V VO = 54 V 91.0% 91.5% 91.5% 92.0% 92.0% 92.5% 93.0% 91.5% 92.0% 92.0% 92.5% 92.5% 93.0% 93.5% Measured at 100% load and steady-state temperature in 25C ambient; (Efficiency will be about 1.5% lower if measured immediately after startup.) No Load Power Dissipation - - 5 W MTBF - 250,000 hours - Measured at 120Vac input, 80%Load and 25C ambient temperature (MIL-HDBK-217F) Lifetime - 59,400 hours - Measured at 220Vac input, 80%Load and 60C case temperature; See life time vs. Tc curve for the details Operating Case Temperature for Safety Tc_s -40 C - +90 C Operating Case Temperature for Warranty Tc_w -40 C - +60 C Case temperature for 5 years warranty Storage Temperature -40 C - +85 C Humidity: 5% RH to 100% RH Dimensions Inches(L × W × H) Millimeters (L × W × H) 8.82 × 3.54 × 1.46 224 × 90 × 37 With mounting ear 9.88 × 3.54 × 1.46 251 × 90 × 37 Net Weight - 1300 g - Safety & EMC Compliance Safety Category Standard CE EN 61347-1, EN 61347-2-13 CB IEC 61347-1, IEC 61347-2-13 CCC GB 19510.1, GB 19510.14 PSE J 61347-1, J 61347-2-13 BIS IS 15885(PART2/SEC13) KS KS C 7655 Global Mark AS/NZS 61347.1, AS/NZS 61347.2.13 EMI Standards Notes EN 55015/GB 17743(1) Conducted emission Test & Radiated emission Test EN 61000-3-2/GB 17625.1 Harmonic current emissions EN 61000-3-3 Voltage fluctuations & flicker EMS Standards Notes EN 61000-4-2 Electrostatic Discharge (ESD): 8 kV air discharge, 4 kV contact discharge
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 250W Constant Voltage IP67 Driver EUV-250SxxxSV Rev. N www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Safety & EMC Compliance (Continued) EMS Standards Notes EN 61000-4-3 Radio-Frequency Electromagnetic Field Susceptibility Test-RS EN 61000-4-5 Surge Immunity Test: AC Power Li ne: Differential Mode 4 kV, Common Mode 6 kV (2) EN 61000-4-6 Conducted Radio Frequency Disturbances Test-CS EN 61000-4-8 Power Frequency Magnetic Field Test EN 61000-4-11 Voltage Dips EN 61547 Electromagnetic Immunity Requ irements Applies To Lighting Equipment Note: (1) This LED driver meets the EMI specifications above, bu t EMI performance of a luminaire that contains it depends also on the other devices connected to the driver and on the fixture itself. (2) To perform electric strength (hi-pot) testing, the “GDT ground disconnect” (nut and metal lock sheet) on the driver end-cap should be removed temporarily to prevent the internal gas discharge tube from conducting (as allowed by IEC 60598-1 Clause 10.2). After testing is completed, these items must be reinstalled to restore line-to-earth surge protection and secure the end cap. Lifetime vs. Case Temperature Curve EUV-250S012SV EUV-250S042SV Protection Functions Parameter Min. Typ. Max. Notes Over Current Protection 130% I O 165% I O 200% IO Hiccup mode. The power supply shall be self- recovery when the fault condition is removed. Over Temperature Protection Auto Recovery, returni ng to normal after over temperature is removed. Short Circuit Protection No damage will occur when any output is short circuited. The output shall return to normal when the fault condition is removed. Over Voltage Protection Limits output voltage at no load and in case the normal voltage limit fails.
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 250W Constant Voltage IP67 Driver EUV-250SxxxSV Rev. N www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Mechanical Outline EUV-250S012SV Unspecified tolerance:±1 PROJ: INPUT (VDE H05RN-F 3*1.0mm2 7.2) AC/L (BROWN) AC/N (BLUE) GND (YELLOW/GREEN ) OUTPUT (VDE H05RN-F 2*1.0mm2 6.8) V+ (BROWN) V- (BLUE) V+ (BROWN) V- (BLUE) V+ (BROWN) V- (BLUE)Tc Note: The 3 DC output cables are connected in parallel internally because one 1.0mm2 wire can only carry 10A. Please connect the 3 brown wires together and 3 blue wires together in application, or ensure each cable carries same current. EUV-250S024/036SV V+ (BROWN) V- (BLUE) OUTPUT (VDE H05RN-F 2*1.0mm2 6.8) INPUT (VDE H05RN-F 3*1.0mm2 7.2) Unspecified tolerance:±1 PROJ: V+ (BROWN) V- (BLUE) AC/L (BROWN) AC/N (BLUE) GND (YELLOW/GREEN ) Tc Note: The 2 DC output cables are connected in parallel internally because one 1.0mm2 wire can only carry 10A. Please connect the 2 brown wires together and 2 blue wires together in application, or ensure each cable carries same current.
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 250W Constant Voltage IP67 Driver EUV-250SxxxSV Rev. N www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com EUV-250S028/042SV Unspecified tolerance:±1 PROJ: INPUT (VDE H05RN-F 3*1.0mm2 7.2) OUTPUT (VDE H07RN-F 2*1.5mm2 9.4) V+ (BROWN) V- (BLUE)AC/L (BROWN) AC/N (BLUE) GND (YELLOW/GREEN ) Tc EUV-250S048/054SV Unspecified tolerance:±1 PROJ: INPUT (VDE H05RN-F 3*1.0mm2 7.2) OUTPUT (VDE H05RN-F 2*1.0mm2 6.8) V+ (BROWN) V- (BLUE)AC/L (BROWN) AC/N (BLUE) GND (YELLOW/GREEN ) Tc
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 250W Constant Voltage IP67 Driver EUV-250SxxxSV Rev. N www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com EUV-250S048SV-3000 Unspecified tolerance:±1 PROJ: Tc INPUT (BIS 3*1.0mm2 7.25) OUTPUT (BIS 2*1.0mm2 6.85) V+ (RED) V- (BLACK)AC/L (RED) AC/N (BLACK) GND (YELLOW/GREEN ) RoHS Compliance Our products comply with reference to RoHS Directive (EU) 2015/863 amending 2011/65/EU, calling for the elimination of lead and other hazardous substances from electronic products.
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 250W Constant Voltage IP67 Driver EUV-250SxxxSV Rev. N www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com
Revision History
Date Rev. Description of Change Item From To 2010-03-11 A Add a new model of 28V Add Leakage Current in Input Specifications / Max. 0.75 mA At 277Vac 50Hz input Standardize the tolerance in Mechanical Outline / / 2011-01-14 B Change Input AC Current @220Vac 1.3 A 1.4 A Change the efficiency (120Vac) VO = 12 V VO = 84 V VO = 105 V VO = 150 V Min. Typ. 89.5% 90.0% 92.0% 92.5% 92.0% 92.5% 92.0% 92.5% Min. Typ. 89.0% 89.5% 91.0% 91.5% 91.0% 91.5% 91.0% 91.5% Change the efficiency (220Vac) VO = 12 V Min. Typ. 91.5% 92.0% Min. Typ. 91.0% 91.5% Change No Load Power Dissipation ≤3 W ≤5 W Update MTBF & Life Time Data For One Model For Two Models 2011-07-30 C Update Life Time Data Ta=45 ℃ Tc=80 ℃ 2012-06-18 D Mechanical Outline / Updated Vo=52V, 56V, 60V, 84V,105 V & 150V Models / Deleted Life time Curve / Added EN61000-4-5 line to line 2 kV, line to earth 4 kV line to line 4 kV, line to earth 6 kV 2012-07-17 E Max Case Temperature / Updated 2012-11-15 F Efficiency of 24V,28V,36V,42V / 0.5%,1.5% or 2% lower Operating Temperature -35 ℃ -40 ℃ Derating Curve / Updated 2013-02-26 G Efficiency of 42V,48V,54V / 0.5% lower 2013-03-11 H Over Current Protecti on 110%,155%,180% 130%,165%,200% 2013-04-02 I Inrush current 50A 150A Min PF and max THD / Added Temperature coefficient / Added Life time / Updated Life time curve / Updated Input AC current@100Vac Max 2.8A Typ2.8A, Max3.0A Turn-on delay time 0.1s,0.2s 0.2s,0.5s Mechanical Outline---tolerance standardized / Corrected
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 250W Constant Voltage IP67 Driver EUV-250SxxxSV Rev. N www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Revision History (Continued) Change Date Rev. Description of Change Item From To 2013-12-13 J Turn-on delay time 0.2s,0.5s 0.4s,1.0s 2015-09-10 K Format / Update External Grounding Screw Solution / / Features / Update Description / Update Models Notes Update General Specifications Case Temperature Operating Case Temperature for Safety Tc_s General Specifications Operating Case Temperature for Warranty Tc_w Added General Specifications Storage Temperature Added Environmental Specifications / Delete Safety & EMC Compliance / Update Protection Functions / Update Dimming Control / Update Mechanical Outline / Update 2017-08-14 L CB/CCC/PSE/KS / Added Description / Updated Input Specifications PF/THD Updated Output Specifications Turn-on Delay Time Updated Temperature Coefficient Max 0.02%/C Typ 0.03%/ C Dimensions 8.82 × 3.46 × 1.32 224 × 88 × 33.5 8.82 × 3.54 × 1.46 224 × 90 × 37 Safety & EMC Compliance / Updated Mechanical Outline / Updated 2019-09-19 M PSE Logo / Updated Global Mark Logo / Updated Independent Logo / Added Features 4kV line-line, 6kV line-earth DM 4kV, CM 6kV Features Waterproof(IP67) IP67 Features Suitable for Independent Use Deleted Features 5 Years Warranty Added
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 250W Constant Voltage IP67 Driver EUV-250SxxxSV Rev. N www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Revision History (Continued) Change Date Rev. Description of Change Item From To 2019-09-19 M General Specifications Operating Case Temperature for Warranty Tc_w- Notes Added Safety &EMC Compliance CB Added Safety &EMC Compliance CCC Added Safety &EMC Compliance PSE Added Safety &EMC Compliance KS Added Safety &EMC Compliance Global Mark Added Safety &EMC Compliance EN 55015 EN 55015/GB 17743 Safety &EMC Compliance EN 61000-3-2 EN 61000-3-2/GB 17625.1 Safety &EMC Compliance EN 61000-4-5 Updated Derating Curve / Deleted RoHS Compliance / Updated 2020-03-09 N BIS Logo / Added Models Notes(4)(6) Added Safety &EMC Compliance BIS Added Mechanical Outline EUV-250S048SV-3000 Added Format Page footer Updated
