Features
Description

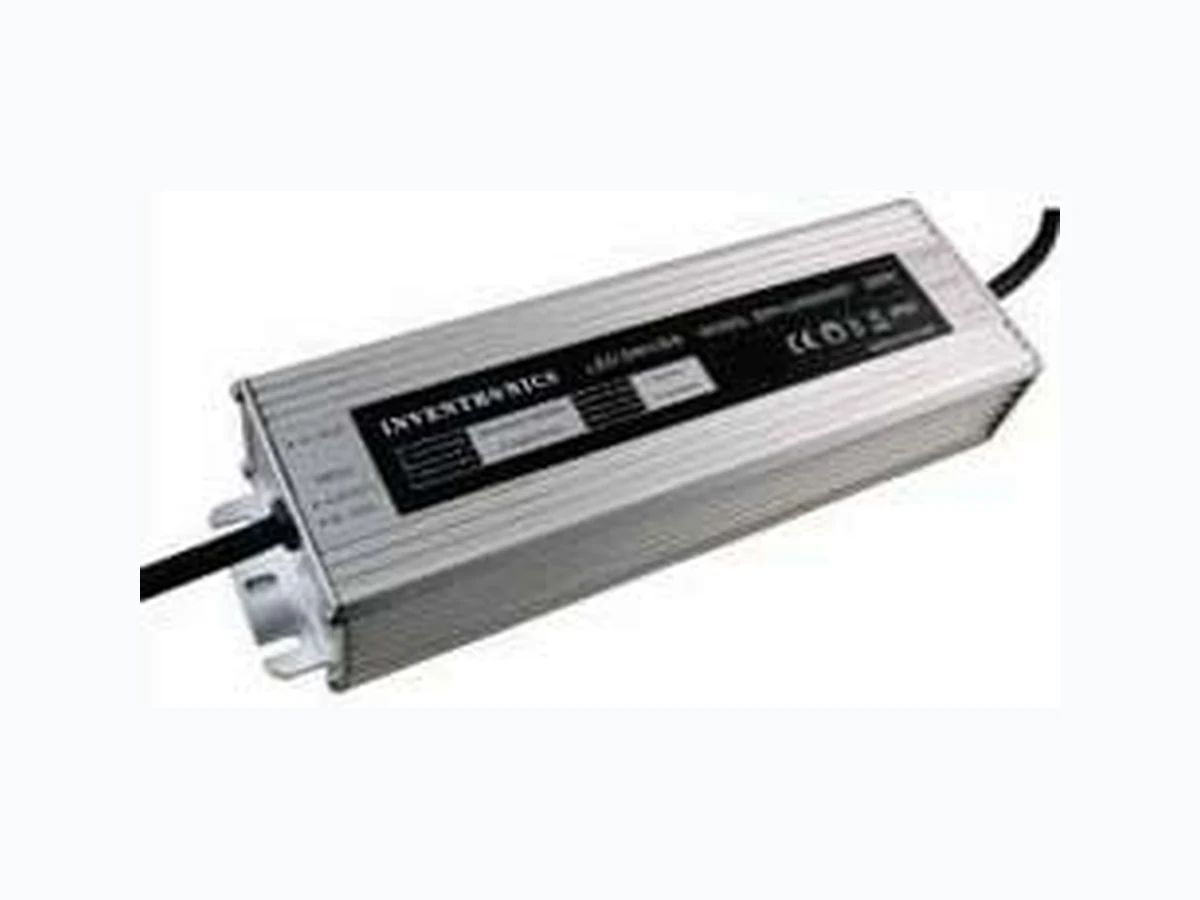

The EUV-100SxxxSV series is a 100W, constant-voltage LED driver that operates from 90-305 Vac input with excellent power factor. It is created for many lighting applications including architectural, decorative and signage, etc. The high efficiency of the driver and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, over current, output over voltage, short circuit, and over temperature. Models Output Voltage Input Voltage Range Output Current Range Max. Output Power Typical Efficiency (1) Power Factor Model Number (2) 110Vac 220Vac 12 Vdc 90 ~ 305 Vac 0~8.33 A 100 W 91% 0.99 0.96 EUV-100S012SV 24 Vdc 90 ~ 305 Vac 0~4.05 A 100 W 92% 0.99 0.96 EUV-100S024SV 36 Vdc 90 ~ 305 Vac 0~2.75 A 100 W 92% 0.99 0.96 EUV-100S036SV 48 Vdc 90 ~ 305 Vac 0~1.95 A 100 W 92% 0.99 0.96 EUV-100S048SV Note: (1) Measured at 100% load and 220 Vac input. (2) A suffix –xxxx may be added to denote variations or modifications to the base product, where x can be any alphanumeric character or blank. Input Specifications Parameter Min. Typ. Max. Notes Input Voltage 90 Vac - 305 Vac Input Frequency 47 Hz - 63 Hz Leakage Current - - 0.75 mA At 277Vac 60Hz input Input AC Current - - 1.20 A Measured at 100% load and 100 Vac input. - - 0.60 A Measured at 100% load and 220 Vac input. Inrush Current - - 65 A At 220Vac input 25ć Cold Start, duration=1.2 ms, 10%Ipk-10%Ipk. Inrush Current(I2t) - - 1 A 2s Power Factor 0.85 - - At 100-277Vac, 50-60Hz, 75%-100%load (75-100W) THD - - 20% At 220Vac, 50-60Hz, 100% load /g121 Ultra High Efficiency (Up to 92%) /g121 High Power Factor (0.99 Typical) /g121 Constant Voltage Output /g121 Lightning Protection /g121 All-Round Protection: OVP, OCP, SCP, OTP /g121 IP67 /g121 5 Years Warranty CCDIS put Frequency put Frequenc DISCISCSC et SCSCOUNTINUED perates from 90-305 erates from 90-305 ararchitectural, decorchitectural, de hem to run cooler, sigm to run cooler, s , protectiction is providon is provid re. NNTT pical NT ficien NT (1) TINTI Fac TINTNTNT 10Va TTTTNNTTW 91% 0.991% NTNTUNNT
100 W 92% W 92
UNNUNNA 100 W 92%100 W UNOUN .95 A 100 W .95 A 100 W OUOOOUUoad and 220 Vac inpuand 220 Vac in y be added to denote y be added to denote haracter or blank. aracter or blank. ations ations CSCSC oltage ge ISSDIS akage Current akage Curren DID
Specifications are subject to changes without notice. EUV-100SxxxSV Rev. N www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 100W Constant Voltage IP67 Driver/g3 Output Specifications Parameter Min. Typ. Max. Notes Output Voltage Tolerance -5% - 5% Ripple and Noise (pk-pk) - - 2.0% V O Measured by 20 MHz bandwidth oscilloscope and the output paralleled a 0.1 uF ceramic capacitor and a 10 uF electrolytic capacitor. Line Regulation - - f1% Load Regulation - - f2% Turn-on Delay Time - 0.6 s 1.2 s Measured at 110Vac input. - 0.3 s 0.6 s Measured at 220Vac input. Output Overshoot/Undershoot - - 10% When power on or off. Load Dynamic Response Output Deviation - - 5% V O R/S: 1 A/uS Load: 25% ~ 75% 100% load. Settling Time - - 10 mS Temperature coefficient - 0.05%//g113C - Case temperature = 0/g113C ~Tc max Note: All specifications are typical at 25 /g113C unless otherwise stated. Protection Functions Parameter Min. Typ. Max. Notes Over Voltage Protection VO = 12 V VO = 24 V VO = 36 V VO = 48 V 14 V 27 V 40 V 54 V 15 V 30 V 47 V 59 V 16 V 34 V 50 V 63 V Latch mode. The power supply shall return to normal operation only after the power is turn-on again. Over Current Protection 110% I O 135% I O 195% IO Hiccup mode. The power supply shall be self- recovery when the fault condition is removed. Over Temperature Protection - 110 /g113C - Maximum temperature of components inside the case. Short Circuit Protection No damage shall occur when any output operating in a short circuit condition. The power supply shall be self-recovery when the fault condition is removed. General Specifications Parameter Min. Typ. Max. Notes Efficiency VO = 12 V VO = 24 V VO = 36 V VO = 48 V 87% 88% 88% 88% 89% 90% 90% 90% Measured at 100% load, 110Vac input, 25ć ambient temperature, after the unit is thermally stabilized. It will be lower about 1%, if measured immediately after startup. Efficiency VO = 12 V VO = 24 V VO = 36 V VO = 48 V 89% 90% 90% 90% 91% 92% 92% 92% Measured at 100% load, 220Vac input, 25ć ambient temperature, after the unit is thermally stabilized. It will be lower about 1%, if measured immediately after startup. DI Efficiency Effici DISDISISCOUNTINUED cap DDinput.put. ED 0Vac input.input UE er on or off. er on or UE1 A/uS 1 A/ oad: 25% ~ 75% 100%oad: 25% ~ 75% 100 NUCase temperature temperatu TINTTTI e stated. e stated. UNUN yp. UNUN M NNNUNN V V
40 V 40 V
54 V 54
15 V 1
30 V 30
47 V 7 V
59 V 5
110% I110% O 135%135 OCOtection - ction - COCO ection ection No damda powepowe CSCCC Specifications Specifications DIS Paramete ISDI
Specifications are subject to changes without notice. EUV-100SxxxSV Rev. N www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 100W Constant Voltage IP67 Driver/g3 General Specifications (Continued) Parameter Min. Typ. Max. Notes No Load Power Dissipation - - 3.5 W MTBF - 338,000 hours - Measured at 110Vac input, 80%Load and 25/g113C ambient temperature (MIL-HDBK-217F) Life Time - 113,000 hours - Measured at 220Vac input, 80%Load; Case temperature=60ć @ Tc point. See life time vs. Tc curve for the details Operating Case Temperature for Safety Tc_s -35 /g113C - +90 /g113C Operating Case Temperature for Warranty Tc_w -35 /g113C +70 °C Case temperature for 5 years warranty; Storage Temperature -40 /g113C - +85 /g113C Humidity: 5% RH to 100% RH Dimensions Inches (L × W × H) Millimeters (L × W × H) 7.24 × 2.66 × 1.44 184 × 67.5 × 36.5 With mounting ear 8.31 × 2.66 × 1.44 211 × 67.5 × 36.5 Net Weight - 950 g - Note: All specifications are typical at 25 /g113C unless otherwise stated. Safety & EMC Compliance Safety Category Standard CE EN 61347-1, EN61347-2-13 KS KS C 7655 EMI Standards Notes EN 55015(1) Conducted emission Test & Radiated emission Test EN 61000-3-2 Harmonic current emissions EN 61000-3-3 Voltage fluctuations & flicker EMS Standards Notes EN 61000-4-2 Electrostatic Discharge (ESD): 8 kV air discharge, 4 kV contact discharge EN 61000-4-3 Radio-Frequency Electromagnetic Field Susceptibility Test-RS EN 61000-4-5 Surge Immunity Test: AC Power Line: Differential Mode 2 kV, Common Mode 4 kV EN 61000-4-6 Conducted Radio Frequency Disturbances Test-CS EN 61000-4-8 Power Frequency Magnetic Field Test EN 61000-4-11 Voltage Dips EN 61547 Electromagnetic Immunity Requirements Applies To Lighting Equipment Note: (1) This LED driver meets the EMI specifications above, but EMI performance of a luminaire that contains it depends also on the other devices connected to the driver and on the fixture itself. DNNDI EN 61000-4-1000-4- DISC 1000-4-2 Ele00-4-2 E SCOUNTINUED ad; Case ad; Case ee life time vs. ee life time vs DED r 5 years warranty; r 5 years warranty; ED RH to 100% RH 00% RH UE ing ear ing ear 211 × 67.5 1 × 67.5 UENUIN . . NTNT Sta NT 61347-2-13 61347-2-13 NTUNOUNOUUNConducted emission Tonducted emission T OU Harmonic current armonic curren OC Voltage fluctuVoltage fluctu COCSCSC rds COCCOCSCC EN 61000-4-3 61000-4-3 SEN 61000-4-4 EN 61000-4-4 DISDI EN 6100EN 610 DD
Specifications are subject to changes without notice. EUV-100SxxxSV Rev. N www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 100W Constant Voltage IP67 Driver/g3 Lifetime vs. Case Temperature Curve Power Factor Characteristics Total Harmonic Distortion Curve DISCOUNTINUED nic Distortion Cunic Distortion Cu
Specifications are subject to changes without notice. EUV-100SxxxSV Rev. N www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 100W Constant Voltage IP67 Driver/g3 Mechanical Outline EUV-100S012SV PROJ: Unspecified tolerance:±1 A/C/(BROWN) AC/1 (BLUE) GND (YELLOW/GREEN) INPUT (VDE H05RN-F 3*1.0mm2 7.2) V+(BROWN) V- (BLUE) OUTPUT (VDE H05RN-F 2*1.0mm2 6.8) Tc V+(BROWN) V- (BLUE) Note: The 2 DC output cables are connected in parallel internally because one 1.0 mm2 wire can only carry 10A. Please connect the 2 brown wires together and 2 blue wires together in application, or ensure each cable carries same current. Others PROJ: Unspecified tolerance:±1 V+(RED) V-(BLACK) AC/L (BLACK) AC/N (WHITE) GND (GREEN) INPUT(UL SJTW 3*18AWG 7.8) OUTPUT (UL SJTW 2*18AWG 7.3) Tc RoHS Compliance Our products comply with reference to RoHS Directive (EU) 2015/863 amending 2011/65/EU, calling for the elimination of lead and other hazardous substances from electronic products. DISCOUNTINUED TITITITITITININTINTITINININTINTTTTIIININTIINITINTITINTINTITINITINTINTINININTINTINTINTITIINININNNNUUEUEUEUEUEUEUEUEUEUEUEUEUEUEUEUEUEUUEUEUEUE DDDDDDDDDDDDDDDDD TINTINTINTTINININININNNNUEUEUEUEUEUENNNNNNNN DDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDDD parallel internally beparallel internally be s together and 2 blueogether and 2 b OCOCCOCOCCCOCOCOOUOOCOCCOCCOCCCCCCCOOOOCOOOOOOCOCOCOCOCOCOCOCOCOCOCOCOCOCOOOCCCOCOCOCOCOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOOCOCOCO .8).8) DISSSSDISDISDIDIDIDIDIDIDIDIDIDIDIDIDIDIDIDISDIDIDIDIDIDISDISDISDISDISDIDIDISDISDISDISDISDISDIDISDISDIS
Specifications are subject to changes without notice. EUV-100SxxxSV Rev. N www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 100W Constant Voltage IP67 Driver/g3
Revision History
Date Rev. Description of Change Item From To 2009-08-14 A Change Max. Output Current and Efficiency. 2009-09-02 B Change MTBF and Life Time. 2009-09-11 C Change Turn-on Delay Time 2009-11-10 E Change the min. value and notes of efficiency. 2009-11-13 F Add the Mechanical Outline of 12V. 2009-12-16 G Add note for mechanical outline. 2010-01-14 H Change the max. value of over current protection. 2010-05-31 I Add star rank for recommended models / ƿ: Popular model. Add Leakage Current in Input Specifications / Max. 0.75 mA At 277Vac 50Hz input Standardize the tolerance in Mechanical Outline / / 2012-6-12 J Mechanical Outline / Updated Life Time Curve / Added Vo=81 V & Vo=105 V Models / Deleted 2012-7-17 K Max Case Temperature / Updated 2012-8-14 L Efficiency @ 110 Vac VO = 12 V VO = 24 V VO = 36 V VO = 48 V VO = 54 V MIN 86% 88% 88% 88% 88% TYP 89% 91% 90% 90% 91% MIN 87% 88% 88% 88% 89% TYP 89% 90% 90% 90% 91% Efficiency @ 220Vac VO = 12 V VO = 24 V VO = 36 V VO = 48 V VO = 54 V MIN 89% 91% 91% 91% 91% TYP 91% 93% 93% 92% 92% MIN 89% 90% 90% 90% 91% TYP 91% 92% 92% 92% 92% 42V Model / Deleted Inrush Current(I2t) / Added No Load Power Dissipation 1.5 W 3.5 W MTBF 439,000 Hours 200,000 Hours 2012-12-24 M MTBF Min 200,000 hours Typ 338,000 hours Life time Min 50,000 Hrs @ 65 ć Typ113,000 Hrs@ 60 ć Ripple and Noise (pk-pk) 1.5% V O 2.0% V O Turn-on delay time @110 Vac 1.0 s 1.2 s DISCO L L fficiency @ 220Vac ciency @ 220Vac COUNTINUED DDEDEDUEUE ƿƿ UNUUUN/ / TINT / / TTINT / / NTNTNT els ls // NTNTNTure ure UNNN Vac VVOO == VV U COIIS 42V Mo42V Mo IISDIISInI DIISDIISDDDD
Specifications are subject to changes without notice. EUV-100SxxxSV Rev. N www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 100W Constant Voltage IP67 Driver/g3 Revision History (Continued) Change Date Rev. Description of Change Item From To 2012-12-24 M 54V Model / Deleted Min PF and max THD / Added Temperature coefficient / Added PF curve and THD curve / Added 2019-09-19 N KS Logo / Added Features Waterproof (IP67) IP67 Features 5 Years Warranty Added Models Note (3) ƿ: Popular model Deleted General Specifications Operating Case Temperature for Safety Tc_s Updated General Specifications Operating Case Temperature for Warranty Tc_w Added General Specifications Storage Temperature Added General Specifications With mounting ear Added Environmental Specifications / Deleted Safety &EMC Compliance KS Added Safety &EMC Compliance EN 61000-4-5 Updated Safety &EMC Compliance Note Added Derating Curve / Deleted Mechanical Outline / Updated RoHS Compliance / Updated DISCOUNTINUED D d D Added Adde EDE Added Added EEDUE IP67 IP67 UEUEUE anty Added anty Adde UEUEUE ƿƿ: Popular model D: Popular model D NUUUrating Case rating Case emperature emperature for Safety Tc_s for Safety Tc_s NT Operating Case Operating Case Temperature Temperature for Warranty Warr TTINNT Storage TStorage T NTNTNT WithWith NTNTNTications ca UNNN ompliance ompliance UMC Compliance C Compliance OU y &EMC Compliance y &EMC Compliance ODerating Curve ating Curve CO Mechanical OutlinMechanical Outlin SCS RoHS CompRoHS C SCIIISISIS
