EUK-320SXXXDTTT INVENTRONICS
Document overview
- Manufacturer or author: Provided By www.digicamel.com(free datasheet download site)
- PDF pages: 14
Technical content
Features
Description

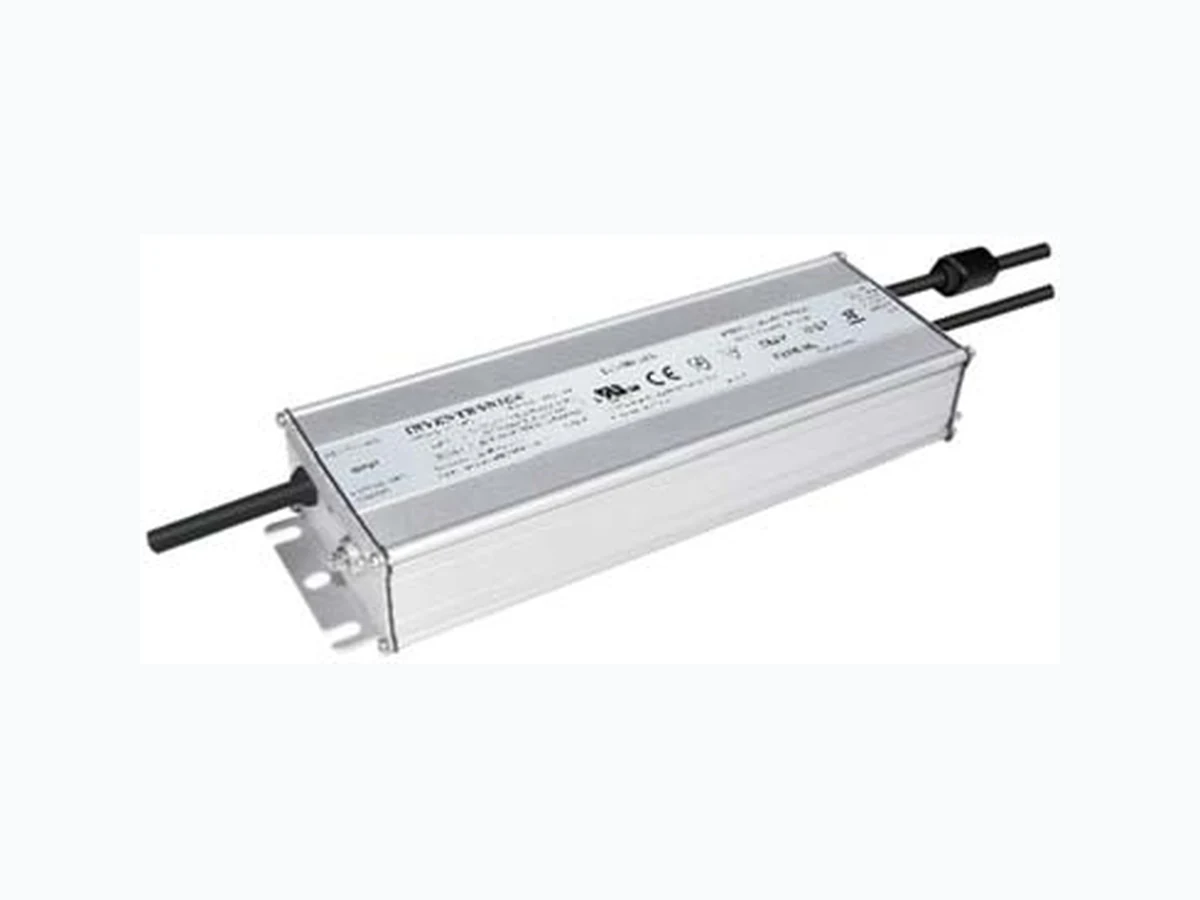

The EUK-320SxxxDT(TT) series is a 320W, constant-current, programmable IP67 LED driver that operates from 90-305 Vac input with excellent power factor. It is created for many lighting applications including high bay, high mast, aquaculture and sport, etc. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature. Models Adjustable Output Current Range Full-Power Current Range (1) Default Output Current Input Voltage Range(2) Output Voltage Range Max. Output Power Typical Efficiency (3) Typical Power Factor Model Number (5) 120Vac 220Vac 105-1500mA 1050-1500mA 1400 mA 90~305 Vac/ 127~300 Vdc 107~305Vdc 320 W 93.5% 0.99 0.96 EUK-320S150DT(TT) 154-2200mA 1540-2200mA 2100 mA 90~305 Vac/ 127~300 Vdc 73~208Vdc 320 W 93.5% 0.99 0.96 EUK-320S220DT(TT) 224-3200mA 2240-3200mA 2800 mA 90~305 Vac/ 127~300 Vdc 50~143Vdc 320 W 92.5% 0.99 0.96 EUK-320S320DT(TT) 322-4600mA 3220-4600mA 4200 mA 90~305 Vac/ 127~300 Vdc 35~100Vdc 320 W 92.5% 0.99 0.96 EUK-320S460DT(TT) (4) 469-6700mA 4690-6700mA 6700 mA 90~305 Vac/ 127~300 Vdc 24 ~ 68Vdc 320 W 92.5% 0. 99 0.96 EUK-320S670DT(TT) (4) Notes: (1) Output current range with constant power at 320W. (2) Certified input voltage range: UL, FCC 100-277Vac or 127-300Vdc; otherwise: 100-240Vac or 127-250Vdc. (3) Measured at 100% load and 220Vac input (see below “General Specifications” for details). (4) SELV output. (5) All the models are certificated to KCC, except EUK-320SxxxTT. Ultra High Efficiency (Up to 93.5%) Full Power at Wide Output Cur rent Range (Constant Power) Isolated 0-10V/10V PWM Dimmable (DT models) 3-Timer-Modes Dimmable (TT models) Input Surge Protection: DM 6kV, CM 10kV All-Around Protection: OVP, SCP, OTP IP67 and UL Dry / Damp / Wet Location SELV Output TYPE HL, for use in a Class I, Division 2 hazardous (Classified) location 5 Years Warranty
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 320W Programmable IP67 Driver EUK-320SxxxDT(TT) Rev. E www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com I-V Operating Area EUK-320S150DT(TT) EUK-320S220DT(TT) (630,305)(105,305) 120 180 240 300 360 0 300 600 900 1200 1500 1800 Output Voltage(V) Output Current (mA) (1050,305) (1500,213) 100%Load 60%Load (1500,128) (Ioset,320/Ioset)(10%Ioset,320/Ioset) Note: 1050mA≤Ioset≤1500mA Good Performance Area Allowed Operating Area Programmed Operating Area (924,208)(154,208) 120 160 200 240 0 450 900 1350 1800 2250 2700 Output Voltage(V) Output Current (mA) (1540,208) (2200,145) 100%Load 60%Load (2200,87) (10%Ioset,320/Ioset) Note: 1540mA≤Ioset≤2200mA (2200,73) (Ioset ,73)(220,73) Good Performance Area Allowed Operating Area Programmed Operating Area (Ioset,320/Ioset) EUK-320S320DT(TT) EUK-320S460DT(TT) 120 150 180 0 650 1300 1950 2600 3250 3900 Output Voltage(V) Output Current (mA) (2240,143) (3200,100)100%Load 60%Load (3200,60) Note: 2240mA≤Ioset≤3200mA (3200,50) (Ioset,50)(320,50) Good Performance Area Allowed Operating Area Programmed Operating Area (Ioset,320/Ioset)(10%Ioset,320/Ioset) 100 120 0 900 1800 2700 3600 4500 5400 Output Voltage(V) Output Current (mA) (3220,100) (4600,69.5) 100%Load 60%Load (4600,41.5) (10%Ioset,320/Ioset) Note: 3220mA≤Ioset≤4600mA (4600,35) (Ioset,35)(460,35) Good Performance Area Allowed Operating Area Programmed Operating Area (Ioset,320/Ioset) EUK-320S670DT(TT) (2814,68)(469,68) 0 1350 2700 4050 5400 6750 8100 Output Voltage(V) Output Current (mA) (4690,68) 60%Load (6700,28.5) (10%Ioset,320/Ioset) Note: 4690mA≤Ioset≤6700mA (6700,24) (Ioset,24)(670,24) Good Performance Area Allowed Operating Area Programmed Operating Area (Ioset,320/Ioset)
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 320W Programmable IP67 Driver EUK-320SxxxDT(TT) Rev. E www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Input Specifications Parameter Min. Typ. Max. Notes Input AC Voltage 90 Vac - 305 Vac Input DC Voltage 127 Vdc - 300 Vdc Input Frequency 47 Hz - 63 Hz Leakage Current - - 0.75 MIU UL8750; 277Vac/ 60Hz - - 0.70 mA IEC60598-1; 240Vac/ 60Hz, Input AC Current - - 3.20 A Measured at 100% load and 120 Vac input. - - 1.70 A Measured at 100% load and 220 Vac input. Inrush Current(I2t) - - 1.30 A 2s At 220Vac input, 25C cold start, duration=3.92 ms, 10%Ipk-10%Ipk. See Inrush Current Waveform for the details. PF 0.9 - - At 100-277Vac, 50-60Hz, 60%-100%Load THD - - 10% At 220-240Vac, 50-60Hz, 75%-100% Load (240-320W) Output Specifications Parameter Min. Typ. Max. Notes Output Current Tolerance -5%Ioset - 5%Ioset At 100% load condition Output Current Setting(Ioset) Range EUK-320S150DT(TT) EUK-320S220DT(TT) EUK-320S320DT(TT) EUK-320S460DT(TT) EUK-320S670DT(TT) 105 mA 154 mA 224 mA 322 mA 469 mA 1500 mA 2200 mA 3200 mA 4600 mA 6700 mA Output Current Setting Range with Constant Power EUK-320S150DT(TT) EUK-320S220DT(TT) EUK-320S320DT(TT) EUK-320S460DT(TT) EUK-320S670DT(TT) 1050 mA 1540 mA 2240 mA 3220 mA 4690 mA 1500 mA 2200 mA 3200 mA 4600 mA 6700 mA Total Output Current Ripple (pk-pk) - 5%Iomax 10%Iomax At 100% load condition. 20 MHz BW Output Current Ripple at < 200 Hz (pk-pk) - 2%Iomax - At 100% load condition. Only this component of ripple is associated with visible flicker. Startup Overshoot Current - - 10%Iomax At 100% load condition No Load Output Voltage EUK-320S150DT(TT) EUK-320S220DT(TT) EUK-320S320DT(TT) EUK-320S460DT(TT) EUK-320S670DT(TT) 350 V 250 V 170 V 120 V 85 V Line Regulation - - ±0.5% Measured at 100% load
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 320W Programmable IP67 Driver EUK-320SxxxDT(TT) Rev. E www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Output Specifications (Continued) Parameter Min. Typ. Max. Notes Load Regulation - - ±1.5% Turn-on Delay Time - - 1.0 s Measured at 120Vac input, 60%-100% Load - - 0.5 s Measured at 220Vac input, 60%-100% Load Temperature Coefficient of Ioset - 0.03%/C - Case temperature = 0C ~Tc max General Specifications Parameter Min. Typ. Max. Notes Efficiency at 120 Vac input: EUK-320S150DT(TT) Io=1050mA Io=1500mA EUK-320S220DT(TT) Io=1540mA Io=2200mA EUK-320S320DT(TT) Io=2240mA Io=3200mA EUK-320S460DT(TT) Io=3220mA Io=4600mA EUK-320S670DT(TT) Io=4690mA Io=6700mA 89.50% 89.00% 89.00% 89.00% 88.00% 88.00% 88.50% 88.00% 88.00% 87.00% 91.50% 91.00% 91.00% 91.00% 90.00% 90.00% 90.50% 90.00% 90.00% 89.00% Measured at 100% load and steady-state temperature in 25C ambient; (Efficiency will be about 2.0% lower if measured immediately after startup.) Efficiency at 220 Vac input: EUK-320S150DT(TT) Io=1050mA Io=1500mA EUK-320S220DT(TT) Io=1540mA Io=2200mA EUK-320S320DT(TT) Io=2240mA Io=3200mA EUK-320S460DT(TT) Io=3220mA Io=4600mA EUK-320S670DT(TT) Io=4690mA Io=6700mA 91.50% 91.50% 91.50% 91.50% 90.50% 90.00% 90.50% 90.00% 90.50% 89.50% 93.50% 93.50% 93.50% 93.50% 92.50% 92.00% 92.50% 92.00% 92.50% 91.50% Measured at 100% load and steady-state temperature in 25C ambient; (Efficiency will be about 2.0% lower if measured immediately after startup.)
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 320W Programmable IP67 Driver EUK-320SxxxDT(TT) Rev. E www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com General Specifications (Continued) Parameter Min. Typ. Max. Notes Efficiency at 277 Vac input: EUK-320S150DT(TT) Io=1050mA Io=1500mA EUK-320S220DT(TT) Io=1540mA Io=2200mA EUK-320S320DT(TT) Io=2240mA Io=3200mA EUK-320S460DT(TT) Io=3220mA Io=4600mA EUK-320S670DT(TT) Io=4690mA Io=6700mA 92.00% 91.50% 92.00% 91.50% 90.50% 90.50% 90.50% 90.50% 91.00% 90.00% 94.00% 93.50% 94.00% 93.50% 92.50% 92.50% 92.50% 92.50% 93.00% 92.00% Measured at 100% load and steady-state temperature in 25C ambient; (Efficiency will be about 2.0% lower if measured immediately after startup.) MTBF - 282,000 Hours - Measured at 220Vac input, 80%Load and 25C ambient temperature (MIL-HDBK- 217F) Lifetime - 86,000 Hours - Measured at 220Vac input, 80%Load and 70C case temperature; See lifetime vs. Tc curve for the details Operating Case Temperature for Safety Tc_s -40°C - +85°C Operating Case Temperature for Warranty Tc_w -40°C - +75C Case temperature for 5 years warranty Humidity: 10%RH to 95%RH Storage Temperature -40°C - +85°C Humidity: 5%RH to 95%RH Dimensions Inches (L × W × H) Millimeters (L × W × H) 8.82 × 3.15 × 1.57 224 × 80 × 39.7 With mounting ear 9.89 × 3.15 × 1.57 251 × 80 × 39.7 Net Weight - 1530 g - Dimming Specifications Parameter Min. Typ. Max. Notes DT Models Absolute Maximum Voltage on the Vdim (+) Pin -20 V - 20 V Source Current on Vdim (+)Pin 200 μA 300 μA 450 μA Vdim(+) = 0 V Recommended Dimming Range for 0-10V
0 V - 10 V
PWM_in High Level - 10V - PWM_in Low Level - 0V - PWM_in Frequency Range 200 Hz - 2 KHz PWM_in Duty Cycle 0% - 100%
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 320W Programmable IP67 Driver EUK-320SxxxDT(TT) Rev. E www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Dimming Specifications (Continued) Safety &EMC Compliance Safety Category Standard UL/CUL UL8750,CAN/CSA-C22.2 No. 250.13 CE EN 61347-1, EN 61347-2-13 EAC ГОСТ Р МЭК 61347-1, ГОСТ IEC 61347-2-13 EMI Standards Notes EN 55015/ KN 15(1) Conducted emission Test & Radiated emission Test EN 61000-3-2 Harmonic current emissions EN 61000-3-3 Voltage fluctuations & flicker FCC Part 15(1) ANSI C63.4 Class B This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interfere nce, and [2] this device must accept any interference received, including interference that may cause undesired Operation. EMS Standards Notes EN 61000-4-2 Electrostatic Discharge (ESD): 8 kV air discharge, 4 kV contact discharge EN 61000-4-3 Radio-Frequency Electromagnetic Field Susceptibili ty Test-RS EN 61000-4-5 Surge Immunity Test: AC Power Line: Differential M ode 6 kV, Common Mode 10 kV(2) EN 61000-4-6 Conducted Radio Frequency Disturbances Test-CS EN 61000-4-8 Power Frequency Magnetic Field Test EN 61000-4-11 Voltage Dips Parameter Min. Typ. Max. Notes TT Models Dimming Level 10% - 100% Default is Traditional Timer. Dimming mode set to Self Adapting- Midnight or Self Adapting-Percentage in PC interface. Hold Time 0 Hours - 18 Hours Fade Time 0 Minutes - 60 Minutes Dimming Step 1 - 6 Dimming Output Range EUK-320S150DT(TT) EUK-320S220DT(TT) EUK-320S320DT(TT) EUK-320S460DT(TT) EUK-320S670DT(TT) 10%Ioset - Ioset 1050 mA ≤ Ioset ≤ 1500 mA 1540 mA ≤ Ioset ≤ 2200 mA 2240 mA ≤ Ioset ≤ 3200 mA 3220 mA ≤ Ioset ≤ 4600 mA 4690 mA ≤ Ioset ≤ 6700 mA EUK-320S150DT(TT) EUK-320S220DT(TT) EUK-320S320DT(TT) EUK-320S460DT(TT) EUK-320S670DT(TT) 105 mA 154 mA 224 mA 322 mA 469 mA - Ioset 105 mA ≤ Ioset ＜ 1050 mA 154 mA ≤ Ioset ＜ 1540 mA 224 mA ≤ Ioset ＜ 2240 mA 322 mA ≤ Ioset ＜ 3220 mA 469 mA ≤ Ioset ＜ 4690 mA
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 320W Programmable IP67 Driver EUK-320SxxxDT(TT) Rev. E www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Safety &EMC Compliance (Continued) EMS Standards Notes EN 61547 Electromagnetic Immunity Requirements Applies To Lighting Equipment Note: (1) This LED driver meets the EMI specifications above, but EMI performance of a luminaire that contains it depends also on the other devices connected to the driver and on the fixture itself. (2) To perform electric strength (hi-pot) testing, the “GDT ground disconnect” (nut and metal lock sheet) on the driver end-cap should be removed temporarily to prevent the internal gas discharge tube from conducting (as allowed by IEC 60598-1 Clause 10.2). After testing is completed, these items must be reinstalled to restore line-to-earth surge protection and secure the end cap. Derating Lifetime vs. Case Temperature
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 320W Programmable IP67 Driver EUK-320SxxxDT(TT) Rev. E www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Inrush Current Waveform Efficiency vs. Load EUK-320S150DT(TT)(lo=1050mA) EUK-320S150DT(TT)(lo=1500mA) EUK-320S220DT(TT)(lo=1540mA) EUK-320S220DT(TT)(lo=2200mA)
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 320W Programmable IP67 Driver EUK-320SxxxDT(TT) Rev. E www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com EUK-320S320DT(TT)(lo=2240mA) EUK-320S320DT(TT)(lo=3200mA) EUK-320S460DT(TT)(lo=3220mA) EUK-320S460DT(TT)(lo=4600mA) EUK-320S670DT(TT)(lo=4690mA) EUK-320S670DT(TT)(lo=6700mA)
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 320W Programmable IP67 Driver EUK-320SxxxDT(TT) Rev. E www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Power Factor Total Harmonic Distortion Protection Functions Parameter Notes Over Temperature Protection Decreases output current, returning to normal after over temperature is removed. Short Circuit Protection Auto Recovery. No damage will occur when any output is short ci rcuited. The output shall return to normal when the fault condition is removed. Over Voltage Protection Limits output voltage at no load and in case the normal voltage limit fails.
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 320W Programmable IP67 Driver EUK-320SxxxDT(TT) Rev. E www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Dimming 0-10V Dimming (Only DT models) The recommended implementation of the dimming control is provided below. Dim+ Dim- 0 (1)-10V Dimmer Inventronics LED Driver L VprgN G Vac Implementation 1: Positive logic Notes: 1. Do NOT connect Dim− to the output V− or V+, otherwise the dr iver will not work properly. 2. The dimmer can also be replac ed by an active 0-10V voltage source signal or passive components like resistors and zener. 10V PWM Dimming (Only DT models) The recommended implementation of the dimming control is provided below. Dim+ Dim- Inventronics LED Driver L G Vprg N Vac PWM Signal Implementation 2: Positive logic Notes: Do NOT connect Dim− to the output V− or V+, otherwise the driver will not work properly. Time Dimming (Only TT models) Time dimming control includes 3 kinds of modes, they are Self Adapting-Midnight, Self Adapting- Percentage and Traditional Timer. Self Adapting-Midnight: Automatically adjusts the dimming curve based on the on-time of past two days (if difference <15 minutes), assuming that the center poin t of the dimming curve is midnight local time. Self Adapting-Percentage: Automatically adjusts the on-time of each step by a constant percentage = (actual on-time for the past 2 days if difference <15 min) / (programmed on-time from the dimming curve). Traditional Timer: Follows the programmed timing curve after power on with no changes.
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 320W Programmable IP67 Driver EUK-320SxxxDT(TT) Rev. E www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Output Lumen Compensation (Only TT models) Output Lumen Compensation (OLC) may be used to maintain constant light output over the life of the LEDs by driving them at a reduced current when new, then gradually i ncreasing the drive current over time to counteract LED lumen degradation. Programming Connection Diagram Note: The driver does not need to be powered on during the programming process. Please refer to PRG-MUL2 Multi-Programmer datasheet for details. Mechanical Outline BLACK/WHITE PURPLE GRAY Unspecified tolerance:±1 PROJ: AC/N WHITE) AC/L BLACK) GND (GREEN) INPUT (UL SJTW 3*18AWG 7.8) DIMMING WIRE (UL21996 3*22AWG 5.0) OUTPUT (UL SJTW 2*18AWG 7.3) V+ (RED) V- (BLUE) Tc
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 320W Programmable IP67 Driver EUK-320SxxxDT(TT) Rev. E www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com RoHS Compliance Our products comply with reference to RoHS Directive (EU) 2015/ 863 amending 2011/65/EU, calling for the elimination of lead and other hazardous substances from electronic products.
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 320W Programmable IP67 Driver EUK-320SxxxDT(TT) Rev. E www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com
Revision History
Date Rev. Description of Change Item From To 2018-12-14 A Datasheets Release / / 2019-02-14 B Features 3 Timer Modes Dimmable (TT models) Added Models EUK-320SxxxTT Added I-V Operation Area EUK-320SxxxTT Added Output Current Setting(Ioset) Range EUK-320SxxxTT Added Output Current Setting Range with Constant Power EUK-320SxxxTT Added No Load Output Voltage EUK-320SxxxTT Added Efficiency at 120 Vac input EUK-320SxxxTT Added Efficiency at 220 Vac input EUK-320SxxxTT Added Efficiency at 277 Vac input EUK-320SxxxTT Added Dimming Specifications TT Models Added Efficiency vs. Load EUK-320SxxxTT Added Dimming / Updated 2019-04-18 C Features / Updated 2019-12-02 D KCC Logo / Added EAC Logo / Added Features 6kV line-line, 10k V line-earth DM 6kV, CM 10kV Features Waterproof (IP67) IP67 Models Notes (5) Added Safety &EMC Compliance EAC Added Safety &EMC Compliance EN 55015 (1) EN 55015/ KN 15 (1) Safety &EMC Compliance EN 61000-4-5 Updated RoHS Compliance / Updated 2021-07-22 E Mechanical Outline / Updated
