EUK-200SXXXDT INVENTRONICS
Document overview
- Manufacturer or author: Provided By www.digicamel.com(free datasheet download site)
- PDF pages: 14
Technical content
Features
Description

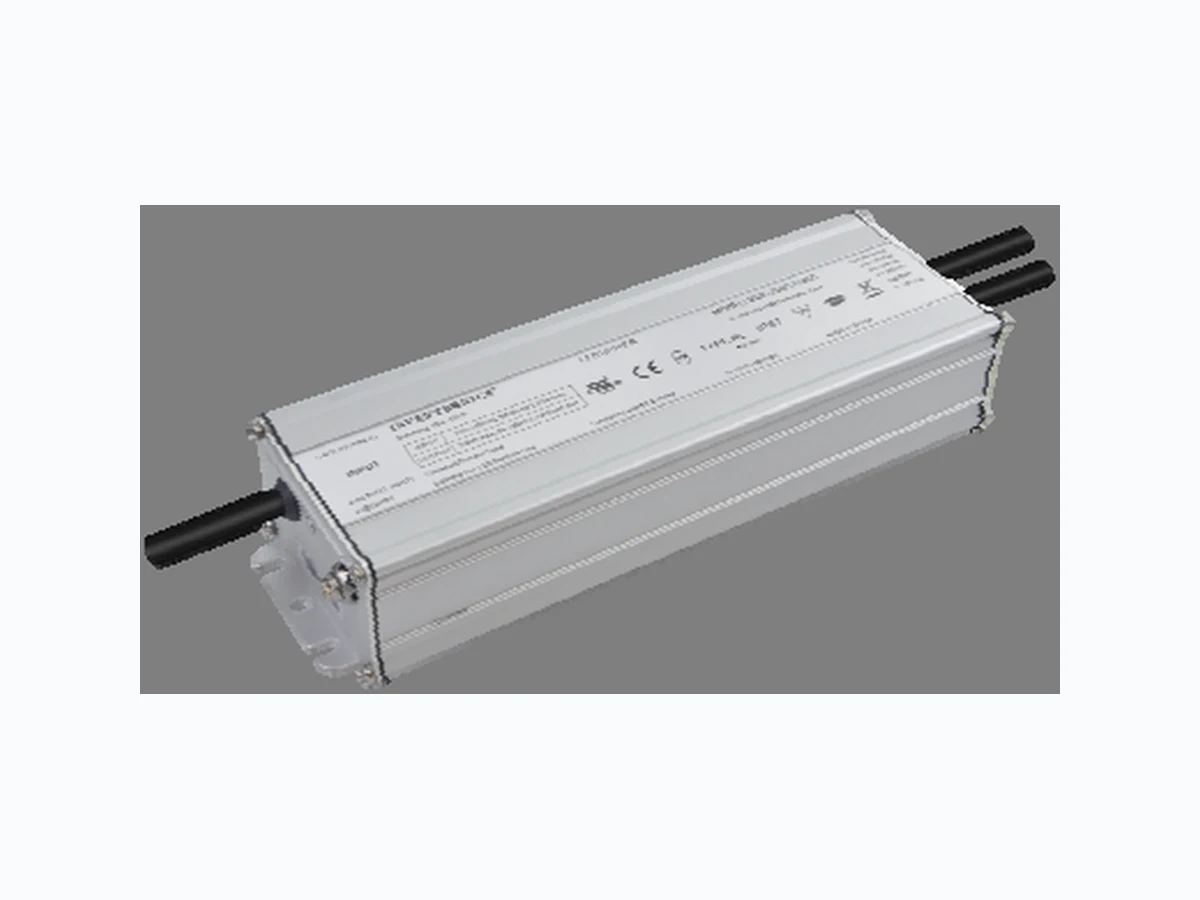

The EUK-200SxxxDT(TT) series is a 200W, constant-current, programmable IP67 LED driver that operates from 90-305 Vac input with excellent power factor. It is created for many lighting applications including high bay, high mast, sports and roadway. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature. Models Adjustable Output Current Range Full-Power Current Range (1) Default Output Current Input Voltage Range(2) Output Voltage Range Max. Output Power Typical Efficiency (3) Power Factor Model Number 120Vac 220Vac 70-1050mA 700-1050mA 700 mA 90~305 Vac/ 127~300 Vdc 95~286Vdc 200W 93.5% 0.99 0.96 EUK-200S105DT(TT) 105-1500mA 1050-1500mA 1050 mA 90~305 Vac/ 127~300 Vdc 67~190Vdc 200W 93.5% 0.99 0.96 EUK-200S150DT(TT) 140-2100mA 1400-2100mA 1400 mA 90~305 Vac/ 127~300 Vdc 48~143Vdc 200W 93.0% 0.99 0.96 EUK-200S210DT(TT) 245-3500mA 2450-3500mA 2800 mA 90~305 Vac/ 127~300 Vdc 29 ~ 82Vdc 200W 93.0% 0.99 0.96 EUK-200S350DT(TT) (4) 385-5600mA 3850-5600mA 4900 mA 90~305 Vac/ 127~300 Vdc 18 ~ 52Vdc 200W 92.0% 0.99 0.96 EUK-200S560DT(TT) (4) Notes: (1) Output current range with constant power at 200W (2) Certified input voltage range: UL, FCC 100-277Vac or 127-300Vdc; otherwise 100-240Vac or 127-250Vdc (except KS) (3) Measured at 100% load and 220Vac input (see below “General Specifications” for details). (4) SELV Output. Ultra High Efficiency (Up to 93.5%) Full Power at Wide Output Current Range (Constant Power) 0-10V/10V PWM Dimmable (DT models)
3 Timer Modes Dimmable (TT models)
Input Surge Protection: 6k V line-line, 10kV line-earth All-Around Protection: OVP, SCP, OTP Waterproof (IP67) and UL Dry / Damp / Wet Location SELV Output TYPE HL, for use in a Class I, Division 2 hazardous (Classified) location 5 Years Warranty
Specifications are subject to changes without notice. 200W Programmable IP67 Driver EUK-200SxxxDT(TT) Rev. D www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com I-V Operating Area EUK-200S105DT(TT) EUK-200S150DT(TT) EUK-200S210DT(TT) EUK-200S350DT(TT) EUK-200S560DT(TT)
Specifications are subject to changes without notice. 200W Programmable IP67 Driver EUK-200SxxxDT(TT) Rev. D www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Input Specifications Parameter Min. Typ. Max. Notes Input Voltage 90 Vac - 305 Vac 127~300 Vdc Input Frequency 47 Hz - 63 Hz Leakage Current - - 0.75 MIU UL8750; 277Vac/ 60Hz, grounding effectively - - 0.70 mA IEC60598-1; 240Vac/ 60Hz, grounding effectively Input AC Current - - 2.15 A Measured at 100% load and 120 Vac input. - - 1.1 A Measured at 100% load and 220 Vac input. Inrush Current(I2t) - - 1.95A 2s At 220Vac input, 25C cold start, duration=1.40ms, 10%Ipk-10%Ipk. See Inrush Current Waveform for the details. PF 0.9 - - At 100-277Vac, 50-60Hz, 70%-100% Load THD - - 10% At 220-240Vac, 50-60Hz, 75%-100% Load (150-200W) Output Specifications Parameter Min. Typ. Max. Notes Output Current Tolerance -5%Ioset - 5%Ioset 100% load Output Current Setting(Ioset) Range EUK-200S105DT(TT) EUK-200S150DT(TT) EUK-200S210DT(TT) EUK-200S350DT(TT) EUK-200S560DT(TT) 70 mA 105 mA 140 mA 245 mA 385 mA 1050 mA 1500 mA 2100 mA 3500 mA 5600 mA Output Current Setting Range with Constant Power EUK-200S105DT(TT) EUK-200S150DT(TT) EUK-200S210DT(TT) EUK-200S350DT(TT) EUK-200S560DT(TT) 700 mA 1050 mA 1400 mA 2450 mA 3850 mA 1050 mA 1500 mA 2100 mA 3500 mA 5600 mA Total Output Current Ripple (pk-pk) - 5%Iomax 10%Iomax 100% load. 20 MHz BW Output Current Ripple at < 200 Hz (pk-pk) - 2%Iomax - 100% load Startup Overshoot Current - - 10%Iomax 100% load No Load Output Voltage EUK-200S105DT(TT) EUK-200S150DT(TT) EUK-200S210DT(TT) EUK-200S350DT(TT) EUK-200S560DT(TT) 320 V 220 V 160 V 100 V 60 V
Specifications are subject to changes without notice. 200W Programmable IP67 Driver EUK-200SxxxDT(TT) Rev. D www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Output Specifications (Continued) Parameter Min. Typ. Max. Notes Line Regulation - - ±0.5% 100% load Load Regulation - - ±1.5% Turn-on Delay Time - - 1.0 s Measured at 120Vac input, 70%-100% Load - - 0.5 s Measured at 220Vac input, 70%-100% Load Temperature Coefficient of Ioset - 0.03%/C - Case temperature = 0C ~Tc max Note: All specifications are typical at 25C unless otherwise stated. General Specifications Parameter Min. Typ. Max. Notes Efficiency at 120 Vac input: EUK-200S105DT(TT) Io= 700 mA Io=1050 mA EUK-200S150DT(TT) Io=1050 mA Io=1500 mA EUK-200S210DT(TT) Io=1400 mA Io=2100 mA EUK-200S350DT(TT) Io=2450 mA Io=3500 mA EUK-200S560DT(TT) Io=3850 mA Io=5600 mA 88.5% 86.0% 88.0% 86.0% 88.0% 85.5% 87.5% 85.0% 87.0% 84.5% 90.5% 88.0% 90.0% 88.0% 90.0% 87.5% 89.5% 87.0% 89.0% 86.5% Measured at 100% load and steady-state temperature in 25C ambient; (Efficiency will be about 2.0% lower if measured immediately after startup.) Efficiency at 220 Vac input: EUK-200S105DT(TT) Io= 700 mA Io=1050 mA EUK-200S150DT(TT) Io=1050 mA Io=1500 mA EUK-200S210DT(TT) Io=1400 mA Io=2100 mA EUK-200S350DT(TT) Io=2450 mA Io=3500 mA EUK-200S560DT(TT) Io=3850 mA Io=5600 mA 91.5% 90.0% 91.5% 89.5% 91.0% 88.5% 91.0% 88.5% 90.0% 88.0% 93.5% 92.0% 93.5% 91.5% 93.0% 90.5% 93.0% 90.5% 92.0% 90.0% Measured at 100% load and steady-state temperature in 25C ambient; (Efficiency will be about 2.0% lower if measured immediately after startup.)
Specifications are subject to changes without notice. 200W Programmable IP67 Driver EUK-200SxxxDT(TT) Rev. D www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com General Specifications (Continued) Parameter Min. Typ. Max. Notes Efficiency at 277 Vac input: EUK-200S105DT(TT) Io= 700 mA Io=1050 mA EUK-200S150DT(TT) Io=1050 mA Io=1500 mA EUK-200S210DT(TT) Io=1400 mA Io=2100 mA EUK-200S350DT(TT) Io=2450 mA Io=3500 mA EUK-200S560DT(TT) Io=3850 mA Io=5600 mA 92.0% 90.5% 92.0% 90.0% 91.5% 89.0% 91.5% 89.0% 90.5% 88.0% 94.0% 92.5% 94.0% 92.0% 93.5% 91.0% 93.5% 91.0% 92.5% 90.0% Measured at 100% load and steady-state temperature in 25C ambient; (Efficiency will be about 2.0% lower if measured immediately after startup.) MTBF - 329,000 Hours - Measured at 220Vac input, 80%Load and 25C ambient temperature (MIL-HDBK- 217F) Lifetime - 85,000 Hours - Measured at 220Vac input, 80%Load and 70C case temperature; See lifetime vs. Tc curve for the details Operating Case Temperature for Safety Tc_s -40°C - +89°C Operating Case Temperature for Warranty Tc_w -40°C - +75C Case temperature for 5 years warranty Storage Temperature -40°C - + 85°C Humidity: 5%RH to 100%RH Dimensions Inches (L × W × H) Millimeters (L × W × H) 7.95 × 2.66 × 1.56 202 × 67.5 × 39.7 With mounting ear 8.70 × 2.66 × 1.56 221× 67.5 × 39.7 Net Weight - 1100 g - Note: All specifications are typical at 25C unless otherwise stated. Dimming Specifications Parameter Min. Typ. Max. Notes DT Models Absolute Maximum Voltage on the Vdim (+) Pin -20 V - 20 V Source Current on Vdim (+)Pin 200 uA 300 uA 450 uA Vdim(+) = 0 V Recommended Dimming Range for 0-10V
0 V - 10 V
PWM_in High Level - 10V - PWM_in Low Level - 0V - PWM_in Frequency Range 200 Hz - 2 KHz PWM_in Duty Cycle 0% - 100%
Specifications are subject to changes without notice. 200W Programmable IP67 Driver EUK-200SxxxDT(TT) Rev. D www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Dimming Specifications Safety &EMC Compliance Safety Category Standard UL/CUL UL8750,CAN/CSA-C22.2 No. 250.13 CE EN 61347-1, EN61347-2-13 KS KS C 7655 EMI Standards Notes EN 55015(1) Conducted emission Test &Radiated emission Test EN 61000-3-2 Harmonic current emissions EN 61000-3-3 Voltage fluctuations & flicker FCC Part 15(1) ANSI C63.4 Class B This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference, and [2] this device must accept any interference re ceived, including interference that may cause undesired Operation. EMS Standards Notes EN 61000-4-2 Electrostatic Discharge (ESD): 8 kV air discharge, 4 kV contact discharge EN 61000-4-3 Radio-Frequency Electromagnetic Field Susceptibility Test-RS EN 61000-4-5 Surge Immunity Test: AC Power Line: line to line 6 kV, line to earth 10 kV (2) EN 61000-4-6 Conducted Radio Frequency Disturbances Test-CS Parameter Min. Typ. Max. Notes TT Models Dimming Level 10% - 100% Default is Traditional Timer. Dimming mode set to Self Adapting- Midnight or Self Adapting-Percentage in PC interface. Hold Time 0 Hours - 18 Hours Fade Time 0 Minutes - 60 Minutes Dimming Step 1 - 6 Dimming Output Range EUK-200S105DT(TT) EUK-200S150DT(TT) EUK-200S210DT(TT) EUK-200S350DT(TT) EUK-200S560DT(TT) 10%Ioset - Ioset 700 mA ≤ Ioset ≤ 1050 mA 1050 mA ≤ Ioset ≤ 1500 mA 1400 mA ≤ Ioset ≤ 2100 mA 2450 mA ≤ Ioset ≤ 3500 mA 3850 mA ≤ Ioset ≤ 5600 mA EUK-200S105DT(TT) EUK-200S150DT(TT) EUK-200S210DT(TT) EUK-200S350DT(TT) EUK-200S560DT(TT) 70 mA 105 mA 140 mA 245 mA 385 mA - Ioset 70 mA ≤ Ioset ＜ 700 mA 105 mA ≤ Ioset ＜ 1050 mA 140 mA ≤ Ioset ＜ 1400 mA 245 mA ≤ Ioset ＜ 2450 mA 385 mA ≤ Ioset ＜ 3850 mA
Specifications are subject to changes without notice. 200W Programmable IP67 Driver EUK-200SxxxDT(TT) Rev. D www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Safety &EMC Compliance EMS Standards Notes EN 61000-4-8 Power Frequency Magnetic Field Test EN 61000-4-11 Voltage Dips EN 61547 Electromagnetic Immunity Requi rements Applies To Lighting Equipment Note: (1) This LED driver meets the EMI specifications above, bu t EMI performance of a lumina ire that contains it depends also on the other devices connected to the driver and on the fixture itself. (2) To perform electric strength (hi-pot) testing, the “GDT ground disconnect” (nut and metal lock sheet) on the driver end-cap should be removed temporarily to prevent the in ternal gas discharge tube from conducting (as allowed by IEC 60598-1 Clause 10.2). After testing is completed, these items must be reinstalled to restore line-to-earth surge protection and secure the end cap. Derating Lifetime vs. Case Temperature
Specifications are subject to changes without notice. 200W Programmable IP67 Driver EUK-200SxxxDT(TT) Rev. D www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Inrush Current Waveform Efficiency vs. Load EUK-200S105DT(TT)(lo=700mA) EUK-200S105DT(TT)(lo=1050mA) EUK-200S150DT(TT)(lo=1050mA) EUK-200S150DT(TT)(lo=1500mA)
Specifications are subject to changes without notice. 200W Programmable IP67 Driver EUK-200SxxxDT(TT) Rev. D www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com EUK-200S210DT(TT)(lo=1400mA) EUK-200S210DT(TT)(lo=2100mA) EUK-200S350DT(TT)(lo=2450mA) EUK-200S350DT(TT)(lo=3500mA) EUK-200S560DT(TT)(lo=3850mA) EUK-200S560DT(TT)(lo=5600mA)
Specifications are subject to changes without notice. 200W Programmable IP67 Driver EUK-200SxxxDT(TT) Rev. D www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Power Factor Total Harmonic Distortion Protection Functions Parameter Notes Over Temperature Protection Decreases output current, retu rning to normal after over temperature is removed. Short Circuit Protection Auto Recovery. No damage will occur when any output is short circuited. The output shall return to normal when the fault condition is removed. Over Voltage Protection Limits output voltage at no load and in case the normal voltage limit fails.
Specifications are subject to changes without notice. 200W Programmable IP67 Driver EUK-200SxxxDT(TT) Rev. D www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Dimming 0-10V Dimming (Only DT models) The recommended implementation of the dimming control is provided below. Implementation 1 Notes: 1. The dimmer can also be replaced by an active 0-10V voltage source signal or passive components like resistors and zener. 2. If 0-10V dimming is not used, Dim + should be open. 10V PWM Dimming (Only DT models) Implementation 2 Notes: If PWM dimming is not used, Dim + should be open.
Specifications are subject to changes without notice. 200W Programmable IP67 Driver EUK-200SxxxDT(TT) Rev. D www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Time Dimming (Only TT models) Time dimming control includes 3 kinds of modes, they are Self Adapting-Midnight, Self Adapting- Percentage and Traditional Timer. Self Adapting-Midnight : Automatically adjusts the dimming curve based on the on-time of past two days (if difference <15 minutes), assuming that the center point of the dimming curve is midnight local time. Self Adapting-Percentage: Automatically adjusts the on-time of each step by a constant percentage = (actual on-time for the past 2 days if difference <15 min) / (programmed on-time from the dimming curve). Traditional Timer: Follows the programmed timing curve after power on with no changes. Output Lumen Compensation (Only TT models) Output Lumen Compensation (OLC) may be used to maintain constant light output over the life of the LEDs by driving them at a reduced current when new, then gradually increasing the drive current over time to counteract LED lumen degradation. Programming Connection Diagram Note: The driver does not need to be powered on during the programming process. Please refer to PRG-MUL2 (Programmer) datasheet for details.
Specifications are subject to changes without notice. 200W Programmable IP67 Driver EUK-200SxxxDT(TT) Rev. D www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Mechanical Outline AC/L (BLACK) AC/N (WHITE) GND (GREEN) V+(RED) V- (BLUE) Unspecified tolerance:±1 PROJ: OUTPUT (UL SJTW 2*18AWG 7.3) INPUT (UL SJTW 3*18AWG 7.8 ) DIMMING WIRES (UL21996 3*22AWG 5.0) BLACK/WHITE PURPLE GRAYTc RoHS Compliance Our products comply with the European Directive 2011/65/EC, calling for the elimination of lead and other hazardous substances from electronic products.
Specifications are subject to changes without notice. 200W Programmable IP67 Driver EUK-200SxxxDT(TT) Rev. D www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com
Revision History
Date Rev. Description of Change Item From To 2017-09-19 A Datasheets Release / / 2017-11-10 B Operating Case Temperature for Safety Tc_s +90°C +89°C 2017-11-30 C Features 3 Timer Modes Dimmable (TT models) Added Models EUK-200SxxxTT Added I-V Operation Area EUK-200SxxxTT Added Output Current Setting(Ioset) Range EUK-200SxxxTT Added Output Current Setting Range with Constant Power EUK-200SxxxTT Added No Load Output Voltage EUK-200SxxxTT Added Efficiency at 120 Vac input EUK-200SxxxTT Added Efficiency at 220 Vac input EUK-200SxxxTT Added Efficiency at 277 Vac input EUK-200SxxxTT Added Dimming Specifications TT Models Added Efficiency vs. Load EUK-200SxxxTT Added Dimming / Updated 2018-05-30 D Description / Updated Mechanical Outline / Updated
