EUG-200SXXXDV INVENTRONICS

Document overview

  • Manufacturer or author: Provided By www.digicamel.com(free datasheet download site)
  • PDF pages: 13

Technical content

Features

Description

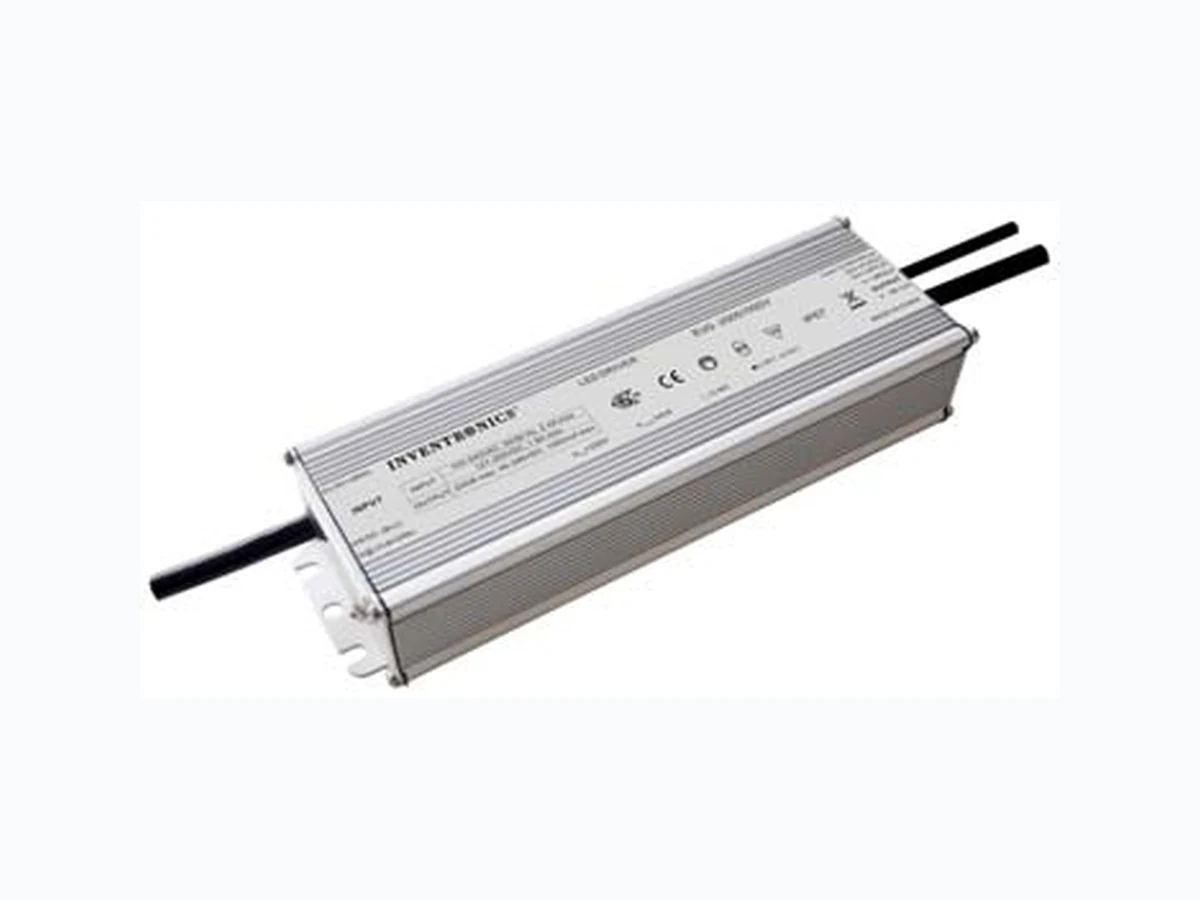

The EUG-200SxxxDV series is a 200W, constant-current, programmable LED driver th at operates from 90-305 Vac input with excellent power factor. It is created for high b ay, high mast, arena and roadway lights. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, p rotection is provided against input surge, output over voltage, short circuit, and over temperature. Models Adjustable Output Current Range Full-Power Current Range (1) Default Output Current Input Voltage Range(2) Output Voltage Range Max. Output Power Typical Efficiency (3) Typical Power Factor Model Number (4)(5) 120Vac 220Vac 70-1050mA 700-1050mA 700 mA 90~305 Vac/ 127~250 Vdc 95~286Vdc 200W 94.0% 0.99 0.96 EUG-200S105DV 140-2100mA 1400-2100mA 1400 mA 90~305 Vac/ 127~250 Vdc 48~143Vdc 200W 94.0% 0.99 0.96 EUG-200S210DV 245-3500mA 2450-3500mA 2800 mA 90~305 Vac/ 127~250 Vdc 29 ~ 82Vdc 200W 93.5% 0.99 0.96 EUG-200S350DV (6) 385-5600mA 3850-5600mA 4900 mA 90~305 Vac/ 127~250 Vdc 18 ~ 52Vdc 200W 92.5% 0.99 0.96 EUG-200S560DV (6) Notes: (1) Output current range with constant power at 200W. (2) Certified voltage range: 100-240Vac or 127-250Vdc (except CCC, KS and BIS). (3) Measured at 100% load and 220Vac input (see below “General Specifications” for details). (4) All the models are certificated to KS, except EUG-200S105DV. (5) All the models are certificated to SAA, except EUG-200S350DV. (6) SELV Output.  Ultra High Efficiency (Up to 94%)  Full Power at Wide Output Cur rent Range (Constant Power)  0-5V/0-10V/PWM/Timer Dimmable  Input Surge Protection: DM 6kV, CM 10kV  All-Around Protection: OVP, SCP, OTP  I P 6 7  SELV Output  7 Years Warranty

Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 200W Programmable IP67 Driver EUG-200SxxxDV Rev. F www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com I-V Operation Area EUG-200S105DV EUG-200S210DV Output Voltage(V) Output Current (mA) Good Performance Area Allowed Operating Area Programmed Operating Area Note: 700mA≤Ioset≤1050 mA (420,286)(70,286) 110 165 220 275 330 0 200 400 600 800 1000 1200 (700,286) (1050,190.5) 100%Load60%Load (1050,95) (Ioset,200/Ioset)(10%Ioset,200/Ioset) (105,95) (Ioset,95) (1050,114) Output Voltage(V) Output Current (mA) Good Performance Area Allowed Operating Area Programmed Operating Area Note: 1400mA≤Ioset≤2100mA (840,143)(140,143) 104 130 156 0 400 800 1200 1600 2000 2400 (1400,143) (2100,95) 100%Load60%Load (2100,48) (Ioset,200/Ioset) (10%Ioset,200/Ioset) (210,48) (Ioset,48) (2100,57) EUG-200S350DV EUG-200S560DV Output Voltage(V) Output Current (mA) Good Performance Area Allowed Operating Area Programmed Operating Area Note: 2450 mA≤Ioset≤3500mA (1470,82)(245,82) 0 650 1300 1950 2600 3250 3900 (2450,82) (3500,57) 100%Load 60%Load (3500,29) (Ioset,200/Ioset) (10%Ioset,200/Ioset) (350,29) (Ioset,29) (3500,34) Output Voltage(V) Output Current (mA) Good Performance Area Allowed Operating Area Programmed Operating Area Note: 3850 mA≤Ioset≤5600mA (2310,52)(385,52) 0 1000 2000 3000 4000 5000 6000 (3850,52) (5600,35.5) 100%Load60%L oad (5600,18) (Ioset,200/Ioset) (10%Ioset,200/Ioset) (560,18) (Ioset,18) (5600,21) Input Specifications Parameter Min. Typ. Max. Notes Input AC Voltage 90 Vac - 305 Vac Input DC Voltage 127 Vdc - 250 Vdc Input Frequency 47 Hz - 63 Hz Leakage Current - - 0.70 mA IEC 60598-1; 240Vac/ 60Hz Input AC Current - - 2.64 A Measured at 100% load and 100 Vac input. - - 1.20 A Measured at 100% load and 220 Vac input. Inrush Current(I2t) - - 2.65 A 2s At 220Vac input, 25C cold start, duration=1.36 ms, 10%Ipk-10%Ipk. See Inrush Current Waveform for the details. PF 0.9 - - At 100-240Vac, 50-60Hz, 60%-100% Load

Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 200W Programmable IP67 Driver EUG-200SxxxDV Rev. F www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Input Specifications (Continued) Parameter Min. Typ. Max. Notes THD - - 10% At 220-240Vac, 50-60Hz, 75%-100% Load (150-200W) Output Specifications Parameter Min. Typ. Max. Notes Output Current Tolerance -5%Ioset - 5%Ioset At 100% load condition Output Current Setting(Ioset) Range EUG-200S105DV EUG-200S210DV EUG-200S350DV EUG-200S560DV 70 mA 140 mA 245 mA 385 mA 1050 mA 2100 mA 3500 mA 5600 mA Output Current Setting Range with Constant Power EUG-200S105DV EUG-200S210DV EUG-200S350DV EUG-200S560DV 700 mA 1400 mA 2450 mA 3850 mA 1050 mA 2100 mA 3500 mA 5600 mA Total Output Current Ripple (pk-pk) - 5%Iomax 10%Iomax At 100% load condition. 20 MHz BW Output Current Ripple at < 200 Hz (pk-pk) - 2%Iomax - At 100% load condition. Only this component of ripple is associated with visible flicker. Startup Overshoot Current - - 10%Iomax At 100% load condition No Load Output Voltage EUG-200S105DV EUG-200S210DV EUG-200S350DV EUG-200S560DV 330 V 170 V 95 V 60 V Line Regulation - - ±0.5% Measured at 100% load Load Regulation - - ±1.5% Turn-on Delay Time - - 1.0 s Measured at 120Vac input, 60%-100% Load - - 0.5 s Measured at 220Vac input, 60%-100% Load Temperature Coefficient of Ioset - 0.03%/C - Case temperature = 0C ~Tc max 12V Auxiliary Output Voltage 10.8 V 12 V 13.2 V 12V Auxiliary Output Source Current 0 mA - 20 mA Return terminal is “Dim−“

Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 200W Programmable IP67 Driver EUG-200SxxxDV Rev. F www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com General Specifications Parameter Min. Typ. Max. Notes Efficiency at 120 Vac input: EUG-200S105DV Io= 700mA Io=1050mA EUG-200S210DV Io=1400mA Io=2100mA EUG-200S350DV Io=2450mA Io=3500mA EUG-200S560DV Io=3850mA Io=5600mA 89.0% 88.0% 89.5% 88.0% 88.5% 87.0% 88.0% 87.0% 91.0% 90.0% 91.5% 90.0% 90.5% 89.0% 90.0% 89.0% Measured at 100% load and steady-state temperature in 25C ambient; (Efficiency will be about 2.0% lower if measured immediately after startup.) Efficiency at 220 Vac input: EUG-200S105DV Io= 700mA Io=1050mA EUG-200S210DV Io=1400mA Io=2100mA EUG-200S350DV Io=2450mA Io=3500mA EUG-200S560DV Io=3850mA Io=5600mA 92.0% 91.0% 92.0% 90.5% 91.5% 89.5% 90.5% 89.5% 94.0% 93.0% 94.0% 92.5% 93.5% 91.5% 92.5% 91.5% Measured at 100% load and steady-state temperature in 25C ambient; (Efficiency will be about 2.0% lower if measured immediately after startup.) Efficiency at 277 Vac input: EUG-200S105DV Io= 700mA Io=1050mA EUG-200S210DV Io=1400mA Io=2100mA EUG-200S350DV Io=2450mA Io=3500mA EUG-200S560DV Io=3850mA Io=5600mA 92.5% 91.5% 92.5% 91.0% 91.5% 90.0% 91.0% 90.0% 94.5% 93.5% 94.5% 93.0% 93.5% 92.0% 93.0% 92.0% Measured at 100% load and steady-state temperature in 25C ambient; (Efficiency will be about 2.0% lower if measured immediately after startup.) MTBF - 230,000 Hours - Measured at 220Vac input, 80%Load and 25C ambient temperature (MIL-HDBK- 217F) Lifetime - 95,000 Hours - Measured at 220Vac input, 80%Load and 70C case temperature; See lifetime vs. Tc curve for the details Operating Case Temperature for Safety Tc_s -40°C - +90°C Operating Case Temperature for Warranty Tc_w -40°C - +75°C Case temperature for 7 years warranty. Please see Inventronics Warranty Statement for complete details. Humidity: 10%RH to 95%RH Storage Temperature -40°C - +8 5°C Humidity: 5%RH to 95%RH Dimensions Inches (L × W × H) Millimeters (L × W × H) 7.87 × 2.66 × 1.56 200 × 67.5 × 39.7 With mounting ear 8.70 × 2.66 × 1.56 221 × 67.5 × 39.7 Net Weight - 1180 g -

Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 200W Programmable IP67 Driver EUG-200SxxxDV Rev. F www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Dimming Specifications Safety &EMC Compliance Safety Category Standard ENEC & CE EN 61347-1, EN61347-2-13 CB IEC 61347-1, IEC 61347-2-13 CCC GB 19510.1, GB 19510.14 KC KC 61347-1, KC 61347-2-13 KS KS C 7655 BIS IS 15885(Part2/Sec13) NOM NOM-058-SCFI SAA AS/NZS 61347.1, AS/NZS 61347.2.13 EMI Standards Notes EN IEC 55015/GB/T 17743/KN 15(1) Conducted emission Test &Radiated emission Test EN IEC 61000-3-2/GB 17625.1 Harmonic current emissions EN 61000-3-3 Voltage fluctuations & flicker EMS Standards Notes EN 61000-4-2 Electrostatic Di scharge (ESD): 8 kV air discharge, 4 kV contact discharge EN 61000-4-3 Radio-Frequency Electromagnetic Field Susceptibili ty Test-RS Parameter Min. Typ. Max. Notes Absolute Maximum Voltage on the Vdim (+) Pin -20 V - 20 V Source Current on Vdim (+)Pin 200 uA 300 uA 450 uA Vdim(+) = 0 V Dimming Output Range EUG-200S105DV EUG-200S210DV EUG-200S350DV EUG-200S560DV 10%Ioset - Ioset 700 mA ≤ Ioset ≤ 1050 mA 1400 mA ≤ Ioset ≤ 2100 mA 2450 mA ≤ Ioset ≤ 3500 mA 3850 mA ≤ Ioset ≤ 5600 mA EUG-200S105DV EUG-200S210DV EUG-200S350DV EUG-200S560DV 70 mA 140 mA 245 mA 385 mA - Ioset 70 mA ≤ Ioset < 700 mA 140 mA ≤ Ioset < 1400 mA 245 mA ≤ Ioset < 2450 mA 385 mA ≤ Ioset < 3850 mA Recommended Dimming Range for 0-5V 0 V - 5 V Dimming mode set to 0-5V in Inventronics programming software. Recommended Dimming Input Range 0 V - 10 V Default 0-10V dimming mode with positive logic. PWM_in High Level 3 V - 10 V Dimming mode set to PWM in Inventronics programming software . PWM_in Low Level -0.3 V - 0.6 V PWM_in Frequency Range 200 Hz - 2 KHz PWM_in Duty Cycle 1% - 99%

Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 200W Programmable IP67 Driver EUG-200SxxxDV Rev. F www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Safety &EMC Compliance (Continued) EMS Standards Notes EN 61000-4-5 Surge Immunity Test: AC Power Line: Differential M ode 6 kV, Common Mode 10 kV (2) EN 61000-4-6 Conducted Radio Frequency Disturbances Test-CS EN 61000-4-8 Power Frequency Magnetic Field Test EN 61000-4-11 Voltage Dips EN 61547 Electromagnetic Immunity Requirements Applies To Lighting Equipment Note: (1) This LED driver meets the EM I specifications above, but EMI performance of a luminaire that contains it depends also on the other devices connected to the driver and on the fixture itself. (2) To perform electric strength (hi-pot) testing, the “GDT gro und disconnect” (nut and metal lock sheet) on the driver end-cap should be removed temporarily to prevent the internal g as discharge tube from conducting (as allowed by IEC 60598-1 Clause 10.2). After testing is completed, these items must be reinstalled to restore line-to-earth surge protection and secure the end cap. Lifetime vs. Case Temperature Inrush Current Waveform

Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 200W Programmable IP67 Driver EUG-200SxxxDV Rev. F www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Efficiency vs. Load EUG-200S105DV(Io=700mA) EUG-200S105DV(Io=1050mA) EUG-200S210DV(Io=1400mA) EUG-200S210DV(Io=2100mA) EUG-200S350DV(Io=2450mA) EUG-200S350DV(Io=3500mA)

Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 200W Programmable IP67 Driver EUG-200SxxxDV Rev. F www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com EUG-200S560DV(Io=3850mA) EUG-200S560DV(Io=5600mA) Power Factor Total Harmonic Distortion

Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 200W Programmable IP67 Driver EUG-200SxxxDV Rev. F www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Protection Functions Parameter Notes Over Temperature Protection Decreases output current, returning to normal after over temperature is removed. Short Circuit Protection Auto Recovery. No damage will occur when any output is short circuited. The output shall return to normal when the fault condition is removed. Over Voltage Protection Limits output voltage at no load and in case the normal voltage limit fails. Dimming  0-5V Dimming The recommended implementation of the dimming control is provided below. Dim+ Dim- Dimmer Inventronics LED Driver L VauxN G Vac Implementation 1: Positive logic Dim+ Dim- Dimmer Inventronics LED Driver L VauxN G Vac Implementation 2: Negative logic Notes: 1. Do NOT connect Dim− to the output V− or V+, otherwise the dr iver will not work properly. 2. The dimmer can also be replaced by an active 0-5V voltage so urce signal or passive components like zener. 3. When 0-5V negative logic dimming mode and Dim+ is open, the driver will output maximum current.

Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 200W Programmable IP67 Driver EUG-200SxxxDV Rev. F www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com  0-10V Dimming The recommended implementation of the dimming control is provided below. Dim+ Dim- Dimmer Inventronics LED Driver L VauxN G Vac Implementation 3: Positive logic Dim+ Dim- Dimmer Inventronics LED Driver L VauxN G Vac Implementation 4: Negative logic Notes: 1. Do NOT connect Dim− to the output V− or V+, otherwise the dr iver will not work properly. 2. The dimmer can also be replac ed by an active 0-10V voltage source signal or passive components like zener. 3. When 0-10V negative logic dimming mode and Dim+ is open, the driver will output minimum current.  PWM Dimming Dim+ Dim- Inventronics LED Driver L G Vaux N Vac PWM Signal Implementation 5: Positive logic

Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 200W Programmable IP67 Driver EUG-200SxxxDV Rev. F www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Dim+ Dim- Inventronics LED Driver L G Vaux N Vac PWM Signal Implementation 6: Negative logic Notes: 1. Do NOT connect Dim− to the output V− or V+, otherwise the dr iver will not work properly. 2. When PWM negative l ogic dimming mode and Dim+ is open, the driver will output minimum current.  Time Dimming Set the timing curve by pulling the sliders.

Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 200W Programmable IP67 Driver EUG-200SxxxDV Rev. F www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Programming Connection Diagram Note: The driver does not need to be powered on during the programming process.  Please refer to PRG-MUL2 (Programmer) datasheet for details. Mechanical Outline OUTPUT(VDE H05RN-F 2*1.0mm2 6.8) INPUT(VDE H05RN-F 3*1.0mm2 7.2) AC/L(BROWN) AC/N(BLUE) GND (YELLOW/GREEN) V+(BROWN) V-(BLUE) DIMMING WIRE(VDE 3*0.5mm2 6.3) BLACK/WHITE PURPLE GRAY PROJ: Unspecified tolerance:±1 Tc Note: Waterproof connectors certified to CCC & CE are also available for these drivers; please contact Inventronics Sales. RoHS Compliance Our products comply with reference to RoHS Directive (EU) 2015/863 amending 2011/65/EU, calling for the elimination of lead and other hazardous substances from electronic products.

Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 200W Programmable IP67 Driver EUG-200SxxxDV Rev. F www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com

Revision History

Date Rev. Description of Change Item From To 2016-01-05 A Datasheets Release / / 2016-04-08 B General Specifications With mounting ear Added General Specifications Net Weight Updata Safety &EMC Compliance / Updata Mechanical Outline / Updata 2017-07-28 C Input Specifications PF/THD Updated Output Specifications Temperature Coefficient of Ioset Updated General Specifications Dimensions Updated Safety &EMC Compliance / Updated Mechanical Outline / Updated 2017-10-26 D Features 7 Years Warranty Added Operating Case Temperature for Warranty Tc_w / Updated 2022-08-27 E SAA/KC/KCC/NOM logo / Added CCC logo / Updated PSE logo / Deleted Features / Updated Models / Updated Safety &EMC Compliance / Updated Dimming / Updated RoHS Compliance / Updated 2023-08-28 F Product Photograph / Updated TUV logo / Deleted Safety &EMC Compliance / Updated Programming Connection Diagram / Updated
