EUG-150SXXXDV INVENTRONICS
Document overview
- Manufacturer or author: Provided By www.digicamel.com(free datasheet download site)
- PDF pages: 16
Technical content
Features
Description

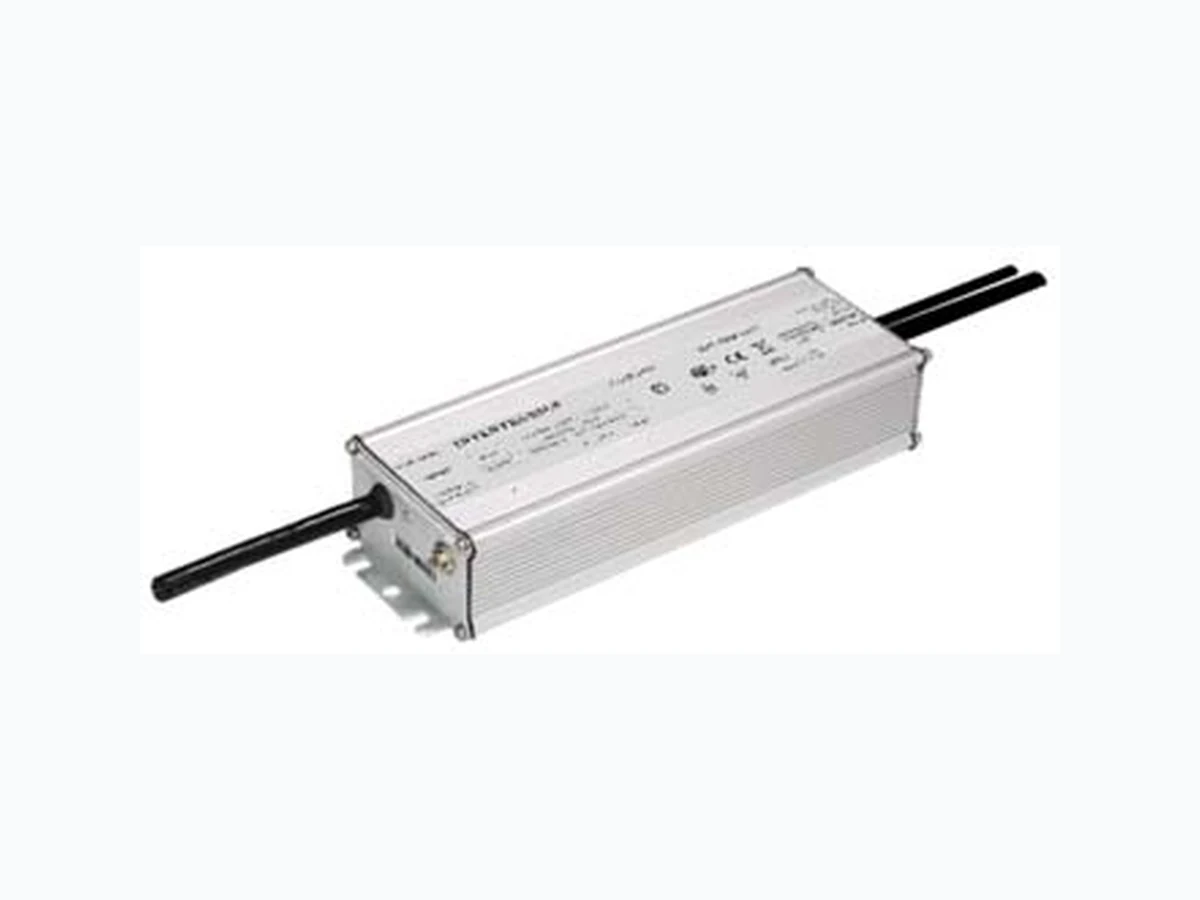

The EUG-150SxxxDV series is a 150W, constant-current, programmable LED driver th at operates from 90-305 Vac input with excellent power factor. It is created for many l ighting applications including high bay, tunnel and roadway, etc. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure tro uble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature. Models Adjustable Output Current Range Full-Power Current Range (1) Default Output Current Input Voltage Range(2) Output Voltage Range Max. Output Power Typical Efficiency (3) Typical Power Factor Model Number (4)(7) 120Vac 220Vac 45-700mA 450-700mA 530 mA 90~305 Vac 100~250 Vdc 117~333Vdc 150 W 93.5% 0.99 0.96 EUG-150S070DV (5) 70-1050mA 700-1050mA 700 mA 90~305 Vac 100~250 Vdc 75~214Vdc 150 W 93.5% 0.99 0.96 EUG-150S105DV (5) 140-2100mA 1400-2100mA 1400 mA 90~305 Vac 100~250 Vdc 38~107Vdc 150 W 92.5% 0.99 0.96 EUG-150S210DV (6) 245-3500mA 2450-3500mA 3150 mA 90~305 Vac 100~250 Vdc 22 ~ 61Vdc 150 W 92.0% 0.99 0.96 EUG-150S350DV (6) 385-5600mA 3850-5600mA 4200 mA 90~305 Vac 100~250 Vdc 14 ~ 39Vdc 150 W 92.0% 0.99 0.96 EUG-150S560DV (6) Notes: (1) Output current range with constant power at 150W. (2) Certified Voltage range: 100-240Vac or 100-250Vdc (except CCC, KS and BIS). (3) Measured at 100% load and 220Vac input (see below “General Specifications” for details). (4) All the models are certificated to KS, except EUG-150S070DV. (5) EUG-150S070DV and EUG-150S105DV are certificated to KC. (6) SELV output. (7) For BIS models add suffix -3000. Ultra High Efficiency (Up to 93.5%) Full Power at Wide Output Cur rent Range (Constant Power) 0-5V/0-10V/PWM/Timer Dimmable Input Surge Protection: DM 6kV, CM 10kV All-Around Protection: OVP, SCP, OTP I P 6 7 SELV Output 7 Years Warranty
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 150W Programmable IP67 Driver EUG-150SxxxDV Rev. I www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com I-V Operation Area EUG-150S070DV EUG-150S105DV (270,333)(45,333) (700,129) 130 195 260 325 390 0 140 280 420 560 700 840 Output Voltage(V) Output Current (mA) (450,333) (700,214) (10%Ioset,150/Ioset) (Ioset,150/Ioset) 100%Load 60%Load Good Performance Area Allowed Operating Area (700,117) Programmed Operating Area Note: 450mA≤Ioset≤700mA (70,117) (Ioset,117) Output Voltage(V) Output Current (mA) Good Performance Area Allowed Operating Area Programmed Operating Area Note: 700mA≤Ioset≤1050 mA (420,214)(70,214) 120 160 200 240 0 200 400 600 800 1000 1200 (700,214) (1050,143) 100%Load 60%Load (1050,75) (Ioset,150/Ioset)(10%Ioset,150/Ioset) (105,75) (Ioset,75) (1050,86) EUG-150S210DV EUG-150S350DV Output Voltage(V) Output Current (mA) Good Performance Area Allowed Operating Area Programmed Operating Area Note: 1400 mA≤Ioset≤2100mA (840,107)(140,107) 100 120 0 400 800 1200 1600 2000 2400 (1400,107) (2100,71) 100%Load 60%Load (2100,38) (Ioset,150/Ioset)(10%Ioset,150/Ioset) (210,38) (Ioset,38) (2100,43) (1470,61)(245,61) (3500,26) 0 700 1400 2100 2800 3500 4200 Output Voltage(V) (2450,61) (3500,43) (10%Ioset,150/Ioset) (Ioset,150/Ioset) 100%Load 60%Load Good Performance Area Allowed Operating Area (3500,22) Programmed Operating Area (350,22) (Ioset,22) Output Current (mA) Note: 2450mA≤Ioset≤3500mA EUG-150S560DV (2310,39)(385,39) (5600,16) 0 1000 2000 3000 4000 5000 6000 Output Voltage(V) (3850,39) (5600,26.8) (10%Ioset,150/Ioset) (Ioset,150/Ioset) 100%Load60%Load Good Performance Area Allowed Operating Area (5600,14) Programmed Operating Area (560,14) (Ioset,14) Output Current (mA) Note: 3850mA≤Ioset≤5600mA
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 150W Programmable IP67 Driver EUG-150SxxxDV Rev. I www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Input Specifications Parameter Min. Typ. Max. Notes Input AC Voltage 90 Vac - 305 Vac Input DC Voltage 100 Vdc - 250 Vdc Input Frequency 47 Hz - 63 Hz Leakage Current - - 0.70 mA IE C 60598-1; 240Vac/ 60 Hz Input AC Current - - 1.87 A Measured at 100% load and 100 Vac input. - - 0.81 A Measured at 100% load and 220 Vac input. Inrush Current(I2t) - - 1.98 A 2s At 220Vac input, 25 ℃ cold start, duration=712 μs, 10%Ipk-10%Ipk. See Inrush Current Waveform for the details. PF 0.9 - - At 100-240Vac, 50-60Hz, 60%-100% Load THD - - 10% At 220-240Vac, 50-60Hz, 75%-100% Load (112.5-150 W) Output Specifications Parameter Min. Typ. Max. Notes Output Current Tolerance -5%Ioset - 5%Ioset At 100% load condition Output Current Setting(Ioset) Range EUG-150S070DV EUG-150S105DV EUG-150S210DV EUG-150S350DV EUG-150S560DV 45 mA 70 mA 140 mA 245 mA 385 mA 700 mA 1050 mA 2100 mA 3500 mA 5600 mA Output Current Setting Range with Constant Power EUG-150S070DV EUG-150S105DV EUG-150S210DV EUG-150S350DV EUG-150S560DV 450 mA 700 mA 1400 mA 2450 mA 3850 mA 700 mA 1050 mA 2100 mA 3500 mA 5600 mA Total Output Current Ripple (pk-pk) - 5%Iomax 10%Iomax At 100% load condition, 20 MHz BW Output Current Ripple at < 200 Hz (pk-pk) - 2%Iomax - At 100% load condition. Only this component of ripple is associated with visible flicker. Startup Overshoot Current - - 10%Iomax At 100% load condition No Load Output Voltage EUG-150S070DV EUG-150S105DV EUG-150S210DV EUG-150S350DV EUG-150S560DV 370 V 235 V 120 V 75 V 48 V Line Regulation - - ±0.5% Measured at 100% load
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 150W Programmable IP67 Driver EUG-150SxxxDV Rev. I www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Output Specifications (Continued) Parameter Min. Typ. Max. Notes Load Regulation - - ±1.5% Turn-on Delay Time - - 1.0 s Measured at 120Vac input, 60%-100% Load - - 0.5 s Measured at 220Vac input, 60%-100% Load Temperature Coefficient of Ioset - 0.03%/C - Case temperature = 0C ~Tc max 12V Auxiliary Output Voltage 10.8 V 12 V 13.2 V 12V Auxiliary Output Source Current 0 mA - 20 mA Return terminal is “Dim−“ General Specifications Parameter Min. Typ. Max. Notes Efficiency at 120 Vac input: EUG-150S070DV Io= 450 mA Io= 700 mA EUG-150S105DV Io= 700 mA Io=1050 mA EUG-150S210DV Io=1400 mA Io=2100 mA EUG-150S350DV Io=2450 mA Io=3500 mA EUG-150S560DV Io=3850 mA Io=5600 mA 87.5% 87.0% 88.0% 87.0% 87.0% 87.0% 87.0% 86.5% 86.5% 85.0% 90.5% 90.0% 91.0% 90.0% 90.0% 90.0% 90.0% 89.5% 89.5% 88.0% Measured at 100% load and steady-state temperature in 25C ambient; (Efficiency will be about 2.0% lower if measured immediately after startup.) Efficiency at 220 Vac input: EUG-150S070DV Io= 450 mA Io= 700 mA EUG-150S105DV Io= 700 mA Io=1050 mA EUG-150S210DV Io=1400 mA Io=2100 mA EUG-150S350DV Io=2450 mA Io=3500 mA EUG-150S560DV Io=3850 mA Io=5600 mA 91.5% 90.5% 91.5% 90.5% 90.5% 90.0% 90.0% 90.0% 90.0% 88.5% 93.5% 92.5% 93.5% 92.5% 92.5% 92.0% 92.0% 92.0% 92.0% 90.5% Measured at 100% load and steady-state temperature in 25C ambient; (Efficiency will be about 2.0% lower if measured immediately after startup.)
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 150W Programmable IP67 Driver EUG-150SxxxDV Rev. I www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com General Specifications (Continued) Parameter Min. Typ. Max. Notes Efficiency at 277 Vac input: EUG-150S070DV Io= 450 mA Io= 700 mA EUG-150S105DV Io= 700 mA Io=1050 mA EUG-150S210DV Io=1400 mA Io=2100 mA EUG-150S350DV Io=2450 mA Io=3500 mA EUG-150S560DV Io=3850 mA Io=5600 mA 92.0% 91.0% 91.5% 91.0% 91.0% 90.0% 90.5% 90.5% 90.0% 88.5% 94.0% 93.0% 93.5% 93.0% 93.0% 92.0% 92.5% 92.5% 92.0% 90.5% Measured at 100% load and steady-state temperature in 25C ambient; (Efficiency will be about 2.0% lower if measured immediately after startup.) MTBF - 271,000 Hours - Measured at 220 Vac input, 80%Load and 25 °C ambient temperature (MIL- HDBK-217F) Lifetime - 99,000 Hours - Measured at 220 Vac input, 80%Load and 70 °C case temperature; See lifetime vs. Tc curve for the details Operating Case Temperature for Safety Tc_s -40°C - +90°C Operating Case Temperature for Warranty Tc_w -40°C - +75°C Case temperature for 7 years warranty. Please see Inventronics Warranty Statement for complete details. Storage Temperature -40°C - +85°C Humidity: 5%RH to 95%RH Dimensions Inches (L × W × H) Millimeters (L × W × H) 7.40 × 2.66 × 1.56 188 × 67.5 × 39.7 With mounting ear 8.23 × 2.66 × 1.56 209 × 67.5 × 39.7 Net Weight - 1100 g - Dimming Specifications Parameter Min. Typ. Max. Notes Absolute Maximum Voltage on the Vdim (+) Pin -20 V - 20 V Source Current on Vdim (+)Pin 200 μA 300 μA 450 μA Vdim(+) = 0 V Dimming Output Range EUG-150S070DV EUG-150S105DV EUG-150S210DV EUG-150S350DV EUG-150S560DV 10%Ioset - Ioset 450 mA ≤ Ioset ≤ 700 mA 700 mA ≤ Ioset ≤ 1050 mA 1400 mA ≤ Ioset ≤ 2100 mA 2450 mA ≤ Ioset ≤ 3500 mA 3850 mA ≤ Ioset ≤ 5600 mA EUG-150S070DV EUG-150S105DV EUG-150S210DV EUG-150S350DV EUG-150S560DV 45 mA 70 mA 140 mA 245 mA 385 mA - Ioset 45 mA ≤ Ioset ＜ 450 mA 70 mA ≤ Ioset ＜ 700 mA 140 mA ≤ Ioset ＜ 1400 mA 245 mA ≤ Ioset ＜ 2450 mA 385 mA ≤ Ioset ＜ 3850 mA
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 150W Programmable IP67 Driver EUG-150SxxxDV Rev. I www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Dimming Specifications (Continued) Safety &EMC Compliance Safety Category Standard ENEC & CE EN 61347-1, EN 61347-2-13 CB IEC 61347-1, IEC 61347-2-13 CCC GB 19510.1, GB 19510.14 KC K 61347-1, K 61347-2-13 KS KS C 7655 BIS IS 15885(Part2/Sec13) global-mark AS/NZS 61347.1, AS/NZS 61347.2.13 EMI Standards Notes EN IEC 55015/GB/T 17743/KN 15(1) Conducted emission Test & Radiated emission Test EN IEC 61000-3-2/GB 17625.1 Harmonic current emissions EN 61000-3-3 Voltage fl uctuations & flicker EMS Standards Notes EN 61000-4-2 Electrostatic Dischar ge (ESD): 8 kV air discharge, 4 kV contact discharge EN 61000-4-3 Radio-Frequency Elec tromagnetic Field Susceptibility Test-RS EN 61000-4-5 Surge Immunity Test: AC Power Line: Differential Mode 6 kV, Common Mode 10 kV(2) EN 61000-4-6 Conducted Radio Fr equency Disturbances Test-CS EN 61000-4-8 Power Frequency Magnetic Field Test EN 61000-4-11 Voltage Dips EN 61547 Electromagnetic Immunity Requirements Applies To Lighting Equipment Parameter Min. Typ. Max. Notes Recommended Dimming Range for 0-5V 0 V - 5 V Dimming mode set to 0-5V in Inventronics programming software. Recommended Dimming Range for 0-10V 0 V - 10 V Default 0-10V dimming mode with positive logic. PWM_in High Level 3 V - 10 V Dimming mode set to PWM in Inventronics programming software. PWM_in Low Level -0.3 V - 0.6 V PWM_in Frequency Range 200 Hz - 2 KHz PWM_in Duty Cycle 1% - 99%
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 150W Programmable IP67 Driver EUG-150SxxxDV Rev. I www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Note: (1) This LED driver meets the EMI specifications above, but EMI performance of a luminaire that contains it depends also on the other devices connected to the driver and on the fixture itself. (2) To perform electric strength (hi-pot) testing, the “GDT ground disconnect” (nut and metal lock sheet) on the driver end-cap should be removed temporarily to prevent the internal gas discharge tube from conducting (as allowed by IEC 60598-1 Clause 10.2). After testing is completed, these items must be reinstalled to restore line-to-earth surge protection and secure the end cap. Lifetime vs. Case Temperature Inrush Current Waveform
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 150W Programmable IP67 Driver EUG-150SxxxDV Rev. I www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Efficiency vs. Load EUG-150S070DV(Io=450mA) EUG-150S070DV(Io=700mA) EUG-150S105DV(Io=700mA) EUG-150S105DV(Io=1050mA) EUG-150S210DV(Io=1400mA) EUG-150S210DV(Io=2100mA)
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 150W Programmable IP67 Driver EUG-150SxxxDV Rev. I www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com EUG-150S350DV(Io=2450mA) EUG-150S350DV(Io=3500mA) EUG-150S560DV(Io=3850mA) EUG-150S560DV(Io=5600mA) Power Factor
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 150W Programmable IP67 Driver EUG-150SxxxDV Rev. I www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Total Harmonic Distortion Protection Functions Parameter Notes Over Temperature Protection Decreases output current, returning to normal after over temperature is removed. Short Circuit Protection Auto Recovery. No damage will occur when any output is short ci rcuited. The output shall return to normal when the fault condition is removed. Over Voltage Protection Limits output voltage at no load and in case the normal voltage limit fails. Dimming 0-5V Dimming The recommended implementation of the dimming control is provided below. Dim+ Dim- Dimmer Inventronics LED Driver L VauxN G Vac Implementation 1: Positive logic
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 150W Programmable IP67 Driver EUG-150SxxxDV Rev. I www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Dim+ Dim- Dimmer Inventronics LED Driver L VauxN G Vac Implementation 2: Negative logic Notes: 1. Do NOT connect Dim− to the output V− or V+, otherwise the dr iver will not work properly. 2. The dimmer can also be replac ed by an active 0-5V voltage source signal or passive components like zener. 3. When 0-5V negative logic dimm ing mode and Dim+ is open, the driver will output maximum current. 0-10V Dimming The recommended implementation of the dimming control is provided below. Dim+ Dim- Dimmer Inventronics LED Driver L VauxN G Vac Implementation 3: Positive logic Dim+ Dim- Dimmer Inventronics LED Driver L VauxN G Vac Implementation 4: Negative logic Notes: 1. Do NOT connect Dim− to the output V− or V+, otherwise the driv er will not work properly. 2. The dimmer can also be replaced by an active 0-10V voltage source signal or passive components like zener. 3. When 0-10V negative logic di mming mode and Dim+ is open, the driver will output minimum current.
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 150W Programmable IP67 Driver EUG-150SxxxDV Rev. I www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com PWM Dimming The recommended implementation of the dimming control is provided below. Dim+ Dim- Inventronics LED Driver L G Vaux N Vac PWM Signal Implementation 5: Positive logic Dim+ Dim- Inventronics LED Driver L G Vaux N Vac PWM Signal Implementation 6: Negative logic Notes: 1. Do NOT connect Dim− to the output V− or V+, otherwise the dr iver will not work properly. 2. When PWM negative l ogic dimming mode and Dim+ is open, the driver will output minimum current.
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 150W Programmable IP67 Driver EUG-150SxxxDV Rev. I www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Time Dimming Set the timing curve by pulling the sliders. Programming Connection Diagram Note: The driver does not need to be powered on during the programming process. Please refer to PRG-MUL2 (Programmer) datasheet for details.
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 150W Programmable IP67 Driver EUG-150SxxxDV Rev. I www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Mechanical Outline EUG-150SxxxDV PROJ: Unspecified tolerance:±1 OUTPUT(VDE H05RN-F 2*1.0mm2 6.8） INPUT(VDE H05RN-F 3*1.0mm2 7.2) AC/L(BROWN) AC/N(BLUE) GND (YELLOW/GREEN) V+(BROWN) V-(BLUE) DIMMING WIRE(VDE 3*0.5mm2 6.3） BLACK/WHITE PURPLE GRAY Tc EUG-150SxxxDV-3000 PROJ: Unspecified tolerance:±1 OUTPUT(BIS 2*1.0mm2 6.85） INPUT(BIS 3*1.0mm2 7.25) AC/L(RED) AC/N(BLACK) GND (YELLOW/GREEN) V+(RED) V-(BLACK) DIMMING WIRE(VDE 3*0.5mm2 6.3） BLACK/WHITE PURPLE GRAY Tc RoHS Compliance Our products comply with reference to RoHS Directive (EU) 2015/ 863 amending 2011/65/EU, calling for the elimination of lead and other hazardous substances from electronic products.
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 150W Programmable IP67 Driver EUG-150SxxxDV Rev. I www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com
Revision History
Date Rev. Description of Change Item From To 2015-08-07 A Datasheets Release / / 2016-01-12 B TUV、KS、BIS / Added EUG-150S070DV / Added 2016-04-07 C Input Specifications Input AC Current Updated General Specifications With mounting ear Added General Specifications Net Weight Added Safety &EMC Compliance / Updated Mechanical Outline / Updated 2017-08-01 D Input Specifications PF/THD Updated Output Specifications Temperature Coefficient of Ioset Updated General Specifications Dimensions Updated Safety &EMC Compliance / Updated Mechanical Outline / Updated 2017-10-26 E Features 7 Years Warranty Added Operating Case Temperature for Warranty Tc_w / Updated 2018-01-31 F Description / Updated General Specifications Lifetime Updated General Specifications Operating Case Temperature for Warranty Tc_w Updated Lifetime vs. Case Temperature / Updated 2020-03-18 G CCC Logo / Updated KCC and KC Logo / Added Global Mark Logo / Added Independent Logo / Added Features 6kV line-line, 10kV line-earth DM 6kV, CM 10kV Features Waterproof (IP67) IP67 Features Suitable for Independent Use Deleted Models Notes(4) Updated Models Notes(5) Added Safety &EMC Compliance ENEC Added
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 150W Programmable IP67 Driver EUG-150SxxxDV Rev. I www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Revision History (Continued) Change Date Rev. Description of Change Item From To 2020-03-18 G Safety &EMC Compliance TUV Added Safety &EMC Compliance CB Added Safety &EMC Compliance CCC Added Safety &EMC Compliance PSE Added Safety &EMC Compliance KC Added Safety &EMC Compliance BIS Added Safety &EMC Compliance Global Mark Added Safety &EMC Compliance EN 55015 (1) EN 55015/GB 17743/KN 15(1) Safety &EMC Compliance EN 61000-3-2 EN 61000-3-2/GB 17625.1 Safety &EMC Compliance EN 61000-4-5 Updated Dimming / Updated Programming Connection Diagram EUG-150SxxxDV-3000 Added Mechanical Outline EUG-150SxxxDV-3000 Added RoHS Compliance / Updated Format Page footer Updated 2020-03-20 H Models Notes(7) Added 2023-08-15 I TUV/PSE logo / Deleted global-mark logo / Updated Product photograph / Updated Safety &EMC Compliance / Updated Programming Connection Diagram / Updated
