EUD-200SXXXDTST-00A0 INVENTRONICS

Document overview

  • Manufacturer or author: Provided By www.digicamel.com(free datasheet download site)
  • PDF pages: 12

Technical content

Features

Description

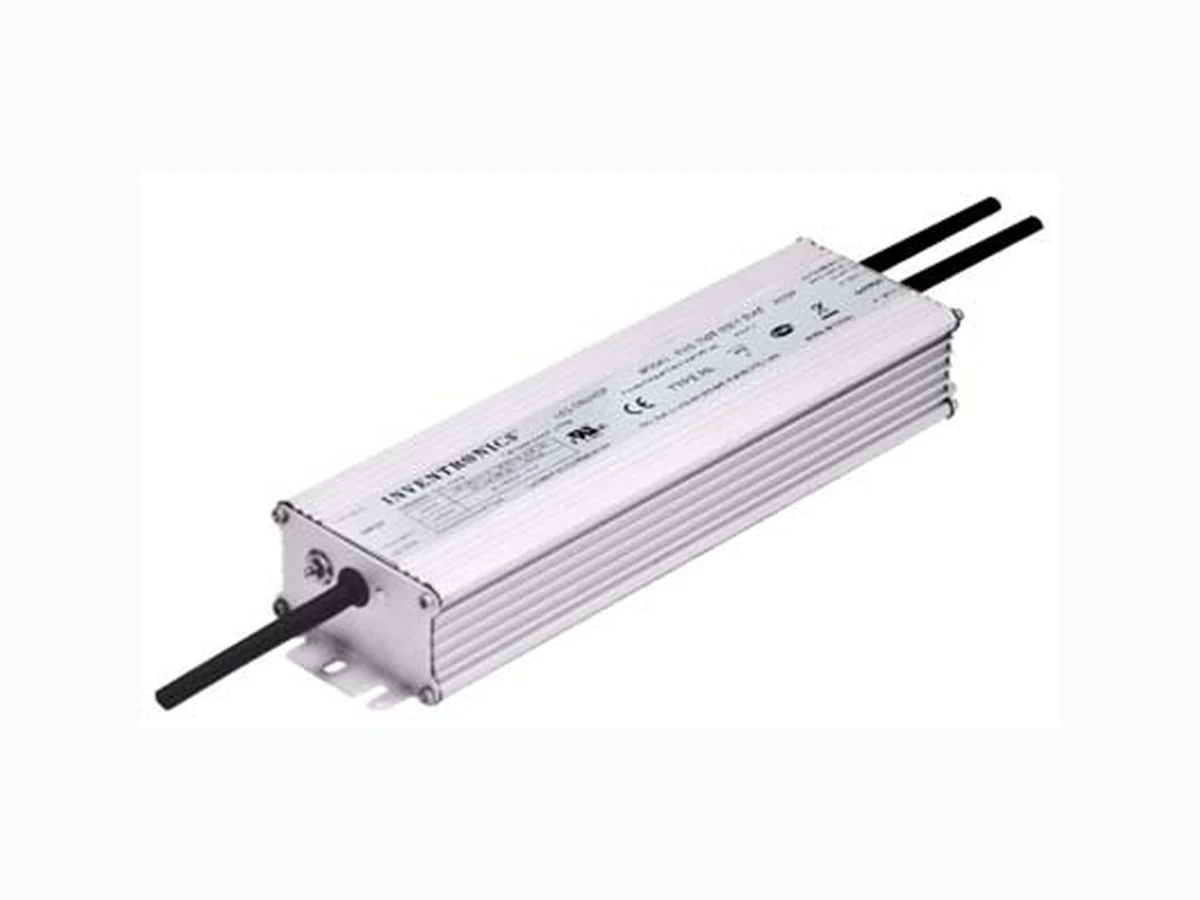

The EUD-200SxxxDT(ST)-00A0 series is a 200W, constant-current LED driver that operates fr om 90-305 Vac input with excellent power factor. Created for many lighting applications including high bay, high mast, arena and roadway, etc, it provides either a fixed output current (ST models) or 0-10V dimming with a dim-to-off mode and low standby power (DT models). The high efficiency of these dri vers and compact metal case enables them to run cooler, significantly improving reliability and extending p roduct life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature. Models Output Current Input Voltage Range(1) Output Voltage Range Max. Output Power Typical Efficiency (2) Typical Power Factor Model Number (3) 120Vac 220Vac 700 mA 90 ~ 305 Vac 127~300 Vdc 143~286 Vdc 200 W 93.5% 0.99 0.96 EUD-200S070DT(ST)-00A0 1050 mA 90 ~ 305 Vac 127~300 Vdc 95~190 Vdc 200 W 93.5% 0.99 0.96 EUD-200S105DT(ST)-00A0 1400 mA 90 ~ 305 Vac 127~300 Vdc 71~142 Vdc 200 W 93.0% 0.99 0.96 EUD-200S140DT(ST)-00A0 2100 mA 90 ~ 305 Vac 127~300 Vdc 47~ 95 Vdc 200 W 93.0% 0.99 0.96 EUD-200S210DT(ST)-00A0 (4) 2450 mA 90 ~ 305 Vac 127~300 Vdc 41~ 82 Vdc 200 W 93.5% 0.99 0.96 EUD-200S245DT(ST)-00A0 (4) 2800 mA 90 ~ 305 Vac 127~300 Vdc 35~ 71 Vdc 200 W 92.5% 0.99 0.96 EUD-200S280DT(ST)-00A0 (4) 4200 mA 90 ~ 305 Vac 127~300 Vdc 24~ 48 Vdc 200 W 93.0% 0.99 0.96 EUD-200S420DT(ST)-00A0 (4) 4900 mA 90 ~ 305 Vac 127~300 Vdc 21~ 41 Vdc 200 W 92.0% 0.99 0.96 EUD-200S490DT(ST)-00A0 (4) Notes: (1) UL, FCC certified input voltage range: 100-277Vac or 127-300Vdc; otherwise: 100-240Vac or 127-250Vdc (2) Measured at 100% load and 220 Vac input. (3) All the models are certificated to KS, except EUD-200S070DT(ST)-00A0 (4) SELV output  Ultra High Efficiency (Up to 93.5%)  Constant Current Output  0-10V Dimmable and Dim-to-Off (DT models)  Standby Power ≤1 W  Input Surge Protection: DM 4kV, CM 6kV  All-Around Protection: OVP, SCP, OTP  IP67 and UL Dry / Damp Location  SELV Output  TYPE HL, for use in a Class I, Division 2 hazardous (Classified) location

Specifications are subject to changes without notice. All specifications are typical at 25 C unless otherwise stated. www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 200W Constant Current IP67 Driver EUD-200SxxxDT(ST)-00A0 Rev.H Input Specifications Parameter Min. Typ. Max. Notes Input AC Voltage 90 Vac - 305 Vac Input DC Voltage 127 Vdc - 300 Vdc Input Frequency 47 Hz - 63 Hz Leakage Current - - 0.75 MIU UL8750; 277Vac/ 60Hz, grounding effectively - - 0.70 mA IEC60598-1; 240Vac/ 60Hz, grounding effectively Input AC Current - - 2.4 A Measured at 100% load and 100 Vac input. - - 1.2 A Measured at 100% load and 220 Vac input. Inrush Current(I2t) - - 3.2 A 2s At 220Vac input, 25℃ cold start, duration=1.7 ms,10%Ipk-10%Ipk. See Inrush Current Waveform for the details. PF 0.90 - - At 100-277Vac, 50-60Hz,75%-100% Load Output Specifications Parameter Min. Typ. Max. Notes Output Current Tolerance -5%Io - 5%Io At 100% load condition Total Output Current Ripple (pk-pk) - 5%Io 10%Io At 100% load condition, 20 MHz BW Output Current Ripple at < 200 Hz (pk-pk) - 2%Io - At 100% load condition. Only this component of ripple is associated with visible flicker. Startup Overshoot Current - - 10%Io At 100% load condition No Load Output Voltage IO = 700 mA IO = 1050 mA IO = 1400 mA IO = 2100 mA IO = 2450 mA IO = 2800 mA IO = 4200 mA lo = 4900 mA 305V 205V 155V 110V 95V 80V 55V 48V Line Regulation - - ±0.5% Measured at 100% load Load Regulation - - ±1.5% Turn-on Delay Time - 0.8 s 1.5 s Measured a t 120Vac and 220Vac input. Temperature Coefficient of Io - 0.03%/C - Case temperature = 0C ~Tc max 12V Auxiliary Output Voltage 10.8 V 12 V 13.2 V 12V Auxiliary Output Source Current 0 mA - 200 mA Return terminal is “Dim−“

Specifications are subject to changes without notice. All specifications are typical at 25 C unless otherwise stated. www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 200W Constant Current IP67 Driver EUD-200SxxxDT(ST)-00A0 Rev.H General Specifications Parameter Min. Typ. Max. Notes Efficiency at 120 Vac input: IO = 700 mA IO = 1050 mA IO = 1400 mA IO = 2100 mA IO = 2450 mA IO = 2800 mA IO = 4200 mA IO = 4900 mA 88.0% 88.0% 87.0% 87.0% 88.0% 86.0% 87.5% 87.0% 91.0% 91.0% 90.0% 90.0% 91.0% 89.0% 90.5% 90.0% Measured at 100% load and steady-state temperature in 25C ambient; (Efficiency will be about 2.0% lower if measured immediately after startup.) Efficiency at 220 Vac input: IO = 700 mA IO = 1050 mA IO = 1400 mA IO = 2100 mA IO = 2450 mA IO = 2800 mA IO = 4200 mA IO = 4900 mA 91.5% 91.5% 91.0% 91.0% 91.5% 90.5% 91.0% 90.0% 93.5% 93.5% 93.0% 93.0% 93.5% 92.5% 93.0% 92.0% Measured at 100% load and steady-state temperature in 25C ambient; (Efficiency will be about 2.0% lower if measured immediately after startup.) Efficiency at 277 Vac input: IO = 700 mA IO = 1050 mA IO = 1400 mA IO = 2100 mA IO = 2450 mA IO = 2800 mA IO = 4200 mA IO = 4900 mA 92.0% 91.5% 91.0% 91.0% 91.5% 91.0% 91.5% 90.5% 94.0% 93.5% 93.0% 93.0% 93.5% 93.0% 93.5% 92.5% Measured at 100% load and steady-state temperature in 25C ambient; (Efficiency will be about 2.0% lower if measured immediately after startup.) Standby power - - 1 W Measured at 230Vac/50Hz; Dimming off MTBF - 341,000 Hours - Measured at 220Vac input, 80%Load and 25C ambient temperature (MIL-HDBK-217F) Lifetime - 120,000 Hours - Measured at 220Vac input, 80%Load and 60C case temperature; See lifetime vs. Tc curve for the details Operating Case Temperature for Safety Tc_s -40°C - +87 C Operating Case Temperature for Warranty Tc_w -40°C - +70 C Humidity: 10%RH to 95%RH Storage Temperature -40°C - +85°C Humidity: 5%RH to 95%RH Dimensions Inches (L × W × H) Millimeters (L × W × H) 8.82 × 2.66 × 1.56 224 × 67.5 × 39.5 With mounting ear 9.88 × 2.66 × 1.56 251 × 67.5 × 39.5 Net Weight - 1200 g -

Specifications are subject to changes without notice. All specifications are typical at 25 C unless otherwise stated. www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 200W Constant Current IP67 Driver EUD-200SxxxDT(ST)-00A0 Rev.H Dimming Specifications Parameter Min. Typ. Max. Notes Absolute Maximum Voltage on the Vdim (+) Pin -20 V - 20 V Source Current on Vdim (+)Pin 90 μA 120 μA 150 μA Dimming Output Range 10%I O - 100%I O Recommended Dimming Input Range 0 V - 10 V Dim off Voltage 0.2 V 0.4 V 0.6 V Dim on Voltage 0.4 V 0.6 V 0.8 V Hysteresis - 0.2 V - Safety & EMC Compliance Safety Category Standard UL/CUL UL8750, CAN/CSA-C22.2 No. 250.13 CE(1) EN 61347-1, EN 61347-2-13 CB IEC 61347-1, IEC 61347-2-13 KS KS C 7655 EMI standards Notes EN 55015(2) Conducted emission Test &Radiated emission Test EN 61000-3-2 Harmonic current emissions EN 61000-3-3 Voltage fluctuations & flicker FCC Part 15(2) ANSI C63.4 Class B This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference, and [2] this device must accept any interference received, including interference that m ay cause undesired Operation. EMS standards Notes EN 61000-4-2 Electrostatic Dischar ge (ESD): 8 kV air discharge, 4 kV contact discharge EN 61000-4-3 Radio-Frequency Elec tromagnetic Field Susceptibility Test-RS EN 61000-4-5 Surge Immunity Test: A C Power Line: Differential Mode 4 kV, Common Mode 6 kV (3) EN 61000-4-6 Conducted Radio Freq uency Disturbances Test-CS EN 61000-4-8 Power Frequency Magnetic Field Test

Specifications are subject to changes without notice. All specifications are typical at 25 C unless otherwise stated. www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 200W Constant Current IP67 Driver EUD-200SxxxDT(ST)-00A0 Rev.H Safety & EMC Compliance (Continued) Safety Category Standard EN 61000-4-11 Voltage Dips EN 61547 Electromagnetic Immunity Requirements Applies To Light ing Equipment Note: (1) For compliance with EU Directive 2009/125/EC (ecodesign requirements for energy-related products) the Dim-to- Off function shall not be used or alternatively be interrupted through use of a relay or similar device to prevent excessive standby power consumption (as illustrated in Implementation 4). (2) This LED driver meets the EMI specifications above, but EMI performance of a luminaire that contains it depends also on the other devices connected to the driver and on the fixture itself. (3) To perform electric strength (hi-pot) testing, the “GDT ground disconnect” (nut and metal lock sheet) on the driver end-cap should be removed temporarily to prevent the internal g as discharge tube from conducting (as allowed by IEC 60598-1 Clause 10.2). After testing is completed, these items must be reinstalled to restore line-to-earth surge protection and secure the end cap. Lifetime vs. Case Temperature Inrush Current Waveform

Specifications are subject to changes without notice. All specifications are typical at 25 C unless otherwise stated. www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 200W Constant Current IP67 Driver EUD-200SxxxDT(ST)-00A0 Rev.H Efficiency vs. Load EUD-200S070DT(ST)-00A0 EUD-200S105DT(ST)-00A0 EUD-200S140DT(ST)-00A0 EUD-200S210DT(ST)-00A0 EUD-200S245DT(ST)-00A0 EUD-200S280DT(ST)-00A0

Specifications are subject to changes without notice. All specifications are typical at 25 C unless otherwise stated. www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 200W Constant Current IP67 Driver EUD-200SxxxDT(ST)-00A0 Rev.H EUD-200S420DT(ST)-00A0 EUD-200S490DT(ST)-00A0 Power Factor Total Harmonic Distortion

Specifications are subject to changes without notice. All specifications are typical at 25 C unless otherwise stated. www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 200W Constant Current IP67 Driver EUD-200SxxxDT(ST)-00A0 Rev.H Protection Functions Parameter Notes Over Temperature Protection Decr eases output current, returning to normal after over temperature is removed. Short Circuit Protection Auto Recovery. No damage will occur when any output is short circuited. The output shall return to normal when the fault condition is removed. Over Voltage Protection Limits output voltage at no load and in case the normal voltage limit fails. Dimming  0-10V Dimming The recommended implementation of the dimming control is provided below. Dim+ Dim- Dimmer Inventronics LED Driver V-L N G Vac Vaux Implementation 1: DC Input Implementation 2: External Resistor

Specifications are subject to changes without notice. All specifications are typical at 25 C unless otherwise stated. www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 200W Constant Current IP67 Driver EUD-200SxxxDT(ST)-00A0 Rev.H Implementation 3: External Resistor Notes: 1. Do NOT connect Dim− to the output V− or V+, otherwise the dr iver will not work properly. 2. The dimmer can also be replac ed by an active 0-10V voltage source signal or passive components like zener. 3. If 0-10V dimming is not used, Dim + can be either open or connected to Vaux.  0% Light Brightness If the brightness of the LED lighting fixture down to 0%, please refer to the following wiring method. The lamp can be turned on/off using a switch and relay. AC/L AC/N GND LED Driver Dim+ Dim- V- LED Lighting Fixture Relay Switch Dimming Signal Inventronics Implementation 4: 0% Light Brightness Wiring Method

Specifications are subject to changes without notice. All specifications are typical at 25 C unless otherwise stated. www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 200W Constant Current IP67 Driver EUD-200SxxxDT(ST)-00A0 Rev.H Mechanical Outline EUD-200SxxxDT-00A0 PROJ: Unspecified tolerance:±1 AC/L (BLACK) AC/N (WHITE) GND (GREEN) INPUT(UL SJTW 3*18AWG 7.8) OUTPUT(UL SJTW 2*18AWG 7.3) V+ (RED) V- (BLUE) DIMMING WIRE(UL21996 3*22AWG 5.0) BLACK/WHITE PURPLE GRAY Tc EUD-200SxxxST-00A0 DC OUTPUT(UL SJTW 2*18AWG) BLACK(ACL) WHITE (ACN) GREEN(GND) AC INPUT(UL SJTW 3*18AWG) BLUE (V-) RED (V+) PROJ: Unspecified tolerance:±1 Tc RoHS Compliance Our products comply with reference to RoHS Directive (EU) 2015/863 amending 2011/65/EU, calling for the elimination of lead and other hazardous substances from electronic products.

Specifications are subject to changes without notice. All specifications are typical at 25 C unless otherwise stated. www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 200W Constant Current IP67 Driver EUD-200SxxxDT(ST)-00A0 Rev.H

Revision History

Date Rev. Description of Change Item From To 2014-10-20 A Datasheets Release / / 2015-03-11 B Input Surge Protection: 4kV line-line, 6kV line- earth Added Output Current Ripple(pk-pk) Output Current Ripple(pk-pk) Total Output Current Ripple (pk-pk) Output Current Ripple at < 200 Hz (pk-pk) / Added Case Temperature Case Temperature Operating Case Temperature for Safety Tc_s Operating Case Temperature for Warranty Tc_w / Added General Specifications Storage Temperature Added Environmental Specifications / Delete Safety & EMC Compliance EN 55015 EN 61000-3-2 EN 61000-3-3 Delete Derating / Delete 2015-12-03 C CE、KS / Added External Grounding Screw Solution / / Safety & EMC Compliance / Updated Mechanical Outline / Updated 2016-03-31 D General Specifications With mounting ear Updated Safety &EMC Compliance / Updated 2016-06-12 E Mechanical Outline / Updated 2017-03-07 F Inrush Current(I2t) / Updated Mechanical Outline / Updated 2019-08-24 G CB Logo / Added Features Input surge protection Updated Description / Updated Input Specifications(PF/THD) 50-60Hz Added Safety &EMC Compliance UL/CUL Updated Safety &EMC Compliance CB Added Safety &EMC Compliance KS Updated Safety &EMC Compliance FCC Updated

Specifications are subject to changes without notice. All specifications are typical at 25 C unless otherwise stated. www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 200W Constant Current IP67 Driver EUD-200SxxxDT(ST)-00A0 Rev.H Revision History (Continued) Change Date Rev. Description of Change Item From To 2019-08-24 G Safety &EMC Compliance EN 61000-4-5 Updated Mechanical Outline / Updated RoHS Compliance / Updated 2021-12-02 H Features / Updated Safety &EMC Compliance Note (1) Added 0% Light Brightness / Added
