EUD-200SXXXBT INVENTRONICS
Document overview
- Manufacturer or author: Provided By www.digicamel.com(free datasheet download site)
- PDF pages: 11
Technical content
Features
Description

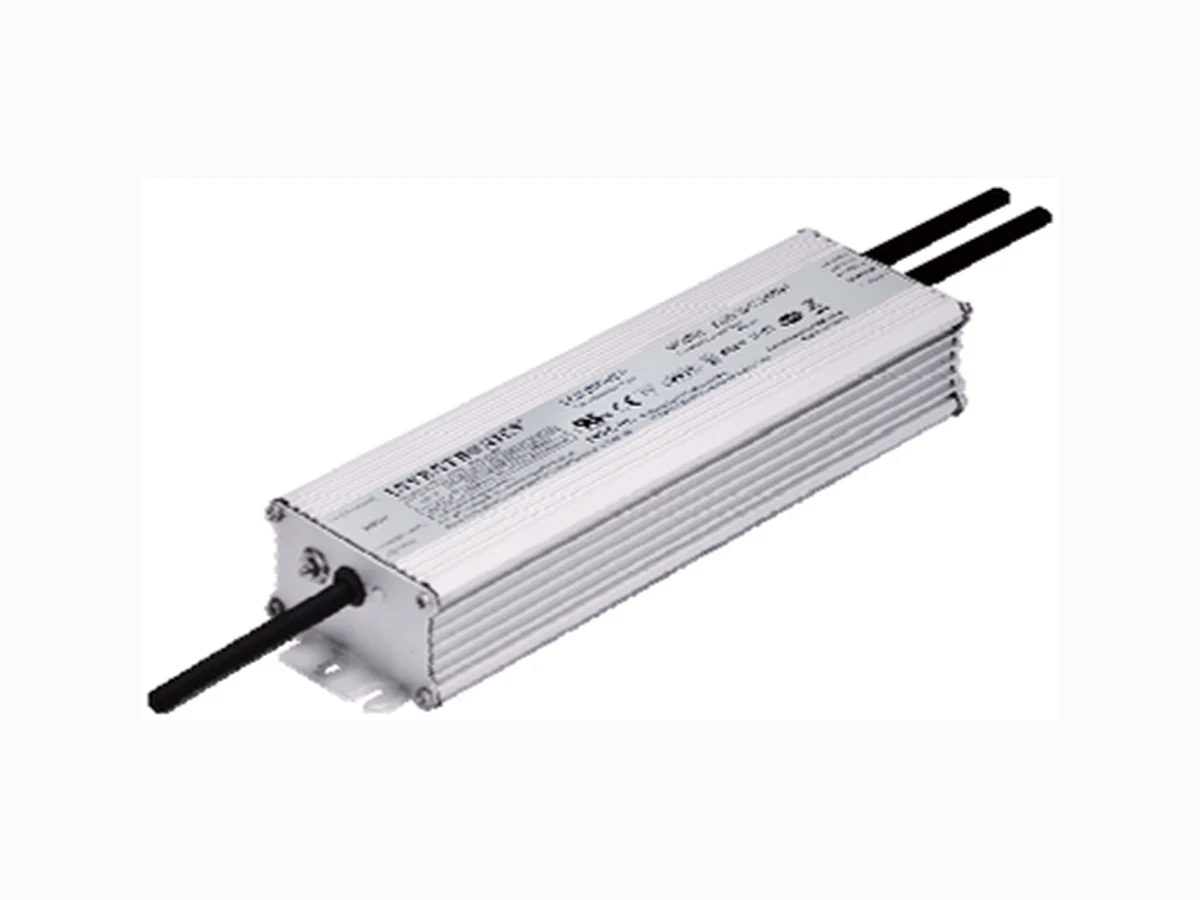

The EUD-200SxxxBT series is a 200W, constant -current, programmable LED driv er that operates from 90-305 Vac input with excellent power factor. Created for high bay, high mast, arena and roadway lights, it provides a dim-to-off mode with low standby power. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature. Models Max. Output Current Input Voltage Range(1) Output Voltage Range Max. Output Power Typical Efficiency (2) Power Factor Model Number (3) 120Vac 220Vac 700 mA 90 ~ 305 Vac 127~300 Vdc 143~286Vdc 200 W 93.5% 0.99 0.96 EUD-200S070BT 1050 mA 90 ~ 305 Vac 127~300 Vdc 95~190Vdc 200 W 93.5% 0.99 0.96 EUD-200S105BT 1400 mA 90 ~ 305 Vac 127~300 Vdc 71~142Vdc 200 W 93.0% 0.99 0.96 EUD-200S140BT 2100 mA 90 ~ 305 Vac 127~300 Vdc 47~ 95 Vdc 200 W 93.0% 0.99 0.96 EUD-200S210BT (4) 2450 mA 90 ~ 305 Vac 127~300 Vdc 41~ 82 Vdc 200 W 93.5% 0.99 0.96 EUD-200S245BT (4) 2800 mA 90 ~ 305 Vac 127~300 Vdc 35~ 71 Vdc 200 W 92.5% 0.99 0.96 EUD-200S280BT (4) 4200 mA 90 ~ 305 Vac 127~300 Vdc 24~ 48 Vdc 200 W 93.0% 0.99 0.96 EUD-200S420BT (4) 4900 mA 90 ~ 305 Vac 127~300 Vdc 21~ 41 Vdc 200 W 92.0% 0.99 0.96 EUD-200S490BT (4) Notes: (1) UL, FCC certified input voltage range: 100-277Vac or 127-300Vdc; other certified input voltage range except UL & FCC: 100-240Vac or 127-250Vdc (2) Measured at full load and 220 Vac input. (3) All the models are certificated to KS, except EUD-200S070BT (4) SELV output /g120 Ultra High Efficiency (Up to 93.5%) /g120 Programmable Constant-Current Output /g120 DALI Dimmable and Dim-to-Off /g120 Standby Power /g1481 W /g120 Input Surge Protection: 4kV line-line, 6kV line-earth /g120 All-Around Protection: OVP,SCP, OTP /g120 Waterproof (IP67) and UL Dry / Damp Location /g120 SELV Output /g120 TYPE HL, for use in a Class I, Division 2 hazardous (Classified) location
Specifications are subject to changes without notice. www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 200W Programmable IP67 Driver with DALI EUD-200SxxxBT Rev. I Input Specifications Parameter Min. Typ. Max. Notes Input Voltage 90 Vac - 305 Vac 127~300 Vdc Input Frequency 47 Hz - 63 Hz Leakage Current - - 0.75 MIU UL8750; 277Vac/ 60Hz, grounding effectively - - 0.70 mA IEC60598-1; 240Vac/ 60Hz, grounding effectively Input AC Current - - 2.4 A Measured at full load and 100 Vac input. - - 1.2 A Measured at full load and 220 Vac input. Inrush Current(I2t) - - 3.2 A 2s At 220Vac input, 25ć cold start, duration=1.7 ms,10%Ipk-10%Ipk. See Inrush Current Waveform for the details. PF 0.90 - - At 100-277Vac, 75%-100% Load Output Specifications Parameter Min. Typ. Max. Notes Output Current Tolerance -5%Iomax - 5%Iomax At full load condition Output Current Setting(Ioset) Range 10%Iomax - 100%Iomax Total Output Current Ripple (pk-pk) - 5%Iomax 10%Iomax At full load condition, 20 MHz BW Output Current Ripple at < 200 Hz (pk-pk) - 2%Iomax - At full load condition. Only this component of ripple is associated with visible flicker. Startup Overshoot Current - - 10%Iomax At full load condition No Load Output Voltage EUD-200S070BT EUD-200S105BT EUD-200S140BT EUD-200S210BT EUD-200S245BT EUD-200S280BT EUD-200S420BT EUD-200S490BT 305V 205V 155V 110V 95V 80V 55V 48V Line Regulation - - f0.5% Measured at full load Load Regulation - - f1.5% Turn-on Delay Time - 0.8 s 1.5 s Measured at 120Vac and 220Vac input. Temperature Coefficient of Iomax - - 0.03%//g113C Case temperature = 0 /g113C ~Tc max Note: All specifications are typical at 25 /g113C unless otherwise stated.
Specifications are subject to changes without notice. www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 200W Programmable IP67 Driver with DALI EUD-200SxxxBT Rev. I General Specifications Parameter Min. Typ. Max. Notes Efficiency at 120 Vac input: EUD-200S070BT EUD-200S105BT EUD-200S140BT EUD-200S210BT EUD-200S245BT EUD-200S280BT EUD-200S420BT EUD-200S490BT 88.0% 88.0% 87.0% 87.0% 88.0% 86.0% 87.5% 87.0% 91.0% 91.0% 90.0% 90.0% 91.0% 89.0% 90.5% 90.0% Measured at full load and steady-state temperature in 25/g113C ambient; (Efficiency will be about 2.0% lower if measured immediately after startup.) Efficiency at 220 Vac input: EUD-200S070BT EUD-200S105BT EUD-200S140BT EUD-200S210BT EUD-200S245BT EUD-200S280BT EUD-200S420BT EUD-200S490BT 91.5% 91.5% 91.0% 91.0% 91.5% 90.5% 91.0% 90.0% 93.5% 93.5% 93.0% 93.0% 93.5% 92.5% 93.0% 92.0% Measured at full load and steady-state temperature in 25/g113C ambient; (Efficiency will be about 2.0% lower if measured immediately after startup.) Efficiency at 277 Vac input: EUD-200S070BT EUD-200S105BT EUD-200S140BT EUD-200S210BT EUD-200S245BT EUD-200S280BT EUD-200S420BT EUD-200S490BT 92.0% 91.5% 91.0% 91.0% 91.5% 91.0% 91.5% 90.5% 94.0% 93.5% 93.0% 93.0% 93.5% 93.0% 93.5% 92.5% Measured at full load and steady-state temperature in 25/g113C ambient; (Efficiency will be about 2.0% lower if measured immediately after startup.) Standby power - - 1 W Measured at 230Vac/50Hz; Dimming off MTBF - 341,000 Hours - Measured at 220Vac input, 80%Load and 25/g113C ambient temperature (MIL-HDBK- 217F) Lifetime - 120,000 Hours - Measured at 220Vac input, 80%Load and 60/g113C case temperature; See lifetime vs. Tc curve for the details Operating Case Temperature for Safety Tc_s -40°C - +87 /g113C Operating Case Temperature for Warranty Tc_w -40°C - +70 /g113C Storage Temperature -40°C - +85°C Humidity: 5%RH to 100%RH Dimensions Inches (L × W × H) Millimeters (L × W × H) 8.82 × 2.66 × 1.56 224 × 67.5 × 39.5 With mounting ear 9.88 × 2.66 × 1.56 251 × 67.5 × 39.5 Net Weight - 1200 g - Note: All specifications are typical at 25 /g113C unless stated otherwise.
Specifications are subject to changes without notice. www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 200W Programmable IP67 Driver with DALI EUD-200SxxxBT Rev. I Dimming Specifications Standards Compliance Safety Category Standard UL/CUL UL8750, CAN/CSA-C22.2 No. 250.13 CE EN 61347-1, EN61347-2-13 KS KS C 7655 EMI standards Notes EN 55015(1) Conducted emission Test &Radiated emission Test EN 61000-3-2 Harmonic current emissions EN 61000-3-3 Voltage fluctuations & flicker FCC Part 15(1) ANSI C63.4 Class B This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference, and [2] this device must accept any interference received, including interference that may cause undesired Operation. EMS standards Notes EN 61000-4-2 Electrostatic Discharge (ESD): 8 kV air discharge, 4 kV contact discharge EN 61000-4-3 Radio-Frequency Electromagnetic Field Susceptibility Test-RS EN 61000-4-5 Surge Immunity Test: AC Power Line: line to line 4 kV, line to earth 6 kV (2) EN 61000-4-6 Conducted Radio Frequency Disturbances Test-CS EN 61000-4-8 Power Frequency Magnetic Field Test EN 61000-4-11 Voltage Dips EN 61547 Electromagnetic Immunity Requirements Applies To Lighting Equipment DALI Standards Notes DALI IEC62386-101,102 & part of 207 (3) Note: (1) This LED driver meets the EMI specifications above, but EMI performance of a luminaire that contains it depends also on the other devices connected to the driver and on the fixture itself. Parameter Min. Typ. Max. Notes DA1, DA2 High Level 9.5V 16V 22.5V DA1, DA2 Low Level -6.5V 0V 6.5V DA1, DA2 Current 0mA - 2mA Dimming Output Range 10%Iomax - 100%Ioset 10%Iomax İ Ioset İ 100%Iomax
Specifications are subject to changes without notice. www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 200W Programmable IP67 Driver with DALI EUD-200SxxxBT Rev. I (2) To perform electric strength (hi-pot) testing, th e “GDT ground disconnect” (nut and metal lock sheet) on the driver end-cap should be removed te mporarily to prevent the internal gas discharge tube from conducting (as allowed by IEC 60598-1 Clause 10.2). After testing is completed, these items must be reinstalled to restore line-to-earth surge protection and secure the end cap. (3) Optional Commands Implemented: 242 (query short circuit), 243 (query open circuit) Lifetime vs. Case Temperature Inrush Current Waveform
Specifications are subject to changes without notice. www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 200W Programmable IP67 Driver with DALI EUD-200SxxxBT Rev. I Efficiency vs. Load EUD-200S070BT EUD-200S105BT EUD-200S140BT EUD-200S210BT EUD-200S245BT EUD-200S280BT
Specifications are subject to changes without notice. www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 200W Programmable IP67 Driver with DALI EUD-200SxxxBT Rev. I EUD-200S420BT EUD-200S490BT Power Factor Total Harmonic Distortion
Specifications are subject to changes without notice. www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 200W Programmable IP67 Driver with DALI EUD-200SxxxBT Rev. I Protection Functions Parameter Notes Over Temperature Protection Decreases output current, returning to normal after over temperature is removed. Short Circuit Protection Auto Recovery. No damage will occur when any output is short circuited. The output shall return to normal when the fault condition is removed. Over Voltage Protection Limits output voltage at no load and in case the normal voltage limit fails. Dimming /g122 DALI Dimming The recommended implementation of the dimming control is provided below. Implementation: DALI Dimming
Specifications are subject to changes without notice. www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 200W Programmable IP67 Driver with DALI EUD-200SxxxBT Rev. I Programming Connection Diagram Note: The driver needs to be powered on during the programming process. /g122 Please refer to PRG-MUL2 Multi-Programmer datasheet for details. Mechanical Outline RED (V+) BLUE (V-) PURPLE GRAY PROJ: Unspecified tolerance:±1 BLACK (ACL) WHITE (ACN) GREEN (GND) DC OUTPUT (UL SJTW 2*18AWG ) AC INPUT(UL SJTW 3*18AWG ) DIMMING WIRE (UL 2464 2*22AWG ) Tc RoHS Compliance Our products comply with the European Directive 2011/65/EC, calling for the elimination of lead and other hazardous substances from electronic products.
Specifications are subject to changes without notice. www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 200W Programmable IP67 Driver with DALI EUD-200SxxxBT Rev. I
Revision History
Date Rev. Description of Change Item From To 2013-08-16 A Datasheets Release / / 2014-07-23 B Dimming control- EUD-200SxxxBT / Added PF curve / Updated THD curve / Updated Model 4200mA and Model 4900mA / Added Efficiency of all models / Updated Mechanical Outline / Updated 2014-10-10 C Case Temperature / Updated Dimming Output Range / Added Output Current Setting(Ioset) Range / Added 2015-03-11 D Input Surge Protection: 4kV line-line, 6kV line- earth Added Output Current Ripple(pk-pk) Output Current Ripple(pk-pk) Total Output Current Ripple (pk-pk) Output Current Ripple at < 200 Hz (pk-pk) / Added Case Temperature Case Temperature Operating Case Temperature for Safety Tc_s Operating Case Temperature for Warranty Tc_w / Added General Specifications Storage Temperature Added Environmental Specifications / Delete Safety & EMC Compliance EN 55015 EN 61000-3-2 EN 61000-3-3 Delete Derating / Delete 2015-09-16 E KS, DALI Logo / Added Features / Updated Safety & EMC Compliance Safety & EMC Compliance Standards Compliance Standards Compliance DALI Standards Added DALI Dimming / Updated 2015-12-03 F CE / Added External Grounding Screw Solution / / Standards Compliance / Updated Mechanical Outline / Updated
Specifications are subject to changes without notice. www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 200W Programmable IP67 Driver with DALI EUD-200SxxxBT Rev. I Revision History (Continued) Change Date Rev. Description of Change Item From To 2016-03-31 G General Specifications With mounting ear Updated Safety &EMC Compliance / Updated 2017-03-01 H Inrush Current(I2t) / Updated Mechanical Outline / Updated 2019-08-22 I Safety & EMC Compliance UL/CUL Updated Safety & EMC Compliance KS Updated Safety & EMC Compliance FCC Updated
