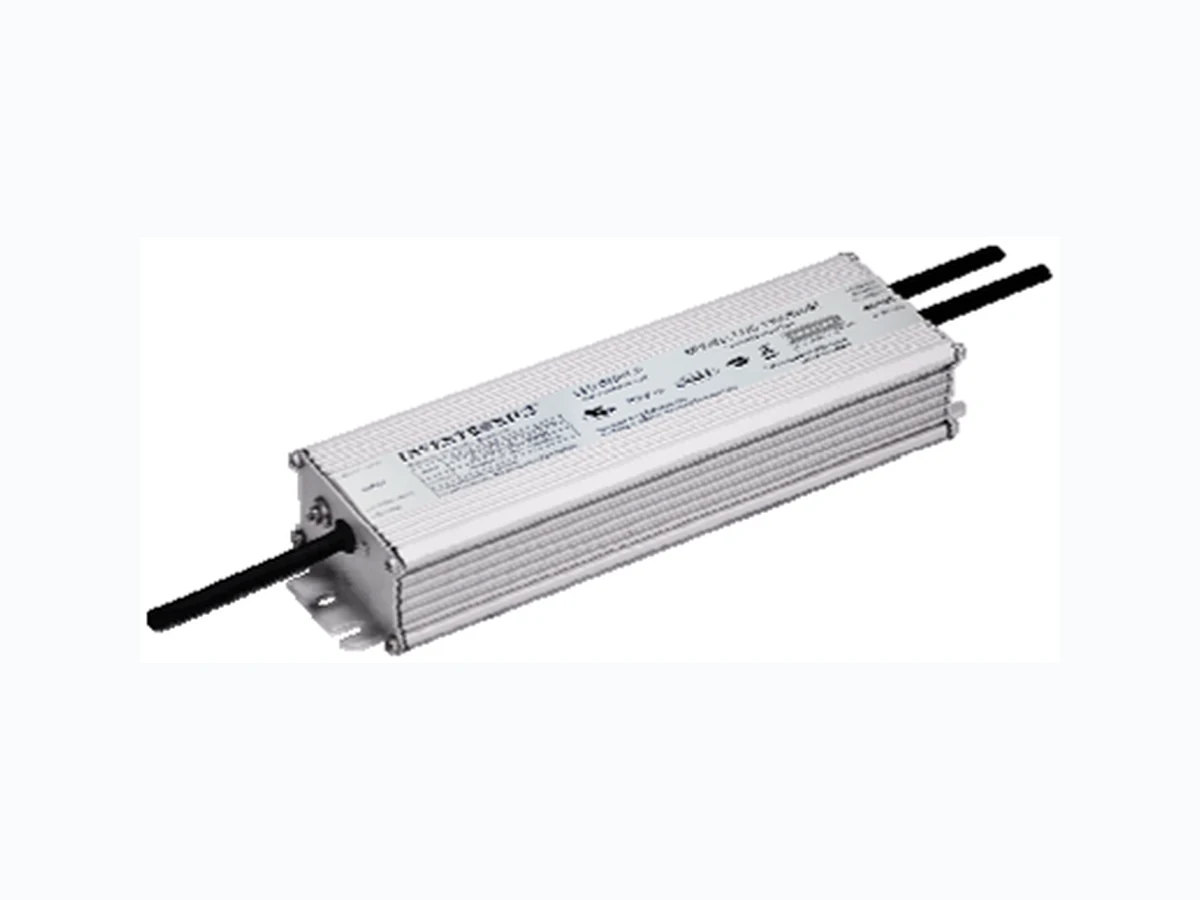

The EUD-150SxxxBT series is a 150W, constant-current, programmable LED driver that operates from 90-305 Vac input with excellent power factor. Created for many lighting applications including high bay, tunnel and roadway, etc, it provides a dim-to-off mode with low standby power. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided ag ainst input surge, output over voltage, short circuit, and over temperature. Models Output Current Range Full-Power Current Range (1) Default Output Current Input Voltage Range(2) Output Voltage Range Max. Output Power Typical Efficiency (3) Power Factor Model Number (4) 120Vac 220Vac 65-1300mA 650-1300mA 700 mA 90~305 Vac 127~300 Vdc 69~230Vdc 150 W 92.0% 0.99 0.96 EUD-150S130BT 130-2600mA 1300-2600mA 2100 mA 90~305 Vac 127~300 Vdc 35~115Vdc 150 W 91.5% 0.99 0.96 EUD-150S260BT 260-5200mA 2600-5200mA 4200 mA 90~305 Vac 127~300 Vdc 18 ~ 58Vdc 150 W 90.5% 0.99 0.96 EUD-150S520BT (5) Notes: (1) Output current range with constant power at 150W (2) UL, FCC certified input voltage range: 100-277Vac or 127-300Vdc; otherwise: 100-240Vac or 127-250Vdc (except KS) (3) Measured at a 220 Vac input with 100% maximum output current and 50% maximum output voltage. (4) All the models are certificated to KS, except EUD-150S130BT (5) SELV output /g120 High Efficiency (Up to 92%) /g120 Full Power at 50-100% Max Current (Constant Power) /g120 DALI Dimmable and Dim-to-Off /g120 Standby Power /g1481 W /g120 Input Surge Protection: DM 4kV, CM 6kV /g120 All-Around Protection: OVP, SCP, OTP /g120 Waterproof (IP67) and UL Dry / Damp Location /g120 SELV Output /g120 TYPE HL, for use in a Class I, Division 2 hazardous (Classified) location DISCOUNTINUED ammable LED drivermmable LED drive hting applications inhting applicatio dby power. The highby power. The hig antly improving reliaantly improving rel against input surge, gainst input surge, OUUU oltag OU ge(2) UNUN Output UN Voltage U Ran NNUNUNUU A A 90~305 Vac90~305 Vac 127~300 Vdc00 Vdc 69~269~2 OUOU 00 mA A 90~305 VacVa 127~300 Vd127~300 V OUCO U mA 4200 mA A 4 90~305 V90~305 V 127~301 COCCCCOC current range wicurrent range th con co CC certified input voltCC certified input volt xcept KS) ept KS) Measured at a 220 VMeasured at a 220 (4) All the models arethe models are (5) SELV output (5) SELV outp

Specifications are subject to changes without notice. www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 150W Programmable IP67 Driver with DALI EUD-150SxxxBT Rev. F I-V Operating Area Power-Limited Voltage-Limited 100 120 0 2 04 06 08 0 1 0 0 1 2 0 Output Current(%Iomax) (100%,50%) (10%Ioset,Pomax/Ioset) (Ioset,Pomax/Ioset) Note: 50%Iomax Ioset 100%Iomax Pomax=50%*Iomax*Vomax 100%Load 60%Load Good Performance Area Allowed Operating Area Programmed Operating Area (100%,30%) Input Specifications Parameter Min. Typ. Max. Notes Input Voltage 90 Vac - 305 Vac 127~300 Vdc Input Frequency 47 Hz - 63 Hz Leakage Current - - 0.75 MIU UL8750; 277Vac/ 60Hz, grounding effectively - - 0.70 mA IEC60598-1; 240Vac/ 60Hz, grounding effectively Input AC Current - - 1.8 A Measured at 100% load and 100 Vac input. - - 0.85 A Measured at 100% load and 220 Vac input. Inrush Current(I2t) - - 1.4 A 2s At 220Vac input, 25/g113C Cold Start, Duration=1.46 mS, 10%Ipk-10%Ipk. See Inrush Current Waveform for the details. PF 0.90 - - At 100-277Vac, 50-60Hz, 60%-100% Load Output Specifications Parameter Min. Typ. Max. Notes Output Current Tolerance -5%Ioset - 5%Ioset At 100% load condition Output Current Setting(Ioset) Range 5%Iomax - 100%Iomax Output Current Setting Range with Constant Power 50%Iomax - 100%Iomax Total Output Current Ripple (pk-pk) - 5%Iomax 10%Iomax At 100% load condition. 20 MHz BW Output Current Ripple at < 200 Hz (pk-pk) - 2%Iomax - At 100% load condition. Only this component of ripple is associated with visible flicker. DrrrrD Current T Current DISCOU - - - - OUNTINU NUED EDEEDDD UEUEUUEUEEE NUNUNU DEDED ED UE TTINTIN M TINTINTINTTIN

305 Vac 1305 Vac

• 0.75- NUN- - UNOU N OUOU OUCOU - - COCO 0.90 SCCSCISC put Specificationput Specification DIDI ameter DIDD

Specifications are subject to changes without notice. www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 150W Programmable IP67 Driver with DALI EUD-150SxxxBT Rev. F Output Specifications (Continued) Parameter Min. Typ. Max. Notes Startup Overshoot Current - - 10%Iomax At 100% load condition No Load Output Voltage EUD-150S130BT EUD-150S260BT EUD-150S520BT 275V 138V 70V Line Regulation - - f0.5% Measured at 100% load Load Regulation - - f1.5% Turn-on Delay Time - 0.8 s 1.5 s Measured at 120Vac and 220Vac input. Temperature Coefficient of Ioset - 0.03%//g113C - Case temperature = 0/g113C ~Tc max Note: All specifications are typical at 25/g113C unless otherwise stated. General Specifications Parameter Min. Typ. Max. Notes Efficiency at 120 Vac input: EUD-150S130BT Io= 650 mA Io= 1300 mA EUD-150S260BT Io= 1300 mA Io= 2600 mA EUD-150S520BT Io= 2600 mA Io= 5200 mA 86.0% 87.0% 86.5% 86.5% 86.5% 85.5% 89.0% 90.0% 89.5% 89.5% 89.5% 88.5% Measured at 100% load and steady-state temperature in 25/g113C ambient; (Efficiency will be about 2.0% lower if measured immediately after startup.) Efficiency at 220 Vac input: EUD-150S130BT Io= 650 mA Io= 1300 mA EUD-150S260BT Io= 1300 mA Io= 2600 mA EUD-150S520BT Io= 2600 mA Io= 5200 mA 89.0% 90.0% 89.5% 89.5% 89.5% 88.5% 91.0% 92.0% 91.5% 91.5% 91.5% 90.5% Measured at 100% load and steady-state temperature in 25/g113C ambient; (Efficiency will be about 2.0% lower if measured immediately after startup.) Efficiency at 277 Vac input: EUD-150S130BT Io= 650 mA Io= 1300 mA EUD-150S260BT Io= 1300 mA Io= 2600 mA EUD-150S520BT Io= 2600 mA Io= 5200 mA 89.5% 90.5% 89.5% 90.0% 89.5% 89.0% 91.5% 92.5% 91.5% 92.0% 91.5% 91.0% Measured at 100% load and steady-state temperature in 25/g113C ambient; (Efficiency will be about 2.0% lower if measured immediately after startup.) Standby power - - 1 W Measured at 230Vac/50Hz; Dimming off MTBF - 236,000 Hours - Measured at 220Vac input, 80%Load and 25/g113C ambient temperature (MIL-HDBK- 217F) DIS cy at 277 Vac input: 277 Vac input: D-150S130BT -150S130BT Io= 65o= 6 Io= D-150S260BT D-150S260BT ISCOUN .5% 5% 89.5% 89.5% 89.5% 89.5% 89.5% % 88.5% % OU NTINUED ad DED at 120Vac and 220Vact 120Vac and 220Va ED temperature = 0temperature = /g113/g113C ~TC ~T UEU TINTIN Max TINTININTIN - - TINNTIN A mAmA 1300 mA0 m o= 2600 mAo= 2600 mA T T Io= 2600 mAIo= 2600 mA Io= 5200 mA Io= 5200 mA 89.0% 89 90.0% 90.0% 89.5% 89. 89.5%89. OUCOU IS

Specifications are subject to changes without notice. www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 150W Programmable IP67 Driver with DALI EUD-150SxxxBT Rev. F General Specifications (Continued) Parameter Min. Typ. Max. Notes Lifetime - 120,000 Hours - Measured at 220Vac input, 80%Load and 60/g113C case temperature; See lifetime vs. Tc curve for the details Operating Case Temperature for Safety Tc_s -40°C - +89/g113C Operating Case Temperature for Warranty Tc_w -40°C - +70/g113C Storage Temperature -40°C - +85°C Humidity: 5%RH to 100%RH Dimensions Inches (L × W × H) Millimeters (L × W × H) 8.62 × 2.66 × 1.56 219 × 67.5 × 39.5 With mounting ear 9.67 × 2.66 × 1.56 246 × 67.5 × 39.5 Net Weight - 1210 g - Note: All specifications are typical at 25/g113C unless otherwise stated. Dimming Specifications Parameter Min. Typ. Max. Notes DA1,DA2 High Level 9.5V 16V 22.5V DA1,DA2 Low Level -6.5V 0V 6.5V DA1,DA2 Current 0mA - 2mA Dimming Output Range 10%Ioset - Ioset 50%Iomax İ Ioset İ 100%Iomax 5%Iomax - Ioset 5%Iomax İIoset ˘ 50%Iomax Note: All specifications are typical at 25 /g113C unless stated otherwise. Standards Compliance Safety Category Standard UL/CUL UL8750 & CAN/CSA-C22.2 No. 250.13 CE EN 61347-1, EN61347-2-13 KS KS C 7655 EMI Standards Notes EN 55015(1) Conducted emission Test &Radiated emission Test EN 61000-3-2 Harmonic current emissions EN 61000-3-3 Voltage fluctuations & flicker FCC Part 15(1) ANSI C63.4 Class B This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference, and [2] this device must accept any interference received, including interference that may cause undesired Operation. D EN 5501550 DISCOUNTINUED D o 100%RH o 100%RH Dear ear 246 × 67.5 × 39.5 246 × 67.5 × 39.5 EDUEU TINTIN Max TINTININTIN 22.5V 22.5V TINNTTIN 6.5V 6.5V NTNTT- - 2mA 2m NTNT - - UNUNmax - - UNOUOUOU N al at 25 at 2 /g113C unless stateC unless state ce ce SCCCOCOCOC L L UL875L87 SCCCE EE SCC KS KS ISDISDIS EMI Standard DISD EN 61EN 61 DD

Specifications are subject to changes without notice. www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 150W Programmable IP67 Driver with DALI EUD-150SxxxBT Rev. F Standards Compliance (Continued) EMS Standards Notes EN 61000-4-2 Electrostatic Discharge(ESD): 8kV air discharge, 4kV contact discharge EN 61000-4-3 Radio-Frequency Electromagnetic Field Susceptibility Test-RS EN 61000-4-5 Surge Immunity Test: AC Power Line: Differential Mode 4 kV, Common Mode 6 kV (2) EN 61000-4-6 Conducted Radio Frequency Disturbances test-CS EN 61000-4-8 Power Frequency Magnetic Field Test EN 61000-4-11 Voltage Dips EN 61547 Electromagnetic Immunity Requirements Applies To Lighting Equipment DALI Standards Notes DALI IEC62386-101,102 & part of 207 (3) Note˖(1) This LED driver meets the EMI specifications above, but EMI performance of a luminaire that contains it depends also on the other devices connected to the driver and on the fixture itself. (2) To perform electric strength (hi-pot) testing, the “GDT ground disconnect” (nut and metal lock sheet) on the driver end-cap should be remo ved temporarily to prevent the in ternal gas discharge tube from conducting (as allowed by IEC 605 98-1 Clause 10.2). After testing is completed, these items must be reinstalled to restore line-to-earth surge protection and secure the end cap. (3) Optional Commands Implemented: 243 (query open circuit) Lifetime vs. Case Temperature DISCOUNTINUED mon Mode 6 kVon Mode 6 kV( DDEDUE To Lighting EquipmenTo Lighting Equipme UENUNUNUNUIN e,e, but EMI performan but EMI perform the driver and on thethe driver and on the he “GDT ground disce “GDT ground dis emporarily to prevenmporarily to p Clause 10.2). After use 10.2). Afte ge protection and sece protection an 243 (query open circ243 (query open cir

Specifications are subject to changes without notice. www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 150W Programmable IP67 Driver with DALI EUD-150SxxxBT Rev. F Inrush Current Waveform Efficiency vs. Load EUD-150S130BT(Io=650mA) EUD-150S130BT(Io=1300mA) EUD-150S260BT(Io=1300mA) EUD-150S260BT(Io=2600mA) SCOUNTINUED EUD-150S130B EUD-150S130 -150S260BT(Io=1350S260BT(

Specifications are subject to changes without notice. www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 150W Programmable IP67 Driver with DALI EUD-150SxxxBT Rev. F EUD-150S520BT(Io=2600mA) EUD-150S520BT(Io=5200mA) Power Factor Total Harmonic Distortion DISCOUNTINUED Distortion tor

Specifications are subject to changes without notice. www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 150W Programmable IP67 Driver with DALI EUD-150SxxxBT Rev. F Protection Functions Parameter Notes Over Temperature Protection Decreases output current, returning to normal after over temperature is removed. Short Circuit Protection Auto Recovery. No damage will occur when any output is short circuited. The output shall return to normal when the fault condition is removed. Over Voltage Protection Limits output voltage at no load and in case the normal voltage limit fails. Dimming /g122 DALI Dimming The recommended implementation of the dimming control is provided below. Implementation: DALI Dimming DISCOUNTINUED . T fails. fails DEDow. ow

Specifications are subject to changes without notice. www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 150W Programmable IP67 Driver with DALI EUD-150SxxxBT Rev. F Programming Connection Diagram Note: The driver needs to be powered on during the programming process. /g122 Please refer to PRG-MUL2 Multi-Programmer datasheet for details. Mechanical Outline PROJ: Unspecified tolerance:±1 INPUT(UL SJTW 3*18AWG 7.8) OUTPUT (UL SJTW 2*18AWG 7.3) AC//(BLACK) AC/N(WHITE) GND (GREEN) V-(BLUE) V+(RED) DIMMING WIRE (UL 2464 2 *22AWG 4.2 ) PURPLE GRAY Tc RoHS Compliance Our products comply with reference to RoHS Directive (EU) 2015/863 amending 2011/65/EU, calling for the elimination of lead and other hazardous substances from electronic products. DISCOUN UUUUUUUUUUUUU SCSCCCCCCOOOOOOOOOCOCOCOCOCOCOCOCOOOOOOOOOOO SCSCSSSSSSSSSSSSSSSSSSSSSSSSSCSCSCSSSSSSSSCSCSSSS UUUOOOOOOOOOOOOOOOOOOOOOOOOOOOUNTINUED ssss. . heet for details.heet for details. OUOU NNNNNNTNNNNTUNUUUUUUUUUUUOUOUOUOUOUUNUNUNUNUNUNUNUNUNUNUNUNUNUNUNOUUUUUUOUUUUUUUUUUUUUUUUOOOOOOOOOOOOOOOOOOOOOOOOUOUOUOUOUOUOUOUOUOUOUOUOUOUUUUUUUUOUOUOUOUOUOUOUUUUOUOU T CompComp

Specifications are subject to changes without notice. www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 150W Programmable IP67 Driver with DALI EUD-150SxxxBT Rev. F

Revision History

Date Rev. Description of Change Item From To 2013-10-30 A Datasheets Release / / 2015-03-09 B Input Surge Protection: 4kV line-line, 6kV line- earth Added Output Current Ripple(pk-pk) Output Current Ripple(pk-pk) Total Output Current Ripple (pk-pk) Output Current Ripple at < 200 Hz (pk-pk) / Added Case Temperature Case Temperature Operating Case Temperature for Safety Tc_s Operating Case Temperature for Warranty Tc_w / Added General Specifications Storage Temperature Added Environmental Specifications / Delete Safety & EMC Compliance EN 55015 EN 61000-3-2 EN 61000-3-3 Delete Derating / Delete 2015-09-16 C KS, DALI Logo / Added Features / Update Safety & EMC Compliance Safety & EMC Compliance Standards Compliance Standards Compliance DALI Standards Added 2015-11-27 D CE / Added External Grounding Screw Solution / / Standards Compliance / Update Mechanical Outline / Update 2016-04-13 E General Specifications With mounting ear Added General Specifications Net Weight Update Standards Compliance / Update 2019-08-23 F Features Input Surge Protection Updated Description / Updated Input Specifications(PF/THD) 50-60Hz Added Safety &EMC Compliance UL/CUL Updated Safety &EMC Compliance KS Updated DISCOUNTINUED otal Output Current al Output Curre Ripple (pk-pk) Ripple (pk- DE Added Added EDE ature re Operating CaOperating C TemperatuTemperatu Tc_s Tc_s EDUE AddA UEUE orage Temperature Temperature NUU NUI EN 55015 EN 55015 EN 61000-3-N 61000-3 EN 610006100 INTI / / TITI/ NTTNiance ance UN pliance pliance OUOU nal Grounding Screw Snal Grounding Screw S CO Standards Compliancedards Complia CO Mechanical OutlinMechanical Outlin SCS 4-13 E E General SpeGeneral S SCIIS GeneraGenera IISDIIS StaS DIISDIISDDDD

Specifications are subject to changes without notice. www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 150W Programmable IP67 Driver with DALI EUD-150SxxxBT Rev. F Revision History (Continued) Change Date Rev. Description of Change Item From To 2019-08-23 F Safety &EMC Compliance FCC Updated Safety &EMC Compliance EN 61000-4-5 Updated Mechanical Outline / Updated RoHS Compliance / Updated DISCOUNTINUED d dated dated D Updated Updated EDEEED
