EUD-150SXXXDVABVA INVENTRONICS
Document overview
- Manufacturer or author: Provided By www.digicamel.com(free datasheet download site)
- PDF pages: 13
Technical content
Features
Description

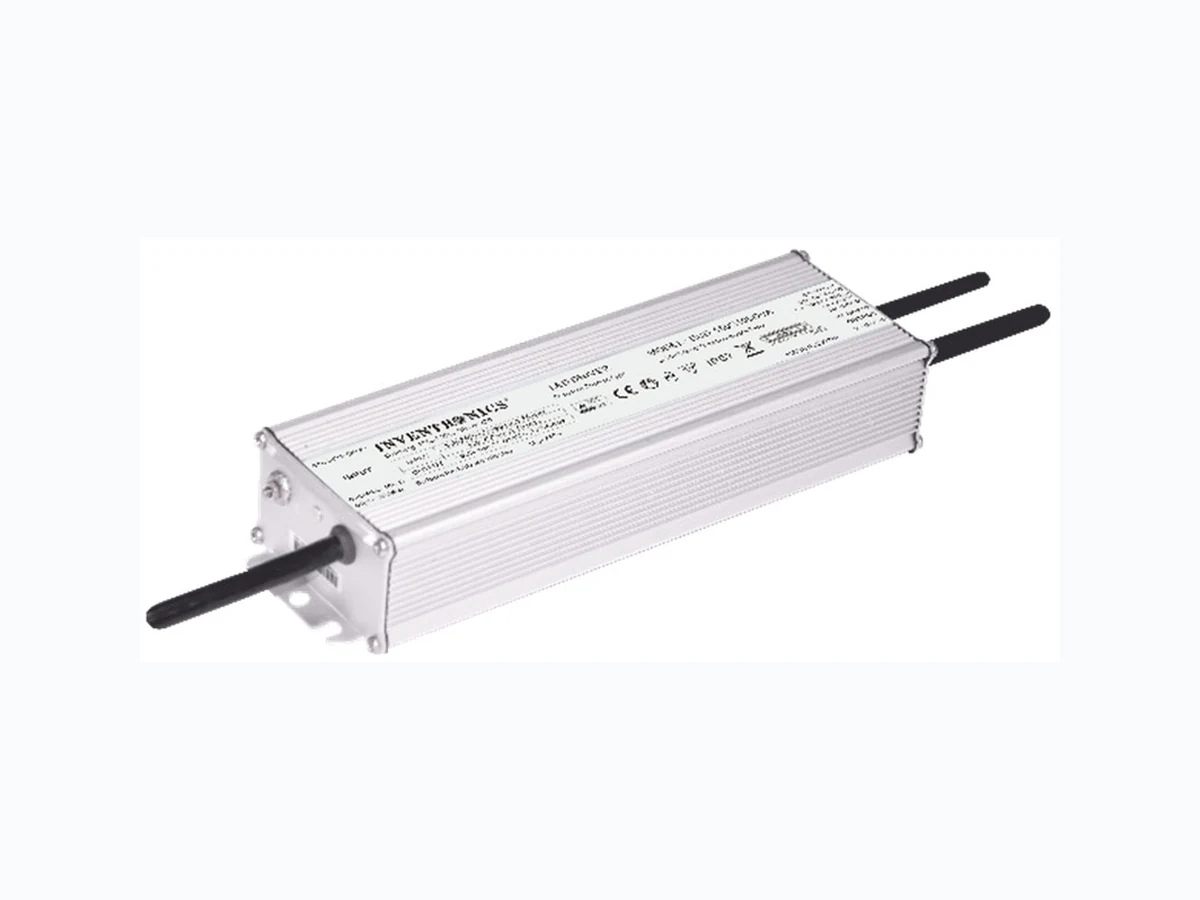

The EUD-150SxxxDVA(BVA) series is a 150W, constant-current, programmable LED driver that operates from 90-305 Vac input with excellent power factor. Created for many lighting applications including high bay, tunnel and roadway, etc. It provides a dim-to-off mode with low standby power. The high efficiency of these drivers and compact metal case enables them to run cooler, signific antly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature. Models Adjustable Output Current Range Full-Power Current Range (1) Default Output Current Input Voltage Range(2) Output Voltage Range Max. Output Power Typical Efficiency (3) Typical Power Factor Model Number (5) 120Vac 220Vac 70-1050mA 700-1050mA 700 mA 90~305Vac 100~250Vdc 75~214Vdc 150 W 94.0% 0.99 0.96 EUD-150S105DVA(BVA) 140-2100mA 1400-2100mA 1400 mA 90~305Vac 100~250Vdc 38~107Vdc 150 W 94.0% 0.99 0.96 EUD-150S210DVA(BVA) (4) 245-3500mA 2450-3500mA 3150 mA 90~305Vac 100~250Vdc 22 ~ 61Vdc 150 W 93.5% 0.99 0.96 EUD-150S350DVA(BVA) (4) 385-5600mA 3850-5600mA 4200 mA 90~305Vac 100~250Vdc 14 ~ 39Vdc 150 W 92.5% 0.99 0.96 EUD-150S560DVA(BVA) (4) Notes: (1) Output current range with constant power at 150W. (2) Certified voltage range: 100-240Vac or 100-250Vdc, (except KS, CCC and PSE). (3) Measured at 100%load and 220Vac input (see below “General Specifications” for details). (4) SELV output. (5) All the models are certificated to global-mark, except EUD-150S105DVA(BVA). Ultra High Efficiency (Up to 94%) Full Power at Wide Output Current Range (Constant Power) Thermal Sensing and Protection for LED Module 0-10V/PWM/ 3-Timer-Modes Dimmable (DVA models) DALI Dimming Control (BVA models) Dim-to-Off with Standby Power ≤ 0.5W Always-on Auxiliary Power: 12Vdc, 200mA (Transient Peak Current up to 400mA) Output Lumen Compensation (DVA models) Input Surge Protection: DM 6kV, CM 10kV All-Around Protection: OVP, SCP, OTP IP67 SELV Output 7 Years Warranty
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 150W Programmable IP67 Driver www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com EUD-150SxxxDVA(BVA) Rev. D I-V Operating Area EUD-150S105DVA(BVA) EUD-150S210DVA(BVA) Output Voltage (V) Output Current (mA) Good Performance Area Allowed Operating Area Programmed Operating Area Note: 700mA≤Ioset≤1050mA (420,214)(70,214) 120 160 200 240 0 200 400 600 800 1000 1200 (700,214) (1050,143) 100%Load60%Load (1050,75) (Ioset,150/Ioset)(10%Ioset,150/Ioset) (105,75) (Ioset,75) (1050,86) (840,107)(140,107) (2100,43) 100 120 0 400 800 1200 1600 2000 2400 Output Voltage(V) (1400,107) (2100,71) (10%Ioset,150/Ioset) (Ioset,150/Ioset) 100%Load 60%Load Good Performance Area Allowed Operating Area (2100,38) Programmed Operating Area (210,38) (Ioset,38) Output Current (mA) Note: 1400mA≤Ioset≤2100mA EUD-150S350DVA(BVA) EUD-150S560DVA(BVA) (1470,61)(245,61) (3500,26) 0 700 1400 2100 2800 3500 4200 Output Voltage(V) (2450,61) (3500,43) (10%Ioset,150/Ioset) (Ioset,150/Ioset) 100%Load 60%Load Good Performance Area Allowed Operating Area (3500,22) Programmed Operating Area (350,22) (Ioset,22) Output Current (mA) Note: 2450mA≤Ioset≤3500mA (2310,39)(385,39) (5600,16) 0 1000 2000 3000 4000 5000 6000 Output Voltage(V) (3850,39) (5600,26.8) (10%Ioset,150/Ioset) (Ioset,150/Ioset) 100%Load60%Load Good Performance Area Allowed Operating Area (5600,14) Programmed Operating Area (560,14) (Ioset,14) Output Current (mA) Note: 3850mA≤Ioset≤5600mA Input Specifications Parameter Min. Typ. Max. Notes Input AC Voltage 90 Vac - 305 Vac Input DC Voltage 100 Vdc - 250 Vdc Input Frequency 47 Hz - 63 Hz Leakage Current - - 0.70 mA IEC 60598-1; 240Vac/ 60Hz, grounding effectively Input AC Current - - 1.87 A Measured at 100%load and 100 Vac input. - - 0.85 A Measured at 100%load and 220 Vac input. Inrush Current(I2t) - - 1.90 A 2s At 220Vac input, 25℃ cold start, duration=872μs, 10%Ipk-10%Ipk. See Inrush Current Waveform for the details.
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 150W Programmable IP67 Driver www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com EUD-150SxxxDVA(BVA) Rev. D Input Specifications (Continued) Parameter Min. Typ. Max. Notes PF 0.90 - - At 100-240Vac, 50-60Hz, 60%-100% Load THD - - 10% At 220-240Vac, 50-60Hz, 75%-100% Load (112.5-150W) Output Specifications Parameter Min. Typ. Max. Notes Output Current Tolerance -5%Ioset - 5%Ioset 100%load Output Current Setting(Ioset) Range EUD-150S105DVA(BVA) EUD-150S210DVA(BVA) EUD-150S350DVA(BVA) EUD-150S560DVA(BVA) 70 mA 140 mA 245 mA 385 mA 1050 mA 2100 mA 3500 mA 5600 mA Output Current Setting Range with Constant Power EUD-150S105DVA(BVA) EUD-150S210DVA(BVA) EUD-150S350DVA(BVA) EUD-150S560DVA(BVA) 700 mA 1400 mA 2450 mA 3850 mA 1050 mA 2100 mA 3500 mA 5600 mA Total Output Current Ripple (pk-pk) - 5%Iomax 10%Iomax 100%load, 20 MHz BW Output Current Ripple at < 200 Hz (pk-pk) - 2%Iomax - 100%load Startup Overshoot Current - - 10%Iomax 100%load No Load Output Voltage EUD-150S105DVA(BVA) EUD-150S210DVA(BVA) EUD-150S350DVA(BVA) EUD-150S560DVA(BVA) 240 V 120 V 80 V 50 V Line Regulation - - ±0.5% 100%load Load Regulation - - ±1.5% Turn-on Delay Time - - 1.0 s Measured at 120Vac input, 60%-100% Load - - 0.5 s Measured at 220Vac input, 60%-100% Load Temperature Coefficient of Ioset - 0.03%/C - Case temperature = 0C ~Tc max 12V Auxiliary Output Voltage 10.8 V 12 V 13.2 V 12V Auxiliary Output Source Current 0 mA - 200 mA Return terminal is “Dim−“(DVA models) Return terminal is “OTP−“(BVA models) 12V Auxiliary Output Transient Peak Current - - 400 mA 400mA peak for a maximum duration of 300ms in a 2s period during which time the average should not exceed 200mA.
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 150W Programmable IP67 Driver www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com EUD-150SxxxDVA(BVA) Rev. D General Specifications Parameter Min. Typ. Max. Notes Efficiency at 120 Vac input: EUD-150S105DVA(BVA) Io= 700mA Io=1050mA EUD-150S210DVA(BVA) Io=1400mA Io=2100mA EUD-150S350DVA(BVA) Io=2450mA Io=3500mA EUD-150S560DVA(BVA) Io=3850mA Io=5600mA 89.5% 88.0% 89.5% 87.5% 88.5% 87.5% 88.0% 86.0% 91.5% 90.0% 91.5% 89.5% 90.5% 89.5% 90.0% 88.0% Measured at 100%load and steady-state temperature in 25C ambient; (Efficiency will be about 2.0% lower if measured immediately after startup.) Efficiency at 220 Vac input: EUD-150S105DVA(BVA) Io= 700mA Io=1050mA EUD-150S210DVA(BVA) Io=1400mA Io=2100mA EUD-150S350DVA(BVA) Io=2450mA Io=3500mA EUD-150S560DVA(BVA) Io=3850mA Io=5600mA 92.0% 90.5% 92.0% 89.5% 91.5% 89.0% 90.5% 88.5% 94.0% 92.5% 94.0% 91.5% 93.5% 91.0% 92.5% 90.5% Measured at 100%load and steady-state temperature in 25C ambient; (Efficiency will be about 2.0% lower if measured immediately after startup.) Efficiency at 277 Vac input: EUD-150S105DVA(BVA) Io= 700mA Io=1050mA EUD-150S210DVA(BVA) Io=1400mA Io=2100mA EUD-150S350DVA(BVA) Io=2450mA Io=3500mA EUD-150S560DVA(BVA) Io=3850mA Io=5600mA 92.0% 90.5% 92.5% 90.0% 91.5% 89.0% 90.5% 89.0% 94.0% 92.5% 94.5% 92.0% 93.5% 91.0% 92.5% 91.0% Measured at 100%load and steady-state temperature in 25C ambient; (Efficiency will be about 2.0% lower if measured immediately after startup.) Standby power - - 0.5 W Measured at 230Vac/50Hz; Dimming off MTBF - 228,000 Hours - Measured at 220Vac input, 80%Load and 25C ambient temperature (MIL-HDBK- 217F) Lifetime - 100,000 Hours - Measured at 220Vac input, 80%Load and 70C case temperature; See lifetime vs. Tc curve for the details Operating Case Temperature for Safety Tc_s -40°C - +90°C Operating Case Temperature for Warranty Tc_w -40°C - +75 C Case temperature for 7 years warranty. Please see Inventronics Warranty Statement for complete details. Storage Temperature -40°C - +85°C Humidity: 5%RH to 100%RH Dimensions Inches (L × W × H) Millimeters (L × W × H) 8.03 × 2.66 × 1.56 204 × 67.5 × 39.7 With mounting ear 8.86 × 2.66 × 1.56 225 × 67.5 × 39.7 Net Weight - 1150 g -
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 150W Programmable IP67 Driver www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com EUD-150SxxxDVA(BVA) Rev. D Dimming Specifications Parameter Min. Typ. Max. Notes DVA Models Absolute Maximum Voltage on the Vdim (+) Pin -20 V - 20 V Source Current on Vdim (+)Pin 200 μA 300 μA 450 μA Vdim(+) = 0 V Recommended Dimming Input Range 0 V - 10 V Default 0-10V dimming mode. Dim off Voltage 0.35 V 0.5 V 0.65 V Dim on Voltage 0.55 V 0.7 V 0.85 V Hysteresis - 0.2 V - PWM_in High Level 3 V - 10 V Dimming mode set to PWM in Inventronics Programming Software. PWM_in Low Level -0.3 V - 0.6 V PWM_in Frequency Range 200 Hz - 3 KHz PWM_in Duty Cycle 1% - 99% PWM Dimming off (Positive Logic) 2% 5% 8% PWM Dimming on (Positive Logic) 4% 7% 10% PWM Dimming off (Negative Logic) 92% 95% 98% PWM Dimming on (Negative Logic) 90% 93% 96% Hysteresis - 2% - BVA Models DA,DA High Level 9.5V 16V 22.5V DA,DA Low Level -6.5V 0V 6.5V DA,DA Current 0mA - 2mA Dimming Output Range EUD-150S105DVA(BVA) EUD-150S210DVA(BVA) EUD-150S350DVA(BVA) EUD-150S560DVA(BVA) 10%Ioset - Ioset 700mA ≤ Ioset ≤ 1050mA 1400mA ≤ Ioset ≤ 2100mA 2450mA ≤ Ioset ≤ 3500mA 3850mA ≤ Ioset ≤ 5600mA 70mA 140mA 245mA 385mA - Ioset 70mA ≤ Ioset ＜ 700mA 140mA ≤ Ioset ＜ 1400mA 245mA ≤ Ioset ＜ 2450mA 385mA ≤ Ioset ＜ 3850mA Safety &EMC Compliance Safety Category Standard TUV & CE EN 61347-1, EN61347-2-13 CB IEC 61347-1, IEC 61347-2-13 CCC GB 19510.1, GB 19510.14 PSE J 61347-1, J 61347-2-13
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 150W Programmable IP67 Driver www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com EUD-150SxxxDVA(BVA) Rev. D Safety &EMC Compliance (Continued) Safety Category Standard KS KS C 7655 global-mark AS/NZS 61347. 1, AS/NZS 61347.2.13 EMI Standards Notes EN IEC 55015/GB 17743(1) Conducted emission Test &Radiated emission Test EN IEC 61000-3-2/GB 17625.1 Harmonic current emissions EN 61000-3-3 Voltage fluctuations & flicker EMS Standards Notes EN 61000-4-2 Electrostatic Discharge (ESD): 8 kV air discharge, 4 kV contact discharge EN 61000-4-3 Radio-Frequency Electrom agnetic Field Susceptibility Test-RS EN 61000-4-5 Surge Immunity Test: AC Power Line: Differential Mode 6 kV, Common Mode 10 kV (2) EN 61000-4-6 Conducted Radio Fr equency Disturbances Test-CS EN 61000-4-8 Power Frequency Magnetic Field Test EN 61000-4-11 Voltage Dips EN 61547 Electromagnetic Immunity Requireme nts Applies To Lighting Equipment DALI Standards Notes DALI IEC62386-101,102 & part of 207 (3) Note: (1) This LED driver meets the EMI specifications above, but EMI performance of a luminaire that contains it depends also on the other devices connected to the driver and on the fixture itself. (2) To perform electric strength (hi-pot) testing, the “GDT ground disconnect” (nut and metal lock sheet) on the driver end-cap should be removed temporarily to prevent the internal gas discharge tube from conducting (as allowed by IEC 60598-1 Clause 10.2). After testing is completed, these items must be reinstalled to restore line-to-earth surge protection and secure the end cap. (3) Optional Commands Implemented: 242 (query short circuit), 243 (query open circuit)
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 150W Programmable IP67 Driver www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com EUD-150SxxxDVA(BVA) Rev. D Lifetime vs. Case Temperature Inrush Current Waveform Efficiency vs. Load EUD-150S105DVA(BVA)(Io=700mA) EUD-150S105DVA(BVA)(Io=1050mA)
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 150W Programmable IP67 Driver www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com EUD-150SxxxDVA(BVA) Rev. D EUD-150S210DVA(BVA)(Io=1400mA) EUD-150S210DVA(BVA)(Io=2100mA) EUD-150S350DVA(BVA)(Io=2450mA) EUD-150S350DVA(BVA)(Io=3500mA) EUD-150S560DVA(BVA)(Io=3850mA) EUD-150S560DVA(BVA)(Io=5600mA)
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 150W Programmable IP67 Driver www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com EUD-150SxxxDVA(BVA) Rev. D Power Factor Total Harmonic Distortion Protection Functions Parameter Min. Typ. Max. Notes External Thermal Protection NTC R1 - 7.81 kOhm - When R_NTC falls below R1, External Thermal Protection is triggered, reducing output current until R2 is reached. R2 - 4.16 kOhm - When R_NTC is less than R2, output current is reduced to the programmed “Protection Current Floor.” Protection Current Floor 10%Ioset 60%Ioset 100%Ioset 10%Ioset > Iomin (default setting is 60%) Iomin 60%Ioset 100%Ioset 10%Ioset ≤Iomin (default setting is 60%) Over Temperature Protection Decreases output current, retu rning to normal after over temperature is removed. Short Circuit Protection Auto Recovery. No damage will occur when any output is short circuited. The output shall return to normal when the fault condition is removed. Over Voltage Protection Limits output voltage at no load and in case the normal voltage limit fails.
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 150W Programmable IP67 Driver www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com EUD-150SxxxDVA(BVA) Rev. D Dimming 0-10V Dimming (Only DVA models) The recommended implementation of the dimming control is provided below. Dim+ Dim- Dimmer Inventronics LED Driver V-L OTP- N G Vac Vaux OTP+ Implementation 1: DC Input Notes: 1. Do NOT connect Dim − to the output V− or V+, otherwise the driver will not work properly. 2. The dimmer can also be replaced by an active 0-10V voltage source signal or passive components like zener. PWM Dimming (Only DVA models) The recommended implementation of the dimming control is provided below. Dim+ Dim- Inventronics LED Driver V-L OTP- N G Vac Vaux OTP+ PWM Signal Implementation 2: Positive logic Dim+ Dim- Inventronics LED Driver V-L OTP- N G Vac Vaux OTP+ PWM Signal Implementation 3: Negative logic
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 150W Programmable IP67 Driver www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com EUD-150SxxxDVA(BVA) Rev. D Notes: 1. Do NOT connect Dim − to the output V− or V+, otherwise the driver will not work properly. 2. When PWM negative logic dimming mode and Dim+ is open, the driver will output minimum current. Time Dimming (Only DVA models) Time dimming control includes 3 kinds of modes, they are Self Adapting-Midnight, Self Adapting- Percentage and Traditional Timer. Self Adapting-Midnight: Automatically adjusts the dimming curve based on the on-time of past two days (if difference <15 minutes), assuming that the center point of the dimming curve is midnight local time. Self Adapting-Percentage: Automatically adjusts the on-time of each step by a constant percentage = (actual on-time for the past 2 days if difference <15 min) / (programmed on-time from the dimming curve). Traditional Timer: Follows the programmed timing curve after power on with no changes. Output Lumen Compensation (Only DVA models) Output Lumen Compensation (OLC) may be used to maintain constant light output over the life of the LEDs by driving them at a reduced current when new, then gradually increasing the drive current over time to counteract LED lumen degradation. DALI Dimming (Only BVA models) The recommended implementation of the dimming control is provided below. Implementation: DALI Dimming
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 150W Programmable IP67 Driver www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com EUD-150SxxxDVA(BVA) Rev. D Programming Connection Diagram EUD-150SxxxDVA Note: The driver does not need to be powered on during the programming process. EUD-150SxxxBVA Note: (1) The driver does not need to be powered on during the programming process. (2) Both “OTP-” and “DA” (gray) should be connected to “Return” of the programmer when programming. Please refer to PRG-MUL2 (Programmer) datasheet for details. Mechanical Outline PROJ: Unspecified tolerance:±1 INPUT(VDE H05RN-F 3*1.0mm2 7.2) AC/L(BROWN) AC/N(BLUE) GND (YELLOW/GREEN) OUTPUT(VDE H05RN-F 2*1.0mm2 6.8） BROWN(V+) BLUE(V-) PURPLE GREY BLUE/WHITE PINK BLACK/WHITE DIMMING WIRE(VDE 5*0.5mm2 7.2） Tc RoHS Compliance Our products comply with reference to RoHS Directive (EU) 2015/863 amending 2011/65/EU, calling for the elimination of lead and other hazardous substances from electronic products.
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 150W Programmable IP67 Driver www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com EUD-150SxxxDVA(BVA) Rev. D
Revision History
Date Rev. Description of Change Item From To 2018-09-26 A Datasheets Release / / 2018-11-13 B 12V Auxiliary Output Source Current Notes Updated Programming Connection Diagram EUD-150SxxxBVA Updated 2019-09-26 C ENEC Logo / Updated Global Mark Logo / Added Independent Logo / Added Features Timer Dimmable (3 Ways of Timers) 3-Timer-Modes Dimmable Features 6kV line-line, 10kV line-earth DM 6kV, CM 10kV Features Waterproof (IP67) IP67 Features Suitable for Independent Use Deleted Models Notes(5) Added Safety &EMC Compliance Global Mark Added Safety &EMC Compliance J 55015 Deleted Safety &EMC Compliance EN 61000-4-5 Updated Programming Connection Diagram EUD-150SxxxBVA (Note2) Updated RoHS Compliance / Updated 2023-10-09 D ENEC logo / Deleted global-mark logo / Updated Product Photograph / Updated Safety &EMC Compliance / Updated Programming Connection Diagram / Updated
