EUD-096SXXXDVA INVENTRONICS
Document overview
- Manufacturer or author: Provided By www.digicamel.com(free datasheet download site)
- PDF pages: 12
Technical content
Features
Description

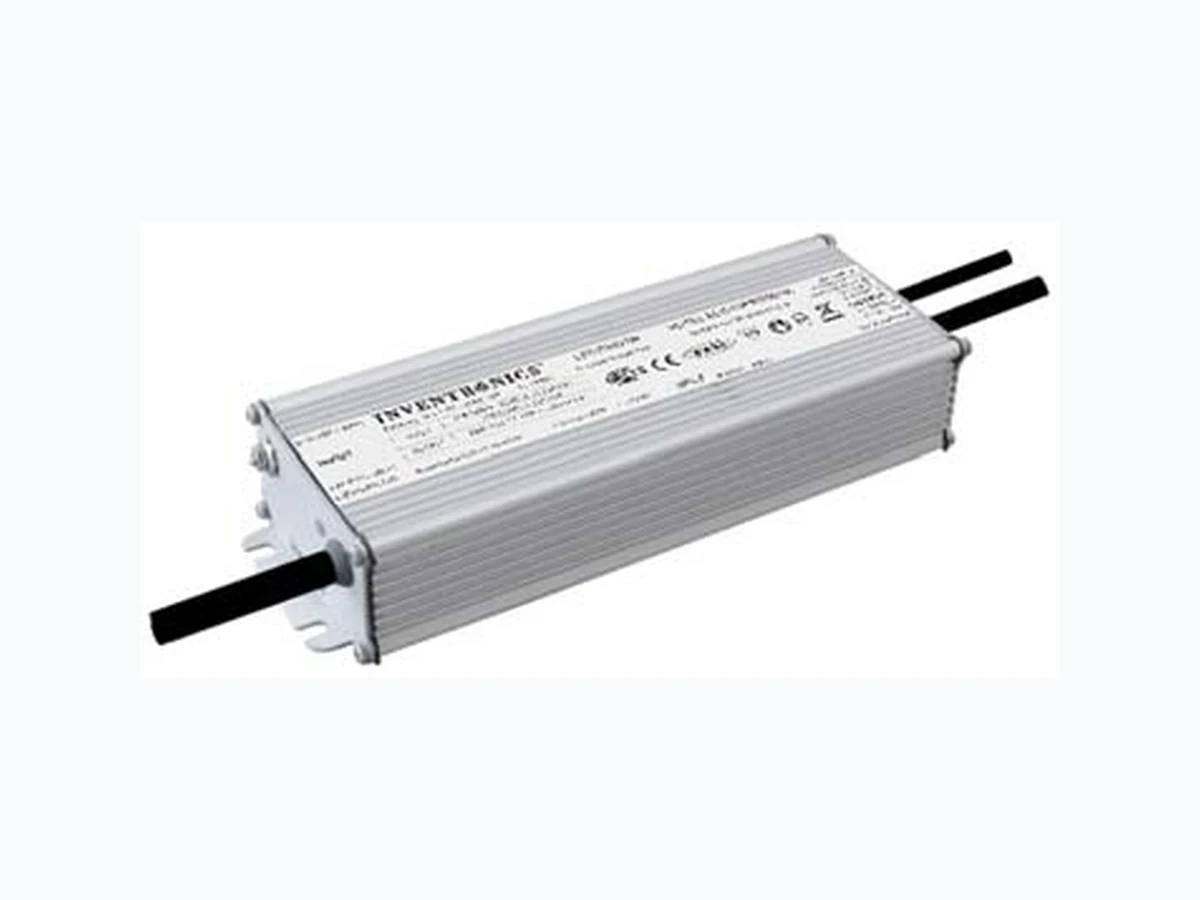

The EUD-096SxxxDVA series is a 96W, constant-current, programmable LED driver tha t operates from 90-305 Vac input with excellent power factor. Created for low bay, tunnel and street lights, it provides a dim-to-off mode with low standby power. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliab ility and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature. Models Adjustable Output Current Range Full-Power Current Range(1) Default Output Current Input Voltage Range(2) Output Voltage Range Max. Output Power Typical Efficiency (3) Typical Power Factor Model Number 120Vac 220Vac 45-700mA 450-700mA 530 mA 90~305 Vac/ 127~250 Vdc 74~213Vdc 96 W 91.5% 0.99 0.96 EUD-096S070DVA 70-1050mA 700-1050mA 700 mA 90~305 Vac/ 127~250 Vdc 48~137Vdc 96 W 92.5% 0.99 0.96 EUD-096S105DVA 140-2100mA 1400-2100mA2100 mA 90~305 Vac/ 127~250 Vdc 24 ~ 69Vdc 96 W 93.0% 0.99 0.96 EUD-096S210DVA(4) 245-3500mA 2450-3500mA2800 mA 90~305 Vac/ 127~250 Vdc 14 ~ 39Vdc 96 W 91.0% 0.99 0.96 EUD-096S350DVA(4) Notes: (1) Output current range with constant power at 96W (2) Certified voltage range: 100-240Vac or 127-250Vdc (except CCC, PSE and KS) (3) Measured at full load and 220Vac input (see below “General Specifications” for details). (4) SELV Output. Ultra High Efficiency (Up to 93%) Full Power at Wide Output Cur rent Range (Constant Power) Thermal Sensing and Protection for LED Module 0-10V/PWM/3-Timer-Modes Dimmable Dim-to-Off with Standby Power ≤ 0.5W Always-on Auxiliary Power: 12Vdc, 200mA (Transient Peak Current up to 400mA) Output Lumen Compensation Input Surge Protection: DM 6kV, CM 10kV All-Around Protection: OVP, SCP, OTP I P 6 7 SELV Output 7 Years Warranty
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 96W Programmable IP67 Driver EUD-096SxxxDVA Rev. C www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com I-V Operating Area EUD-096S070DVA EUD-096S105DVA (270,213)(45,213) (700,82) 120 160 200 240 0 140 280 420 560 700 840 Output Voltage(V) Output Current (mA) (450,213) (700,137) (10%Ioset,96/Ioset) (Ioset,96/Ioset) 100%Load60%Load Good Performance Area Allowed Operating Area (700,74) Programmed Operating Area Note: 450mA≤Ioset≤700mA (Ioset,74)(70,74) Output Voltage(V) Output Current (mA) Good Performance Area Allowed Operating Area Programmed Operating Area Note: 700mA≤Ioset≤1050 mA (420,137)(70,137) 120 150 180 0 200 400 600 800 1000 1200 (700,137) 60%Load (1050,48) (Ioset,96/Ioset)(10%Ioset,96/Ioset) (105,48) (Ioset,48) (1050,55) EUD-096S210DVA EUD-096S350DVA (840,69)(140,69) (2100,27.5) 0 400 800 1200 1600 2000 2400 Output Voltage(V) (1400,69) (2100,46) (10%Ioset,96/Ioset) (Ioset,96/Ioset) 100%Load 60%Load Good Performance Area Allowed Operating Area (2100,24) Programmed Operating Area (210,24) (Ioset,24) Output Current (mA) Note: 1400mA≤Ioset≤2100mA (1470,39)(245,39) (3500,16.5) 0 700 1400 2100 2800 3500 4200 Output Voltage(V) (2450,39) (3500,27.5) (10%Ioset,96/Ioset) (Ioset,96/Ioset) 100%Load 60%Load Good Performance Area Allowed Operating Area (3500,14) Programmed Operating Area (350,14) (Ioset,14) Output Current (mA) Note: 2450mA≤Ioset≤3500mA Input Specifications Parameter Min. Typ. Max. Notes Input AC Voltage 90 Vac - 305 Vac Input DC Voltage 127 Vdc - 250 Vdc Input Frequency 47 Hz - 63 Hz Leakage Current - - 0.70 mA IEC 60598-1; 240Vac/ 60Hz Input AC Current - - 1.32 A Measured at full load and 100 Vac input. - - 0.60 A Measured at full load and 220 Vac input. Inrush Current(I2t) - - 1.10 A 2s At 220Vac input, 25°C cold start, duration=576 μs, 10%Ipk-10%Ipk. See Inrush Current Waveform for the details. PF 0.90 - - At 100-240Vac, 50-60Hz, 60%-100% Load
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 96W Programmable IP67 Driver EUD-096SxxxDVA Rev. C www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Input Specifications (Continued) Parameter Min. Typ. Max. Notes THD - - 10% At 220-240Vac, 50-60Hz, 75%-100% Load (72-96W) Output Specifications Parameter Min. Typ. Max. Notes Output Current Tolerance -5%Ioset - 5%Ioset At full load condition Output Current Setting(Ioset) Range EUD-096S070DVA EUD-096S105DVA EUD-096S210DVA EUD-096S350DVA 45 mA 70 mA 140 mA 245 mA 700 mA 1050 mA 2100 mA 3500 mA Output Current Setting Range with Constant Power EUD-096S070DVA EUD-096S105DVA EUD-096S210DVA EUD-096S350DVA 450 mA 700 mA 1400 mA 2450 mA 700 mA 1050 mA 2100 mA 3500 mA Total Output Current Ripple (pk-pk) - 5%Iomax 10%Iomax At full load condition, 20 MHz BW Output Current Ripple at < 200 Hz (pk-pk) - 2%Iomax - At full load condition. Only this component of ripple is associated with visible flicker. Startup Overshoot Current - - 10%Iomax At full load condition No Load Output Voltage EUD-096S070DVA EUD-096S105DVA EUD-096S210DVA EUD-096S350DVA 240 V 170 V 90 V 44 V Line Regulation - - ±0.5% Measured at full load Load Regulation - - ±1.5% Turn-on Delay Time - - 1.0 s Measured at 120Vac input, 60%-100% Load - - 0.5 s Measured at 220Vac input, 60%-100% Load Temperature Coefficient of Ioset - 0.03%/C - Case temperature = 0C ~Tc max 12V Auxiliary Output Voltage 10.8 V 12 V 13.2 V 12V Auxiliary Output Source Current 0 mA - 200 mA Return terminal is “Dim−“ 12V Auxiliary Output Transient Peak Current - - 400 mA 400mA peak for a maximum duration of 300ms in a 2s period during which time the average should not exceed 200mA.
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 96W Programmable IP67 Driver EUD-096SxxxDVA Rev. C www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com General Specifications Parameter Min. Typ. Max. Notes Efficiency at 120 Vac input: EUD-096S070DVA Io= 450 mA Io= 700 mA EUD-096S105DVA Io= 700 mA Io= 1050 mA EUD-096S210DVA Io= 1400 mA Io= 2100 mA EUD-096S350DVA Io= 2450 mA Io= 3500 mA 87.0% 85.5% 88.0% 86.5% 88.0% 86.0% 86.5% 84.5% 90.0% 88.5% 91.0% 89.5% 91.0% 89.0% 89.5% 87.5% Measured at full load and steady-state temperature in 25C ambient; (Efficiency will be about 2.0% lower if measured immediately after startup.) Efficiency at 220 Vac input: EUD-096S070DVA Io= 450 mA Io= 700 mA EUD-096S105DVA Io= 700 mA Io= 1050 mA EUD-096S210DVA Io= 1400 mA Io= 2100 mA EUD-096S350DVA Io= 2450 mA Io= 3500 mA 89.5% 88.5% 90.5% 88.5% 91.0% 88.5% 89.0% 87.5% 91.5% 90.5% 92.5% 90.5% 93.0% 90.5% 91.0% 89.5% Measured at full load and steady-state temperature in 25C ambient; (Efficiency will be about 2.0% lower if measured immediately after startup.) Efficiency at 277 Vac input: EUD-096S070DVA Io= 450 mA Io= 700 mA EUD-096S105DVA Io= 700 mA Io= 1050 mA EUD-096S210DVA Io= 1400 mA Io= 2100 mA EUD-096S350DVA Io= 2450 mA Io= 3500 mA 90.0% 88.5% 91.0% 89.0% 91.0% 89.0% 89.5% 87.5% 92.0% 90.5% 93.0% 91.0% 93.0% 91.0% 91.5% 89.5% Measured at full load and steady-state temperature in 25C ambient; (Efficiency will be about 2.0% lower if measured immediately after startup.) Standby power - - 0.5 W Measured at 230Vac/50Hz; Dimming off MTBF - 229,000 Hours - Measured at 220Vac input, 80%Load and 25C ambient temperature (MIL-HDBK- 217F) Lifetime - 104,000 Hours - Measured at 220Vac input, 80%Load and 70C case temperature; See lifetime vs. Tc curve for the details Operating Case Temperature for Safety Tc_s -40°C - +90°C Operating Case Temperature for Warranty Tc_w -40°C - +75°C Case temperature for 7 years warranty. Please see Inventronics Warranty Statement for complete details. Storage Temperature -40°C - +85°C Humidity: 5%RH to 100%RH Dimensions Inches (L × W × H) Millimeters (L × W × H) 7.09 × 2.66 × 1.44 180 × 67.5 × 36.5 With mounting ear 7.92 × 2.66 × 1.44 201 × 67.5 × 36.5
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 96W Programmable IP67 Driver EUD-096SxxxDVA Rev. C www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com General Specifications (Continued) Parameter Min. Typ. Max. Notes Net Weight - 960 g - Dimming Specifications Safety &EMC Compliance Safety Category Standard ENEC & CE EN 61347-1, EN61347-2-13 CB IEC 61347-1, IEC 61347-2-13 CCC GB 19510.1, GB 19510.14 KS KS C 7655 PSE J 61347-1, J 61347-2-13 Parameter Min. Typ. Max. Notes Absolute Maximum Voltage on the Vdim (+) Pin -20 V - 20 V Source Current on Vdim (+)Pin 200 uA 300 uA 450 uA Vdim(+) = 0 V Dimming Output Range EUD-096S070DVA EUD-096S105DVA EUD-096S210DVA EUD-096S350DVA 10%Ioset - Ioset 450mA ≤ Ioset ≤ 700mA 700mA ≤ Ioset ≤ 1050mA 1400mA ≤ Ioset ≤ 2100mA 2450mA ≤ Ioset ≤ 3500mA EUD-096S070DVA EUD-096S105DVA EUD-096S210DVA EUD-096S350DVA 45mA 70mA 140mA 245mA - Ioset 45mA ≤ Ioset ＜ 450mA 70mA ≤ Ioset ＜ 700mA 140mA ≤ Ioset ＜ 1400mA 245mA ≤ Ioset ＜ 2450mA Recommended Dimming Input Range 0 V - 10 V Default 0-10V dimming mode. Dim off Voltage 0.35 V 0.5 V 0.65 V Dim on Voltage 0.55 V 0.7 V 0.85 V Hysteresis - 0.2 V - PWM_in High Level 3 V - 10 V Dimming mode set to PWM in Inventronics programming software. PWM_in Low Level -0.3 V - 0.6 V PWM_in Frequency Range 200 Hz - 3 KHz PWM_in Duty Cycle 1% - 99% PWM Dimming off (Positive Logic) 2% 5% 8% PWM Dimming on (Positive Logic) 4% 7% 10% PWM Dimming off ( Negative Logic) 92% 95% 98% PWM Dimming on ( Negative Logic) 90% 93% 96% Hysteresis - 2% -
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 96W Programmable IP67 Driver EUD-096SxxxDVA Rev. C www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Safety &EMC Compliance (Continued) EMI Standards Notes EN IEC 55015/GB/T 17743(1) Conducted emission Test & Radiated emission Test EN IEC 61000-3-2/GB 17625.1 H armonic current emissions EN 61000-3-3 Voltage fluctuations & flicker EMS Standards Notes EN 61000-4-2 Electrostatic Disc harge (ESD): 8 kV air discharge, 4 kV contact discharge EN 61000-4-3 Radio-Frequency Electromagnetic Field Susceptibili ty Test-RS EN 61000-4-5 Surge Immunity Test: AC Power Line: Differential M ode 6 kV, Common Mode 10 kV(2) EN 61000-4-6 Conducted Radio Fr equency Disturbances Test-CS EN 61000-4-8 Power Frequency Magnetic Field Test EN 61000-4-11 Voltage Dips EN 61547 Electromagnetic Immunity Requirements Applies To Lighting Equipment Note: (1) This LED driver meets the EMI specifications above, but EMI performance of a luminaire that contains it depends also on the other devices connected to the driver and on the fixture itself. (2) To perform electric strength (hi-pot) testing, the “GDT ground disconnect” (nut and metal lock sheet) on the driver end-cap should be removed temporarily to prevent the internal gas discharge tube from conducting (as allowed by IEC 60598-1 Clause 10.2). After testing is completed, these items must be reinstalled to restore line-to-earth surge protection and secure the end cap. Lifetime vs. Case Temperature
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 96W Programmable IP67 Driver EUD-096SxxxDVA Rev. C www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Inrush Current Waveform Efficiency vs. Load EUD-096S070DVA(Io=450mA) EUD-096S070DVA(Io=700mA) EUD-096S105DVA(Io=700mA) EUD-096S105DVA(Io=1050mA)
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 96W Programmable IP67 Driver EUD-096SxxxDVA Rev. C www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com EUD-096S210DVA(Io=1400mA) EUD-096S210DVA(Io=2100mA) EUD-096S350DVA(Io=2450mA) EUD-096S350DVA(Io=3500mA) Power Factor
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 96W Programmable IP67 Driver EUD-096SxxxDVA Rev. C www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Total Harmonic Distortion Protection Functions Parameter Min. Typ. Max. Notes External Thermal Protection NTC R1 - 7.81 kOhm - When R_NTC falls below R1, External Thermal Protection is triggered, reducing output current until R2 is reached. R2 - 4.16 kOhm - When R_NTC is less than R2, output current is reduced to the programmed “Protection Current Floor.” Protection Current Floor 10%Ioset 60%Ioset 100%Ioset 10%Io set>Iomin (default setting is 60%) Iomin 60%Ioset 100%Ioset 10%Ioset≤Iomin (default setting is 60%) Over Temperature Protection Decr eases output current, returning to normal after over temperature is removed. Short Circuit Protection Auto Recovery. No damage will occur when any output is short circuited. The output shall return to normal when the fault condition is removed. Over Voltage Protection Limits output voltage at no load and in case the normal voltage limit fails. Dimming 0-10V Dimming The recommended implementation of the dimming control is provided below. Dim+ Dim- Dimmer Inventronics LED Driver V-L OTP- N G Vac Vaux OTP+ Implementation 1: DC Input
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 96W Programmable IP67 Driver EUD-096SxxxDVA Rev. C www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Notes: 1. Do NOT connect Dim− to the output V− or V+, otherwise the dr iver will not work properly. 2. The dimmer can also be replac ed by an active 0-10V voltage source signal or passive components like zener. PWM Dimming Dim+ Dim- Inventronics LED Driver V-L OTP- N G Vac Vaux OTP+ PWM Signal Implementation 2: Positive logic Dim+ Dim- Inventronics LED Driver V-L OTP- N G Vac Vaux OTP+ PWM Signal Implementation 3: Negative logic Notes: 1. Do NOT connect Dim− to the output V− or V+, otherwise the dr iver will not work properly. 2. When PWM negative logic dimmi ng mode and Dim+ is open, the driver will dim to off and be standby. Time Dimming Time dimming control includes 3 kinds of modes, they are Self Adapting-Midnight, Self Adapting- Percentage and Traditional Timer. Self Adapting-Midnight: Automatically adjusts the dimming curve based on the on-time of past two days (if difference <15 minutes), assuming that the center point of the dimming curve is midnight local time. Self Adapting-Percentage: Automatically adjusts the on-time of each step by a constant percentage = (actual on-time for the past 2 days if difference <15 min) / (programmed on-time from the dimming curve). Traditional Timer: Follows the programmed timing curve after power on with no changes. Output Lumen Compensation Output Lumen Compensation (OLC) may be used to maintain constant light output over the life of the LEDs by driving them at a reduced current when new, then gradually i ncreasing the drive current over time to counteract LED lumen degradation.
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 96W Programmable IP67 Driver EUD-096SxxxDVA Rev. C www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Programming Connection Diagram Note: The driver does not need to be powered on during the programming process. Please refer to PRG-MUL2 (Programmer) datasheet for details. Mechanical Outline GRAY Unspecified tolerance:±1 PROJ: BLACK/WHITE PURPLE BLUE/WHITE PINK INPUT (VDE H05RN-F 3*1.0mm2 7.2) DIMMING WIRE (VDE 5*0.5mm2 7.2) OUTPUT (VDE H05RN-F 2*1mm2 6.8) Tc AC/L(BROWN) AC/N (BLUE) GND (YELLOW/GREEN ) V+(BROWN) V-(BLUE) RoHS Compliance Our products comply with reference to RoHS Directive (EU) 2015/ 863 amending 2011/65/EU, calling for the elimination of lead and other hazardous substances from electronic products.
Specifications are subject to changes without notice. All specifications are typical at 25C unless otherwise stated. 96W Programmable IP67 Driver EUD-096SxxxDVA Rev. C www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com
Revision History
Date Rev. Description of Change Item From To 2016-07-05 A Datasheets Release / / 2017-10-27 B Features Always-on Auxiliary Power Added Features 7 Years Warranty Added Input Specifications PF/THD Updated Output Specifications Temperat ure Coefficient of Ioset Updated Output Specifications 12V Auxiliary Output Transient Peak Current Added Operating Case Temperature for Warranty Tc_w / Updated Mechanical Outline / Updated 2023-09-13 C TUV logo / Deleted Independent logo / Added Product Photograph / Updated Safety &EMC Compliance / Updated Dimming / Updated Programming Connection Diagram / Updated
