EUC-042SXXXDS INVENTRONICS
Document overview
- Manufacturer or author: Provided By www.digicamel.com(free datasheet download site)
- PDF pages: 12
Technical content
Features
Description
The EUC-042SxxxDS(PS) series operates from a 90 ~ 305 Vac input range. They are desig ned to be highly efficient and highly reliable. Features include dimming control , over voltage protection, short circuit protection, over load protection, and over temperature protection. Models Output Current Input Voltage Range(1) Output Voltage Range Max. Output Power Typical Efficiency (2) Typical Power Factor Model Number 120Vac 220Vac 350 mA 90 ~ 305 Vac 60~120Vdc 42 W 90.0% 0.96 0.95 EUC-042S035D S(PS)(3) 450 mA 90 ~ 305 Vac 47~94 Vdc 42 W 89.0% 0.96 0.95 EUC-042S045D S(PS)(3) 530 mA 90 ~ 305 Vac 40~79 Vdc 42 W 89.0% 0.96 0.95 EUC-042S053D S(PS)(3) 700 mA 90 ~ 305 Vac 28~56 Vdc 39 W 89.0% 0.96 0.95 EUC-042S070D S(PS)(4) 1050 mA 90 ~ 305 Vac 20~38 Vdc 40 W 88.0% 0.96 0.95 EUC-042S105 DS(PS)(5) 1280 mA 90 ~ 305 Vac 17~32 Vdc 42 W 87.0% 0.96 0.95 EUC-042S128 DS(PS)(5) 1400 mA 90 ~ 305 Vac 15~30 Vdc 42 W 87.0% 0.96 0.95 EUC-042S140 DS(PS)(5) 1750 mA 90 ~ 305 Vac 12~24 Vdc 42 W 87.0% 0.96 0.95 EUC-042S175 DS(PS)(5) Notes: (1) Certified input voltage range: UL, FCC 100-277Vac; otherwise: 100-240Vac. (2) Measured at 100% load and 220 Vac input. (3) Non-Class 2 output (USR & CNR). (4) Class 2 output (USR), Non-Class 2 output (CNR). (5) Class 2 output (USR & CNR). High Efficiency (Up to 90%) Second Generation with Improved Performance Active Power Factor Correction (Typical 0.95) Constant Current Output IP66 and UL Dry/Damp Location Dimming Control All-Around Protection: OVP, SCP, OLP, OTP SELV & Class 2 UL Type TL (Temperature Limited)
Specifications are subject to changes without notice. All specifications are typical at 25°C unless otherwise stated. 42W Constant Current IP66 Driver EUC-042SxxxDS(PS) Rev.T www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Input Specifications Parameter Min. Typ. Max. Notes Input Voltage 90 Vac - 305 Vac Input Frequency 47 Hz - 63 Hz Leakage Current - - 0.75 MIU UL 8750; 277Vac/ 60Hz - - 0.70 mA IEC 60598-1; 240Vac/ 60Hz Input AC Current - - 0.7 A Measured at 100% load and 100 Vac input. - - 0.3 A Measured at 100% load and 220 Vac input. Inrush Current(I2t) - - 0.32 A 2s At 220Vac input 25℃ Cold Start. Duration=200 μs, 10%Ipk-10%Ipk. See Inrush Current Waveform for the details. Power Factor 0.90 - - At 100-277Vac, 50-60Hz,75%-100%load Output Specifications Parameter Min. Typ. Max. Notes Output Current Tolerance -5% I O - 5 % I O No Load Output Voltage IO = 350 mA IO = 450 mA IO = 530 mA IO = 700 mA IO = 1050 mA IO = 1280 mA IO = 1400 mA IO = 1750 mA 140 V 104 V 87 V 59 V 42 V 37 V 34 V 27 V Total Output Current Ripple (pk-pk) - - 50%I O Related to V-I Curve of the LED Output Current Overshoot / Undershoot - - 10%I O At 100% load condition Line Regulation - - ±1% Measured at 100% load condition Load Regulation - - ±3% Measured at 100% load condition Turn-on Delay Time - 0.40 s 0.75 s Measured at 120Vac input, 75%load-100%load - 0.30 s 0.50 s Measured at 220Vac input, 75%load-100%load Temperature Coefficient of Iomax - - 0.2%/C Case temperature = 0 C ~Tc max 12V Auxiliary Output Voltage 10.8 V 12 V 13.2 V 12V Auxiliary Output Source Current 0 mA - 20 mA Return terminal is “Dim-”.
Specifications are subject to changes without notice. All specifications are typical at 25°C unless otherwise stated. 42W Constant Current IP66 Driver EUC-042SxxxDS(PS) Rev.T www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com General Specifications Parameter Min. Typ. Max. Notes Efficiency at 120 Vac input: IO = 350 mA IO = 450 mA IO = 530 mA IO = 700 mA IO = 1050 mA IO = 1280 mA IO = 1400 mA IO = 1750 mA 87% 86% 86% 86% 85% 84% 84% 84% 89% 88% 88% 88% 86% 86% 85% 85% Measured at 100% load and steady-state temperature in 25C ambient. Efficiency at 220 Vac input: I IO = 350 mA IO = 450 mA IO = 530 mA IO = 700 mA IO = 1050 mA IO = 1280 mA IO = 1400 mA IO = 1750 mA 88% 87% 87% 87% 86% 85% 85% 85% 90% 89% 89% 89% 88% 87% 87% 87% Measured at 100% load and steady-state temperature in 25C ambient. Efficiency at 277 Vac input: IO = 350 mA IO = 450 mA IO = 530 mA IO = 700 mA IO = 1050 mA IO = 1280 mA IO = 1400 mA IO = 1750 mA 88% 87% 87% 87% 86% 85% 85% 85% 90% 89% 89% 89% 88% 87% 87% 87% Measured at 100% load and steady-state temperature in 25C ambient. No Load Power Dissipation - - 6 W MTBF 327,000 Hours - - Measured at 120Vac input, 80%Load and 25C ambient temperature (MIL-HDBK-217F) Life Time - 116,000 Hours - Measured at 120Vac input, 80%Load and 60C Case temperature. See life time vs. Tc curve for the details Operating Case Temperature for Safety Tc_s -40 ℃ - + 9 0 ℃ Operating Case Temperature for Warranty Tc_w -40 ℃ - + 7 0 ℃ Humidity: 10% RH to 95% RH Operating Case Temperature for Type TL Tc_TL -40 ℃ + 7 2 ℃ Storage Temperature -40 ℃ - + 8 5 ℃ Humidity: 5% RH to 95% RH Dimensions Inches (L × W × H) Millimeters (L × W × H) 3.74 × 2.76 × 1.26 95 × 70 × 32 Net Weight - 390 g -
Specifications are subject to changes without notice. All specifications are typical at 25°C unless otherwise stated. 42W Constant Current IP66 Driver EUC-042SxxxDS(PS) Rev.T www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Dimming Specifications Parameter Min. Typ. Max. Notes Absolute Maximum Voltage on the 0~10V Input Pin 0 V - 15 V Source Current on 0~10V Input Pin 0 μA 200 μA 250 μA Dimming Output Range 10%Iomax 100%Iomax Recommended Dimming Input Range 0 V - 10 V Safety & EMC Compliance Safety Category Standard ENEC & CE EN 61347-1, EN 61347-2-13 CB IEC 61347-1, IEC 61347-2-13 CCC GB 19510.1, GB 19510.14 KS KS C 7655 EMI Standards Notes EN IEC 55015/GB/T 17743(1) Conducted emission Test & Radiated emission Test EN IEC 61000-3-2/GB 17625.1 Harmonic current emissions EN 61000-3-3 Voltage Fluctuations & Flicker FCC Part 15(1) ANSI C63.4 Class B This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interfere nce, and [2] this device must accept any interference received, including interference t hat may cause undesired operation. EMS Standards Notes EN 61000-4-2 Electrostatic Disc harge (ESD): 8 kV air discharge, 4 kV contact discharge EN 61000-4-3 Radio-Frequency Electromagnetic Field Susceptibili ty Test-RS EN 61000-4-5 Surge Immunity Test: AC Power Line: Differential M ode 2 kV EN 61000-4-6 Conducted Radio Fr equency Disturbances Test-CS EN 61000-4-8 Power Frequency Magnetic Field Test EN 61000-4-11 Voltage Dips EN 61547 Electromagnetic Immunity R equirements Applies To Lighting Equipment
Specifications are subject to changes without notice. All specifications are typical at 25°C unless otherwise stated. 42W Constant Current IP66 Driver EUC-042SxxxDS(PS) Rev.T www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Note: (1) This LED driver meets the EMI specifications above, but EMI performance of a luminaire that contains it depends also on the other devices connected to the driver and on the fixture itself. Lifetime vs. Case Temperature Curve Inrush Current Waveform
Specifications are subject to changes without notice. All specifications are typical at 25°C unless otherwise stated. 42W Constant Current IP66 Driver EUC-042SxxxDS(PS) Rev.T www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Efficiency vs. Load EUC-042S035DS(PS) EUC-042S045DS(PS) EUC-042S053DS(PS) EUC-042S070DS(PS) EUC-042S105DS(PS) EUC-042S128DS(PS)
Specifications are subject to changes without notice. All specifications are typical at 25°C unless otherwise stated. 42W Constant Current IP66 Driver EUC-042SxxxDS(PS) Rev.T www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com EUC-042S140DS(PS) EUC-042S175DS(PS) Power Factor Total Harmonic Distortion
Specifications are subject to changes without notice. All specifications are typical at 25°C unless otherwise stated. 42W Constant Current IP66 Driver EUC-042SxxxDS(PS) Rev.T www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Protection Functions Parameter Notes Over Voltage Protection Limits output voltage at no load and in case the normal voltage limit fails. Short Circuit Protection Auto Recovery. No damage shall occur when any output operating in a short circuit condition. The power supply shall be self-recovery when the fault condition is removed. Over Temperature Protection Auto Recovery. Returning to normal after over temperature is removed. Dimming 0-10V Dimming The dimmer control may be operated from either a dimmer or from an input signal of 0 - 10 Vdc. The recommended implementation is provided below. Inventronics LED Driver L N Vac Dim- Vaux Dim+ Dimmer Implementation 1: DC Input 1kOhm Inventronics LED Driver L N Vac Rx Vaux Dim+ Dim- Implementation 2: External Resistor

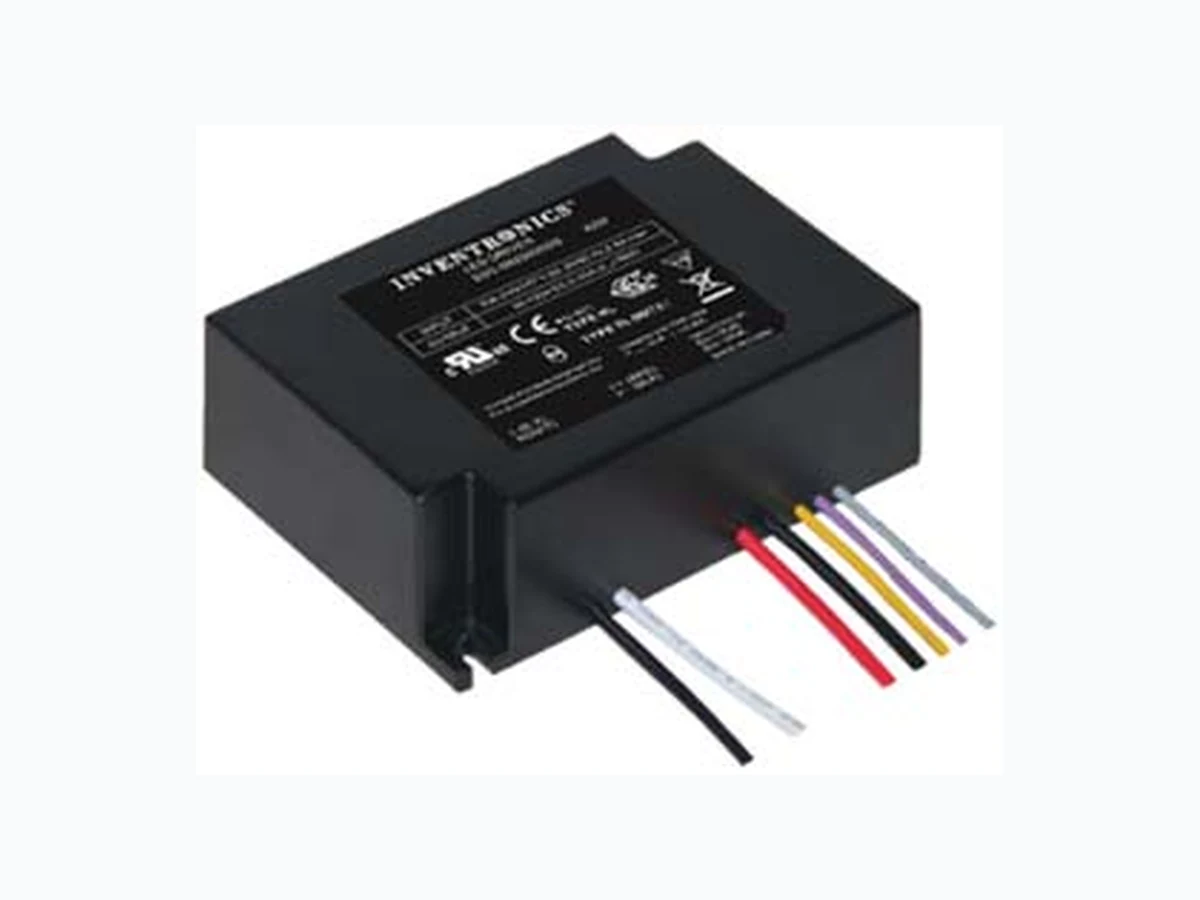

Specifications are subject to changes without notice. All specifications are typical at 25°C unless otherwise stated. 42W Constant Current IP66 Driver EUC-042SxxxDS(PS) Rev.T www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Inventronics LED Driver L N Vac Vaux 1kOhm Rx Dim+ Dim- Implementation 3: External Resistor Notes: 1. Do not connect the Dim- to the V-, otherwise, the LED driver cannot work normally. 2. If 0-10V dimming is not used, Dim + can be either open or co nnected to Vaux. Mechanical Outline EUC-042SxxxDS EUC-042SxxxPS DC OUTPUT (UL1015 18AWG) AC INPUT (UL1015 18AWG) YELLOW PINK PURPLE WHITE (ACN) BLACK (ACL) RED (V+) BLACK (V-) DIMMING WIRE (UL1015 22AWG) Unspecified tolerance:±1 PROJ: Tc AC INPUT (UL 1015 AWG#18) WHITE (ACN) BLACK (ACL) BLACK (V-) RED (V+) Unspecified tolerance:±1 PROJ: DC OUTPUT (UL 1015 AWG#18) Tc RoHS Compliance Our products comply with reference to RoHS Directive (EU) 2015/ 863 amending 2011/65 /EU, calling for the elimination of lead and other hazardous substances from electronic products.
Specifications are subject to changes without notice. All specifications are typical at 25°C unless otherwise stated. 42W Constant Current IP66 Driver EUC-042SxxxDS(PS) Rev.T www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com
Revision History
Date Rev. Description of Change Item From To 2012-02-17 A Preliminary Datasheets First Release / / 2012-03-21 B EUC-042S105DS(PS) CUL Class 2 added / / 2012-05-25 C EUC-042S105DS(PS)-0001 / Added EN 61000-4-5--- line to line 2 kV, line to earth 4 kV / Correct ed Life time / 50,000 Hours EUC-042S070DS(PS)-0001 / Added 2012-06-06 D EUC-042S070DS(PS)-0001, EUC-042S105DS(PS)-0001 / Deleted Notes of life time / Updated Life time vs. Tc Curve / Added 2012-07-02 E Description of OTP / Updated 2012-07-17 F Max Case Temperature / Updated 2012-7-30 G Min Operating Temperature -20 ℃ - 4 0 ℃ 2012-08-20 H Derating Curve / Updated Inrush Current 60A 70A Inrush Current(I2t) / Added Temperature coefficient / Added 2012-11-16 I Life time Min 50,000hrs Typical 116,000hrs Life time Curve / Updated Io/Ir Vs Rx Curve / Added THD Curve / Added EFF and PF Curve of other models / Added 2013-05-22 J Inrush Current(I2t) corrected 0.16 A 2s 0.32 A 2s Duration of Inrush Current corrected 100 μs 200 μs Mechanical Outline---cable length corrected / Updated 2013-11-25 K Model 530mA / Added Mechanical Outline-Dimming wires updated UL1015 26AWG UL1015 2 2AWG 2014-05-27 L ENEC certificate / Added 2015-08-04 M Warranty Tc / Added Environmental Specifications / Deleted Inrush Current Waveform / Added
Specifications are subject to changes without notice. All specifications are typical at 25°C unless otherwise stated. 42W Constant Current IP66 Driver EUC-042SxxxDS(PS) Rev.T www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Revision History (Continued) Change Date Rev. Description of Change Item From To 2015-08-04 M CCC certificate / Added CQC certificate ./ Deleted Source Current on 0~10V Input Pin Max. 200 uA 250 uA 2015-12-31 N KS Certification / Added KC Certification-EUC-042S070/105/128/140DS(PS) / Added Net Weight 350 g 390 g 2016-04-18 O UL Type TL / Added KS Certificate Regulation / Added Note of EMI Standard / Added 2016-08-02 P Turn-on Delay Time at 120Vac Max.=1.0 s Max.=0.75 s 2019-04-17 Q Mechanical Outline / Updated 2019-08-21 R TUV Logo / Updated ENEC Logo / Updated PSE Logo / Updated KC Logo / Deleted Note of Models (6) Deleted Input Specifications(PF/THD) 50-60Hz Added Output Specifications (No Load Output Voltage)- EUC-042S035DS(PS) 132V 140V Safety &EMC Compliance UL/CUL Updated Safety &EMC Compliance ENEC Added Safety &EMC Compliance TUV Added Safety &EMC Compliance CB Added Safety &EMC Compliance PSE Added Safety &EMC Compliance KS Updated Safety &EMC Compliance EMI Standards Updated Safety &EMC Compliance FCC Updated Safety &EMC Compliance EN 61000-4-5 Updated RoHS Compliance / Updated
Specifications are subject to changes without notice. All specifications are typical at 25°C unless otherwise stated. 42W Constant Current IP66 Driver EUC-042SxxxDS(PS) Rev.T www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Revision History (Continued) Change Date Rev. Description of Change Item From To 2021-12-31 S PSE Logo / Deleted Safety &EMC Compliance PSE Deleted General Specifications Humidity Updated Mechanical Outline EUC-042SxxxDS Updated 2023-08-15 T TUV logo / Deleted Product photograph / Updated Safety &EMC Compliance / Updated
