Features

Description

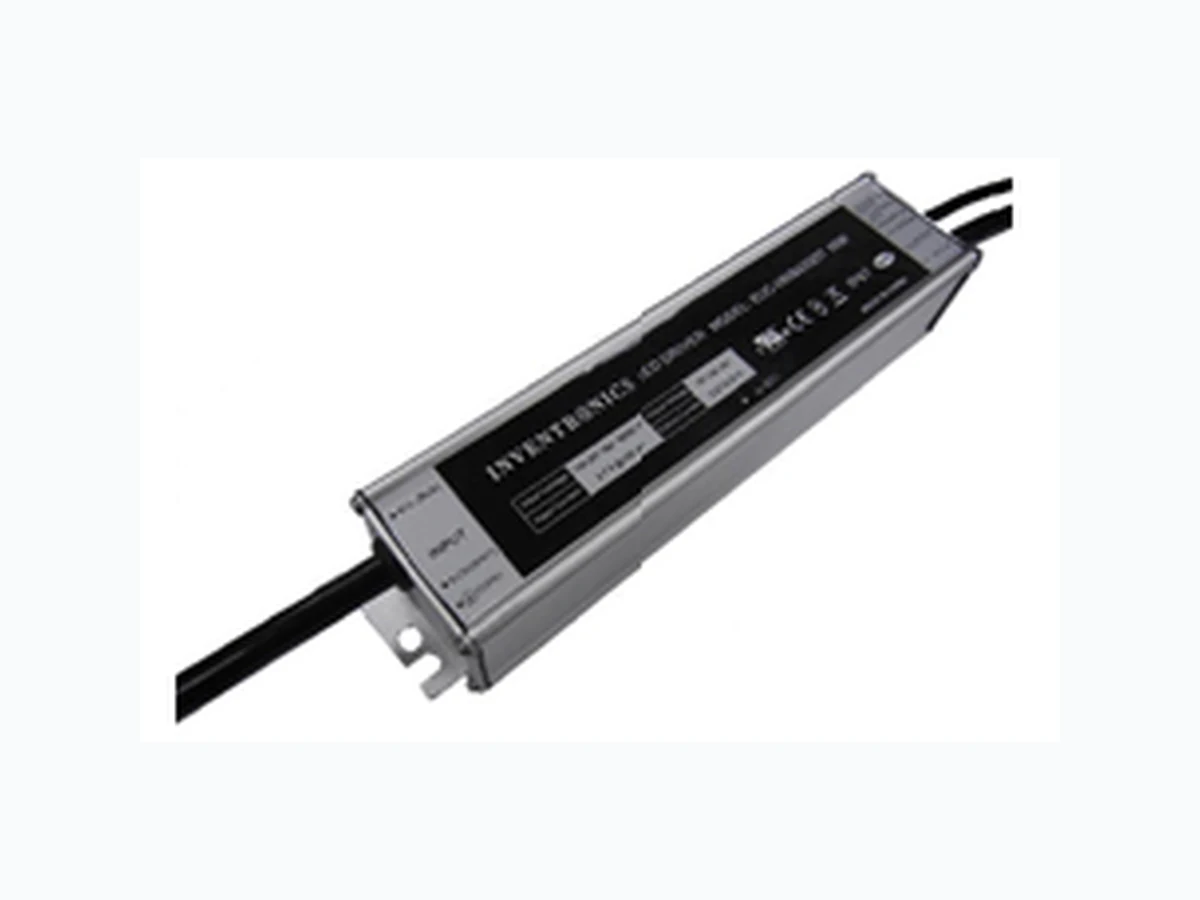

The EUC-035SxxxDT(ST) Series operate from a 90 ~ 305 Vac input range. They are designed to be highly efficient and highly reliable. Features include Dimming control, over voltage protection, short circuit protection and over load protection. Models Output Current Input Voltage Range Output Voltage Range Max. Output Power Typical Efficiency (1) Power Factor Model Number (2, 3) 110Vac 220Vac 2900 mA 90 ~ 305 Vac 4 ~12 Vdc 35 W 82% 0.98 0.92 EUC-035S290DT(ST)(6) 2450 mA 90 ~ 305 Vac 5 ~15 Vdc 35 W 83% 0.98 0.92 EUC-035S245DT(ST)(6) 2100 mA 90 ~ 305 Vac 6 ~18 Vdc 35 W 84% 0.98 0.92 EUC-035S210DT(ST)(6) 1750 mA 90 ~ 305 Vac 7 ~20 Vdc 35 W 84% 0.98 0.92 EUC-035S175DT(ST)(6) 1400 mA 90 ~ 305 Vac 8 ~24 Vdc 35 W 85% 0.98 0.92 EUC-035S140DT(ST)(6) 1050 mA 90 ~ 305 Vac 11~33 Vdc 35 W 86% 0.98 0.92 EUC-035S105DT(ST)(6) 700 mA 90 ~ 305 Vac 17~50 Vdc 35 W 86% 0.98 0.92 EUC-035S070DT(ST)(5)☆ 450 mA 90 ~ 305 Vac 26~78 Vdc 35 W 87% 0.98 0.92 EUC-035S045DT(ST)(4) 350 mA 90 ~ 305 Vac 33~100 Vdc 35 W 88% 0.98 0.92 EUC-035S035DT(ST)(4) Notes: (1) Measured at full load and 220 Vac input. (2) The DT suffix may be changed to ST to omit the dimming function and remove the three wires associated with that function. (3) A suffix –xxxx may be added to denote variations or modifications to the base product, where x can be any alphanumeric character or blank. (4) Non-Class 2 output (USR & CNR). (5) Class 2 output (USR), Non-Class 2 output (CNR). (6) Class 2 output (USR & CNR). (7) ☆: Popular model. Input Specifications Parameter Min. Typ. Max. Notes Input Voltage 90 V - 305 V Input Frequency 47 Hz - 63 Hz Leakage Current - - 0.5 mA At 277Vac 60Hz input  High Efficiency (Up to 88%)  Active Power Factor Correction (Typical 0.92)  Constant Current Output  Lightning Protection  Waterproof (IP67)  Dimming Control  All-Round Protection: OVP, SCP ，OLP  Comply With UL8750 & EN61347 Safety Regulations  Comply With FCC Part15 Class B

Specifications are subject to changes without notice. EUC-035SxxxDT(ST) Rev .H www.inventronics-co.com Tel: 86-571-86632260 Fax: 86-571-86601139 sales@inventronics-co.com Driving the Lighting Revolution Input Specifications (Continued) Parameter Min. Typ. Max. Notes Input AC Current - - 0.49 A Measured at full load and 100 Vac input. - - 0.25 A Measured at full load and 220 Vac input. Inrush Current - - 60 A At 230Vac input 25 ℃ Cold Start Output Specifications Parameter Min. Typ. Max. Notes Output Current Tolerance -5% - 5% Current Ripple - - 50% No Load Output Voltage IO = 2900 mA IO = 2450 mA IO = 2100 mA IO = 1750 mA IO = 1400 mA IO = 1050 mA IO = 700 mA IO = 450 mA IO = 350 mA 17 V 20 V 24 V 26 V 30 V 39 V 56 V 83 V 106 V Line Regulation - - 3% Load Regulation - - 5% Turn-on Delay Time - 2.5 s 3.0 s Measured at 110Vac input. - 1.5 s 2.0 s Measured at 220Vac input. Note: All specifications are typical at 25 C unless otherwise stated. Protection Functions Parameter Min. Typ. Max. Notes Over Voltage Protection IO = 2900 mA IO = 2450 mA IO = 2100 mA IO = 1750 mA IO = 1400 mA IO = 1050 mA IO = 700 mA IO = 450 mA IO = 350 mA 16 V 19 V 23V 25 V 35 V 38 V 55 V 83 V 108 V 17 V 20 V 24 V 26 V 30 V 40 V 57 V 85 V 110 V 18 V 21 V 25 V 27 V 32 V 42 V 59 V 87 V 112 V Hiccup mode. The power supply shall be self- recovery when the fault condition is removed. Over Load Protection - 1.25 Vomax - Hiccup mode. The power supply shall be self- recovery when the fault condition is removed. Short Circuit Protection No damage shall occur when any output operating in a short circuit condition. The power supply shall be self-recovery when the fault condition is removed.

Specifications are subject to changes without notice. EUC-035SxxxDT(ST) Rev .H www.inventronics-co.com Tel: 86-571-86632260 Fax: 86-571-86601139 sales@inventronics-co.com Driving the Lighting Revolution General Specifications Parameter Min. Typ. Max. Notes Efficiency IO = 2900 mA IO = 2450 mA IO = 2100 mA IO = 1750 mA IO = 1400 mA IO = 1050 mA IO = 700 mA IO = 450 mA IO = 350 mA 80% 81% 81% 81% 83% 85% 85% 86% 87% 81% 82% 82% 82% 84% 86% 86% 87% 88% Measured at full load and 110 Vac input. Efficiency IO = 2900 mA IO = 2450 mA IO = 2100 mA IO = 1750 mA IO = 1400 mA IO = 1050 mA IO = 700 mA IO = 450 mA IO = 350 mA 81% 82% 83% 83% 84% 85% 85% 86% 87% 82% 83% 84% 84% 85% 86% 86% 87% 88% Measured at full load and 220 Vac input. No Load Power Dissipation 6 W MTBF 541,000 hours Measured at 110Vac input, 80%Load and 25C ambient temperature (MIL-HDBK-217F) Life Time 87,000 hours Measured at 110Vac input, 80%Load and 45C ambient temperature Case Temperature 85C 2900 mA: 77℃ Dimensions Inches (L × W × H) Millimeters (L × W × H) 6.77 × 1.67× 1.36 172 × 42.5× 34.5 Net Weight - 480 g - Note: All specifications are typical at 25 C unless otherwise stated. Environmental Specifications Parameter Min. Typ. Max. Notes Operating Temperature -40 ℃ - +55 ℃ Humidity: 10% RH to 100% RH See Derating Curve for more details Storage Temperature -40 ℃ - +85 ℃ Humidity: 5% RH to 100% RH Safety & EMC Compliance Safety Category Standard CUL UL8750, UL935, UL1012, UL1310 Class 2, CE EN 61347-1, EN61347-2-13 EMI Standards Notes EN 55015 Conducted emission Test & Radiated emission Test EN 61000-3-2 Harmonic current emissions

Specifications are subject to changes without notice. EUC-035SxxxDT(ST) Rev .H www.inventronics-co.com Tel: 86-571-86632260 Fax: 86-571-86601139 sales@inventronics-co.com Driving the Lighting Revolution Safety & EMC Compliance (Continued) EMI Standards Notes EN 61000-3-3 Voltage fluctuations & flicker FCC FCC Part 15 Class B, ANSI C63.4: 2009. EMS Standards Notes EN 61000-4-2 Electrostatic Disc harge (ESD): 8 Kv air discharge, 4 Kv contact discharge EN 61000-4-3 Radio-Frequency Electromagnetic Field Susceptibility Test-RS EN 61000-4-5 Surge Immunity Test: AC Power Line: line to line 2 Kv, line to earth 4 Kv EN 61000-4-6 Conducted Radio Frequency Disturbances Test-CS EN 61000-4-8 Power Frequency Magnetic Field Test EN 61000-4-11 Voltage Dips EN 61547 Electromagnetic Immunity Requ irements Applies To Lighting Equipment Derating Curve Dimming Control (On secondary side) Parameter Min. Typ. Max. Notes 10V output voltage 9.8 V 10 V 10.2 V 10V output source current -10 Ma - 2 Ma Absolute maximum voltage on the 1~10V input pin -2 V - 15 V Source current on 1~10V input pin 0 Ma - 1 Ma The dimmer control may be operated from either a potentiometer or from an input signal of 1 – 10 Vdc. Two recommended implementations are provided below.

Specifications are subject to changes without notice. EUC-035SxxxDT(ST) Rev .H www.inventronics-co.com Tel: 86-571-86632260 Fax: 86-571-86601139 sales@inventronics-co.com Driving the Lighting Revolution Io/Ir Vs Potentiometer 20% 40% 60% 80% 100% 0123456789 1 0 1 1 Vdim(V) Io/Ir Io/Ir Implementation 1: Potentiometer control Io/Ir Vs Vdim 20% 40% 60% 80% 100% 0123456789 1 0 1 1 Vdim(V) Io/Ir Io/Ir Implementation 2: DC input Notes: 1. The dimming voltage can be tuned down to less than 1V, and the output current will be decreased to about 20%Ir; but the connected LEDs may flicker. Keeping dimming voltage greater than 1V in application is strongly recommended. 2. Do not connect the GND of dimming to the output; otherwise, the LED driver can not work normally.

Specifications are subject to changes without notice. EUC-035SxxxDT(ST) Rev .H www.inventronics-co.com Tel: 86-571-86632260 Fax: 86-571-86601139 sales@inventronics-co.com Driving the Lighting Revolution Mechanical Outline EUC-035SxxxDT AC INPUT(UL SJTW 3*18AWG ) DIMMING WIRE(UL2464 3*22AWG) WHITE(N) BLACK(L) GREEN(GND) DC OUTPUT(UL SJTW 2*18AWG ) RED(V+) BLACK(V-) PURPLE(Dim+/0-10V) GREEN(Dim-) YELLOW(Vaux/12V) Unspecified tolerance:± 1 PROJ: EUC-035SxxxST Unspecified tolerance:± 1 PROJ: WHITE(N) BLACK(L) GREEN(GND) AC INPUT(UL SJTW 3*18AWG ) DC OUTPUT(UL SJTW 2*18AWG ) RED(V+) BLACK(V-) RoHS Compliance Our products comply with the European Directive 2002/95/EC, calling for the elimination of lead and other hazardous substances from electronic products.

Specifications are subject to changes without notice. EUC-035SxxxDT(ST) Rev .H www.inventronics-co.com Tel: 86-571-86632260 Fax: 86-571-86601139 sales@inventronics-co.com Driving the Lighting Revolution

Revision History

Date Rev. Description of Change Item From To 2009-12-08 A Modify the PF value, no-load power dissipation, dimming range 2010-01-12 B Modify the derating curve and mechanical outline 2010-04-12 C Change the Power Factor 110Vac 0.99 0.98 Add Leakage Current in Input Specifications / Max. 0.5 Ma At 277Vac 50Hz input Change Inrush Current 20A 60A Change Line Regulation 2% 3% Add No Load Output Voltage / The max. value of every model. Change Ripple and Noise Max. 25% V O The max. value of every model. Change Turn-on Delay Time 110Vac 220Vac Typ. Max. 1.7S 2.0S 0.7S 1.0S Typ. Max. 2.5S 3.0S 1.5S 2.0S Delete Output Overshoot / Undershoot Max. 10% / Change Over Load Protection Typ.: 1.25Po Typ.: 1.25*Vmax Delete part of the notes in Operating Temperature Derating: 2% per °C from 55°C to 70°C. / Change the Max. Ambient Temperature in Derating Curve +70 ℃ +55 ℃ Change linearity of dimming curve / / Change the notes in Dimming Control / / 2010-10-14 D Change the notes in Dimming Control / / 2011-1-10 E Change popular models / / Change No Load Output Voltage IO = 350 Ma Max. 104V Max. 106V Change Over Voltage Protection IO = 2900 mA IO = 2450 mA IO = 2100 mA IO = 1750 mA IO = 1400 mA IO = 1050 mA IO = 700 mA IO = 450 mA IO = 350 mA Min. Typ. Max. 13V 15V 17V 16V 18V 20V 19V 21V 23V 23V 25V 27V 30V 32V 34V 39V 41V 43V 57V 58V 59V 95V 97V 99V 118V 120V 122V Min. Typ. Max. 16V 17V 18V 19V 20V 21V 23V 24V 25V 25V 26V 27V 35V 30V 32V 38V 40V 42V 55V 57V 59V 83V 85V 87V 108V 110V 112V Add FCC Part15 Class B / FCC Part 15 Class B, ANSI C63.4：2009. 2012-7-17 F Max Case Temperature / Updated 2012-7-30 G Min Operating Temperature -35 ℃ -40 ℃ Derating Curve / Updated 2013-02-22 J Dimming Notes / Updated
