EUC-026SXXXDS INVENTRONICS
Document overview
- Manufacturer or author: Provided By www.digicamel.com(free datasheet download site)
- PDF pages: 11
Technical content
Features
Description
The EUC-026SxxxDS(PS) series operates from a 90 ~ 305 Vac input range. They are desi gned to be highly efficient and highly reliable. Features include over voltage pr otection, short circuit protection and over load protection. Models Output Current Input Voltage Range(1) Output Voltage Range Max. Output Power Typical Efficiency (2) Typical Power Factor Model Number 120Vac 220Vac 350 mA 90 ~ 305 Vac 38~75 Vdc 26 W 86% 0.96 0.95 EUC-026S035DS (PS)(3) (6) 450 mA 90 ~ 305 Vac 28~56 Vdc 25 W 85% 0.96 0.95 EUC-026S045DS (PS)(4) (6) 530 mA 90 ~ 305 Vac 25~49 Vdc 26 W 85% 0.96 0.95 EUC-026S053DS (PS)(4) (6) 700 mA 90 ~ 305 Vac 19~37 Vdc 26 W 85% 0.96 0.95 EUC-026S070DS (PS)(5) (6) (7) 1050 mA 90 ~ 305 Vac 13~25 Vdc 26 W 84% 0.96 0.95 EUC-026S105DS (PS)(5) (6) 1400 mA 90 ~ 305 Vac 10~19 Vdc 26 W 82% 0.96 0.95 EUC-026S140DS (PS)(5) (6) (7) 1750 mA 90 ~ 305 Vac 8 ~15 Vdc 26 W 81% 0.96 0.95 EUC-026S175DS (PS)(5) (6) (7) Notes: (1) UL, FCC certified input voltage range: 100-277Vac; otherwise: 100-240Vac. (2) Measured at 100% load and 220 Vac input. (3) Non-Class 2 output (USR & CNR). (4) Class 2 output (USR), Non-Class 2 output (CNR). (5) Class 2 output (USR & CNR). (6) SELV. (7) Meet with KC and KCC Certification. Input Specifications Parameter Min. Typ. Max. Notes Input Voltage Range 90 V - 305 V High Efficiency (Up to 86%) Second Generation with Improved Performance Active Power Factor Correction (Typical 0.95) Constant Output Current IP66 and UL Damp Location Dimming Control All-Around Protection: OVP, SCP, OLP Class 2 and SELV UL Type TL (Temperature Limited)
Specifications are subject to changes without notice. All specifications are typical at 25°C unless otherwise stated. 26W Constant Current IP66 Driver EUC-026SxxxDS(PS) Rev. N www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Input Specifications (Continued) Parameter Min. Typ. Max. Notes Input Frequency 47 Hz - 63 Hz Leakage Current - - 0.75 MIU UL8750; 277Vac/ 60Hz - - 0.70 mA IEC60598-1; 240Vac/ 60Hz Input AC Current - - 0.4 A Measured at 100% load and 100 Vac input. - - 0.2 A Measured at 100% load and 220 Vac input. Inrush Current(I2t) - - 0.043 A 2s At 220Vac input 25℃ Cold Start. Duration=100 μs, 10%Ipk-10%Ipk. See Inrush Current Waveform for the details. Power Factor 0.90 - - At100-277Vac,50-60Hz,75%-100%load Output Specifications Parameter Min. Typ. Max. Notes Output Current Tolerance -5%Io - 5%Io Total Output Current Ripple (pk- pk) - - 50%Io Related to V-I Curve of the LED No Load Output Voltage IO = 350 mA IO = 450 mA IO = 530 mA IO = 700 mA IO = 1050 mA IO = 1400 mA IO = 1750 mA 85 V 59 V 56 V 42 V 32 V 26 V 22 V Output Current Overshoot / Undershoot - - 10%Io At 100% load condition Line Regulation - - ±1% Measured at 100% load condition Load Regulation - - ±3% Turn-on Delay Time - 0.40 s 0.75 s Measured at 120Vac input, 75%~100%load - 0.30 s 0.50 s Measured at 220Vac input, 75%~100%load Temperature Coefficient of Iomax - - 0.2%/C Case temperature = 0C~Tc max. 12V Auxiliary Output Voltage 10.8 V 12 V 13.2 V 12V Auxiliary Output Source Current 0 mA - 20 mA Return terminal is “Dim-”.
Specifications are subject to changes without notice. All specifications are typical at 25°C unless otherwise stated. 26W Constant Current IP66 Driver EUC-026SxxxDS(PS) Rev. N www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com General Specifications Parameter Min. Typ. Max. Notes Efficiency at 120 Vac input: IO = 350 mA IO = 450 mA IO = 530 mA IO = 700 mA IO = 1050 mA IO = 1400 mA IO = 1750 mA 84% 82% 82% 82% 81% 80% 80% 85% 84% 84% 84% 83% 81% 81% Measured at 100% load and steady-state temperature in 25℃ ambient. Efficiency at 220 Vac input: IO = 350 mA IO = 450 mA IO = 530 mA IO = 700 mA IO = 1050 mA IO = 1400 mA IO = 1750 mA 85% 83% 83% 83% 82% 80% 80% 86% 85% 85% 85% 84% 82% 81% Measured at 100% load and steady-state temperature in 25℃ ambient. Efficiency at 277 Vac input: IO = 350 mA IO = 450 mA IO = 530 mA IO = 700 mA IO = 1050 mA IO = 1400 mA IO = 1750 mA 84% 82% 82% 82% 81% 80% 80% 85% 84% 84% 84% 83% 81% 81% Measured at 100% load and steady-state temperature in 25℃ ambient. No Load Power Dissipation - - 5 W MTBF 200,000 Hours - - Measured at 120Vac input, 80%Load and 25C ambient temperature (MIL-HDBK-217F) Lifetime - 91,100 Hours - Measured at 120Vac input, 80%Load and 60C Case temperature. See life time vs. Tc curve for the details Operating Case Temperature for Safety Tc_s -40 ℃ - + 9 0 ℃ Operating Case Temperature for Warranty Tc_w -40 ℃ - + 7 0 ℃ Humidity: 10% RH to 95% RH. Operating Case Temperature for Type TL Tc_TL -40 ℃ - + 7 2 ℃ Storage Temperature -40 ℃ - + 8 5 ℃ Humidity: 5% RH to 95% RH Dimensions Inches (L × W × H) Millimeters (L × W × H) 3.09 × 3.15 × 1.06 78.4 × 80 × 27 Net Weight - 230 g - Dimming Specifications Parameter Min. Typ. Max. Notes Absolute Maximum Voltage on the 0~10V Input Pin 0 V - 15 V Source Current on 0~10V Input Pin 0 uA 200 uA 250 uA Dimming Output Range 10%Iomax - 100%Iomax
Specifications are subject to changes without notice. All specifications are typical at 25°C unless otherwise stated. 26W Constant Current IP66 Driver EUC-026SxxxDS(PS) Rev. N www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Dimming Specifications (Continued) Parameter Min. Typ. Max. Notes Recommended Dimming Input Range 0 V - 10 V Safety & EMC Compliance Safety Category Standard ENEC & TUV & CE EN 61347-1, EN 61347-2-13 CB IEC 61347-1, IEC 61347-2-13 PSE J 61347-1, J 61347-2-13 KC K 61347-1, K 61347-2-13 KS KS C 7655 EMI Standards Notes EN 55015/KN 15(1) Conducted emission Test &Radiated emission Test EN 61000-3-2 Harmonic current emissions EN 61000-3-3 Voltage Fluctuations & Flicker FCC Part 15(1) ANSI C63.4 Class B This device complies with Part 15 of the FCC Rules. Operation i s subject to the following two conditions: [1] this device may not cause harmful interference, and [2] this device must accept any interference received, including interfe rence that may cause undesired operation. EMS Standards Notes EN 61000-4-2 Electrostatic Disch arge (ESD): 8 kV air discharge, 4 kV contact discharge EN 61000-4-3 Radio-Frequency Elec tromagnetic Field Susceptibility Test-RS EN 61000-4-5 Surge Immunity Test: AC Power Line: Differential M ode 2 kV EN 61000-4-6 Conducted Radio Frequency Disturbances Test-CS EN 61000-4-8 Power Frequency Magnetic Field Test EN 61000-4-11 Voltage Dips EN 61547 Electromagnetic Immunity Requirements Applies To Light ing Equipment Note: (1) This LED driver meets the EMI specifications above, but EMI performance of a luminaire that contains it depends also on the other devices connected to the driver and on the fixture itself.
Specifications are subject to changes without notice. All specifications are typical at 25°C unless otherwise stated. 26W Constant Current IP66 Driver EUC-026SxxxDS(PS) Rev. N www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Lifetime vs. Case Temperature Inrush Current Waveform Efficiency vs. Load EUC-026S035DS(PS) EUC-026S045DS(PS)
Specifications are subject to changes without notice. All specifications are typical at 25°C unless otherwise stated. 26W Constant Current IP66 Driver EUC-026SxxxDS(PS) Rev. N www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com EUC-026S053DS(PS) EUC-026S070DS(PS) EUC-026S105DS(PS) EUC-026S140DS(PS) EUC-026S175DS(PS)
Specifications are subject to changes without notice. All specifications are typical at 25°C unless otherwise stated. 26W Constant Current IP66 Driver EUC-026SxxxDS(PS) Rev. N www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Power Factor Total Harmonic Distortion EUC-026S053DS(PS) OTHER Protection Functions Parameter Notes Over Voltage Protection Limits output voltage at no load and in case the normal voltage limit fails. Short Circuit Protection Auto Recovery. No damage shall occur when any output operating in a short circuit condition. The power supply shall be self-recovery when the fault condition is removed. Dimming 0-10V Dimming The dimmer control may be operated from either a dimmer or from an input signal of 0 - 10 Vdc. The recommended implementation is provided below.
Specifications are subject to changes without notice. All specifications are typical at 25°C unless otherwise stated. 26W Constant Current IP66 Driver EUC-026SxxxDS(PS) Rev. N www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Dim+ Dim- Dimmer Inventronics LED Driver L VauxN G Vac Implementation 1: DC Input Dim+ Dim- 1kOhm Vaux Inventronics LED Driver L N G Vac Rx Implementation 2: External Resistor Dim+ Dim- Rx Vaux Inventronics LED Driver L N G Vac 1kOhm Implementation 3: External Resistor Notes: 1. Do not connect the Dim- to the V-, otherwise, the LED driver cannot work normally. 2. If 0-10V dimming is not used, Dim + can be either open or connected to Vaux.

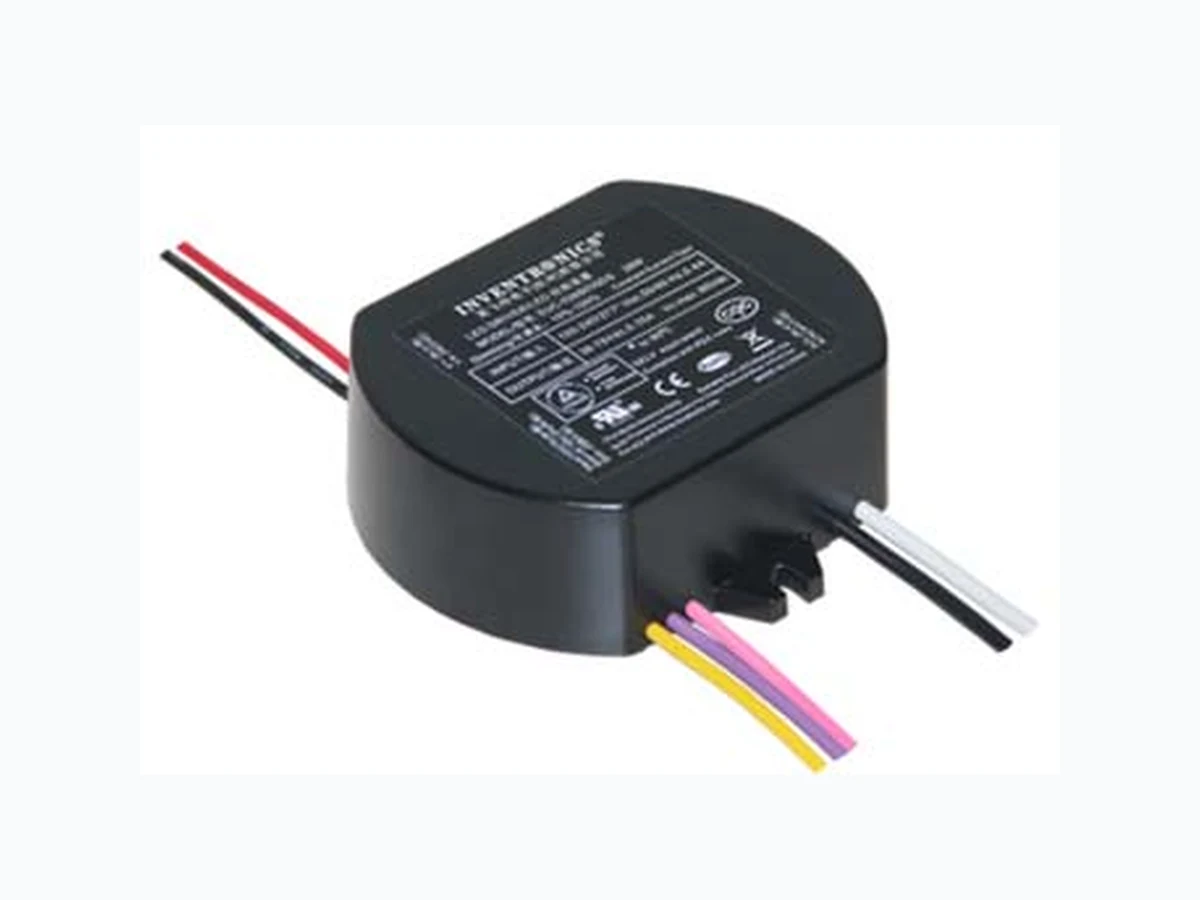

Specifications are subject to changes without notice. All specifications are typical at 25°C unless otherwise stated. 26W Constant Current IP66 Driver EUC-026SxxxDS(PS) Rev. N www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Mechanical Outline EUC-026SxxxDS AC INPUT (UL1015 18AWG) WHITE(ACN) BLACK (ACL) DC OUTPUT (UL1007 18AWG) RED (V+) BLACK (V-) Unspecified tolerance:±1 PROJ: DIMMING WIRE (UL1015 22AWG) PURPLE PINK YELLOW Tc EUC-026SxxxPS Unspecified tolerance:±1 PROJ: RED(V+) BLACK(V-) DC OUTPUT (UL1007 18AWG) AC INPUT (UL1015 18AWG) WHITE(ACN) BLACK(ACL) Tc RoHS Compliance Our products comply with reference to RoHS Directive (EU) 2015/ 863 amending 2011/65 /EU, calling for the elimination of lead and other hazardous substances from electronic products.
Specifications are subject to changes without notice. All specifications are typical at 25°C unless otherwise stated. 26W Constant Current IP66 Driver EUC-026SxxxDS(PS) Rev. N www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com
Revision History
Date Rev. Description of Change Item From To 2012-2-17 A Datasheets Release / / 2012-05-25 B EN 61000-4-5--- line to line 2 kV, line to earth 4 kV / Correct ed Life time / 50,000 Hours EUC-026S045DS(PS)-0001 / Added 2012-06-06 C Life time vs. Tc Curve / Added EUC-026S045DS(PS)-0001 / Deleted Notes of life time / Updated 2012-7-17 D Max Case Temperature / Updated 2012-7-30 E Min Operating Temperature -20 ℃ - 4 0 ℃ 2012-08-20 F Derating Curve / Updated Life time Curve / Updated Inrush Current 60 A 40 A Inrush Current(I2t) / Added Temperature co-efficient / Added 2012-11-09 G Life time Min 50,000hrs Typical 91,100hrs Life time Curve / Updated THD Curve / Added Io/Ir Vs Rx Curve / Added Efficiency Curve and PF Curve of other models except 350 mA / Added 2013-11-26 H Model 530mA / Added 2014-05-27 I ENEC certificate / Added 2015-08-04 J Warranty Tc / Added Environmental Specifications / Deleted Inrush Current Waveform / Added CCC certificate ./ Added CQC certificate ./ Deleted Source Current on 0~10V Input Pin Max. 200uA 250uA UL Type TL / Added
Specifications are subject to changes without notice. All specifications are typical at 25°C unless otherwise stated. 26W Constant Current IP66 Driver EUC-026SxxxDS(PS) Rev. N www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com Revision History (Continued) Change Date Rev. Description of Change Item From To 2016-04-18 K KC certificate - EUC-026S070/140/175DS(PS) / Added Net Weight 200 g 230 g KS Certificate Regulation / Added Note of EMI Standard / Added 2016-08-02 L Turn-on Delay Time at 120Vac Max.=1.0 s Max.=0.75 s 2019-08-14 M TUV Logo / Updated ENEC Logo / Updated CCC Logo / Deleted PSE Logo / Updated Input Specifications(PF/THD) 50-60Hz Added Safety &EMC Compliance UL/CUL Updated Safety &EMC Compliance ENEC Added Safety &EMC Compliance TUV Added Safety &EMC Compliance CB Added Safety &EMC Compliance CCC Deleted Safety &EMC Compliance PSE Added Safety &EMC Compliance KS Updated Safety &EMC Compliance KC Added Safety &EMC Compliance KCC Added Safety &EMC Compliance FCC Updated Safety &EMC Compliance EN 61000-4-5 Updated RoHS Compliance / Updated 2022-02-18 N Product Photograph / Updated Features / Updated General Specification / Updated Mechanical Outline / Updated
