Features
Description

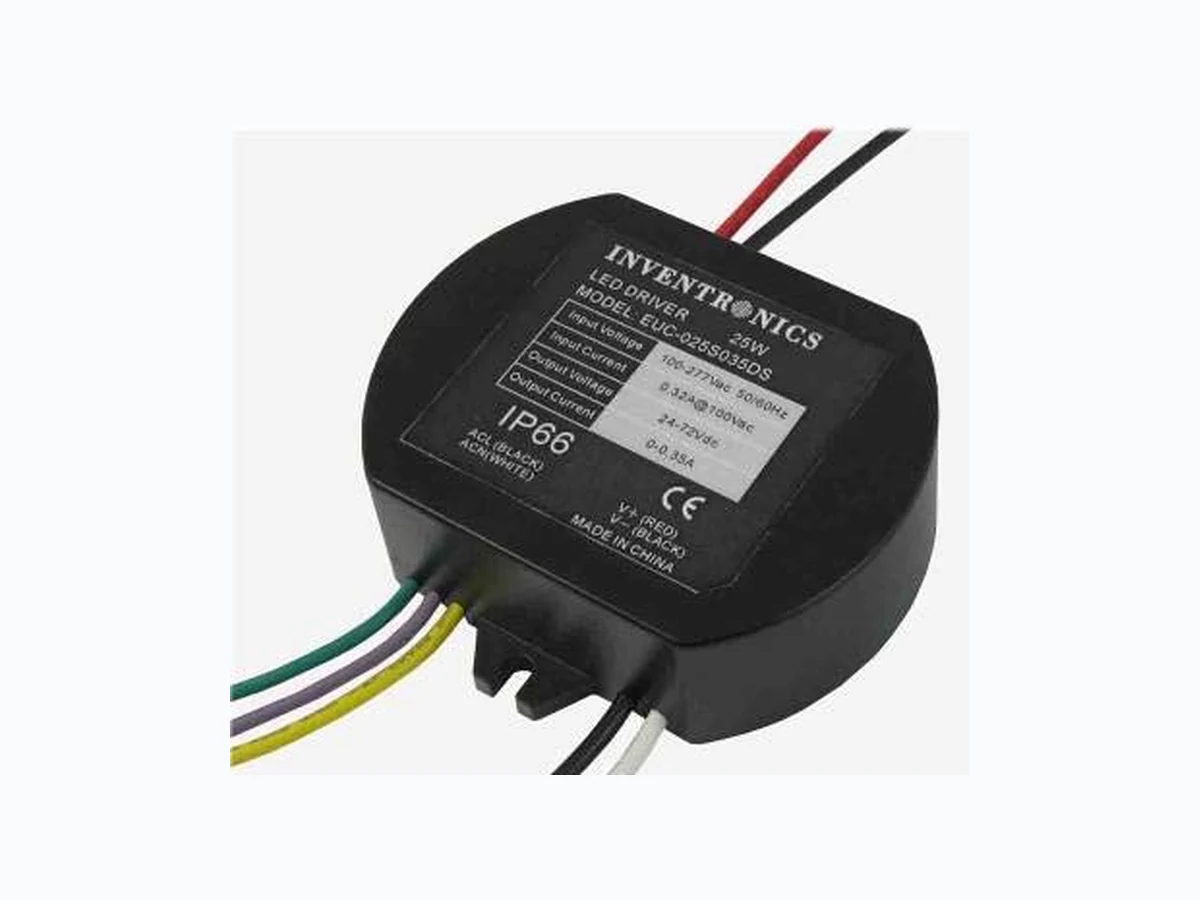

The EUC-025SxxxDS(PS) Series operates from a 90 ~ 305 Vac input range. They are designed to be highly efficient and highly reliable. Features include over voltage pr otection, short circuit protection and over load protection. Models Output Current Input Voltage Range Output Voltage Range Max. Output Power Typical Efficiency (1) Typical Power Factor Model Number (2, 3) 110Vac 220Vac 2080 mA 90 ~ 305 Vac 4~12 Vdc 25 W 81.0% 0.98 0.92 EUC-025S208D S(PS)(6) 1750 mA 90 ~ 305 Vac 5~14 Vdc 25 W 81.0% 0.98 0.92 EUC-025S175D S(PS)(6) 1400 mA 90 ~ 305 Vac 6~18 Vdc 25 W 81.0% 0.98 0.92 EUC-025S140D S(PS)(6) 1050 mA 90 ~ 305 Vac 8~24 Vdc 25 W 82.0% 0.98 0.92 EUC-025S105D S(PS)(6) 700 mA 90 ~ 305 Vac 12~36 Vdc 25 W 83.0% 0.98 0.92 EUC-025S070D S(PS)(6) 620 mA 90 ~ 305 Vac 13~40 Vdc 25 W 83.0% 0.98 0.92 EUC-025S062D S(PS)(5) 450 mA 90 ~ 305 Vac 19~56 Vdc 25 W 84.0% 0.98 0.92 EUC-025S045D S(PS)(5) 350 mA 90 ~ 305 Vac 24~72 Vdc 25 W 84.0% 0.98 0.92 EUC-025S035D S(PS)(4) Notes: (1) Measured at 100% load and 220 Vac input. (2) The DS suffix may be changed to PS to omit the dimming function and remove the three wires associated with that function. (3) A suffix –xxxx may be added to denote variations or modifications to the base product, where x can be any alphanumeric character or blank. (4) Non-Class 2 output (USR & CNR). (5) Class 2 output (USR), Non-Class 2 output (CNR). (6) Class 2 output (USR & CNR). Input Specifications Parameter Min. Typ. Max. Notes Input Voltage 90 Vac - 305 Vac High Efficiency (Up to 84%) Active Power Factor Correction (Typical 0.92) Constant Output Current I P 6 6 Dimming Control All-Around Protection: OVP, SCP, OLP Comply With UL8750 & EN61347 Safety Regulations Comply With ANSI/IEEE C62.41, Class A Operation DISCONTINUED
Specifications are subject to changes without notice. All specifications are typical at 25 C unless otherwise stated. EUC-025SxxxDS(PS) Rev. L www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 96W Constant Current IP66 Driver Input Specifications (Continued) Parameter Min. Typ. Max. Notes Input Frequency 47 Hz - 63 Hz Leakage Current - - 0.5 mA At 277Vac 60Hz input Input AC Current - - 0.32 A Measured at 100% load and 100 Vac input. - - 0.15 A Measured at 100% load and 220 Vac input. Inrush Current - - 60 A At 230Vac input 25 ℃ Cold Start Output Specifications Parameter Min. Typ. Max. Notes Output Current Tolerance -5% - 5% Ripple Current - - 50%Io No Load Output Voltage IO = 2080 mA IO = 1750 mA IO = 1400 mA IO = 1050 mA IO = 700 mA IO = 620 mA IO = 450 mA IO = 350 mA 16 V 18 V 22 V 30 V 42 V 48 V 61 V 79 V Line Regulation - - 3% Load Regulation - - 5% Turn-on Delay Time - 2.5 s 3.0 s Measured at 110Vac input. - 1.5 s 2.0 s Measured at 220Vac input. Protection Functions Parameter Min. Typ. Max. Notes Over Voltage Protection 110% 120% 130% Hiccup mode. The power supply shall be self-recovery when the fault condition is removed. Over Load Protection - 1.25 Vomax - Hiccup mode. The power supply shall be self- recovery when the fault condition is removed. Short Circuit Protection No damage shall occur when any output operating in a short circ uit condition. The power supply shall be self-recovery when the fault condition is removed. DISCONTINUED
Specifications are subject to changes without notice. All specifications are typical at 25 C unless otherwise stated. EUC-025SxxxDS(PS) Rev. L www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 96W Constant Current IP66 Driver General Specifications Parameter Min. Typ. Max. Notes Efficiency@120 Vac input: IO = 2080 mA IO = 1750 mA IO = 1400 mA IO = 1050 mA IO = 700 mA IO = 620 mA IO = 450 mA IO = 350 mA 77.5% 78.0% 78.0% 79.0% 80.0% 80.0% 81.0% 81.0% 79.5% 80.0% 80.0% 81.0% 82.0% 82.0% 83.0% 83.0% Measured at 100% load and 110 Vac input. Efficiency@220 Vac input: IO = 2080 mA IO = 1750 mA IO = 1400 mA IO = 1050 mA IO = 700 mA IO = 620 mA IO = 450 mA IO = 350 mA 79.0% 79.0% 79.0% 80.0% 81.0% 81.0% 82.0% 82.0% 81.0% 81.0% 81.0% 82.0% 83.0% 83.0% 84.0% 84.0% Measured at 100% load and 220 Vac input. No Load Power Dissipation - - 6 W MTBF 484,000 hours - - Measured at 110Vac input, 80%Load and 25C ambient temperature (MIL-HDBK-217F) Life Time 79,000 hours - - Measured at 110Vac input, 80%Load and 45C ambient temperature Case Temperature - - 89 ℃ Dimensions Inches (L × W × H) Millimeters (L × W × H) 3.07 × 3.15 × 1.06 78 × 80 × 27 Net Weight - 200 g - Environmental Specifications Parameter Min. Typ. Max. Notes Operating Temperature -20 ℃ - + 7 0 ℃ Humidity: 10% RH to 95% RH. See Derating Curve for more details Storage Temperature -40 ℃ - + 8 5 ℃ Humidity: 5% RH to 95% RH Safety & EMC Compliance Safety Category Standard CE EN 61347-1, EN 61347-2-13 KS KS C 7655 EMI Standards Notes EN 55015(1) Conducted emission Test & Radiated emission Test EN 61000-3-2 Harmonic current emissions EN 61000-3-3 Voltage fl uctuations & flicker DISCONTINUED
Specifications are subject to changes without notice. All specifications are typical at 25 C unless otherwise stated. EUC-025SxxxDS(PS) Rev. L www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 96W Constant Current IP66 Driver Safety & EMC Compliance (Continued) EMS Standards Notes EN 61000-4-2 Electrostatic Disch arge (ESD): 8 kV air discharge, 4 kV contact discharge EN 61000-4-3 Radio-Frequency Elect romagnetic Field Susceptibility Test-RS EN 61000-4-6 Conducted Radio Frequency Disturbances Test-CS EN 61000-4-8 Power Frequency Magnetic Field Test EN 61000-4-11 Voltage Dips EN 61547 Electromagnetic Immunity Requirements Applies To Light ing Equipment ENERGY STAR Standards Notes ANSI/IEEE C62.41-1991 Transient Protection, power supply shall comply with Class A operation. The line transient shall consist of seven strikes of a 100 kHz ring wave, 2.5 kV level, for both common mode and differential mode. Note: (1) This LED driver meets the EMI specifications above, but EMI performance of a luminaire that contains it depends also on the other devices connected to the driver and on the fixture itsel. Derating Curve Dimming Control (On secondary side) Parameter Min. Typ. Max. Notes 10V output voltage 9.8 V 10 V 10.2 V 10V output source current -10 mA - 2 mA Absolute maximum voltage on the 1~10V input pin -2 V - 15 V Source current on 1~10V input pin 0 mA - 1 mA The dimmer control may be operated from either a potentiometer or from an input signal of 1 – 10 Vdc. Two recommended implementations are provided below. Derating Curve 100 - 2 0- 51 02 54 05 57 0 Ambient Temperature(°C) Load(%) Derating Curve 100 90 120 150 180 210 240 270 300 330 Input Voltage(V) Load(%) DISCONTINUED
Specifications are subject to changes without notice. All specifications are typical at 25 C unless otherwise stated. EUC-025SxxxDS(PS) Rev. L www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 96W Constant Current IP66 Driver Implementation 1: Potentiometer Control Implementation 2: DC input Notes: 1. The dimming voltage can be tuned down to less than 1V, and the output current will be decreased to about 20%Ir; but the connected LEDs may flicker. Keeping dimming voltage greater than 1V in application is strongly recommended. 2. Do not connect the GND of dimming to the output; otherwise, the LED driver can not work normally. Mechanical Outline EUC-025SxxxDS AC INPUT (UL1015 18AWG) WHITE(ACN) BLACK (ACL) DC OUTPUT (UL1007 18AWG) RED (V+) BLACK (V-) Unspecified tolerance:±1 PROJ: PURPLE (1-10V) GREEN (GND) YELLOW (10V) DIMMING WIRE (UL1015 22AWG) Io/Ir Vs Potentiometer 20% 40% 60% 80% 100% 0123456789 1 0 1 1 Vdim(V) Io/Ir Io/Ir Io/Ir Vs Vdim 20% 40% 60% 80% 100% 0123456789 1 0 1 1 Vdim(V) Io/Ir Io/Ir DISCONTINUED
Specifications are subject to changes without notice. All specifications are typical at 25 C unless otherwise stated. EUC-025SxxxDS(PS) Rev. L www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 96W Constant Current IP66 Driver EUC-025SxxxPS AC INPUT (UL1015 18AWG) WHITE(ACN) BLACK (ACL) DC OUTPUT (UL1007 18AWG) RED (V+) BLACK (V-) Unspecified tolerance:±1 PROJ: RoHS Compliance Our products comply with reference to RoHS Directive (EU) 2015/ 863 amending 2011/65/EU, calling for the elimination of lead and other hazardous substances from electronic products. DISCONTINUED
Specifications are subject to changes without notice. All specifications are typical at 25 C unless otherwise stated. EUC-025SxxxDS(PS) Rev. L www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 96W Constant Current IP66 Driver
Revision History
Date Rev. Description of Change Item From To 2009-12-15 A Change Typical Efficiency and Ripple and Noise ，No Load Power Dissipation 2010-01-13 B Modify the derating curve 2010-04-12 C Change the Power Factor 110Vac 220Vac 0.99 0.94 0.98 0.92 Add Leakage Current in Input Specifications / Max. 0.5 Ma At 277Vac 50Hz input Change Inrush Current 20A 60A Change Line Regulation 2% 3% Add No Load Output Voltage / The max. value of every model. Change Ripple and Noise Max. 25% VO The max. value of every model. Change Turn-on Delay Time 110Vac 220Vac Typ. Max. 1.7S 2.0S 0.7S 1.0S Typ. Max. 2.5S 3.0S 1.5S 2.0S Delete Output Overshoot / Undershoot Max. 10% / Change Over Load Protection Ty p.: 1.25Po Typ.: 1.25 Vmax Change the efficiency (110Vac) IO = 1750 Ma IO = 1400 Ma Min. Typ. 78% 79% 80% 81% Min. Typ. 79% 80% 79% 80% Change the efficiency (220Vac) IO = 1750 Ma IO = 1400 Ma Min. Typ. 79% 80% 81% 82% Min. Typ. 80% 81% 80% 81% Change No Load Power Dissipation 5 W 6 W Change linearity of dimming curve / / Change the notes in Dimming Control / / 2010-05-31 D Add star rank for recommended models / ☆: Popular model. 2010-06-04 E Change Dimensions and Mechanical Outline (The height) 25 cm 27 cm 2010-10-14 F Change the notes in Dimming Control / / Add Energy Star Standard / Comply With ANSI/IEEE C62.41, Class A Operation 2011-1-10 G Change popular models / / Change Over Voltage Protection IO = 2080 Ma IO = 1750 Ma IO = 1400 Ma IO = 1050 Ma IO = 700 Ma IO = 620 Ma IO = 450 Ma IO = 350 Ma Min. Typ. Max. 13V 15V 18V 16V 18V 20V 21V 23V 24V 26V 28V 30V 42V 44V 46V 44V 46V 48V 59V 50V 62V 82V 88V 90V Min. Typ. Max. 110% 120% 130% 2011-11-14 H Mechanical outline---center to center distance and slot Width 70 MM & 4 MM 71 MM & 3.8 MM DISCONTINUED
Specifications are subject to changes without notice. All specifications are typical at 25 C unless otherwise stated. EUC-025SxxxDS(PS) Rev. L www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 96W Constant Current IP66 Driver Revision History (Continued) Change Date Rev. Description of Change Item From To 2012-7-17 I Max Case Temperature / Updated 2013-02-22 J Dimming Notes / Updated 2019-09-20 K UL Logo / Added CE Logo / Added KS Logo / Added Features Waterproof (IP66) IP66 Models (7) ☆: Popular model Deleted Safety &EMC Compliance UL/CUL Updated Safety &EMC Compliance KS Added Safety &EMC Compliance Note Added RoHS Compliance / Updated 2021-10-14 L Models Typical Efficiency Updated General Specifications Efficiency @120 Vac input: Updated General Specifications Efficiency @220 Vac input: Updated DISCONTINUED
