ETV-300SXXXST INVENTRONICS
Document overview
- Manufacturer or author: Provided By www.digicamel.com(FREE DATASHEET DOWNLOAD SITE)
- PDF pages: 8
Technical content
Features
Description

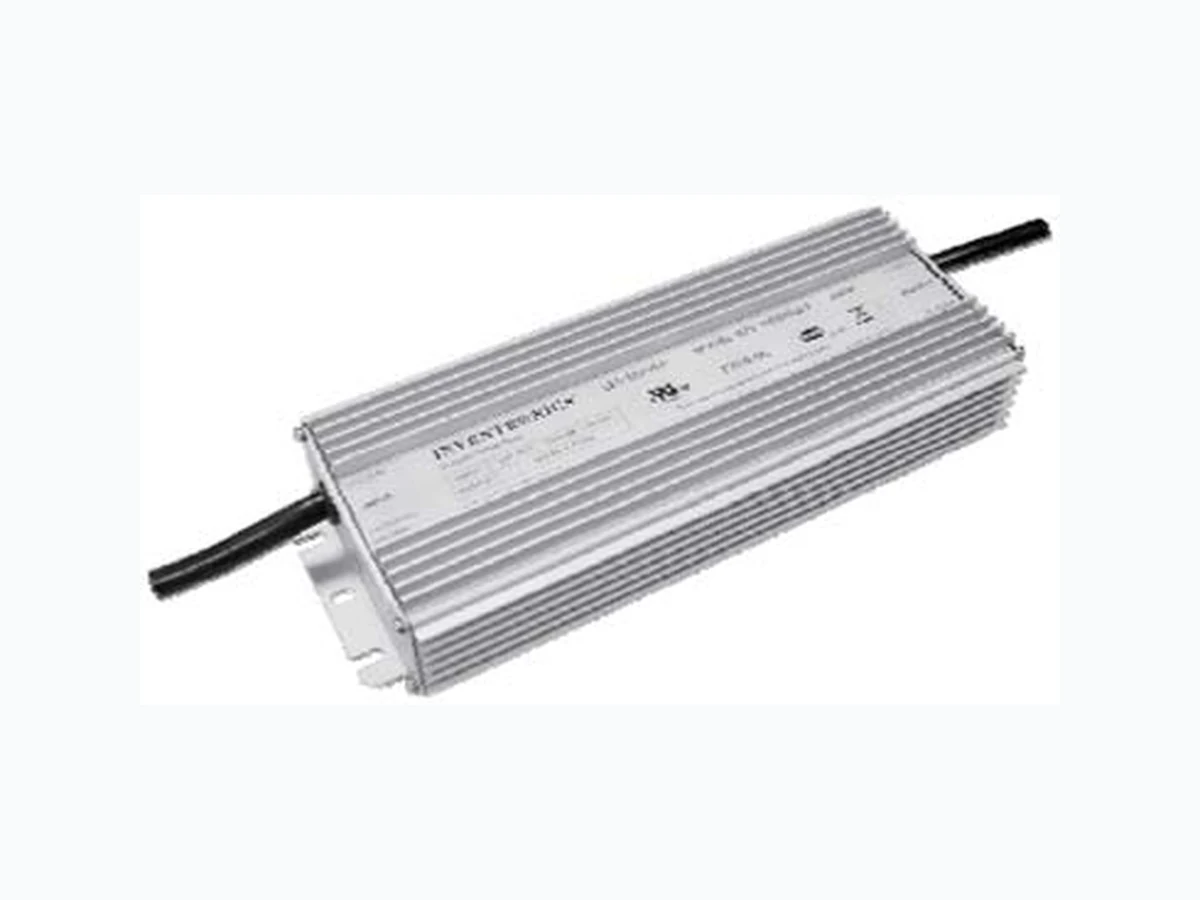

The ETV-300SxxxST series is a 300W, constant-voltage LED driver that operates from 312-528 Vac input with excellent power factor. It is created for many lighting applications including high bay, high mast, horticultural and roadway, etc. The high efficiency of these drivers enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-fre e operation, protection is provided against short circuit, over temperature, over voltage, and over current. Models Output Voltage Input Voltage Range Output Current Range Max. Output Power Typical Efficiency (1) Power Factor Model Number (2) 347Vac 480Vac 24 Vdc 312~ 528 Vac 0~12.5 A 300 W 90% 0.96 0.94 ETV-300S024ST 28 Vdc 312~ 528 Vac 0~10.7 A 300 W 91% 0.96 0.94 ETV-300S028ST 36 Vdc 312~ 528 Vac 0~8.33A 300 W 91% 0.96 0.94 ETV-300S036ST 42 Vdc 312~ 528 Vac 0~7.15 A 300 W 91% 0.96 0.94 ETV-300S042ST 48 Vdc 312~ 528 Vac 0~6.25 A 300 W 91% 0.96 0.94 ETV-300S048ST Notes: (1) Measured at 25 /g113C, 100% load and 480 Vac input. (2) SELV output. Input Specifications Parameter Min. Typ. Max. Notes Input Voltage 312 Vac - 528 Vac Input Frequency 47 Hz - 63 Hz Leakage Current - - 0.9 mA At 480Vac 60Hz input; grounding effectively Input AC Current - - 1.2 A Measured at 100% load and 347 Vac input. - - 0.8 A Measured at 100% load and 480 Vac input. /g120 Ultra High Efficiency (Up to 91%) /g120 Ultra High Input Voltage (312~528Vac) /g120 Constant Voltage Output /g120 Input Surge Protection: DM 4kV, CM 6kV /g120 All-Around Protection: SCP, OTP, OVP, OCP /g120 IP67 and UL Dry / Damp / Wet Location /g120 SELV Output /g120 TYPE HL, for use in a Class I, Division 2 hazardous (Classified) location
Specifications are subject to changes without notice. All specifications are typical at 25/g113C unless otherwise stated. www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 300W Constant Voltage IP67 DriverETV-300SxxxST Rev. G Input Specifications (Continued) Parameter Min. Typ. Max. Notes Inrush Current - - 135 A At 480Vac input 25/g113C Cold start, Duration= 1.2 ms, 10%Ipk-10%Ipk Inrush Current(I2t) - - 9 A 2s PF 0.92 - - At 347-480Vac, 50-60Hz, 75%-100% Load Output Specifications Parameter Min. Typ. Max. Notes Output Voltage Tolerance -3% - 3% ETV-300S024ST -2.5% - 2.5% Other models except ETV-300S024ST Output Voltage Ripple (pk-pk) - - 2% V O At 100% load condition Output Voltage Overshoot / Undershoot - - 2% Vo When power on and off Line Regulation - - ±1.0% Measured at 100% load Load Regulation - - ±1.5% Turn-on Delay Time - 1.0 s 3.0 s Measured at 347Vac and 480Vac input. Temperature Coefficient of Vo - 0.03%//g113C - Case temperature = 0/g113C ~Tc max Protection Functions Parameter Min. Typ. Max. Notes Over Current Protection 110% I O 145% I O 190%IO Hiccup mode. The power supply shall be self- recovery when the fault condition is removed. Over Temperature Protection Auto recovery mode. When the case temperature is higher than about 100/g113C, the power supply will turn off automatically; when the case temperature is lower than about 65/g113C, the power supply will be auto recovered. Short Circuit Protection Hiccup and no damage shall occur when any output operating in a short circuit condition. General Specifications Parameter Min. Typ. Max. Notes Efficiency VO = 24 V VO = 28 V VO = 36 V VO = 42 V VO = 48 V 90.0% 91.0% 91.0% 91.0% 91.0% 91.0% 92.0% 92.0% 92.0% 92.0% Measured at 100% load, 347Vac input, 25/g113C ambient temperature, after the unit is thermally stabilized. It will be about 1% lower, if measured immediately after startup.
Specifications are subject to changes without notice. All specifications are typical at 25/g113C unless otherwise stated. www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 300W Constant Voltage IP67 DriverETV-300SxxxST Rev. G General Specifications (Continued) Parameter Min. Typ. Max. Notes Efficiency VO = 24 V VO = 28 V VO = 36 V VO = 42 V VO = 48 V 89.0% 90.0% 90.0% 90.0% 90.0% 90.0% 91.0% 91.0% 91.0% 91.0% Measured at 100% load, 480Vac input, 25/g113C ambient temperature, after the unit is thermally stabilized. It will be about 1% lower, if measured immediately after startup. MTBF - 210,000 Hours - Measured at 480Vac input, 80%Load and 25/g113C ambient temperature (MIL-HDBK-217F) Lifetime - 120,000 Hours - Measured at 480Vac input, 80%load; Case temperature=60/g113C @ Tc point. See life time vs. Tc curve for the details Operating Case Temperature for Safety Tc_s -40 /g113C - +87 /g113C Operating Case Temperature for Warranty Tc_w -40 /g113C - +75 /g113C Storage Temperature -40 /g113C - +85 /g113C Humidity: 5% RH to 100% RH Dimensions Inches (L × W × H) Millimeters (L × W × H) 8.82 × 3.70 × 1.71 224 × 93.9 × 43.5 With mounting ear 9.88 × 3.70 × 1.71 251 × 93.9 × 43.5 Net Weight - 1710 g - Safety & EMC Compliance Safety Category Standard UL/CUL UL8750,CAN/CSA-C22.2 No. 250.13 CE EN 61347-1,EN 61347-2-13 EMI Standards Notes EN 55015(1) Conducted emission Test &Radiated emission Test EN 61000-3-2 Harmonic current emissions EN 61000-3-3 Voltage fluctuations & flicker FCC Part15(1) ANSI C63.4 Class B This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference, and [2] this device must accept any interference received, including interference that may cause undesired operation. EMS Standards Notes EN 61000-4-2 Electrostatic Discharge (ESD): 8 kV air discharge, 4 kV contact discharge EN 61000-4-3 Radio-Frequency Electromagnetic Field Susceptibility Test-RS EN 61000-4-5 Surge Immunity Test: AC Power Line: Differential Mode 4 kV, Common Mode 6 kV EN 61000-4-6 Conducted Radio Frequency Disturbances Test-CS
Specifications are subject to changes without notice. All specifications are typical at 25/g113C unless otherwise stated. www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 300W Constant Voltage IP67 DriverETV-300SxxxST Rev. G Safety & EMC Compliance (Continued) EMS Standards Notes EN 61000-4-8 Power Frequency Magnetic Field Test EN 61000-4-11 Voltage Dips EN 61547 Electromagnetic Immunity Requirements Applies To Lighting Equipment Note: (1) This LED driver meets the EMI specifications above, but EMI performance of a luminaire that contains it depends also on the other devices connected to the driver and on the fixture itself. Lifetime vs. Case Temperature Efficiency vs. Load ETV-300S024ST ETV-300S028ST
Specifications are subject to changes without notice. All specifications are typical at 25/g113C unless otherwise stated. www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 300W Constant Voltage IP67 DriverETV-300SxxxST Rev. G ETV-300S036ST ETV-300S042ST ETV-300S048ST Power Factor Characteristics
Specifications are subject to changes without notice. All specifications are typical at 25/g113C unless otherwise stated. www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 300W Constant Voltage IP67 DriverETV-300SxxxST Rev. G Total Harmonic Distortion Mechanical Outline OUTPUT (UL SJTW 2*14AWG 8.8) INPUT(UL STW 3*18AWG 9.5) PROJ: Unspecified toleranc:±1 AC/L (BLACK) AC/N (WHITE) GND (GREEN) V+ (RED) V- (BLUE) Tc RoHS Compliance Our products comply with reference to RoHS Directive (EU) 2015/863 amending 2011/65/EU, calling for the elimination of lead and other hazardous substances from electronic products.
Specifications are subject to changes without notice. All specifications are typical at 25/g113C unless otherwise stated. www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 300W Constant Voltage IP67 DriverETV-300SxxxST Rev. G
Revision History
Date Rev. Description of Change Item From To 2013-08-04 A Datasheet Release / / 2013-10-23 B Output Voltage Tolerance / Updated 2013-12-17 C Life time 78,500 Hours 120,000 Hours Life time curve / Updated 2015-01-05 D Format / Updated 36Vdc model / Added Ripple and Noise Ripple and Noise Output Voltage Ripple (pk-pk) No Load Power Dissipation / Delete Case Temperature Case Temperature Operating Case Temperature for Safety Tc_s Operating Case Temperature for Warranty Tc_w / Added 2017-06-20 E CE / Added Features / Updated Description / Updated Models SELV Added Temperature Coefficient / Updated General specifications Storage Temperature Added General specifications With mounting ear Added Environmental Specifications / Delete Safety & EMC Compliance / Updated Mechanical Outline / Updated 2019-01-10 F Description / Updated Input Specifications PF/THD Updated General Specifications Net Weight Updated Safety & EMC Compliance / Updated 2020-01-13 G Features 4kV line-line, 6kV line-earth DM 4kV, CM 6kV Features Waterproof (IP67) IP67 Safety &EMC Compliance EN 61000-4-5 Updated Derating Curve / Deleted RoHS Compliance / Updated
Specifications are subject to changes without notice. All specifications are typical at 25/g113C unless otherwise stated. www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com 300W Constant Voltage IP67 DriverETV-300SxxxST Rev. G Revision History (Continued) Change Date Rev. Description of Change Item From To 2020-01-13 G Format Page footer Updated
