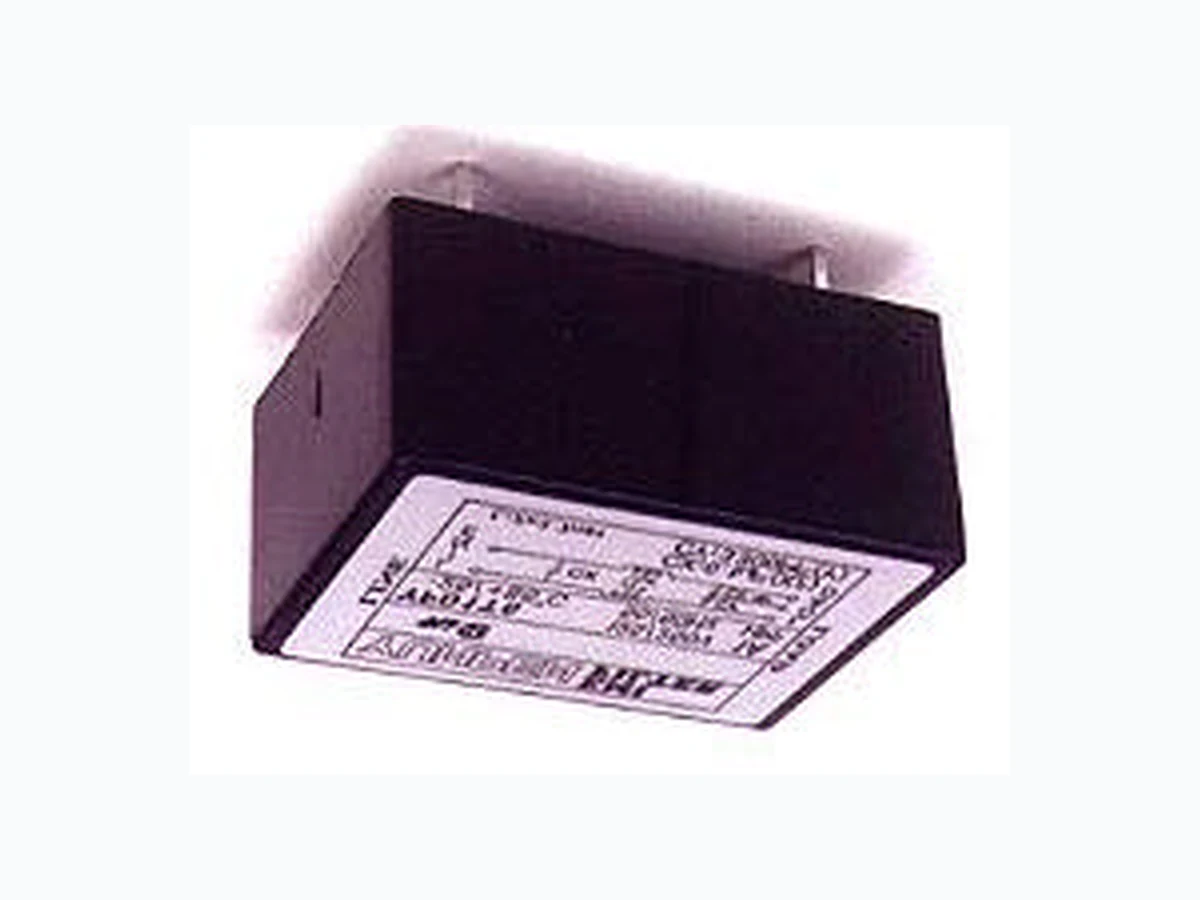

YF-T8 ETC1

Document overview

Manufacturer or author: Provided By www.digicamel.com(FREE DATASHEET DOWNLOAD SITE)
PDF pages: 1

FEATURES l Low cost type l Printed circuit terminals l All parts are approved by UL, VDE and CSA 2. SPECIFICATIONS 3. NOISE ATTENUATION (dB) 4. CIRCUIT 5. DIMENSION(mm) YF01T8~YF10T8 ITEM \\ MODEL YF01T8 YF03T8 YF06T8 YF10T8 RATED VOLTAGE 250V AC 250V AC 250V AC 250V AC RATED CURRENT 10A LEAK CURRENT 0.8mA MAX 250V,50HZ 0.8mA MAX 250V,50HZ 0.8mA MAX 250V,50HZ 0.8mA MAX 250V,50HZ TEST VOLTAGE LINE TO LINE LINE TO GROUND 1450V DC 2250V DC 1450V DC 2250V DC 1450V DC 2250V DC 1450V DC 2250V DC INSULATION RESISTANCE 100M ohm MIN 250VDC 100M ohm MIN 250VDC 100M ohm MIN 250VDC 100M ohm MIN 250VDC DIRECT CURRENT RESISTANCE 0.5 ohm MAX 0.2 ohm MAX 0.15 ohm MAX 0.1 ohm MAX TEMPERATURE RISE 30C MAX 30C MAX 30C MAX 30C MAX OPERATING TEMPERATURE -25 ~ +85C -25 ~ +85C -25 ~ +85C -25 ~ +85C ATTENUATION NORMAL MODE 25dbMIN COMMON MODE 25dbMIN 0.50 ~ 50MHZ 0.10 ~ 50MHZ 0.70 ~ 40MHZ 0.20 ~ 35MHZ 1.00 ~ 50MHZ 0.70 ~ 50MHZ 1.50 ~ 50MHZ 1.50 ~ 50MHZ CX 0.1uF 0.1uF 0.1uF 0.1uF CY 3300pF*2 3300pF*2 3300pF*2 3300pF*2 INDUCTANCE 3.7mH*2 1.8mH*2 0.7mH*2 0.3mH*2 RESISTANCE 1.5MOHM 1.5MOHM 1.5MOHM 1.5MOHM COMMON MODE (LINE TO GROUND) IN 50 OHM SYSTEM TYPE CURRENT FREQUENCY-MHZ RATING 0.15 0.5 1.0 5.0 10.0 30.0 YF01T6 YF03T6 YF06T6 YF10T6 10A DIFFERENTIAL MODE (LINE TO LINE) IN 50 OHM SYSTEM YF01T6 YF03T6 YF06T6 YF10T6 10A
