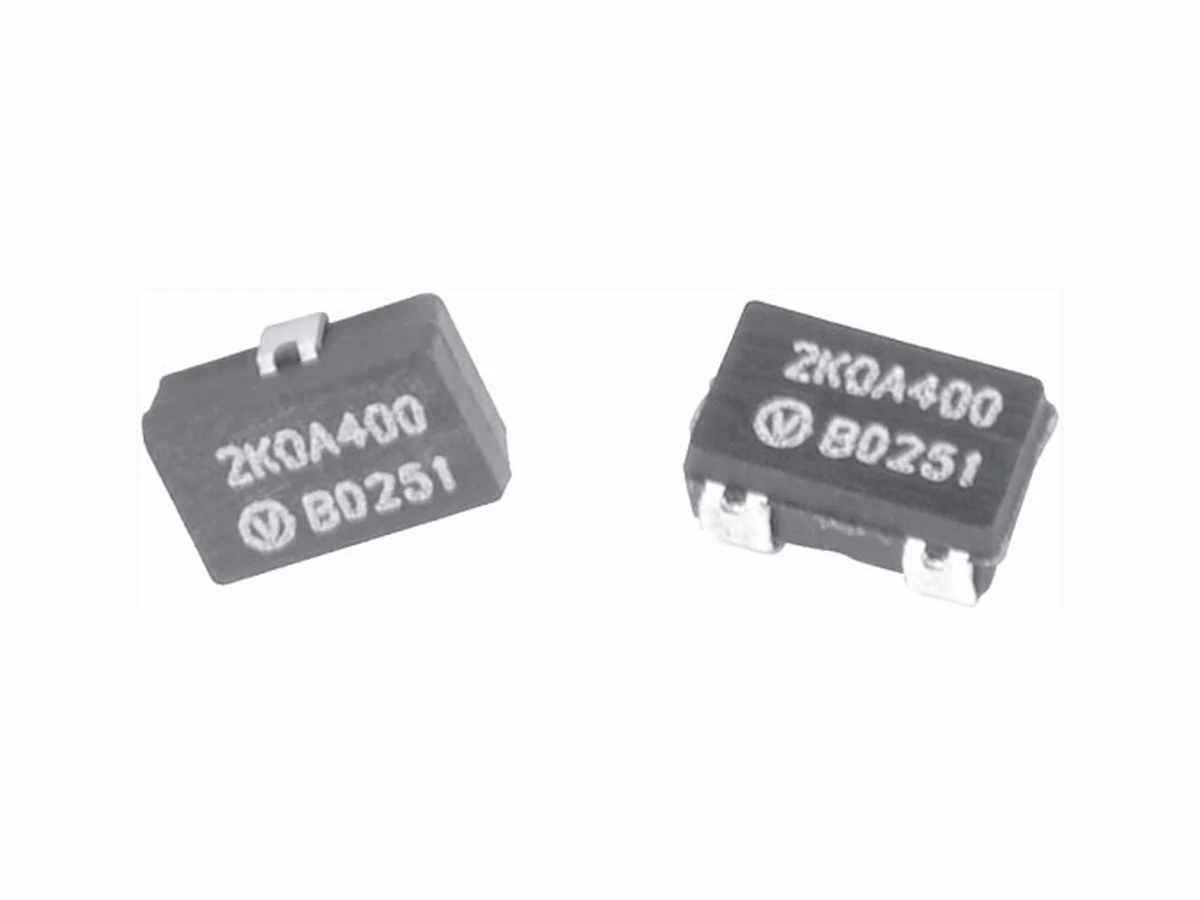

Y4485V0001AT9R VISHAY
Document overview
- Manufacturer or author: Provided By www.digicamel.com(free datasheet download site)
- PDF pages: 5
Technical content
DSMZ (Z-Foil) Vishay Foil Resistors www.foilresistors.com For any questions, contact: foil@vishaypg.com Document Number: 63121
2 Revision: 25-Mar-10
FIGURE 3 - TRIMMING TO VALUES (Conceptual Illustration) Mutual Inductance Reduction due to Change in Current Direction Current Path Before Trimming Note: Foil shown in black, etched spaces in white Interloop Capacitance Reduction in Series Trimming Process Removes this Material from Shorting Strip Area Changing Current Path and Increasing Resistance Current Path After Trimming FIGURE 4 - TYPICAL RESISTANCE/ TEMPERATURE CURVE (For more details, see table 1) + 500 + 200 + 100 - 100 - 200 - 300 - 500 - 55 - 25 + 25 + 60 + 75 + 100 + 125 ΔR R (ppm) 0.05 ppm/°C - 0.1 ppm/°C 0.1 ppm/°C 0.14 ppm/°C 0.2 ppm/°C - 0.16 ppm/°C - 400 + 300 + 400 Ambient Temperature (°C) and TCR Chord Slopes for Different Temperature Ranges FIGURE 5 - DIMENSIONS AND IMPRINTING DIMENSIONS L W H P TW TH S t FIGURE 6 - RECOMMENDED LAND PATTERN w PP t H TH L S TWTW WEIV TNORFWEIV EDIS STAND OFF TW BOTTOM VIEW 10K Q 10K V B0219 VALUE R1 RATIO TOLERANCE CODE VALUE R2 DATE CODE TOP VIEW 1 2 Note: R1 - between PIN1 and PIN3 R2 - between PIN2 and PIN3 0.063 ± 0.004 (1.6 ± 0.1) 0.100 ± 0.004 (2.54 ± 0.1) 0.040 ± 0.004 (1.02 ± 0.1) 0.071 ± 0.004 (1.8 ± 0.1) 0.100 ± 0.004 (2.54 ± 0.1) 0.035 ± 0.004 (0.89 ± 0.1)
DSMZ (Z-Foil) Vishay Foil Resistors Document Number: 63121 For any questions, contact: foil@vishaypg.com www.foilresistors.com Revision: 25-Mar-10 3 TABLE 2 - PERFORMANCE SPECIFICATIONS (Test Method Per MIL-PRF-914) SPECIFICATIONS TYPICAL LIMITS Power rating at 70 °C Entire package: 0.1 W Each resistor: 0.05 W Maximum Working Voltage (each resistor) 25 V Working Temperature Range - 65 °C to + 125 °C Thermal Shock R = 0.01 % (100 ppm) 25 x (- 65 °C to + 125 °C) Ratio = 0.005 % (50 ppm) Thermal Shock 5 x (- 65 °C to + 125 °C) and R = 0.015 % (150 ppm) Power Conditioning Ratio = 0.01 % (100 ppm) 1.5 rated power at 25 °C, 100 hours DWV atmospheric pressure, 200 V (A.C.), 1 minute Successfully passed Insulation Resistance 100 V (D.C.), 1 minute > 10 4 M Resistance to Soldering Heat R = 0.01 % (100 ppm) Ratio = 0.005 % (50 ppm) Moisture Resistance R = 0.02 % (200 ppm) + 65 °C to - 10 °C; 90 % to 98 % RH; 0.1 x rated power, 240 hours Ratio = 0.005 % (50 ppm) Shock (Specified Pulse) R = 0.005 % (50 ppm) 100 G Ratio = 0.0025 % (25 ppm) Vibration, High Frequency R = 0.01 % (100 ppm) (10 Hz - 2000 Hz), 20 G Ratio = 0.005 % (50 ppm) High Temperature Exposure R = 0.01 % (100 ppm) 100 hours at 125 °C Ratio = 0.005 % (50 ppm) Low Temperature Storage R = 0.005 % (50 ppm) 24 hours at - 65 °C Ratio = 0.005 % (50 ppm) Load Life Stability R = 0.005 % (50 ppm) 2000 hours at + 70 °C; rated power Ratio = 0.005 % (50 ppm) Short Time Overload R = 0.005 % (50 ppm) 6.25 x Rated Power; 5 seconds Ratio = 0.0025 % (25 ppm) Low Temperature Operation R = 0.005 % (50 ppm) Ratio = 0.0025 % (25 ppm) Weight 0.04 g
DSMZ (Z-Foil) Vishay Foil Resistors www.foilresistors.com For any questions, contact: foil@vishaypg.com Document Number: 63121
4 Revision: 25-Mar-10
(1) For non-standard requests or additional values, please contact application engineering. Note (1) Other values available upon request. TABLE 3 - GLOBAL PART NUMBER INFORMATION (1) NEW GLOBAL PART NUMBER: Y44 85V0067QT9W (preferred part number format) DENOTES PRECISION VCODE TOLERANCE MATCH PACKAGING Y RESISTANCE VALUE CODE T = 0.01 % Q = 0.02 % A = 0.05 % R = tape and reel W = waffle pack L = bulk pack PRODUCT CODE RESISTANCE TOLERANCE CHARACTERISTICS 4485 = DSMZ Q = ± 0.02 % A = ± 0.05 % B = ± 0.10 % 0 = standard 9 = lead (Pb)-free 1 to 999 = custom FOR EXAMPLE: ABOVE GLOBAL ORDER Y4485 V0067 Q T 9 W: TYPE: DSMZ VALUES: 10K/400R ABSOLUTE TOLERANCE: ± 0.02 % TOLERANCE MATCH: 0.01 % TERMINATION: lead (Pb)-free PACKAGING: waffle pack HISTORICAL PART NUMBER: DSMZ 10K 400R TCR0.2 Q T S W (will continue to be used) DSMZ 10K 400R TCR0.2 Q T S W MODEL OHMIC VALUE TCR CHARACTERISTIC ABSOLUTE TOLERANCE TOLERANCE MATCH TERMINATION PACKAGING R1 = 10 k R2 = 400 Q = ± 0.02 % A = ± 0.05 % B = ± 0.10 % T = 0.01 % Q = 0.02 % A = 0.05 % S = lead (Pb)-free B = tin/lead T = tape and reel W= waffle pack B = bulk pack TABLE 4 - RESISTANCE VALUE CODE LIST FOR POPULAR RATIOS (1) VCODES R1/R2 RATIO R1 R2 VCODES R1/R2 RATIO R1 R2 V0052 100 10K 100R V0080 2.5 1K 400R V0065 50 10K 200R V0081 500R 200R V0066 5K 100R V0082 10K 5K V0067 V0068 25 10K 400R 200R V0083 2K 1K V0084 1K 500R V0085 400R 200R V0069 20 10K 500R V0086 200R 100R V0070 2K 100R V0087 1.25 500R 400R V0071 10K 1K V0001 V0002 V0059 V0004 V0091 V0090 V0089 V0088 10K 500R 400R 200R 100R 10K 500R 400R 200R 100R V0072 2K 200R V0073 1K 100R V0074 5K 1K V0075 2K 400R V0076 1K 200R V0077 500R 100R V0246 10K 2K5 V0078 2K 500R V0079 400R 100R 4 8 5V 067 0Y4 T9Q W
