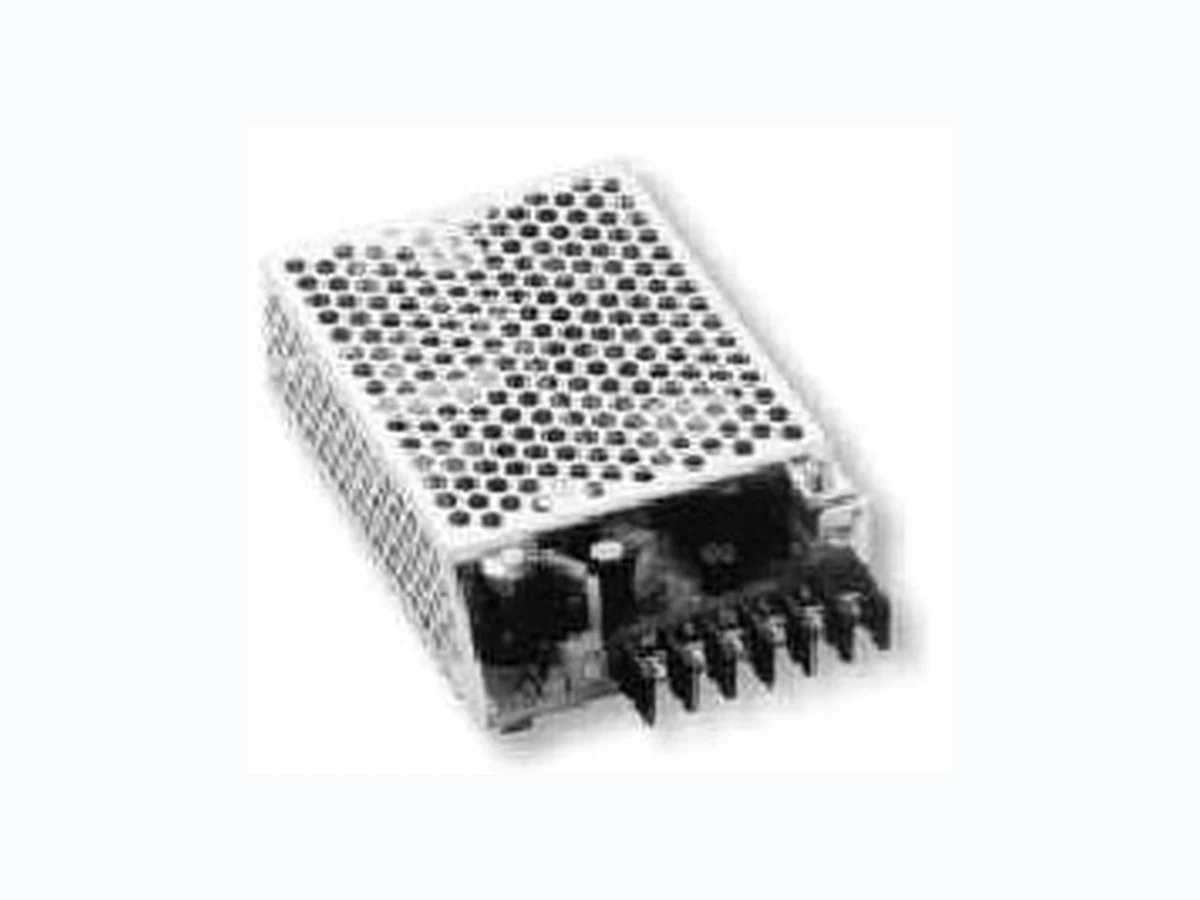

15-WATT, Universal Input Fully Enclosed Switching Power Supply

FEATURES

Universal Input (AC85-264V) Built_In Overvoltage Protection Overcurrent Protection Lightweight Construction Metal Chassis with Cover Compact, Low-Profile Package 3-Year Warranty SAFETIES / EMI FCC-B EN 55022-B VCCI-II ELECTRICAL SPECIFICATIONS All specifications are typical at nominal input, full loa INPUT SPECIFICATIONS DC 110V-340V Inrush Current (100V, 50Hz). . . 12 ~ 24A OUTPUT SPECIFICATIONS Leakage Current (10023VAC). . . . Vin= 100V 0.5mA m Vin= 230V 0.75mA GENERAL SPECIFICATIONS Isolation Voltage Primary to Secondary . . . .

3000 VDC

1500 VDC

500 VDC

ENVIRONMENTAL SPECIFICATIONS Operating Temperature Range . 0* ~ 60*C Derates linearly 2.5% 50*C Vibration: 10 ~ 55Hz Page 1 of 2Volgen America-SP15u series 9/15/2003http://www.volgen.com/datasheet/prd_SP15U.html

Metal Enclosed - Terminal Block MODEL OUTPUT VOLTAGE OUTPUT CURRENT EFFICIENCY LINE REGULATION LOAD REG @100V @230V SP15U-03S 3.3 VDC 3.0 A 3.6 A 70% 20 mV max. 40 mV SP15U-05S 5 VDC 3.0 A 3.6 A 73% 20 mV max. 50 mV SP15U-12S 12 VDC 1.3 A 1.5 A 77% 30 mV max. 50 mV SP15U-15S 15 VDC 1.0 A 1.2 A 77% 30 mV max. 50 mV SP15U-24S 24 VDC 0.7 A 0.8 A 78% 30 mV max. 50 mV SP15U-48S 48 VDC 0.35 A 0.4 A 79% 30 mV max. 50 mV

  • No. 6-32 mounting hol
  • Dimensions in mm
  • Terminal block or "pi n type connector availab Note: All specifications typical and nominal / full load and 25*C unless otherwise noted. Mounting screw length should not exceed 0.31 inches or 8 mm. Avoid sustained operation in overload or dead short conditions. Specifications subject to changes without notice. Page 2 of 2Volgen America-SP15u series 9/15/2003http://www.volgen.com/datasheet/prd_SP15U.html
