MPE-8071 ETC
Document overview
- Manufacturer or author: Provided By www.digicamel.com(FREE DATASHEET DOWNLOAD SITE)
- PDF pages: 1
Technical content

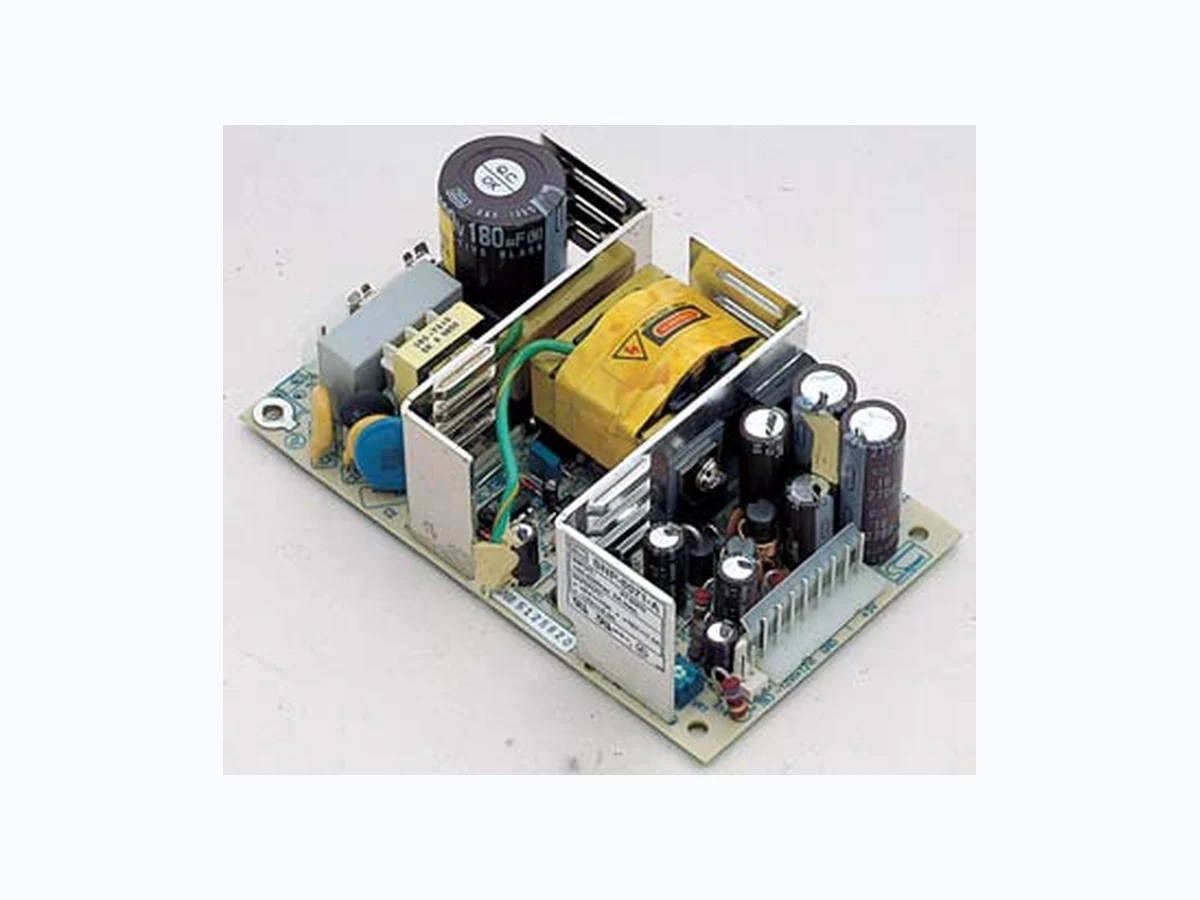

70W AC-DC Open Frame Power Supply Input Range: 85~270VAC Safety Standards * Safety: UL 1950, CSA 22.2 No.234, VDE EN 60 950 * EMI: FCC Class B, EN55022B Power Supply Specifications * Input Voltage: 85~270VAC * Input Current: 2A at 115VAC or 1A at 230VAC max. * Inrush Current: Does not exceed 30A at 115VAC input or 60A at 230VAC input, at cold start 25oC, and excluding EMI suppression capactiors * Load Range: All outputs are at min. load conditions, while +5V output is between 5~5.1V and all other outputs are within the specified voltage accuracy range * Ripple and Noise: Peak to peak ripple and noise for all outputs is < 1% of output voltage at rated load * Line Regulation: < +/-2% for each output measured at rated load and +/-10% input voltage range * Load Regulation: < +/-3% for +5V, +/-4% for +12V, and +/-5% for - 12V with +/-40% change on the measured output load, +/-40% from 60% rated load, while keeping other outputs at 60% rated load * Hold Up Time: > 16ms at 115VAC input and rated load, measured from the end of the last charging pulse to when the main output drops down to 95% output voltage * Efficiency: > 70% at nominal line and rated load * Altitude: 10,000 feet * Protection: Latch-off mode against short circuit or over load conditions AC input ON/OFF cycle to restart power supply * Temperature: 0~50 oC (operating); -40~+85oC (storage) * Connectors: AC Input: Molex 5277-02A or equivalent device DC Output: Molex 5273-08A or equivalent device For Fan Use Only: Molex 5045-02A or equivalent device * Dimensions: 12.7 x 7.62 x 3.86 cm at tolerance +/-0.4mm OutputPin 1~3 4~6 +5V GND 7 +12V 8 -12V Min. LoadOutput +5V +12V -12V Valtage Accuracy Rated Load 10A 1.5A 0.3A Max. Load 12A 2.5A 0.3A 5~5.1V 11.2~11.6V -10.8~-12V +15V E TRANSFORMER 12.7 7.62 6.48 11.56 TB2 TB2 TB3 TO CHASSIS GROUNDING 38.6 MAX.2.5 MAX. 4.0TYP. MOUNTING HOLES
