Features
High Performance Embedded System www.vecow.com ECS-8000-2G Quad Core Intel Core™ i7 Mobile Processor (Broadwell-H) VGA/ DVI-D/ DisplayPort/ eDP Interface, up to 3 independent 4K displays 3 Mini PCIe Socket for 3G/ 4G/ LTE/ WiFi/ GPRS/ UMTS 2 External SIM Card Socket 2 Independent Gigabit LAN, iAMT 9.5 supported 16 DIO (8 DI, 8 DO) Fanless, -25°C to 70°C Operating Temperature 6V to 36V DC-in, 80V Surge Protection Configurable Ignition Power Control 2 2.5" SSD, 1 Front-access CFast Socket Quad Core Intel Core™ i7 (Broadwell-H) Fanless Embedded System with Intel QM87 Chipset, 2 Gigabit LAN, 16 DIO, High Performance, Rugged, Extended Temperature System Processor Quad Core Intel Core™ i7-5850EQ/ i7-5700EQ (Broadwell-H) Chipset Intel QM87 BIOS AMI SIO IT8786E Memory 2 DDR3L 1600MHz SO-DIMM, up to 32GB I/O Interface Serial 4 COM RS-232/ 422/ 485 USB 2 USB 3.0 4 USB 2.0 (3 External, 1 Internal) GPIO 32 GPIO (16 Internal) LED Power, HDD SIM Card 2 SIM Card Socket (External) Expansion Mini PCIe
3 Mini PCIe Socket :
2 Full-size for PCIe/ USB/ External SIM Card/ mSATA 1 Half-size for PCIe/ USB SUMIT A, B 2 SUMIT Slot (Optional) Graphics Graphics Processor Intel Iris™ Pro Graphics 6200 (5850EQ) Intel HD Graphics 5600 (5700EQ) Interface VGA : Up to 1920 x 1200 @ 60Hz DVI-D : Up to 1920 x 1080 @ 60Hz DisplayPort 1 : Up to 4096 x 2304 @ 60Hz DisplayPort 2 : Up to 4096 x 2304 @ 60Hz eDP : Up to 4096 x 2304 @ 60Hz Storage SATA 2 SATA III (6Gbps) mSATA 2 SATA III (Mini PCIe Type, 6Gbps) SATA DOM 1 SATA II (3Gbps) Storage Device 1 CFast Socket, Push-in/ Push-out Ejector 2 2.5" SSD/ HDD Bracket (Internal) Audio Audio Codec Realtek ALC892, 5.1 Channel HD Audio Audio Interface 1 Mic-in, 1 Line-out Ethernet LAN 1 Intel I218 Gigabit LAN supports iAMT 9.5 LAN 2 Intel I210 Gigabit LAN Power Power Input 6V to 36V, DC-in Power Interface 3-pin Terminal Block : V+, V-, Frame Ground Mini-DIN 4-pin Ignition Control 16 Mode (Internal) Remote Switch 3-pin Terminal Block : On, Off, IGN Surge Protection Up to 80V/1ms Transient Power Others TPM Optional Infineon SLB9665 supports TPM 2.0, LPC Interface Watchdog Timer Reset : 1 to 255 sec./min. per step Smart Management Wake on LAN, PXE supported HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats. Software Support OS Windows 8, Windows 7, Linux Mechanical Dimensions (W x L x H) 260mm x 175mm x 79mm (10.2” x 6.9” x 3.1”) Weight 2.8 kg (6.2 lb) Mounting Wallmount by mounting bracket 2U Rackmount (Optional) Environment Operating Temperature -25°C to 70°C (-13°F to 158°F) Storage Temperature -40°C to 85°C (-40°F to 185°F) Humidity 5% to 95% Humidity, non-condensing Relative Humidity 95% @ 70°C Shock IEC 60068-2-27 SSD : 50G @ wallmount, Half-sine, 11ms Vibration IEC 60068-2-64 SSD : 5Grms, 5Hz to 500Hz, 3 Axis EMC CE, FCC, EN 50155, EN 50121-3-2 -25º 70º TPMSIM 80V 6V~36V

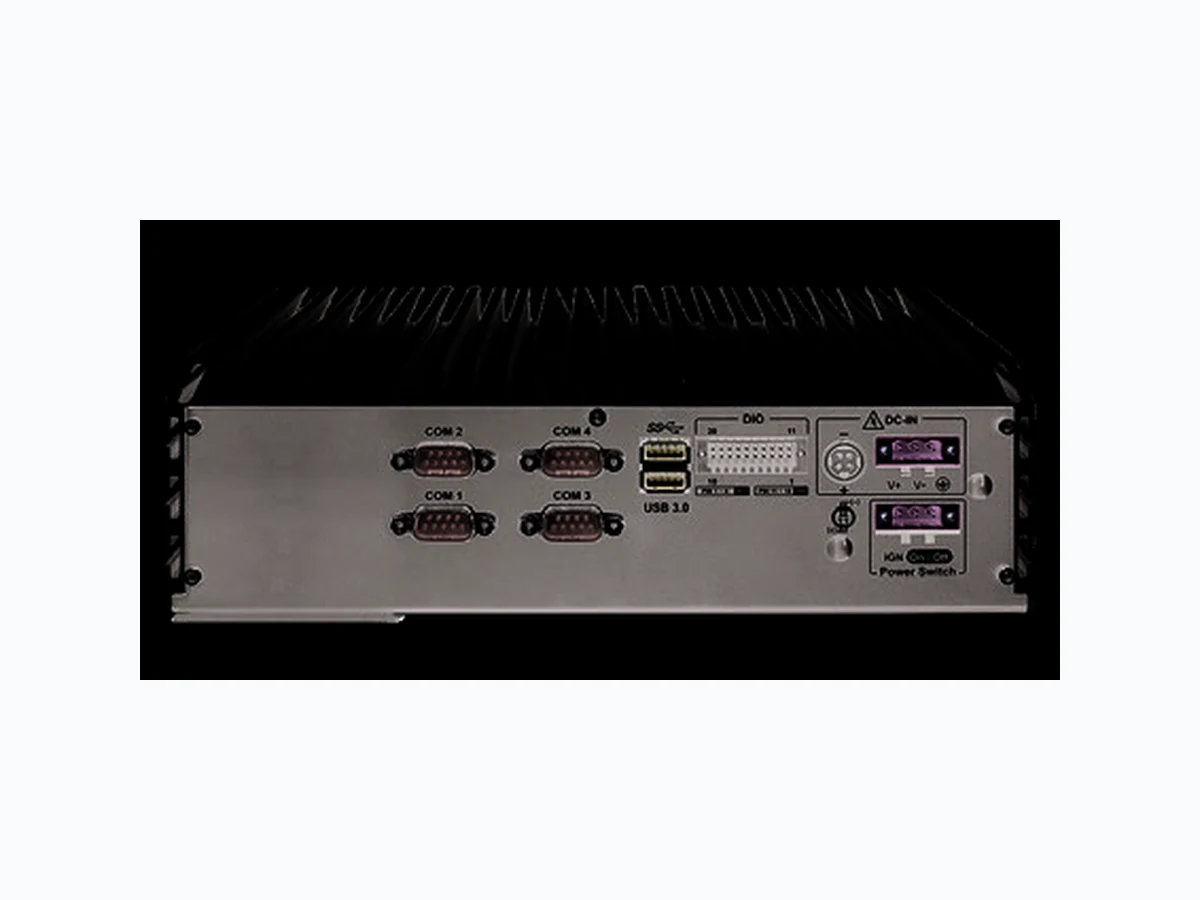

High Performance Embedded System www.vecow.com Order Information Dimensions Front I/O Rear I/O Unit : mm/ inch 260,0 (10,2) 297,0 (11,7) 115,0 (4,5) 175,0 (6,9) 282,0 (11,1) 79,1 (3,1) 297,0 (11,7) ECS-8000-2G850Q ECS-8000 Fanless Embedded System, Quad Core 5 th Gen Intel Core™ i7-5850EQ Processor (Broadwell-H), 2 GbE LAN, 4 COM,
7 USB, 2 SIM, 32 GPIO
