M002 PERMCO
Document overview
- Manufacturer or author: Provided By www.digicamel.com(free datasheet download site)
- PDF pages: 2
Technical content
Features
applications

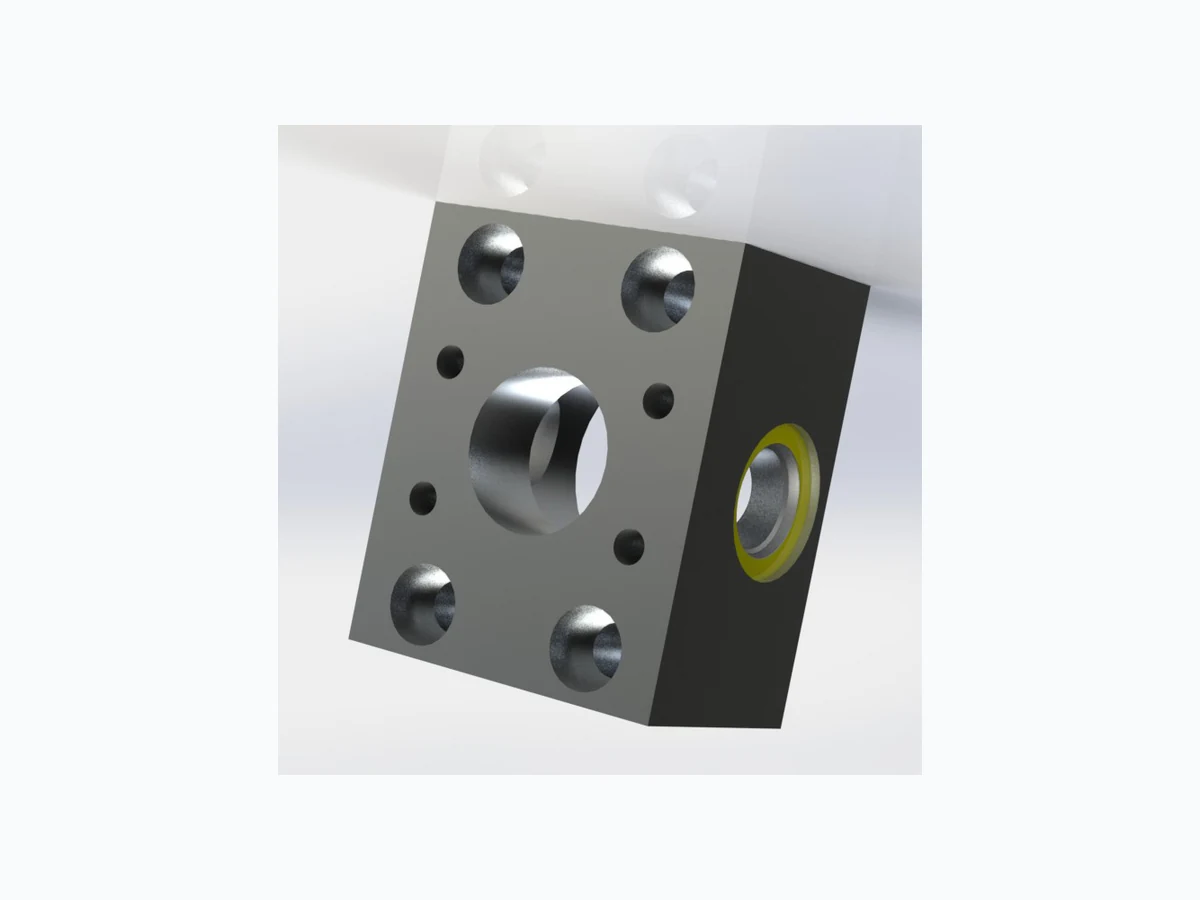

Permco USA | 1500 Frost Road | P. O. Box 2068 | Streetsboro, Ohio 44241 Copyright © 2015 © Bulletin # M002-1017 Version 2.0 M002 Unloading Block Permco is a leading manufacturer of high-pressure hydraulic gear, vane and piston pumps and motors, flow dividers, intensifiers, and accessories. Available in a wide variety of sizes and configurations to suit your application needs. Inlet Block Electric Unloading Block Aluminum Unloading block with built-in relief valve and a solenoid operated pilot valve can be used on both single (one block) and double pumps (two block). Eliminating the need to stock for different blocks.
- Designed with internal passages large enough to handle full pump flow at minimum pressure drop
- Mounts directly on the pump’s split flange output port
- SAE ORB pressure ports
- Connects to the inlet port of the pump using steel tubing (also included in the package) Aluminum inlet block with Port size reduction from 3” split flange to 2” split flange and two 1” SAE ORB port to accept the returned flow from the unloading blocks. It eliminates the need for a large inlet hose from the reservoir. Single Set Point Speed Switch Available as 12 or 24 VDC, this switch is used to read the Engine RPM from the R terminal of the alternator. An adjustable potentiometer allows to set the engine RPM at which the unloading solenoids are cut off; thus, unloading the pump. Schematic www.permco.com Our Online Support is available 24/7/365 for your needs! Email: support@permco.com Call: (800) 626.2801
