L6T ZEMIC

Document overview

  • Manufacturer or author: Provided By www.digicamel.com(FREE DATASHEET DOWNLOAD SITE)
  • PDF pages: 3

Technical content

Specifications and dimensions are subject to change without notice and do not constitute any liability whatsoever. Zemic Europe B.V. T: +31 76 50 39480 Nr. 2023.12 L6T Rev13 info@zemic.nl Page 1/3 www.zemiceurope.com Short Description

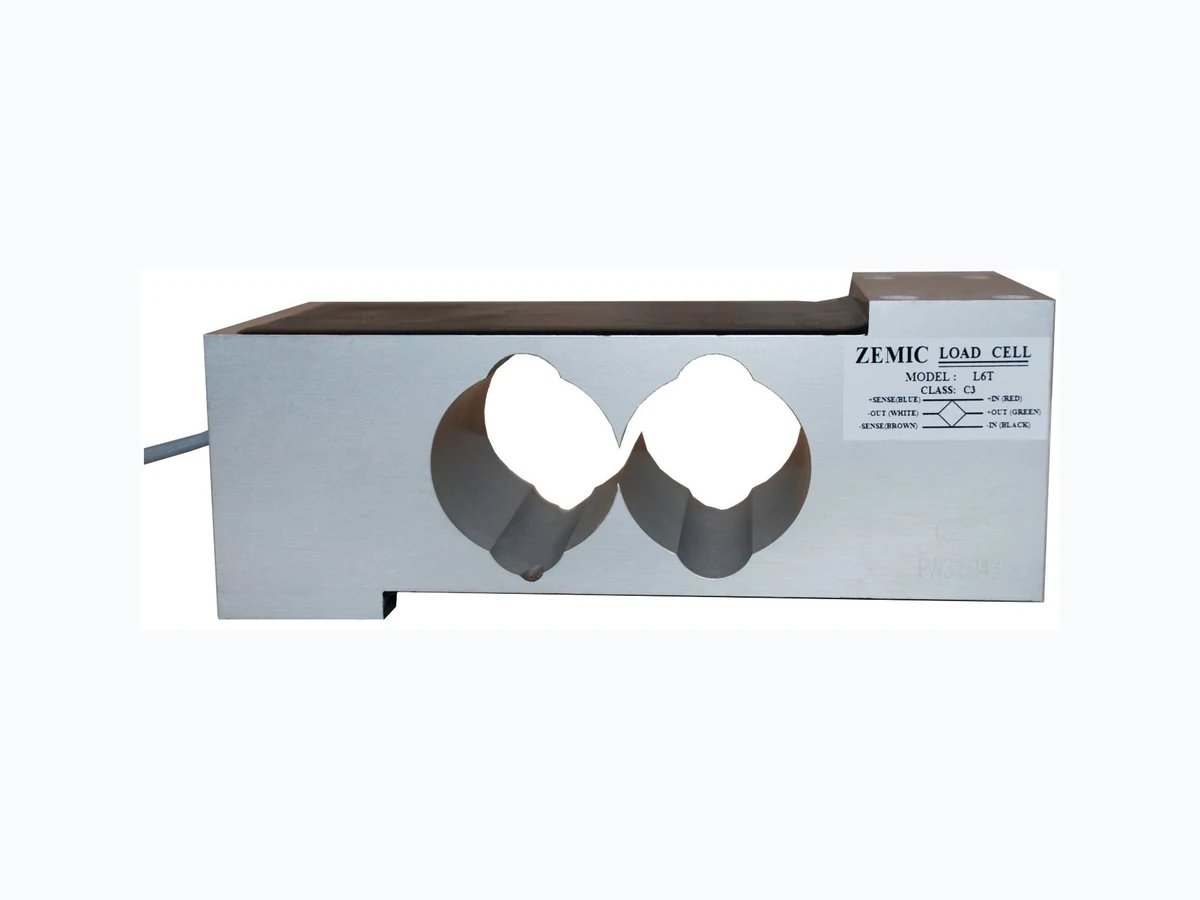

  • Aluminium-alloy IP65 single point load cell Test certificate no. D09-10.23
  • Colourless anodized C of C no R60/2000-DE1-10.11
  • Suitable for single and double load cell structured platform scales Certificate no. 12-006
  • Recommended platform size: 600 x 600 mm Available Models Capacity Accuracy Full Article Description 50kg C3/C4 L6T-C3/C4-50kg-3B6 75kg C3/C4 L6T-C3/C4-75kg-3B6 100kg C3/C4 L6T-C3/C4-100kg-3B6 150kg C3/C4 L6T-C3/C4-150kg-3B6 200kg C3/C4 L6T-C3/C4-200kg-3B6 250kg C3/C4 L6T-C3/C4-250kg-3B6 300kg C3 L6T-C3-300kg-3B6 500kg C3 L6T-C3-500kg-3B6 635kg C3 L6T-C3-635kg-3B6 1000kg C3 L6T-C3-1000kg-3B6

Specifications and dimensions are subject to change without notice and do not constitute any liability whatsoever. Zemic Europe B.V. T: +31 76 50 39480 Nr. 2023.12 L6T Rev13 info@zemic.nl Page 2/3 www.zemiceurope.com Technical Specifications L6T Accuracy Class OIML R60 C3 OIML R60 C4 Output Sensitivity ( = FS ) mV/V 2.0 ± 0.2 Maximum Capacity ( Emax ) kg 50, 75, 100, 150, 200, 250 300, 500, 635, 1000 50, 75, 100, 150, 200, 250 Max. Number of Load Cell Intervals nLC 3000 4000 Ratio of min. LC Verification Interval Y = Emax / vmin 6500 15000 6500 Combined Error %FS ≤± 0.023 ≤± 0.014 Creep Error (30 minutes) %FS ≤± 0.0167 ≤± 0.0125 Temperature Effect on Zero (ZTC) %FS/10°C ≤± 0.02 ≤± 0.012 Temperature Effect on Sensitivity (STC) %FS/10°C ≤± 0.0175 ≤± 0.0131 Zero Balance %FS ≤± 2.0 Safe Overload %FS 120 Ultimate Overload %FS 150 Maximum Deflection mm 50kg – 300kg = 0.4 500kg – 1t = 1.2 ~ 1.8 Eccentric Loading Error %Ld/cm ± 0.002 Excitation, Recommended Voltage V 5 ~ 12 Excitation, Maximum Voltage V 18 Input Resistance Ω 409 ± 6 Output Resistance Ω 350 ± 3 Insulation Resistance (50V) MΩ ≥5000 Compensated Temperature °C -10 ~ + 40 Operating Temperature °C -35 ~ + 65 Storage Temperature °C -40 ~ + 70 Load Cell Weight kg 1.95 Element Material Aluminium Ingress Protection (acc. to EN 60529) IP65 Recommended Torque on Fixation Bolts Nm M8: 25 Wiring Features: Cable type: Shielded, 6 conductor cable , conductor AWG 26 Cable diameter: Ø 4.8m Cable length: 3.0m Cable jacket: PVC Shield not connected to element 6-Wire Connection Diagram Excitation (+) Sense (+) Signal (-) Sense (-) Excitation (-) Signal (+) Red Blue White Brown Black Green

Specifications and dimensions are subject to change without notice and do not constitute any liability whatsoever. Zemic Europe B.V. T: +31 76 50 39480 Nr. 2023.12 L6T Rev13 info@zemic.nl Page 3/3 www.zemiceurope.com Dimensions in mm Front View Top View Isometric View
