JB01 ZEMIC
Document overview
- Manufacturer or author: Provided By www.digicamel.com(FREE DATASHEET DOWNLOAD SITE)
- PDF pages: 2
Technical content
Specifications and dimensions are subject to change without notice and do not constitute any liability whatsoever. Zemic Europe B.V. T: +31 76 50 39480 Nr. 2022.12 JB01 Rev5 info@zemic.nl Page 1/2 www.zemiceurope.com Short Description

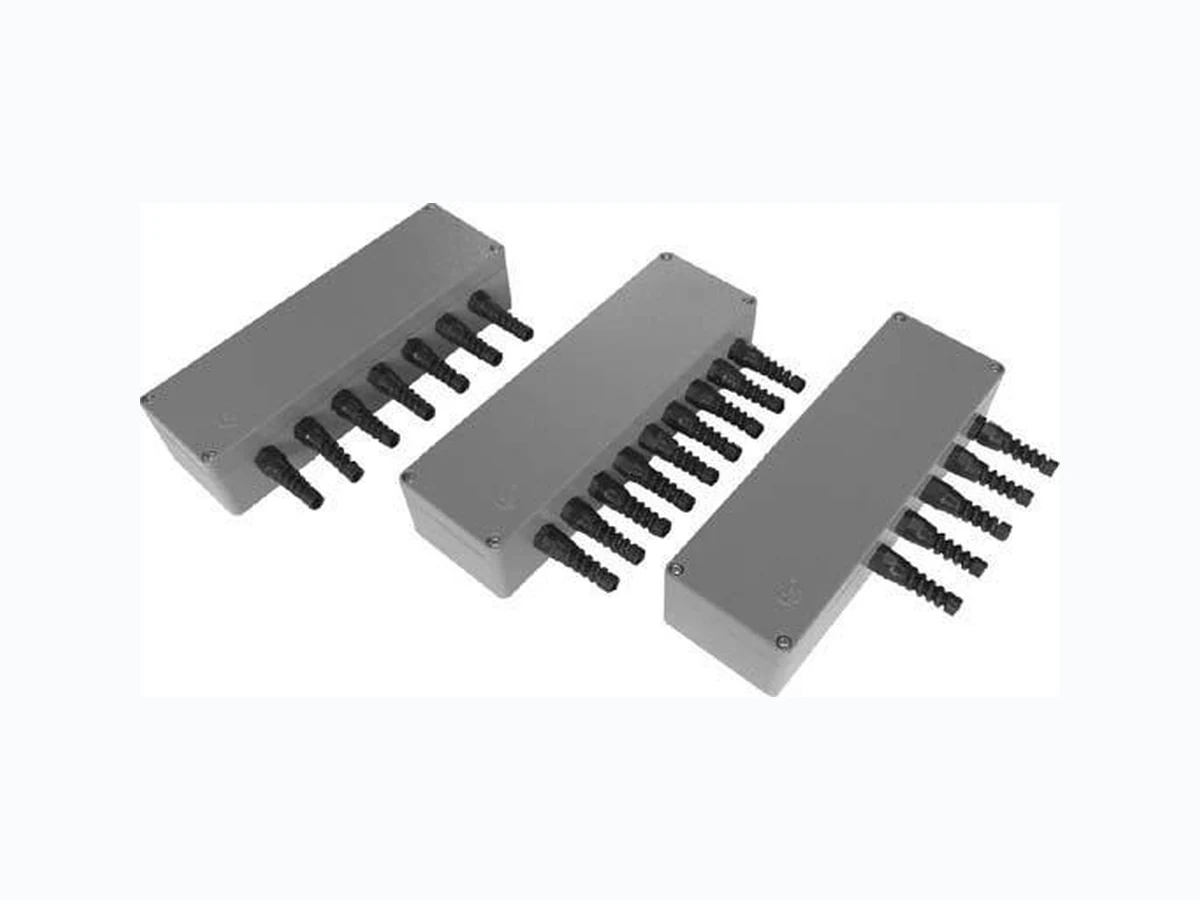

- Junction Box, fit for 4-wire and 6-wire load cells
- Cast aluminium housing
- Easy installation
- Protective coating Available Models Model Amount of Connections Full Article Description Part Number JB01 3 JB01C-3 30010200
4 JB01C-4 30010300
6 JB01C-6 30010400
8 JB01C-8 30010500
Detailed Specifications JB01 Load Cell Output Resistance Range Ω 340 to 1100 Load Cell Input Resistance Range Ω 340 to 1100 Excitation, Recommended Voltage V(AC&DC) 5 to 20 Excitation, Maximum Voltage V(AC&DC) 30 Load Cell Sensitivity Range mV/V 0.6 – 6.2 Cable Diameter Ø mm 5 - 6.2 Correction Method Excitation trim Trimming Range Ω 24 Temperature Range, Operating °C -40…+85 Ingress Protection IP66 Housing Connected to Shield Yes External Grounding Yes
Specifications and dimensions are subject to change without notice and do not constitute any liability whatsoever. Zemic Europe B.V. T: +31 76 50 39480 Nr. 2022.12 JB01 Rev5 info@zemic.nl Page 2/2 www.zemiceurope.com Dimensions in mm Front View Side View JB01C-3/4/6 JB01C-8 Top View Isometric View JB01C-3/4/6 JB01C-8
