Specifications and dimensions are subject to change without notice and do not constitute any liability whatsoever. Zemic Europe B.V. T: +31 76 50 39480 Nr. 2022.05 H2A Rev4 info@zemic.nl Page 1/3 www.zemiceurope.com Short Description

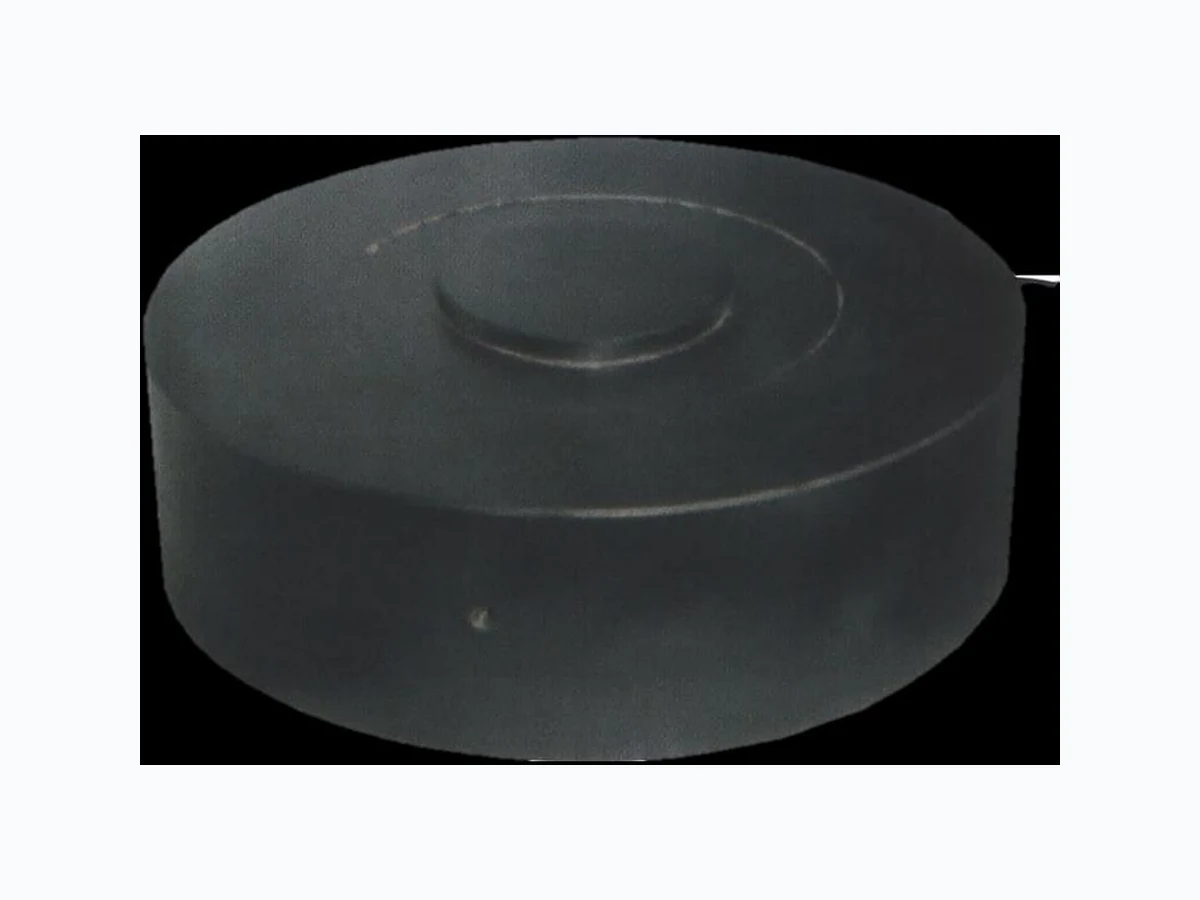

- Nickel plated alloy steel IP67 compression load cell Non-OIML Approved
- High accuracy
- Suitable for special measuring equipment Available Models Capacity Accuracy Full Article Description 1MN G2/G3/G5/G10 H2A-G2/G3/G5/G10-1MN-5T 2MN G2/G3/G5/G10 H2A-G2/G3/G5/G10-2MN-5T 3MN G2/G3/G5/G10 H2A-G2/G3/G5/G10-3MN-5T 4MN G2/G3/G5/G10 H2A-G2/G3/G5/G10-4MN-5T 5MN G2/G3/G5/G10 H2A-G2/G3/G5/G10-5MN-5T
Specifications and dimensions are subject to change without notice and do not constitute any liability whatsoever. Zemic Europe B.V. T: +31 76 50 39480 Nr. 2022.05 H2A Rev4 info@zemic.nl Page 2/3 www.zemiceurope.com Technical Specifications H2A Accuracy Class G2 G3 G5 G10 Output Sensitivity ( = FS ) mV/V ≥2.0 Maximum Capacity ( Emax ) MN 1, 2, 3, 4, 5 Ratio of min. LC Verification Interval Y = Emax / vmin 1500 Combined Error %FS ≤± 0.2 ≤± 0.3 ≤± 0.5 ≤± 1.0 Creep Error (30 minutes) %FS ≤± 0.05 Temperature Effect on Zero (ZTC) %FS/10°C ≤± 0.2 Temperature Effect on Sensitivity (STC) %FS/10°C ≤± 0.2 Zero Balance %FS ≤± 1.0 Safe Overload %FS 150 Ultimate Overload %FS 300 Excitation, Recommended Voltage V 5 ~ 12 Excitation, Maximum Voltage V 18 Input Resistance Ω 1072 ± 5 Output Resistance Ω 1050 ± 5 Insulation Resistance (50V) MΩ ≥5000 Compensated Temperature °C -10 ~ + 40 Operating Temperature °C -35 ~ + 65 Storage Temperature °C -40 ~ + 70 Load Cell Weight kg 1MN: 26 2MN: 46 3MN: 72 4MN: 116 5MN: 125 Element Material Nickel Plated Alloy Steel Ingress Protection (acc. to EN 60529) IP67 Recommended Torque on Fixation Bolts Nm M16: 200 Wiring Features: Cable type: Shielded, 4 conductor cable , conductor AWG 24 Cable diameter: Ø 5.0mm Cable length: 5m Cable jacket: Crosslinked Polyethylene Shield not connected to element 4-Wire Connection Diagram Input(+) Output(-) Input (-) Output(+) Red White Black Green
Specifications and dimensions are subject to change without notice and do not constitute any liability whatsoever. Zemic Europe B.V. T: +31 76 50 39480 Nr. 2022.05 H2A Rev4 info@zemic.nl Page 3/3 www.zemiceurope.com Dimensions in mm Front View Bottom View M M Dimension Capacity D D1 D2 H H1 1MN 59 260 200 80 10 2MN 78 290 225 104 10 3MN 91 330 251 123 10 4MN 110 400 296 132 10 5MN 133 400 307 132 10
