Features

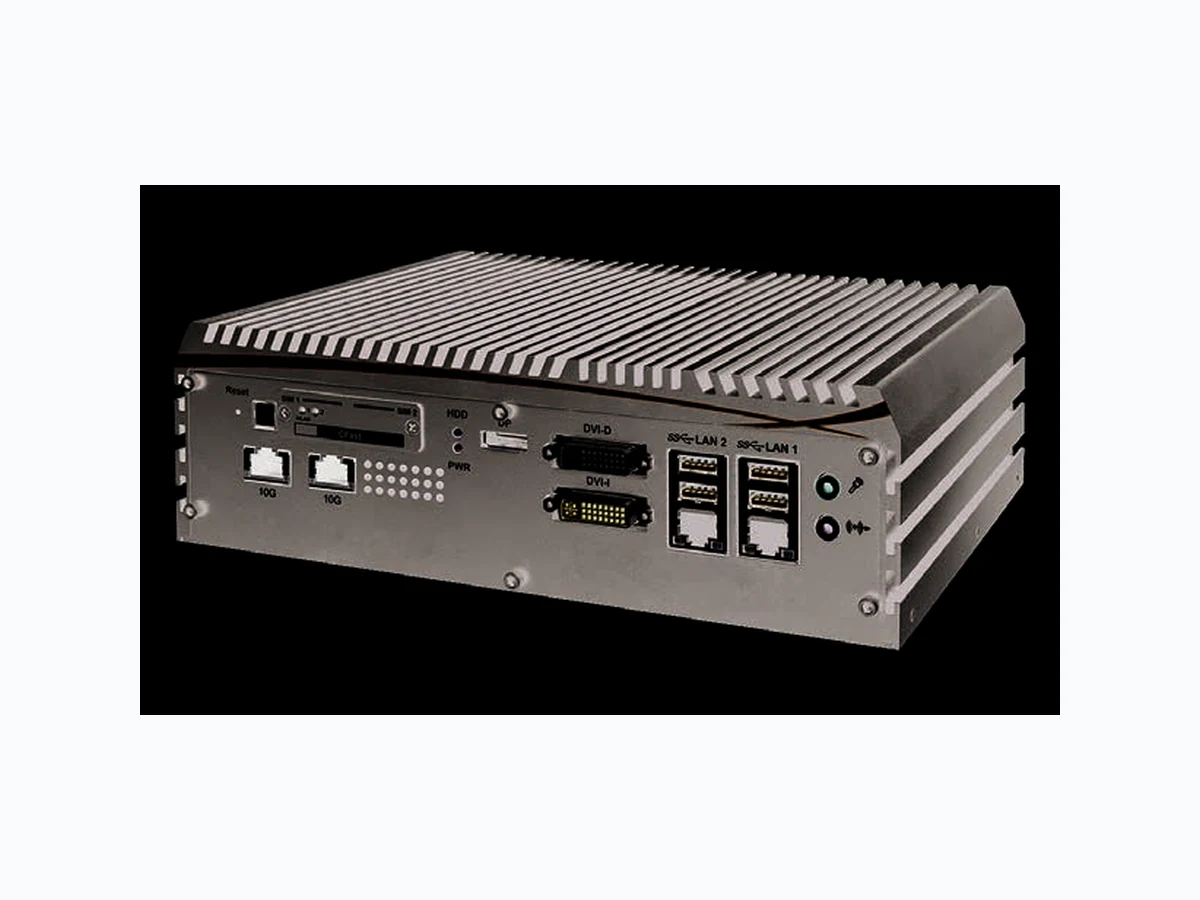

/Core™ i7/i5/i3 (Coffee Lake Refresh) 10GigE Embedded System with Intel C246 Chipset, 2-port 10GigE LAN, 6 GigE LAN with 4 PoE , 6 USB 3.1, 2 M.2 Socket, Isolated DIO, High Performance, EN50155, EN50121 8 Cores 9th Generation Intel Xeon /Core™ i7/i5/i3 (Coffee Lake Refresh) with Intel C246 Chipset Dual 10GigE RJ45 LAN support up to 10Gbps data rate 6 Independent GigE LAN with 4 IEEE 802.3at PoE SIM Sockets for WiFi/4G/3G/LTE/GPRS/UMTS 2 SIM Socket, 1 CFast Socket, 2 M.2 Socket 6 USB 3.1, 4 COM RS-232/422/485, 16 Isolated DIO 6V to 36V DC Power Input with 80V Surge Protection Configurable Ignition Power Control System Processor Intel Xeon /Core™ i7/i5/i3 Processor (CFL-R S/CFL-S) Chipset Intel C246 BIOS AMI SIO IT8786E Memory 2 DDR4 2666MHz SO-DIMM, up to 64GB (ECC/Non-ECC) I/O Interface Serial 4 COM RS-232/422/485 (ESD 8KV) USB 6 USB 3.1 (6 External) 1 USB 2.0 (Internal) Isolated DIO 16 Isolated DIO : 8 DI, 8 DO LED Power, HDD, PoE, Wireless SIM Card 2 External SIM Card Socket Expansion Mini PCIe 2 Full-size Mini PCIe Socket for PCIe/USB/External SIM Card/ mSATA M.2 1 M.2 Key E Socket Graphics Graphics Processor Intel UHD Graphics 630 Interface DVI-I : Up to 1920 x 1200 @ 60Hz DVI-D : Up to 1920 x 1080 @60Hz DisplayPort : Up to 4096 x 2304 @60Hz Storage SATA 2 SATA III (6Gbps) support S/W RAID 0, 1 mSATA 2 SATA III (Mini PCIe Type, 6Gbps) Storage Device 1 CFast Socket, Push-in/Push-out Ejector 2 2.5" SSD/HDD Bracket (Internal) 1 M.2 Key M Socket Audio Audio Codec Realtek ALC892, 5.1 Channel HD Audio Audio Interface 1 Mic-in, 1 Line-out Ethernet LAN 1 Intel I219LM GigE LAN supports iAMT 12.0 LAN 2 Intel I210 GigE LAN PoE LAN 3 GigE IEEE 802.3at (25.5W/48V) PoE by Intel I210 LAN 4 GigE IEEE 802.3at (25.5W/48V) PoE by Intel I210 LAN 5 GigE IEEE 802.3at (25.5W/48V) PoE by Intel I210 LAN 6 GigE IEEE 802.3at (25.5W/48V) PoE by Intel I210 10G Ethernet LAN 7 Intel X550-AT2 10GigE LAN LAN 8 Intel X550-AT2 10GigE LAN Power Power Input 6V to 36V, DC-in Power Interface 3-pin Terminal Block : V+, V-, Frame Ground Ignition Control 16 Mode (Internal) Remote Switch 3-pin terminal block : On, Off, IGN Surge Protection Up to 80V/1ms Transient Power Others TPM Optional Infineon SLB9665 supports TPM 2.0, LPC Interface Watchdog Timer Reset : 1 to 255 sec./min. per step Smart Management Wake on LAN, PXE supported HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats. Software Support OS Windows 10, Linux Mechanical Dimensions (W x L x H) 260mm x 175mm x 79mm (10.2" x 6.9" x 3.1") Weight 3.8 kg (8.38 lb) Mounting Wallmount by mounting bracket DIN Rail Mount (Optional) 2U Rackmount (Optional) Environment Operating Temperature -40°C to 55°C (-40°F to 131°F) 80W TDP CPU : -40°C to 45°C (-40°F to 113°F) Storage Temperature -40°C to 85°C (-40°F to 185°F) Humidity 5% to 95% Humidity, non-condensing Relative Humidity 95% @ 55°C Shock IEC 60068-2-27 SSD : 50G @ wallmount, Half-sine, 11ms Vibration IEC 60068-2-64 SSD : 5Grms, 5Hz to 500Hz, 3 Axis EMC CE, FCC, EN50155, EN50121-3-2
Dimensions Unit : mm/ inch Front I/O Rear I/O ECX-1055 ECX-1000, 2 10G RJ45, 6 GigE LAN w/4 PoE , 4 COM, 2 SIM, 6 USB 3.1, 16 Isolated DIO Isolated DIO4 x COM 4 x PoE Remote Power Switch2 x USB 3.1 DC-in CFast LED2 x SIMReset DVI-D 4 x USB 3.1 DisplayPort Line-out Mic-in DVI-I 2 x LAN Power 260.0 (10.24”) 282.0 (11.10”) 297.0 (11.69”) 115.0 (4.53”) 175.0 (6.89”) 79.1 (3.11”) 2 x 10G LAN Accessories DDR4 32G Certified DDR4 32GB 2666MHz RAM DDR4 16G Certified DDR4 16GB 2666MHz RAM DDR4 8G Certified DDR4 8GB 2666MHz RAM DDR4 4G Certified DDR4 4GB 2666MHz RAM PWA-160W-WT 160W, 24V, 85V AC to 264V AC Power Adapter with 3-pin Terminal Block, Wide Temperature -30°C to +70°C PWA-280W-WT 280W, 24V, 85V AC to 264V AC Power Adapter with 3-pin Terminal Block, Wide Temperature -30°C to +70°C VESA Mount VESA Mounting Kit DIN-RAIL DIN Rail Kit Rack Mount 2U Rackmount Kit TMK2-20P-100 Terminal Block 20-pin to Terminal Block 20-pin Cable, 100cm TMK2-20P-500 Terminal Block 20-pin to Terminal Block 20-pin Cable, 500cm TMB-TMBK-20P Terminal Board with One 20-pin Terminal Block Connector and DIN-Rail Mounting 4G Module Mini PCIe 4G/GPS Module with Antenna WiFi & Bluetooth WiFi & Bluetooth Module with Antenna CPU List Series CPU Cores GHz TDP (W) ECC RAM Intel Xeon E-2176G 6 4.6 80 Yes E-2124G 4 4.5 71 E-2278GE 8 4.7 80 E-2278GEL 8 3.9 35 E-2226GE 6 4.6 80 Intel Core™ i7-8700 6 4.6 65 N/A i7-8700T 6 4 35 i7-9700E 8 4.4 65 i7-9700TE 8 3.8 35 i5-8500 6 4.1 65 i5-8500T 6 3.5 35 i5-9500E 6 4.2 65 i5-9500TE 6 3.6 35 i3-8100 4 3.6 65 Yesi3-8100T 4 3.1 35 i3-9100E 4 3.7 65 i3-9100TE 4 3.2 35 ECX-1055-20190802 * The rights of all brand names, product names and trademarks belong to their respective owners. Copyright © 2018 Vecow Co., Ltd. All rights reserved.
