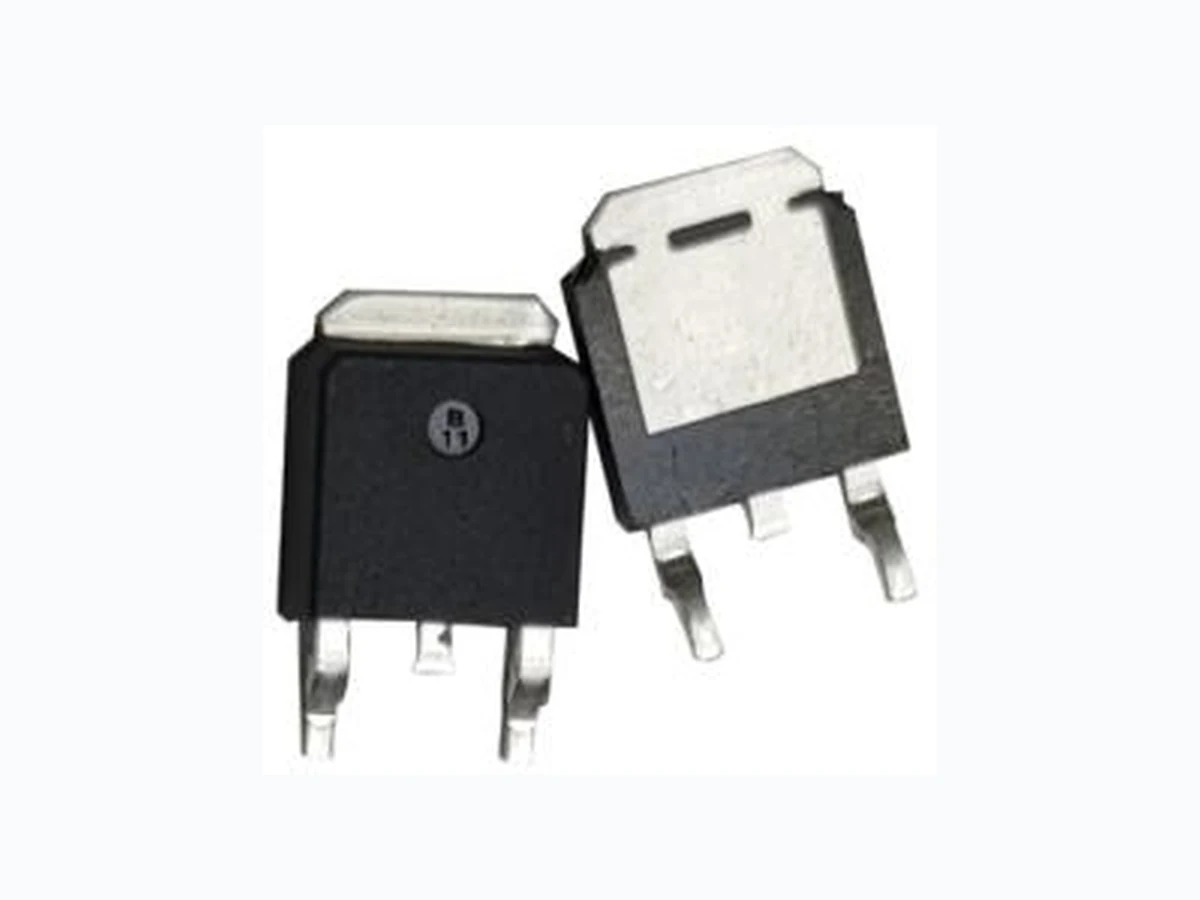

SchottkyBarrierDiode DE10SC4 www.iscsemi.com
FEATURES
- LowVF
- SMD
- Pb FreeTerminal
APPLICATIONS
- SReverse ConnectProtection forDCPower Source
- HDCOR-Output
- DC/DC Converter ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VRRM VRWM VR PeakRepetitiveReverseVoltage WorkingPeakReverseVoltage DCBlockingVoltage 40 V IF(AV) AverageRectifiedForwardCurrent 5×2 A IFSM Non-repetitivePeakSurgeCurrent (50Hzsinewave,1cycle) 100 A TJ Max. JunctionTemperature 150 ℃ Tstg StorageTemperatureRange -55~150 ℃ THERMALCHARACTERISTICS SYMBOL PARAMETER MAX UNIT Rthj-c ThermalResistance,JunctiontoCase 4.0 ℃/W
SchottkyBarrierDiode DE10SC4 www.iscsemi.com ELECTRICALCHARACTERISTICS(TJ =25°Cunless otherwisespecified) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNIT VF MaximumInstantaneous ForwardVoltagePerDiode IF=5A -- -- 0.55 V IR MaximumInstantaneous ReverseCurrentPerDiode VR=VRWM -- -- 3.5 mA PRODUCTDISCLAIMER ISCreserves the rightstomake changes ofthe contentherein the datasheetat anytimewithout notification.The information containedherein ispresented only asaguide forthe applicationsof our products. ISCproductsareintendedforusageingeneralelectronicequipment.Theproductsarenotdesignedfor usein equipment whichrequire specialized quality and/orreliability,orinequipmentwhichcouldhave applicationsin hazardous environments,aerospaceindustry,ormedicalfield.Pleasecontactus ifyou intend ourproducts to beusedin thesespecial applications. ISC makes no warranty or guarantee regarding the suitability of its products for any particular purpose, nor does ISC assume any liability arising from the application or use of any products, and specifically disclaimsanyand allliability,including without limitationspecial,consequentialorincidentaldamages. Itis strictly prohibitedtoreprint orcopypartorallofthis datasheet withoutpermissionfrom ISC.
