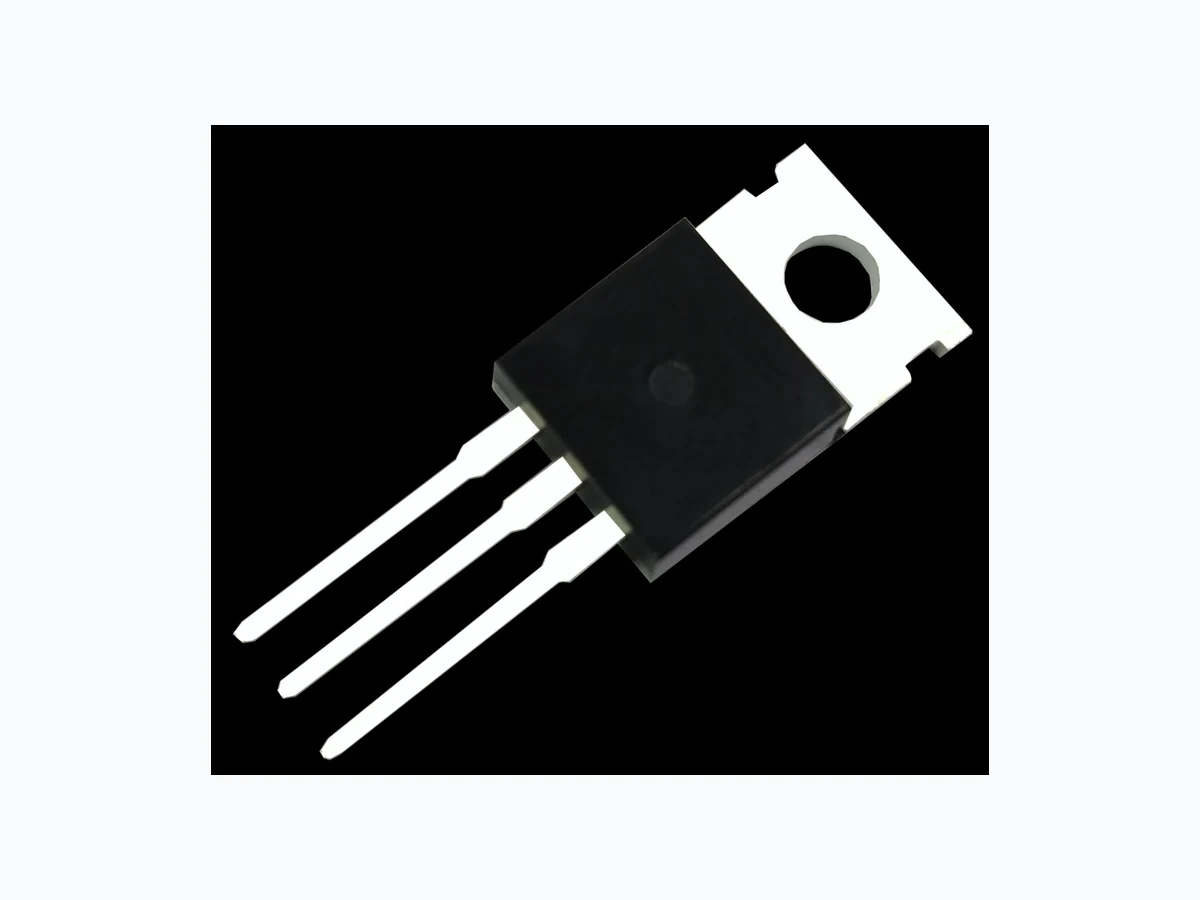

D6025L ISC
Document overview
- Manufacturer or author: Provided By www.digicamel.com(FREE DATASHEET DOWNLOAD SITE)
- PDF pages: 2
Technical content
www.iscsemi.com
FEATURES
- Glass-PassivatedJunctions
- Isolated Packages
- RoHSCompliant
APPLICATIONS
- SAC toDCSolid-State Switchesfor IndustrialPowerTools,ExerciseEquipment, WhiteGoods,andCommercialAppliances. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VRRM VRWM VR PeakRepetitiveReverseVoltage WorkingPeakReverseVoltage DCBlockingVoltage 600 V IF(AV) AverageRectifiedForwardCurrent 15.9 A IFSM Non-repetitivePeakSurgeCurrent (60Hz) 350 A Non-repetitivePeakSurgeCurrent (50Hz) 300 TJ Max. JunctionTemperature 150 ℃ Tstg StorageTemperatureRange -55~150 ℃ THERMALCHARACTERISTICS SYMBOL PARAMETER TYP UNIT Rthj-c ThermalResistance,JunctiontoCase 2.7 ℃/W TO-220CPackage3 PIN1:Cathode 2:Anode 3:Notused
www.iscsemi.com ELECTRICALCHARACTERISTICS(TJ =25 °Cunlessotherwise specified) SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNIT VF MaximumInstantaneousForward Voltage IF=15.9A -- -- 1.6 V IR MaximumInstantaneousReverseCurrent VR=VRWM -- -- 0.1 mA PRODUCTDISCLAIMER ISCreserves the rightstomake changes ofthe contentherein the datasheetat anytimewithout notification.The information containedherein ispresented only asaguide forthe applicationsof our products. ISCproductsareintendedforusageingeneralelectronicequipment.Theproductsarenotdesignedfor usein equipment whichrequire specialized quality and/orreliability,orinequipmentwhichcouldhave applicationsin hazardous environments,aerospaceindustry,ormedicalfield.Pleasecontactus ifyou intend ourproducts to beusedin thesespecial applications. ISC makes no warranty or guarantee regarding the suitability of its products for any particular purpose, nor does ISC assume any liability arising from the application or use of any products, and specifically disclaimsanyand allliability,including without limitationspecial,consequentialorincidentaldamages. Itis strictly prohibitedtoreprint orcopypartorallofthis datasheet withoutpermissionfrom ISC.
