CXA-L0505-NJL POWER-SYSTEMS

Document overview

  • Manufacturer or author: Provided By www.digicamel.com(FREE DATASHEET DOWNLOAD SITE)
  • PDF pages: 4

Technical content

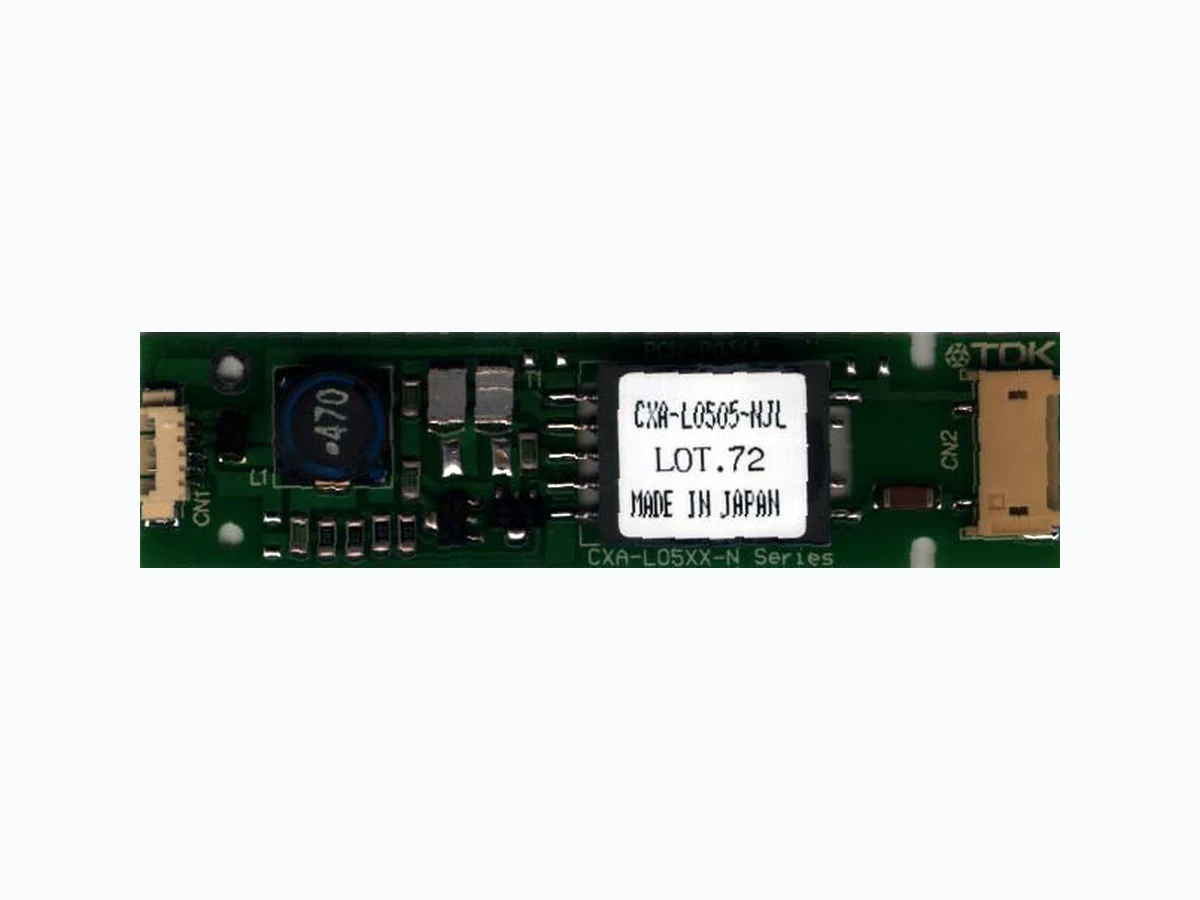

CXA-L05XX-NJL SERIES (3.0W SINGLE OUTPUT) DC-AC INVERTER UNIT (PRELIMNARY, STANDARD) Power Systems – The Power Solution Web: www.Power-Systems.de Address: Dörnet 8 ; 74360 Ilsfeld-Auenstein / Germany Email: Info@Power-Systems.de Tel. : + 49 / 70 62 / 67 59 - 6 Fax: + 49 / 70 62 / 67 59 - 80 All specification are subject to change without notice. Page ( 1 /4 ) VER, 28 October 2003 DESCRIPTION : This DC to AC Inverter was developed for notebook computer and many other low LCD Backlight power supply as low profile applications, either for Note Book PC or Industrial. APPLICABLE LCD: 6 to 10 inches single lamp type Lamp Voltage 600V Lamp Current 5mA FEATURES : High Efficiency (85%) Fuse protection High Efficiency Low noise with voltage resonant circuit TEMPERATURE & HUMDITY : Operating Temperature Range 0 °C ~ +60°C Storage Temperature Range -30 °C ~ +85°C Humidity 95 %RH max DIMENSIONS : 8 max CN2 80.5 max 20.5max 2 1 3 CN1 60±0.2(8) (3) 1 max 16±0.2 2-R1.1±0.1 14±0.2 (2) 2-φ2.2±0.1 Unit: mm Weight: 11.0g typ. No. Part Discription Qty. Material Note 1 PCB 1 UL94V-0 (FR-4 or CEM-3) t=1.0mm

2 Connector CN1 1 53261-0590 Molex

3 Connector CN2 1 SM02(8.0)B-BHS-1 JST

CXA-L05XX-NJL SERIES (3.0W SINGLE OUTPUT) DC-AC INVERTER UNIT (PRELIMNARY, STANDARD) Power Systems – The Power Solution Web: www.Power-Systems.de Address: Dörnet 8 ; 74360 Ilsfeld-Auenstein / Germany Email: Info@Power-Systems.de Tel. : + 49 / 70 62 / 67 59 - 6 Fax: + 49 / 70 62 / 67 59 - 80 All specification are subject to change without notice. Page ( 2 /4 ) VER, 28 October 2003 CXA-L0505-NJL CXA-L0512-NJL CXA-L0524-NJL CN 1-1 Vin 5V 12V 24V CN 1-2 GND 0V 0V 0V CN 1-3 CN 1-4 CN 1-5 Pin No. Symbols - - Ratings N.C. - Input Side CN1: Pin No. Symbols Ratings CN 2-1 VHIGH 600 Vrms CN 2-2 N.C. - CN 2-3 VLOW (0V) Output Side CN2: Vin (V) Ta (°C) RL (K Ω)M i n . T y p . M a x . Iout1 5±0.05 18~28 120 4.5 5.0 5.5 Iout2 4.0 5.0 6.0 Input Current Iin - 720 1000 mA DC Frequency F 33 40 47 kHz Open Circuit Voltage Vopen ∞ 1400 1500 - Vrms Output Current mArms Items Symbols Conditions Specification 5±0.25 0~60 110~130 Unit Vin (V) Ta (°C) RL (K ⎠ )M i n . T y p . M a x . Iout1 12±0.12 18~28 120 4.5 5.0 5.5 Iout2 4.0 5.0 6.0 Input Current Iin - 300 500 mA DC Frequency F 33 40 47 kHz Open Circuit Voltage Vopen ∞ 1400 1500 - Vrms Items Symbols Conditions Specification Unit Output Current mArms 12±0.6 0~60 110~130 Vin (V) Ta (°C) RL (K ⎠ )M i n . T y p . M a x . Iout1 24±0.24 18~28 120 4.5 5.0 5.5 Iout2 4.0 5.0 6.0 Input Current Iin -1 5 0 2 5 0 mA DC Frequency F 26 32 38 kHz Open Circuit Voltage Vopen ∞ 1400 1500 - Vrms Items Symbols Conditions Specification Unit Output Current mArms 24±1.2 0~60 110~130 ELECTRICAL CHARACTERISTICS: CXA-L0505-NJL CXA-L0512-NJL CXA-L0524-NJL

CXA-L05XX-NJL SERIES (3.0W SINGLE OUTPUT) DC-AC INVERTER UNIT (PRELIMNARY, STANDARD) Power Systems – The Power Solution Web: www.Power-Systems.de Address: Dörnet 8 ; 74360 Ilsfeld-Auenstein / Germany Email: Info@Power-Systems.de Tel. : + 49 / 70 62 / 67 59 - 6 Fax: + 49 / 70 62 / 67 59 - 80 All specification are subject to change without notice. Page ( 3 /4 ) VER, 28 October 2003 Vin None Dimming Type CN1-1(Vin) CN1-2(GND) CN1-3(NC) CN1-4(NC) CN1-5(NC) CCFL RL CN2-1(Iout) CN2-3(Iout-ret) CXA-L0512-VJL SM02(8.0)B-BHS (JST) APPLICATION (for example) TEST CIRCUIT: NC lin VinVin 1000:1 CN1-1 (Vin)A- RL A VF CN2-1 (VHIGH) CN2-3 (VLOW) CN1-2 (GND) CN1-3 (NC) CN1-4 (NC) CN1-5 (NC) IoutNC NC

CXA-L05XX-NJL SERIES (3.0W SINGLE OUTPUT) DC-AC INVERTER UNIT (PRELIMNARY, STANDARD) Power Systems – The Power Solution Web: www.Power-Systems.de Address: Dörnet 8 ; 74360 Ilsfeld-Auenstein / Germany Email: Info@Power-Systems.de Tel. : + 49 / 70 62 / 67 59 - 6 Fax: + 49 / 70 62 / 67 59 - 80 All specification are subject to change without notice. Page ( 4 /4 ) VER, 28 October 2003 Note 1. For circuit connection, please prefer to test circuit diagram. Note 2. Please use minimum of 2mm clearance (all directions) between inverter high voltage area and any conductors. Please refer to mechanical drawing for marking of high voltage area. Note 3. Open voltage (strike voltage) is measured across the transformer secondary winding at no load as the reading at the output connector would be less than the actual value. Note 4. If the start up voltage falls below Cold Cathod e Tube strike voltage, the CCFL will not light up easily specially at lower ambient temperature. Please review mounting instruction to avoid any abnormal operation due to coupling/leakage capacitance of inverter high voltage area to any surrounding conductor. Note 5. For operation in non-isolated c onfiguration, please connect CN2-3 (V-Low) to input return (GND) as the output of DC/AC inverter is electrically isolated from input. Note 6. For proper operation of circuit protection (FUSE or IC PROTECTOR) of CXA-L0505-NJL, please use minimum of 2A capacity for input power supply and 1A for CXA-L0512-NJL and CXA-L0524-NJL..
