BSP3-120 ETC2
Document overview
- Manufacturer or author: Provided By www.digicamel.com(FREE DATASHEET DOWNLOAD SITE)
- PDF pages: 1
Technical content
Features

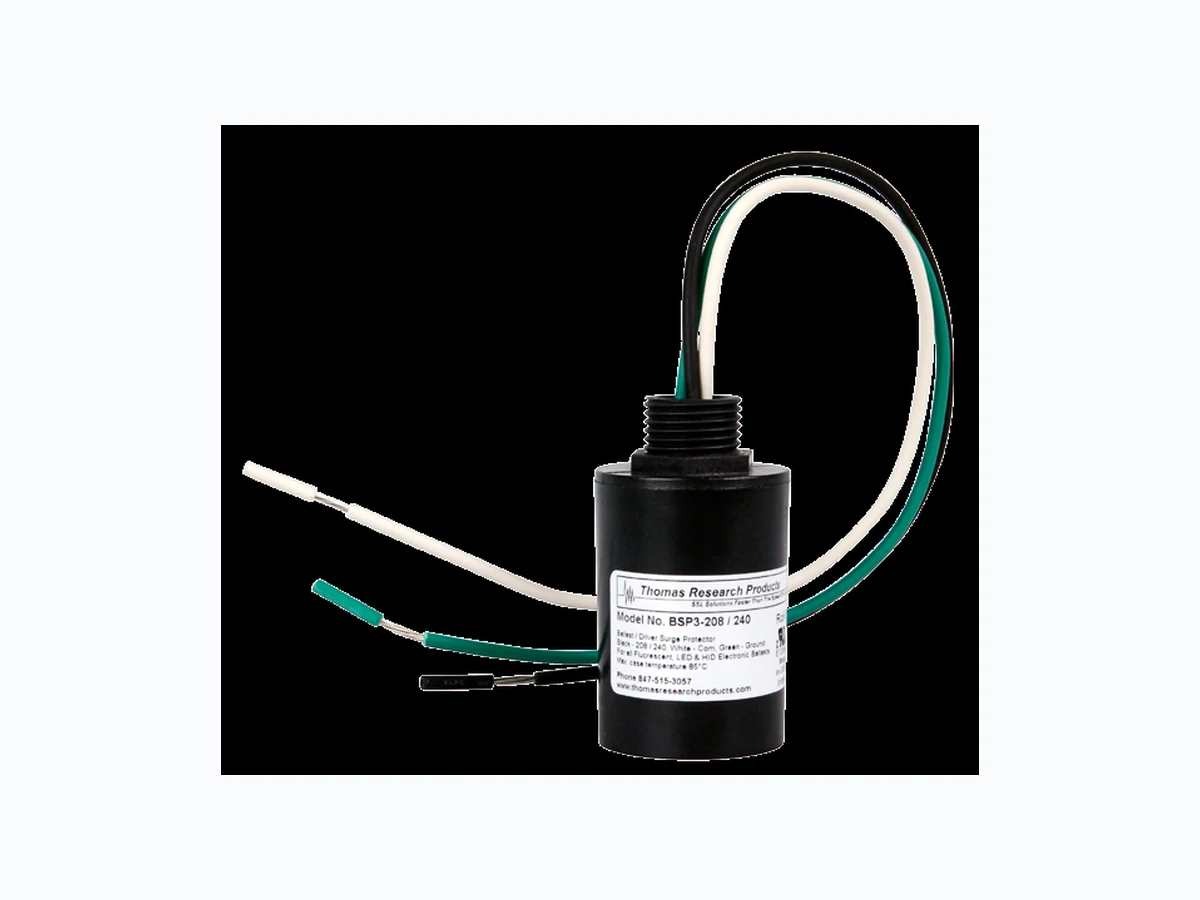

- The BSP3 Series are 3-leaded devices that protect Line-Ground, Line-Neutral, and Neutral-Ground in accordance with IEEE / ANSI C62.41.2 guidelines
- Protects against surges according to IEEE C62.41.2 C High (10kA and 10kV)
- Surge current rating = 10,000 Amps using industry standard 8/20 uSec wave
- Surge Location Rated Category C3
- High temperature, flameproof plastic enclosure, 85ºC max surface temp rating
- Thermally Protected Transient Over-voltage Circuit
- BSP3-120 is for use on 120V ballasts/drivers
- BSP3-277 is for use on 277V or Universal Voltage ballasts/drivers
- BSP3-347 is for use on 347V ballasts/drivers
- BSP3-480 is for use on 480V ballasts/drivers Part Number Maximum Clamping Voltage Surge Rating (2mS) BSP3-120 345 120 Joules BSP3-208-240 710 190 Joules BSP3-277 840 270 Joules BSP3-347 1120 320 Joules BSP3-480 1500 360 Joules Body: 12” leads, stripped 0.63” Leadwire: AWG#16 stranded 1.5” 2.85” .75” Threaded Nipple ½”-NPS Pulse rating (8 x 20 μSec) Strikes Surge Rating 1 10,000 A 2 6,500 A 10 3,000 A 100 1,500 A 1,000 700 A RoHS Compliant IP-65 Output to Lamp Black Green White COM GROUND Vin BSP3 LOAD LED Driver or electronic ballast
