Specifications and dimensions are subject to change without notice and do not constitute any liability whatsoever. Zemic Europe B.V. T: +31 76 50 39480 Nr. 2023.01 BM3 Rev10 info@zemic.nl Page 1/4 www.zemiceurope.com Short Description

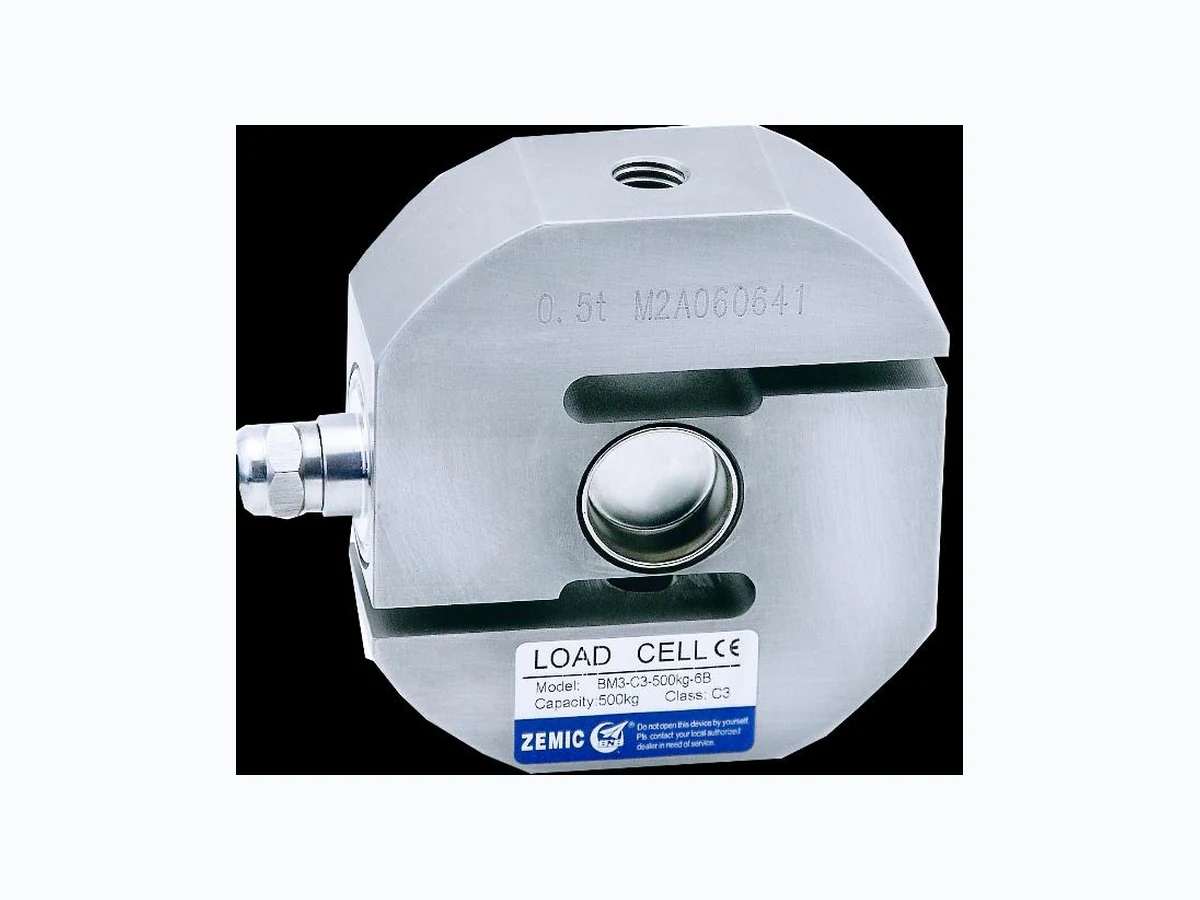

  • Stainless steel IP68 “S” type load cell Test certificate no. D09-08.01
  • Tension and compression applications C of C no R60/2000-DE1-10.08
  • Suitable for hanging, hopper and other weighing devices Certificate no. 06-099A1 Available Models Capacity Accuracy Full Article Description 50kg C3 Excluded from OIML BM3-C3-50kg-6B 100kg C3 Excluded from OIML BM3-C3-100kg-6B 150kg C3 Excluded from OIML BM3-C3-150kg-6B 200kg C3 Excluded from OIML BM3-C3-200kg-6B 250kg C3 Excluded from OIML BM3-C3-250kg-6B 0.5t C3 BM3-C3-0.5t-3B 1t C3 BM3-C3-1t-6B 2t C3 BM3-C3-2t-6B 3t C3 BM3-C3-3t-6B 4t C3 BM3-C3-4t-6B 5t C3 BM3-C3-5t-6B 6t C3 BM3-C3-6t-6B 7.5t C3 BM3-C3-7.5t-6B

Specifications and dimensions are subject to change without notice and do not constitute any liability whatsoever. Zemic Europe B.V. T: +31 76 50 39480 Nr. 2023.01 BM3 Rev10 info@zemic.nl Page 2/4 www.zemiceurope.com Technical Specifications BM3 Accuracy Class C3 OIML R60 C3 Output Sensitivity ( = FS ) mV/V 2.0 ± 0.008 2.0 ± 0.004 Max. Number of Load Cell Intervals nLC 3000 Ratio of min. LC Verification Interval Y = Emax / vmin 7500 12000 Combined Error %FS ≤± 0.023 Creep Error (30 minutes) %FS ≤± 0.016 Temperature Effect on Zero (ZTC) %FS/10°C ≤± 0.015 Temperature Effect on Sensitivity (STC) %FS/10°C ≤± 0.011 Zero Balance %FS ≤± 1.5 Safe Overload %FS 150 Ultimate Overload %FS 300 Maximum Deflection mm 0.1935 ~ 0.4079 Excitation, Recommended Voltage V 5 ~ 12 Excitation, Maximum Voltage V 18 Input Resistance Ω 350 ± 3 Output Resistance Ω 350 ± 3 Insulation Resistance (50V) MΩ ≥5000 Compensated Temperature °C -10 ~ + 40 Operating Temperature °C -35 ~ + 65 Storage Temperature °C -40 ~ + 70 Element Material Stainless Steel Ingress Protection (acc. to EN 60529) IP68 Recommended Torque on Fixation Bolts Nm M8:25 M12:75 M20:400 M24:675 ATEX classification (optional) II 1G Ex ia IIC T4 Ga II 1D Ex ia IIIC T 200 135°C Da II 3G Ex ic IIC T4 Gc Wiring Features: Cable type: Shielded, 4 conductor cable , conductor AWG 22 Cable diameter: Ø 5mm Cable length: 6m, except for 500kg: 3m Cable jacket: Polyurethane Shield not connected to element 4-Wire Connection Diagram Input(+) Output(-) Input (-) Output(+) Red White Black Green

Specifications and dimensions are subject to change without notice and do not constitute any liability whatsoever. Zemic Europe B.V. T: +31 76 50 39480 Nr. 2023.01 BM3 Rev10 info@zemic.nl Page 3/4 www.zemiceurope.com Dimensions in mm 50kg – 250kg Side View Back View Isometric View 0.5t – 7.5t Side View Back View Places M 6 5 Places M 6 Dimension Capacity MA H 50kg, 100kg M8 x 1.25 13 150kg - 250kg M12 x 1.75 14 Dimension Capacity W H M 0.5t, 1t 32 25 M12 x 1.75 2t, 3t 32 25 M20 x 1.5 4t 36 25 M20 x 1.5 5t, 6t, 7.5t 50 24 M24 x 2

Specifications and dimensions are subject to change without notice and do not constitute any liability whatsoever. Zemic Europe B.V. T: +31 76 50 39480 Nr. 2023.01 BM3 Rev10 info@zemic.nl Page 4/4 www.zemiceurope.com Available Accessories HL-3-002-25kg – 4t Eye Bolt

  • Alloy steel
  • Suitable for hybrid scales, crane scales, packaging scales and hopper scales HL-3-003-25kg – 7.5t Rod end
  • Alloy steel
  • Suitable for hybrid scales, crane scales, packaging scales, hopper scales and other electronic weighing devices. HL-3-005- 25kg – 4t Eye Bolt with Fork Joint
  • Alloy Steel
  • Suitable for hybrid scales, crane scales, packaging scales, hopper scales and other electronic weighing devices. M 6 d . . S yins i 0 0 00 i ensions
