BM24L10 ZEMIC
Document overview
- Manufacturer or author: Provided By www.digicamel.com(FREE DATASHEET DOWNLOAD SITE)
- PDF pages: 3
Technical content
Type BM24L10 EHEDG Load Cell Specifications and dimensions are subject to change without notice and do not constitute any liability whatsoever. Zemic Europe B.V. T: +31 76 50 39480 Nr. 2023.11 BM24L10 Rev2 info@zemic.nl Page 1/3 www.zemiceurope.com Short Description

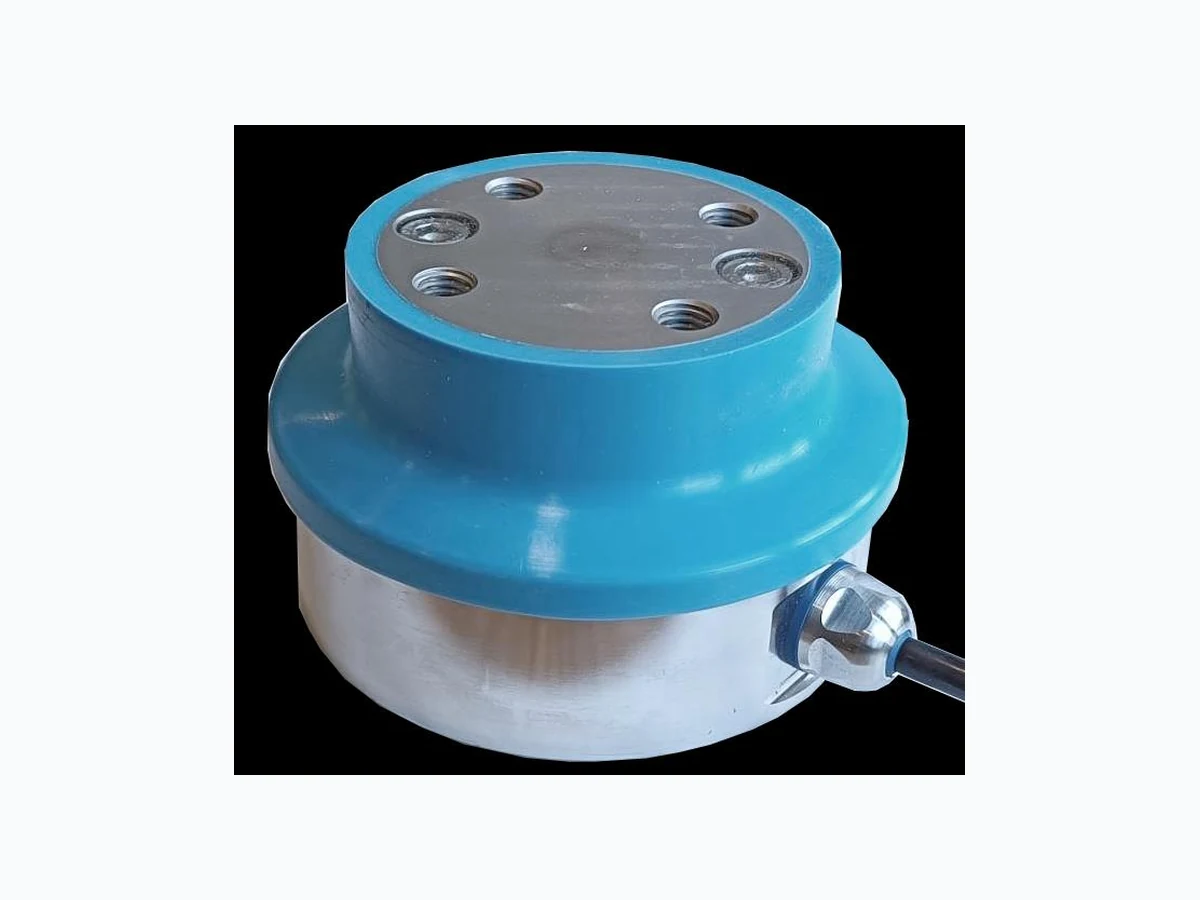

- Stainless steel IP68 hygienic compression load cell
- EHEDG Certified design, type EL Class I AUX
- Steel type 17-4PH (AISI 630) element and pressure piece
- Easy to clean, aseptic design
- Can be used in environments with high hygienic requirements Available Models Capacity Accuracy Full Article Description 5t C1 BM24L10-C1-5t-3B 10t C1 BM24L10-C1-10t-3B 20t C1 BM24L10-C1-20t-3B
Type BM24L10 EHEDG Load Cell Specifications and dimensions are subject to change without notice and do not constitute any liability whatsoever. Zemic Europe B.V. T: +31 76 50 39480 Nr. 2023.11 BM24L10 Rev2 info@zemic.nl Page 2/3 www.zemiceurope.com Technical Specifications BM24L10-C1-xxt-3B Maximum Capacity ( Emax ) t 5, 10, 20 Output Sensitivity ( = FS ) mV/V 2.0 ± 0.01 Accuracy Class C1 Max. Number of Load Cell Intervals nLC 1000 Ratio of min. LC Verification Interval Y = Emax / vmin 10000 Combined Error %FS ≤± 0.05 Creep Error (30 minutes) %FS ≤± 0.05 Temperature Effect on Zero (ZTC) %FS/10°C ≤± 0.014 Temperature Effect on Sensitivity (STC) %FS/10°C ≤± 0.05 Zero Balance %FS ≤± 1 Safe Overload %FS 150 Ultimate Overload %FS 200 Excitation, Recommended Voltage V 5 ~ 12 Excitation, Maximum Voltage V 18 Input Resistance Ω 700 ± 7 Output Resistance Ω 700 ± 5 Insulation Resistance (50V) MΩ ≥5000 Compensated Temperature °C -10 ~ + 40 Operating Temperature °C -35 ~ + 70 Storage Temperature °C -40 ~ + 70 Load Cell Weight kg 2.9 Element Material Stainless Steel 17-4PH (AISI 630) Ingress Protection (acc. to EN 60529) IP68 Recommended Torque on Fixation Bolts Nm 5t / 10t M10: 50 20t M10: 92 Wiring Features: Cable type: Shielded, 4 conductor cable, conductor AWG 24 Cable diameter: Ø 6.2mm Cable length: L= 3.0m ± 0.1m Cable jacket: Polyurethane Shield not connected to element 4-Wire Connection Diagram Input(+) Output(-) Input (-) Output(+) Shield Pink White Grey Brown Transparent
Type BM24L10 EHEDG Load Cell Specifications and dimensions are subject to change without notice and do not constitute any liability whatsoever. Zemic Europe B.V. T: +31 76 50 39480 Nr. 2023.11 BM24L10 Rev2 info@zemic.nl Page 3/3 www.zemiceurope.com Dimensions in mm Front View Top View Bottom View Isometric View
