Specifications and dimensions are subject to change without notice and do not constitute any liability whatsoever. Zemic Europe B.V. T: +31 76 50 39480 Nr. 2022.11 B8Q Rev5 info@zemic.nl Page 1/4 www.zemiceurope.com Short Description

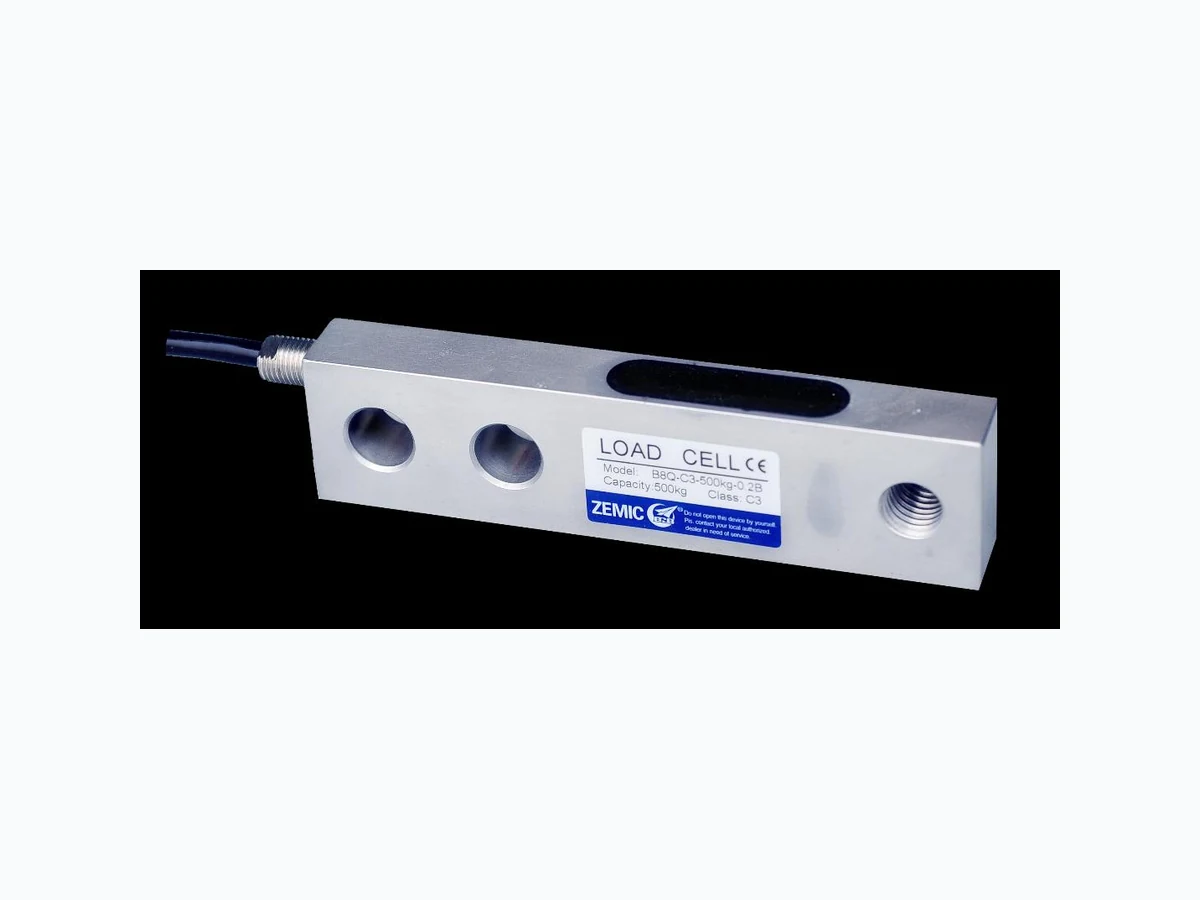

  • Stainless steel IP67 shear beam load cell Test certificate no. TC7809 Revision 0
  • Low profile C of C no R60/2000-NL1-10.14 Rev. 1
  • T-end loading hole option (W6-Version)
  • High accuracy Certificate No. 12-029
  • Current calibrated (SC-option)
  • Suitable for hopper, floor and other electronic scales Available Models Capacity Accuracy Full Article Description 200kg C3 (Excluded from OIML) B8Q-C3-200kg-3B-SC(-W6) 500kg C3 B8Q-C3-500kg-3B-SC(-W6) 1000kg C3 B8Q-C3-1000kg-3B-SC(-W6) 2000kg C3 B8Q-C3-2000kg-3B-SC(-W6)

Specifications and dimensions are subject to change without notice and do not constitute any liability whatsoever. Zemic Europe B.V. T: +31 76 50 39480 Nr. 2022.11 B8Q Rev5 info@zemic.nl Page 2/4 www.zemiceurope.com Technical Specifications B8Q Accuracy Class C3 OIML R60 C3 Output Sensitivity ( = FS ) mV/V 2.0 ± 0.002 Maximum Capacity ( Emax ) kg 200 500, 1000, 2000 Max. Number of Load Cell Intervals nLC 3000 Ratio of min. LC Verification Interval Y = Emax / vmin 10000 15000 Combined Error %FS ≤± 0.0230 Creep Error (30 minutes) %FS ≤± 0.016 Temperature Effect on Zero (ZTC) %FS/10°C ≤± 0.015 Temperature Effect on Sensitivity (STC) %FS/10°C ≤± 0.011 Zero Balance %FS ≤± 1.0 Safe Overload %FS 150 Ultimate Overload %FS 300 Maximum Deflection mm 0.12 ~ 0.57 Excitation, Recommended Voltage V 5 ~ 12 Excitation, Maximum Voltage V 18 Input Resistance Ω 1000 ± 5 (W6= 380 ± 15) 1106 ± 5 (W6= 380 ± 15) Output Resistance Ω 1000 ± 3 (W6= 350 ± 3) Insulation Resistance (50V) MΩ ≥5000 Compensated Temperature °C -10~ + 40 Operating Temperature °C -35 ~ + 70 Load Cell Weight kg 200kg – 500kg: ~0.5 1000kg: 0.6 2000kg: 0.7 Element Material Stainless Steel Ingress Protection (acc. to EN 60529) IP67 Recommended Torque on Fixation Bolts Nm M12: 75 Wiring Features: Cable type: Shielded, 4 conductor cable , conductor AWG 22 Cable diameter: Ø 5.0mm Cable length: 3m Cable jacket: Polyurethane Shield not connected to element 4-Wire Connection Diagram Input(+) Output(-) Input (-) Output(+) Red White Black Green

Specifications and dimensions are subject to change without notice and do not constitute any liability whatsoever. Zemic Europe B.V. T: +31 76 50 39480 Nr. 2022.11 B8Q Rev5 info@zemic.nl Page 3/4 www.zemiceurope.com Dimensions in mm Front View Side View Front View W6 Version Top View Isometric View Isometric View W6 Version * = 16mm for all W6 versions ** = 30.5mm for all W6 versions Dimension Capacity H H (-W6) H1 H2 ØD ØD1 200kg 12.7 12.7 6 2.2 12.1 3

Specifications and dimensions are subject to change without notice and do not constitute any liability whatsoever. Zemic Europe B.V. T: +31 76 50 39480 Nr. 2022.11 B8Q Rev5 info@zemic.nl Page 4/4 www.zemiceurope.com Available Accessories BJ-8-202-0.5-2t Stainless Steel Foot

  • Ø 60 mm and height 92 mm
  • Stainless Steel
  • Adjustable height
  • Automatically centralized inside
  • Good ability of anti-side loading BJ-8-215-0.5-2t Stainless Steel Foot
  • Ø 81 mm and height 48 mm
  • Easy installation
  • Adjustable height
  • Automatically centralized inside
  • Low installation height
  • Mainly used for platform scales, floor scales and other electronic weighing devices BJ-8-250-0.2-2t Stainless Steel Foot
  • Stainless Steel
  • Ø 60 mm (200kg) and Ø 80 mm (0.5 – 2t)
  • Easy installation
  • Suitable for W6 option
  • Height adjustable (30 ~ 37 mm for 200 kg; 41 ~ 51 mm from 500 kg) M
