B6G ZEMIC

Document overview

  • Manufacturer or author: Provided By www.digicamel.com(FREE DATASHEET DOWNLOAD SITE)
  • PDF pages: 3

Technical content

Specifications and dimensions are subject to change without notice and do not constitute any liability whatsoever. Zemic Europe B.V. T: +31 76 50 39480 Nr. 2023.12 B6G Rev5 info@zemic.nl Page 1/3 www.zemiceurope.com Short Description

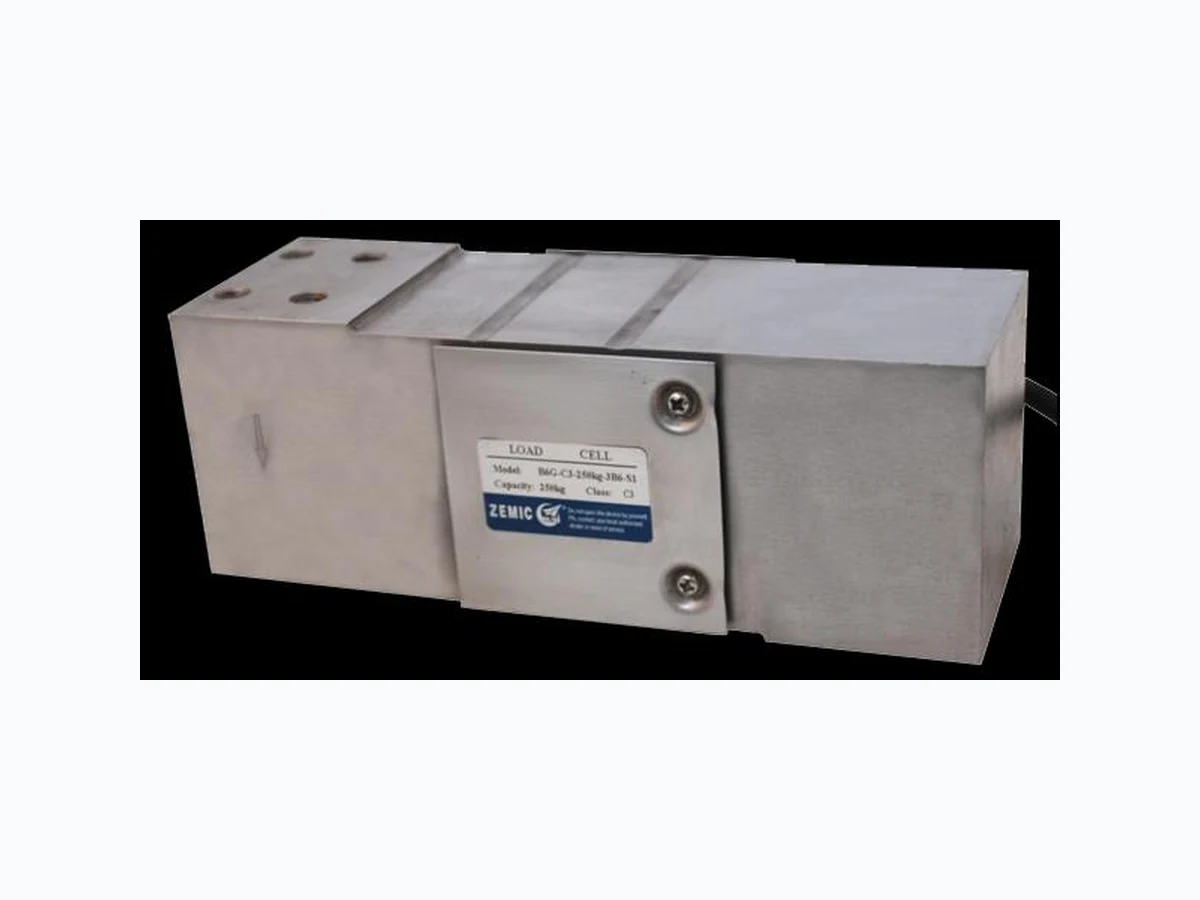

  • Stainless steel IP67 single point load cell Non OIML approved
  • Suitable for single or double load cell structured platform scales
  • Maximum platform size: 600 x 600 mm Available Models Capacity Accuracy Full Article Description 100kg C3 B6G-C3-100kg-3G6 150kg C3 B6G-C3-150kg-3G6 200kg C3 B6G-C3-200kg-3G6 250kg C3 B6G-C3-250kg-3G6 300kg C3 B6G-C3-300kg-3G6 500kg C3 B6G-C3-500kg-3G6 600kg C3 B6G-C3-600kg-3G6

Specifications and dimensions are subject to change without notice and do not constitute any liability whatsoever. Zemic Europe B.V. T: +31 76 50 39480 Nr. 2023.12 B6G Rev5 info@zemic.nl Page 2/3 www.zemiceurope.com Technical Specifications B6G Accuracy Class C3 Output Sensitivity ( = FS ) mV/V 2.0 ± 0.2 Maximum Capacity ( Emax ) kg 100, 150, 200, 250, 300, 500, 600 Max. Number of Load Cell Intervals nLC 3000 Ratio of min. LC Verification Interval Y = Emax / vmin 10000 Combined Error %FS ≤± 0.020 Creep Error (30 minutes) %FS ≤± 0.016 Temperature Effect on Zero (ZTC) %FS/10°C ≤± 0.015 Temperature Effect on Sensitivity (STC) %FS/10°C ≤± 0.011 Zero Balance %FS ≤± 1.0 Safe Overload %FS 150 Ultimate Overload %FS 300 Maximum Deflection mm 100kg: 0.15 150 – 300kg: 0.14 400 – 600kg: 0.15 Eccentric Loading Error %Ld/cm ± 0.002 Excitation, Recommended Voltage V 5 ~ 12 Excitation, Maximum Voltage V 18 Input Resistance Ω 385 ± 5 Output Resistance Ω 350 ± 3 Insulation Resistance (50V) MΩ ≥5000 Compensated Temperature °C -10 ~ +40 Operating Temperature °C -35 ~ +65 Storage Temperature °C -40 ~ +70 Load Cell Weight kg ~ 4.6 Element Material Stainless Steel Ingress Protection (acc. to EN 60529) IP67 Recommended Torque on Fixation Bolts Nm M8: 20 ATEX Classification (optional) II 1G Ex ia IIC T4 Ga II 1D Ex ia IIIC T 200 135°C Da II 3G Ex ic IIC T4 Gc Wiring Features: Cable type: Shielded, 6 conductor cable , conductor AWG 24 Cable diameter: Ø 6.2mm Cable length: 3.0m Cable jacket: PVC Shield not connected to element 6-Wire Connection Diagram Excitation (+) Sense (+) Signal (-) Sense (-) Excitation (-) Signal (+) Red Brown White Black Yellow Blue

Specifications and dimensions are subject to change without notice and do not constitute any liability whatsoever. Zemic Europe B.V. T: +31 76 50 39480 Nr. 2023.12 B6G Rev5 info@zemic.nl Page 3/3 www.zemiceurope.com Dimensions in mm Top View Front View Side View Isometric View
