B15N10D BITEK
Document overview
- Manufacturer or author: Provided By www.digicamel.com(free datasheet download site)
- PDF pages: 1
Technical content
Features

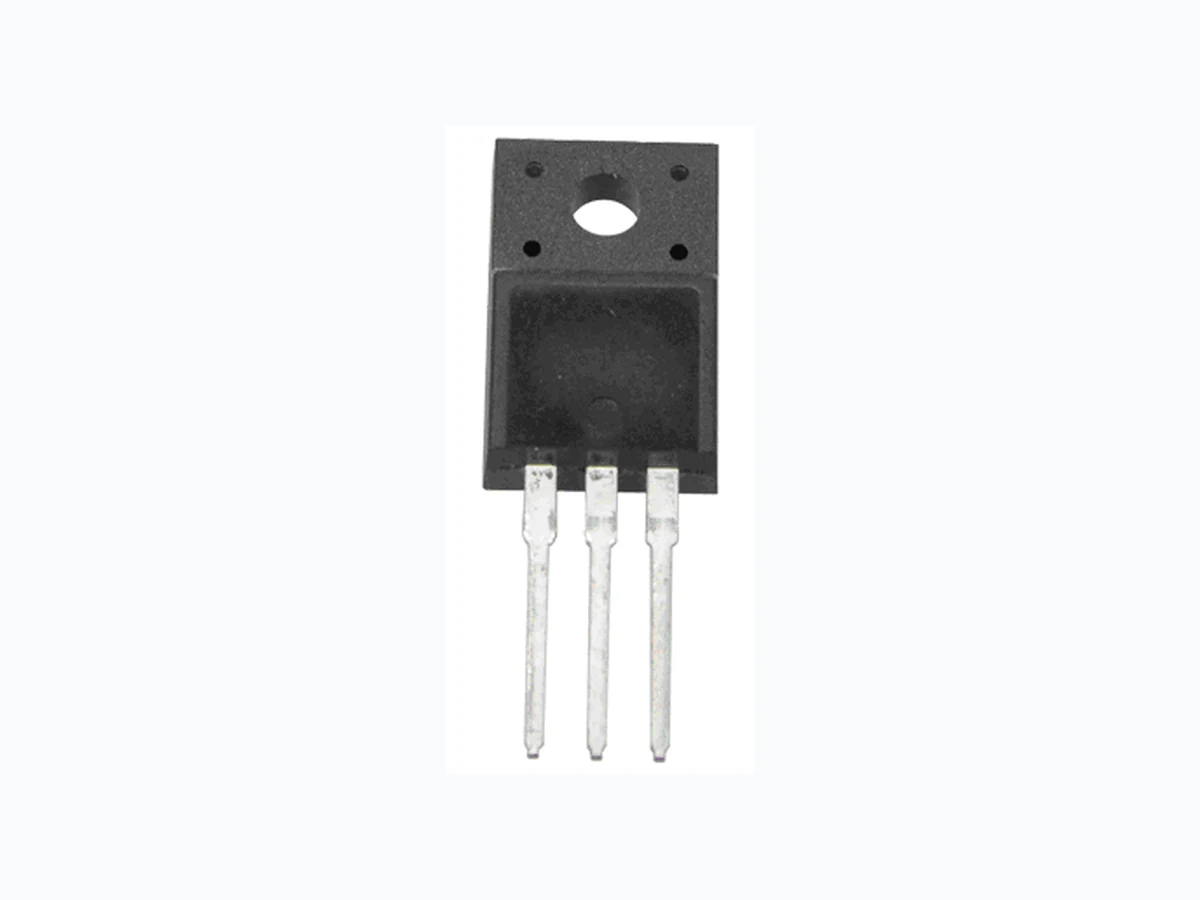

RDS(ON) =105mΩ@V GS =10V High Density Cell Design for Low R DS(ON) Exceptional On-Resistance and Maximum DC Current TO-252-3/TO-220F-3 Package Applications LED backlight LCD monitor LCD TV DC/DC Converter Load Switch Absolute Maximum Ratings (TA=25 ℃ Unless Otherwise Noted): Parameter Symbol N-Channel Unit Drain-Source Voltage V DSS 100 V Gate-Source Voltage V GSS ±20 V Continuous Drain Current(tJ=150 ℃ ) TA=25 ℃ ID 15 A TA=70 ℃ 14 Pulsed Drain Current I DM 50 A Continuous Source Current (Diode Conduction) I S 3 A Maximum Power Dissipation TA=25 ℃ PD W TA=70 ℃ 53 Operating Junction Temperature T J -55 to 150 ℃ Thermal Resistance-Junction to Case R θJC 1.5 ℃ /W
