B120_08 VISHAY

Document overview

  • PDF pages: 5

Technical content

Page 1

Surface Mount Schottky Barrier Rectifier

FEATURES

  • Low profile package
PDF page 1 diagram
  • Ideal for automated placement
  • Guardring for overvoltage protection
  • Low power losses, high efficiency
  • Low forward voltage drop
  • High surge capability
  • Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
  • Solder dip 260 °C, 40 s
  • Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC

TYPICAL APPLICATIONS

For use in low voltage, high frequency inverters,

PRIMARY CHARACTERISTICS
I F(AV) 1.0 A
V RRM 20 V to 60 V
I FSM 30 A
V F 0.52 V, 0.75 V
T max. J 125 °C, 150 °C

freewheeling, dc-to-dc converters and polarity protection applications. (Note: These devices are not Q101 qualified.)

MECHANICAL DATA

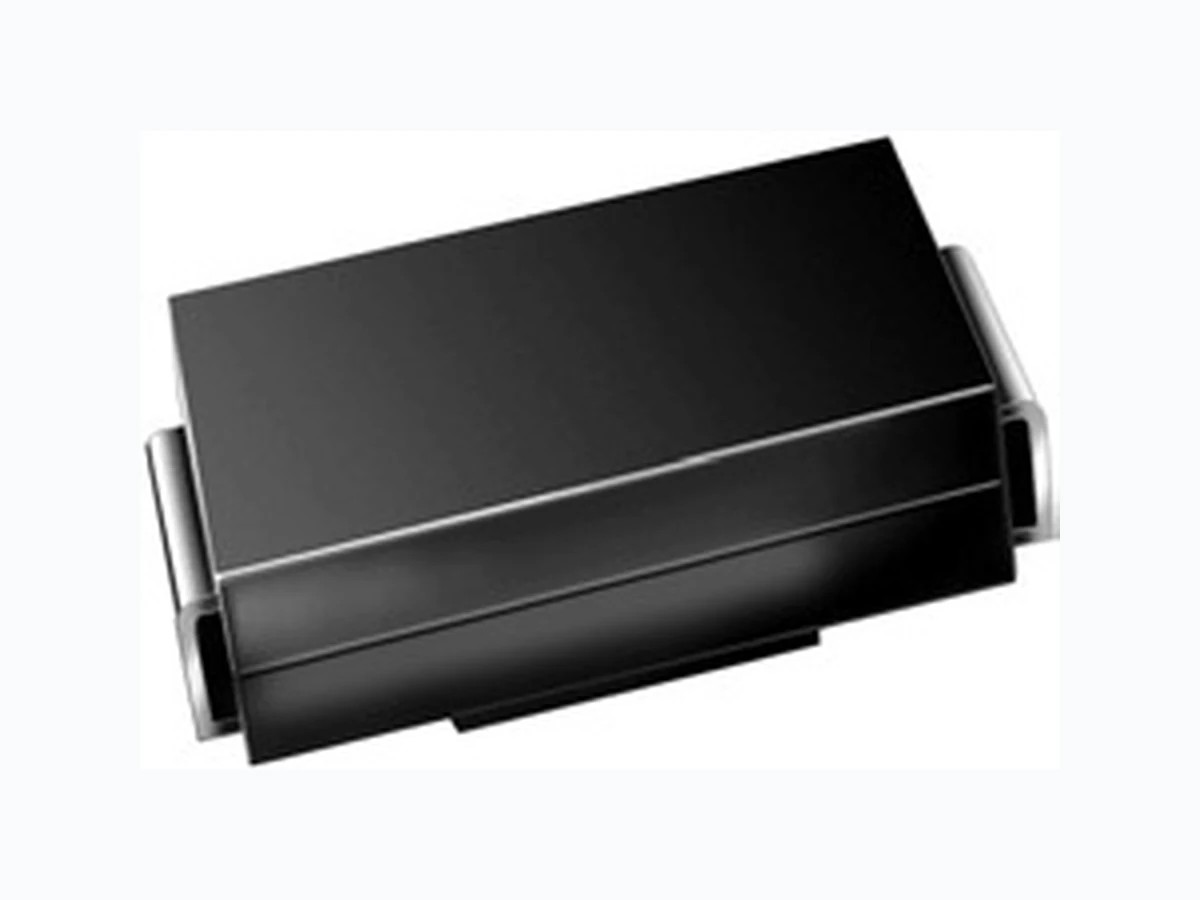

Case: DO-214AC (SMA) Epoxy meets UL 94V-0 flammability rating Terminals: Matte tin plated leads, solderable per J-STD-002 and JESD22-B102 E3 suffix for consumer grade, meets JESD 201 class 1A whisker test Polarity: Color band denotes the cathode end

MAXIMUM RATINGS (T = 25 °C unless otherwise noted) A
PARAMETER SYMBOL B120 B130 B140 B150 B160 UNIT
Device marking code B12 B13 B14 B15 B16 V
Maximum repetitive peak reverse voltage V RRM 20 30 40 50 60 V
Maximum average forward rectified current (Fig. 1) I F(AV) 1.0 A
Peak forward surge current 8.3 ms single half sine-wave superimposed on rated load I FSM 30 A
Voltage rate of change (rated V ) R dV/dt 10 000 V/µs
Operating junction temperature range T J - 65 to + 125 - 65 to + 150 °C
Storage temperature range T STG - 65 to + 150 °C

Page 2

ELECTRICAL CHARACTERISTICS (T = 25 °C unless otherwise noted) A
PARAMETER TEST CONDITIONS SYMBOL B120 B130 B140 B150 B160 UNIT
Maximum instantaneous forward voltage (1) 1.0 A V F 0.52 0.75 V
Maximum reverse current at rated V (2) R T = 25 °C A T = 100 °C A I R 0.2 mA
6.0 5.0

Notes: (1) Pulse test: 300 µs pulse width, 1 % duty cycle (2) Pulse test: Pulse width ≤ 40 ms

PDF page 2 diagram

Note: (1) P.C.B. mounted with 0.2 x 0.2" (5.0 x 5.0 mm) copper pad areas

ORDERING INFORMATION (Example)
PREFERRED P/N UNIT WEIGHT (g) PREFERRED PACKAGE CODE BASE QUANTITY DELIVERY MODE
B140-E3/61T 0.064 61T 1800 7" diameter plastic tape and reel
B140-E3/5AT 0.064 5AT 7500 13" diameter plastic tape and reel

RATINGS AND CHARACTERISTICS CURVES (TA = 25 °C unless otherwise noted)

PDF page 2 diagram
PDF page 2 diagram

Figure 1. Maximum Forward Current Derating Curve

Figure 2. Forward Power Loss Characteristics

Page 3

PDF page 3 diagram

Figure 3. Forward Power Loss Characteristics

PDF page 3 diagram

Figure 4. Typical Instantaneous Forward Characteristics

PDF page 3 diagram

Figure 5. Typical Instantaneous Forward Characteristics

PDF page 3 diagram

Figure 6. Typical Instantaneous Forward Characteristics

PDF page 3 diagram

Figure 7. Typical Reverse Leakage Characteristics

PDF page 3 diagram

Figure 8. Typical Junction Capacitance

Page 4

PACKAGE OUTLINE DIMENSIONS in inches (millimeters)

PDF page 4 diagram
