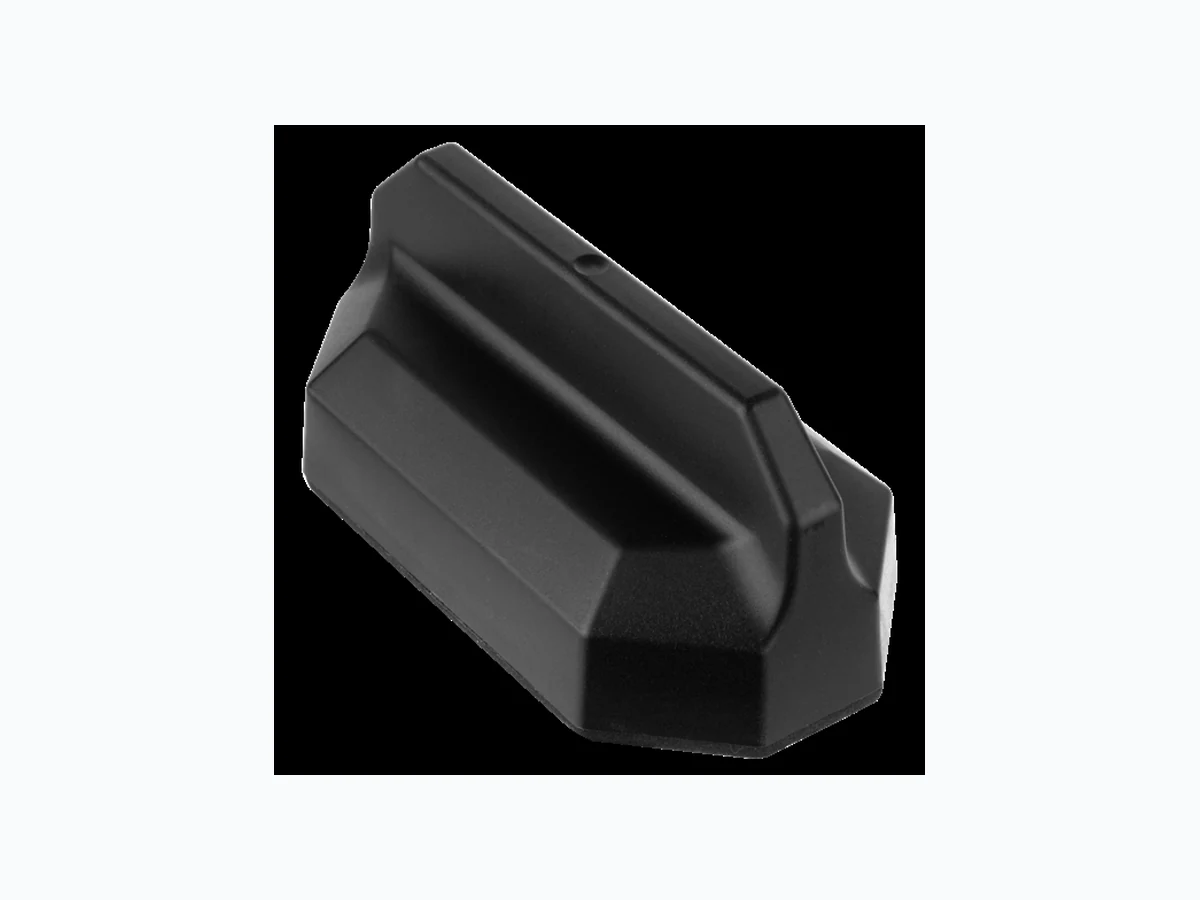

sales@airgain.com | www.airgain.com | + 1-855-AIRGAIN M2MAX® Up to 5-in-1 High Performance External IP67 Antenna A rugged outdoor antenna, M2MAX is designed to provide high performance connectivity for wireless machine-to-machine applications. This antenna mounts to virtually any M2M or IoT enabled asset and requires no servicing through its lifetime. PART NUMBER(S) CONFIGURATION CELLULAR ELEMENTS Wi-Fi ELEMENTS GNSS PART NUMBER *Indicates EZConnect configuration option DESCRIPTION 5-in-1 2 2 Yes *AP-MM4G-C2W2G-[x]-B1 MIMO Cell/LTE x 2, Wi-Fi x 2 & GNSS, Black, 1 foot coax APC-C2W2G-1-2-1-6 EZConnect Cable Harness with MIMO Cell/LTE x 2, Wi-Fi x 2, & GNSS, SMA on Cell/LTE & GNSS, RP SMA on Wi-Fi, 6 feet length AP-M2M2-CCWWG-[x]-S22222- RP34-BL-6 MIMO Cell/LTE x 2, Wi-Fi x 2 & GNSS, SMA on Cell/LTE & GNSS, RP-SMA on Wi-Fi, Black, 6 feet coax ADVANTAGES

  • High gain provides bigger cellular footprint
  • EZConnect™ configuration option allows for compatibility with customized EZConnect Cable Harness from a USA factory ensuring fast turnaround
  • 5 year limited warranty included1
  • Covered by one or more patents and pending applications2

FEATURES

  • Up to five embedded antenna elements with powerful MIMO technology that operate over multiple bands in one IP67 rated housing
  • Up to 2 x Wideband Cellular LTE elements
  • Up to 2 x 2.4 & 4.9-6 GHz Wi-Fi elements
  • Optional GNSS element
  • Available in black or white 1See terms and conditions at airgain.com/antenna plus-support/ 2For a list of the patents covering this product please visit https://airgain.com/product-support/patents/

sales@airgain.com | www.airgain.com | + 1-855-AIRGAIN 4-in-1 2 1 Yes *AP-MM4G-C2WG-[x]-B1 MIMO Cell/LTE x 2, Wi-Fi & GNSS, Black, 1 foot coax APC-C2WG-1-2-1-6 EZConnect Cable Harness with MIMO Cell/LTE x 2, Wi-Fi, & GNSS, SMA on Cell/LTE & GNSS, RP SMA on Wi-Fi, 6 feet length AP-M2M2-CCWG-[x]-S2222-RP3-BL-6 MIMO Cell/LTE x 2, Wi-Fi x 1 & GNSS, SMA on Cell/LTE & GNSS, RP-SMA on Wi-Fi, Black, 6 feet coax 3-in-1 2 0 Yes *AP-MM4G-C2G[x]-B1 MIMO Cell/LTE x 2 & GNSS, Black, 1 foot coax APC-C2G-1-1-6 EZConnect Cable Harness with MIMO Cell/LTE x 2 & GNSS, SMA on Cell/LTE & GNSS, 6 feet length AP-M2M2-CCG-[x]-S222-BL-6 MIMO Cell/LTE x 2 & GNSS, SMA on Cell/ LTE & GNSS, Black, 6 feet coax 3-in-1 2 1 No *AP-MM4G-C2W-[x]-B1 MIMO Cell/LTE x 2 & Wi-Fi, Black, 1 foot coax APC-C2W-1-2-6 EZConnect Cable Harness with MIMO Cell/LTE x 2 & Wi-Fi, SMA on Cell/LTE, RP SMA on Wi-Fi, 6 feet length AP-M2M2-CCW-[x]-S222-RP3-BL-6 MIMO Cell/LTE x 2 & Wi-Fi, SMA on Cell/ LTE, RP-SMA on Wi-Fi, Black, 6 feet coax 3-in-1 1 1 Yes *AP-MM4G-CWG-[x]-B1 Cell/LTE, Wi-Fi & GNSS, Black, 1 foot coax APC-CWG-1-2-1-6 EZConnect Cable Harness with Cell/ LTE, Wi-Fi, & GNSS, SMA on Cell/LTE & GNSS, RP SMA on Wi-Fi, 6 feet length AP-M2M2-CWG-[x]-S222-RP2-BL-6 Cell/LTE x 1 & Wi-Fi, SMA on Cell/LTE & GNSS, RP-SMA on Wi-Fi, Black, 6 feet coax 2-in-1 2 0 No *AP-MM4G-C2-[x]-B1 MIMO Cell/LTE x 2, Black, 1 foot coax APC-C2-1-6 EZConnect Cable Harness with MIMO Cell/LTE x 2, SMA on Cell/LTE, 6 feet length AP-M2M2-CC-[x]-S22-BL-6 MIMO Cell/LTE x 2, SMA on Cell/LTE, Black, 6 feet coax 2-in-1 1 0 Yes *AP-MM4G-CG-[x[-B1 Cell/LTE & GNSS, Black, 1 foot coax APC-CG-1-1-6 EZConnect Cable Harness with Cell/ LTE & GNSS. SMA on Cell/LTE & GNSS, 6 feet length AP-M2M2-CG-[x]-S22-BL-6 Cell/LTE x 1, SMA on Cell/LTE & GNSS, Black, 6 feet coax 2-in-1 0 2 No *AP-MM4G-W2-[x[-B1 MIMO Wi-Fi x 2, Black, 1 foot coax APC-W2-2-6 EZConnect Cable Harness with MIMO Wi-Fi x 2, RP SMA on Wi-Fi, 6 feet length AP-M2M2-WW-[x]-S22-RP-BL-6 Wi-Fi x 2, RP-SMA on Wi-Fi, Black, 6 feet coax

sales@airgain.com | www.airgain.com | + 1-855-AIRGAIN MOUNTING OPTIONS [x] (Must be mounted on metal) DESCRIPTION Q Threaded Bolt Mount A Adhesive Mount M Magnetic Mount Also available in color white, customizable cable lengths up to 35 feet, and other variations. Single Wi-Fi 0 1 No *AP-MM4G-W-[x[-B1 Wi-Fi, Black, 1 foot coax APC-W-2-6 EZConnect Cable Harness with Wi-Fi, RP SMA on Wi-Fi, 6 feet length AP-M2M2-W-[x]-S2-RP-BL-6 Wi-Fi x 1, RP-SMA on Wi-Fi, Black, 6 feet coax

sales@airgain.com | www.airgain.com | + 1-855-AIRGAIN TECHNICAL SPECIFICATIONS ELECTRICAL Frequency Range Elements 1 up to 2 689-960/1700-2700 MHz Elements 3 up to 4 2.4/4.9-6.0 GHz Element 5 (optional) 1550~1610 MHz Operational Bands Elements 1 up to 2 LTE/Cellular Elements 3 up to 4 Wi-Fi Element 5 (optional) GPS L1/GALILEO E1/GLONASS G1/BeiDou B1/QZSS L1 Peak Gain: Isotropic Elements 1 up to 2 698-960 MHz, 3 dBi 1710-2700 MHz, 6 dBi Elements 3 up to 4 2.4 GHz, 5.5 GHz, 6.5 dBi, 4.2 dBi Element 5 (optional) 30.50 dBi Isolation Elements 1 up to 2 >10 dB Elements 3 up to 4 >30 dB Correlation Co-efficient Elements 1 up to 2 <0.1 ENVIRONMENTAL Hazardous Substances RoHS Compliant Temperature -40ºC to 65ºC (-40ºF to + 149ºF) Operating and Storage conformance to IEC 60068 Humidity (Non-Condensing) 5% to 96% Operating and Storage conformance to IEC 60068 Water Ingress IP67 Military Spec MIL-STD 810 conformance to vibration MOUNTING Dimensions Height 2.19” (55.5mm) Width 2.56” (65mm) Length 4.84” (122.9mm) Color Black (BL) or White (WH)

sales@airgain.com | www.airgain.com | + 1-855-AIRGAIN CABLE STANDARD EZConnect Cell Type LMR-195 Low Loss LMR-100 Low Loss Diameter 0.195” (4.953mm) 0.110” (2.79mm) Length 1 ft (0.3m) 1 ft (0.3m) Termination SMA Male SMA Male Wi-Fi Type LMR-195 Low Loss LMR-100 Low Loss Diameter 0.195” (4.953mm) 0.110” (2.79mm) Length 1 ft (0.3m) 1 ft (0.3m) Termination RP-SMA Male SMA Female GNSS Type RG-174U LMR-100 Low Loss Diameter 0.100” (2.54mm) 0.110” (2.79mm) Length 1 ft (0.3m) 1 ft (0.3m) Termination SMA Male FME Female GNSS Ceramic Patch Antenna Specification Bandwidth 1561-1602 MHz Gain@Zenith 2.5 dBi Polarization R.H.C.P. Axial Ratio 3.0 dB Typ. LNA Specification Noise Figure 1.2 dB Gain 28 dBi Voltage 3.3V~5.6V Current 9.6±1mA@3.3V

sales@airgain.com | www.airgain.com | + 1-855-AIRGAIN -50 -45 -40 -35 -30 -25 -20 -15 -10 700 740 780 820 860 900 940 980 1020 1060 1100 1140 1180 1220 1260 1300 1340 1380 1420 1460 1500 1540 1580 1620 1660 1700 1740 1780 1820 1860 1900 1940 1980 2020 2060 2100 2140 2180 2220 2260 2300 2340 2380 2420 2460 2500 2540 2580 2620 2660 2700 Isola2on Ant1_LTE-Ant2_LTE -50 -45 -40 -35 -30 -25 -20 -15 -10 2000 2075 2150 2225 2300 2375 2450 2525 2600 2675 2750 2825 2900 2975 3050 3125 3200 3275 3350 3425 3500 3575 3650 3725 3800 3875 3950 4025 4100 4175 4250 4325 4400 4475 4550 4625 4700 4775 4850 4925 5000 5075 5150 5225 5300 5375 5450 5525 5600 5675 5750 5825 5900 5975 Isola&on (dB) Isola2on Ant3_WiFi-Ant4_WiFi 1.2 1.4 1.6 1.8 2.2 1500 1504 1508 1512 1516 1520 1524 1528 1532 1536 1540 1544 1548 1552 1556 1560 1564 1568 1572 1576 1580 1584 1588 1592 1596 1600 1604 1608 1612 1616 1620 1624 1628 1632 1636 1640 1644 1648 1652 1656 1660 1664 1668 1672 1676 1680 1684 1688 1692 1696 1700 VSWR Frequency (MHz) VSWR GNSS 1.2 1.4 1.6 1.8 2.2 2.4 2.6 2000 2075 2150 2225 2300 2375 2450 2525 2600 2675 2750 2825 2900 2975 3050 3125 3200 3275 3350 3425 3500 3575 3650 3725 3800 3875 3950 4025 4100 4175 4250 4325 4400 4475 4550 4625 4700 4775 4850 4925 5000 5075 5150 5225 5300 5375 5450 5525 5600 5675 5750 5825 5900 5975 VSWR Frequency (MHz) VSWR Ant3_WiFi Ant4_WiFi 1.2 1.4 1.6 1.8 2.2 700 740 780 820 860 900 940 980 1020 1060 1100 1140 1180 1220 1260 1300 1340 1380 1420 1460 1500 1540 1580 1620 1660 1700 1740 1780 1820 1860 1900 1940 1980 2020 2060 2100 2140 2180 2220 2260 2300 2340 2380 2420 2460 2500 2540 2580 2620 2660 2700 VSWR Ant1_LTE Ant2_LTE VSWR of LTE Antennas VSWR of Wi-Fi Antennas VSWR of GNSS Antennas Isolation of LTE Antennas Isolation of Wi-Fi Antenna

sales@airgain.com | www.airgain.com | + 1-855-AIRGAIN Ant2_LTE at 830MHz Ant2_LTE at 2600MHz Ant1_LTE at 1960MHz Ant3_Wi-Fi at 2.44GHz Ant5_GNSS at 1561.1 MHzAnt4_Wi-Fi at 5.5GHz Ant2_LTE at 1960MHz Ant4_Wi-Fi at 2.44GHz Ant3_Wi-Fi at 5.5GHz Ant5_GNSS at 1575.42 MHz Ant5_GNSS at 1602 MHz Ant1_LTE at 2600MHz Ant1_LTE at 830MHz
