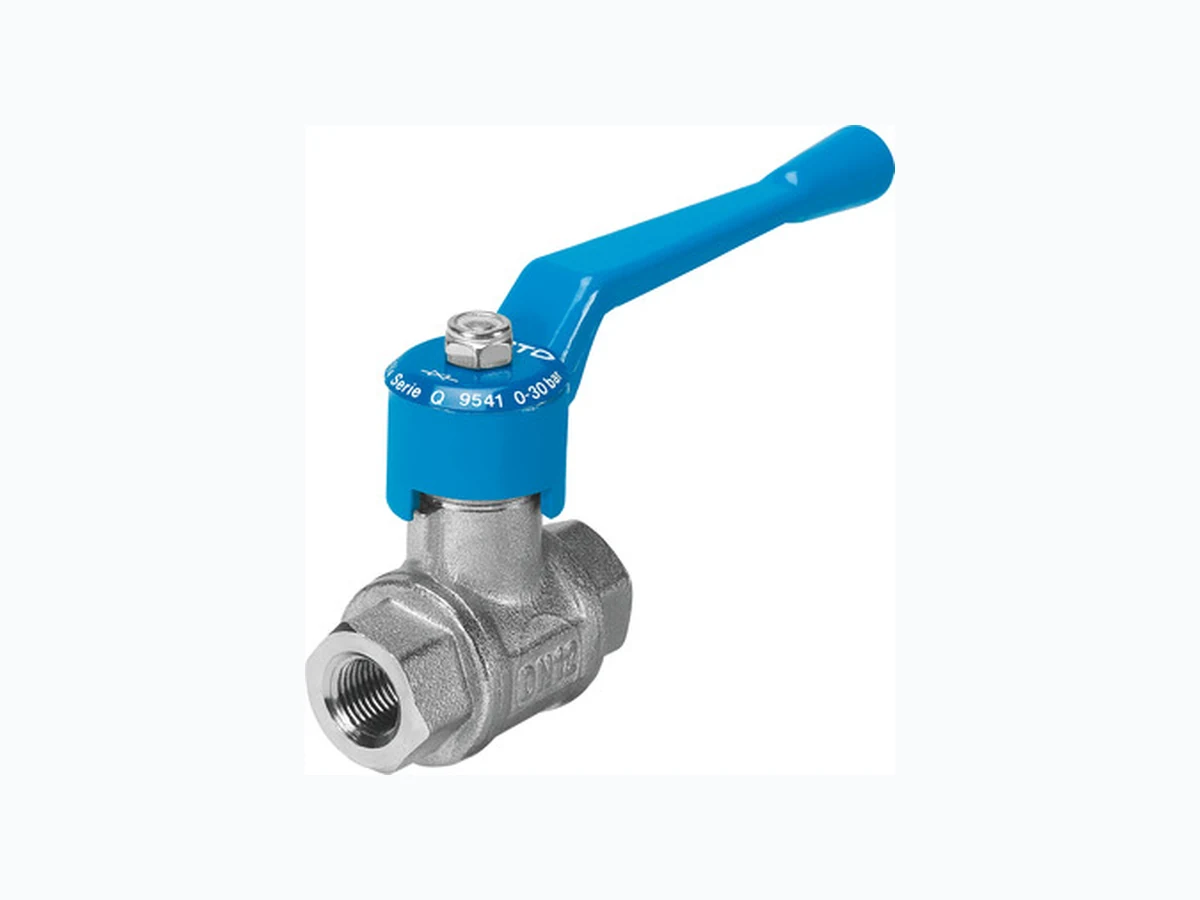

Ball valve
QH-1/4 Part number: 9541
Data sheet
| Feature | Value |
| Valve function | 2/2 bistable |
| Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G¼ |
| Actuation type | Manual |
| Type of mounting | Line installation |
| Standard nominal flow rate | 3400 l/min |
| Nominal width | 10 mm |
| Ambient temperature | -20 °C ... 180 °C |
| Housing material | Brass |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water |
| Sealing principle | Soft |
| Structural design | Ball valve |
4/15/22 - Subject to change - Festo SE & Co. KG
1/2
Page 2
| Feature | Value |
| Symbol | 00991458 |
| Nominal pressure of fitting PN | 30 |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
