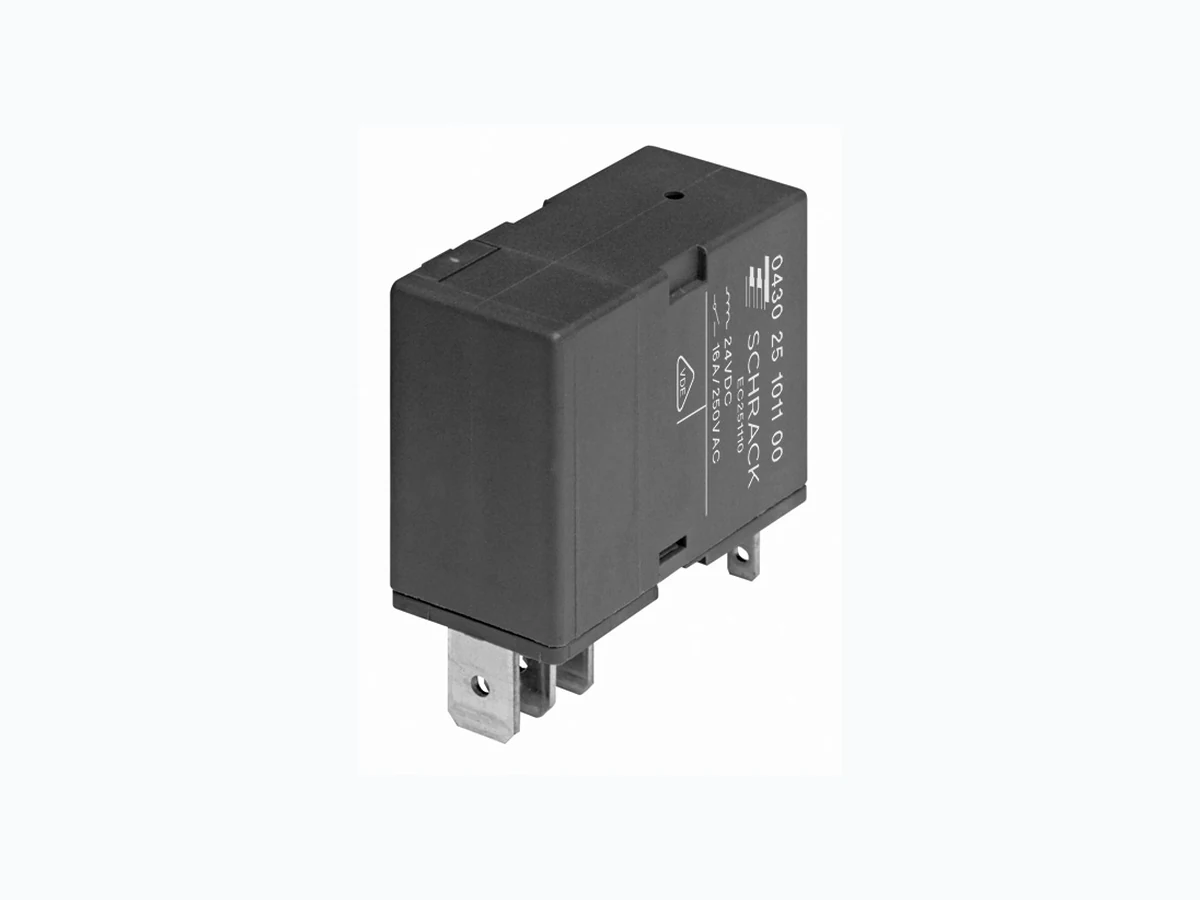

04-2011, Rev. 0411 www.te.com © 2011 Tyco Electronics Corporation, a TE Connectivity Ltd. company Datasheets and product specification according to IEC 61810-1 and to be used only together with the ‘Definitions’ section. Datasheets and product data is subject to the terms of the disclaimer and all chapters of the ‘Definitions’ section, available at http://relays.te.com/definitions Datasheets, product data, ‘Definitions’ sec- tion, application notes and all specifications are subject to change. SCHRACK General Purpose Relays Power Relays n 1 pole 16A, 1 form A (NO) contact n Safety mains isolation n Contact gap >3mm n DC and AC coil n 4kV/8mm coil-contact, reinforced insulation (VDE 0700) n PCB mounting or quick connect terminals n Mounting brackets or snap mounting n Version with arc blow magnet for high DC loads n Product in accordance to IEC 60335-1 Typical applications Domestic appliances, industrial appliances, industrial controls Approvals VDE REG.-Nr. C820, UL E214024 Technical data of approved types on request Contact Data Contact arrangement 1 form A (NO) Contact gap >3mm Rated voltage 250VAC Max. switching voltage 400VAC Rated current 16A Limiting making current, max 4 s, duty factor 10% 25A Breaking capacity max. 4000VA Contact material AgCu3, AgCdO Contact style bifurcated contact Frequency of operation, with/without load 900/18000h-1 Contact ratings Type Contact Load Cycles IEC 61810 0430 .4 .. 0 A (NO) 16A, 250VAC, cosφ=1, 70°C 50x103 0430 .4 .. 1 A (NO) 16A, 250VAC, cosφ=1, 70°C 50x103 Mechanical endurance DC coil >250x103 operations AC coil >250x103 operations Coil Data Coil voltage range DC coil 6 to 110VDC AC coil 6 to 240VAC Operative range, IEC 61810 2 Coil versions, DC coil Coil Rated Operate Release Coil Rated coil code voltage voltage voltage resistance power VDC VDC VDC Ω±10% mW 09 12 7.8 0.6 145 993 10 24 15.6 1.2 580 993 11 48 31.2 2.4 2200 1047 13 110 71.5 5.5 13000 931 All figures are given for coil without pre-energization, at ambient temperature +23°C. Other coil voltages on request. Coil versions, AC coil, 50Hz Coil Rated Operate Release Coil Rated coil code voltage voltage voltage resistance power VAC VAC VAC Ω±10% VA 23 24 18 3.6 145 1.8 25 60 45 9 950 1.8 26 110 83 16 3100 1.8 27 230 175 35 11400 1.8 28 240 185 36 13000 1.8 All figures are given for coil without pre-energization, at ambient temperature +23°C, 50Hz. Other coil voltages on request. Insulation Data Initial dielectric strength between open contacts 2000Vrms between contact and coil 4000Vrms Clearance/creepage between contact and coil ≥8/8mm Material group of insulation parts IIIa Tracking index of relay base PTI250 Power Relay 430 3mm F0256-B ZV

04-2011, Rev. 0411 www.te.com © 2011 Tyco Electronics Corporation, a TE Connectivity Ltd. company Datasheets and product specification according to IEC 61810-1 and to be used only together with the ‘Definitions’ section. Datasheets and product data is subject to the terms of the disclaimer and all chapters of the ‘Definitions’ section, available at http://relays.te.com/definitions Datasheets, product data, ‘Definitions’ sec- tion, application notes and all specifications are subject to change. SCHRACK General Purpose Relays Power Relays Power Relay 430 3mm (Continued) Other Data Material compliance: EU RoHS/ELV, China RoHS, REACH, Halogen content refer to the Product Compliance Support Center at www.te.com/customersupport/rohssupportcenter Resistance to heat and fire according EN60335, par.30 Ambient temperature -20 to +70°C Category of environmental protection IEC 61810 RTI - dust protected Shock resistance (destructive) 100g Terminal type PCB-THT, quick connect Mounting PCB, mounting brackets, snap mounting, DIN rail Weight 32g Resistance to soldering heat THT IEC 60068-2-20 270°C/10s Packaging unit 50 pcs. PCB layout / terminal assignment Bottom view on solder pins Dimensions S0448-AE S0449-CB S0449-CH S0448-AF Snap mounting PCB mounting

04-2011, Rev. 0411 www.te.com © 2011 Tyco Electronics Corporation, a TE Connectivity Ltd. company Datasheets and product specification according to IEC 61810-1 and to be used only together with the ‘Definitions’ section. Datasheets and product data is subject to the terms of the disclaimer and all chapters of the ‘Definitions’ section, available at http://relays.te.com/definitions Datasheets, product data, ‘Definitions’ sec- tion, application notes and all specifications are subject to change. SCHRACK General Purpose Relays Power Relays Power Relay 430 3mm (Continued) Dimensions S0449-AD Mounting brackets DIN-rail mount S0449-CK Product code structure Typical product code 0430 2 5 09 1 100 Type

0430 Power relay 430 3mm

0 PCB version 2 Snap mounting

1 Mounting brackets 5 DIN-rail mounting

4 Arc blowing magnet

5 Standard

Coil code: please refer to coil versions table Contact material

0 AgCu 3 1 AgCdO

100 Standard

Product code Mounting Cont. material Cont.arrangement Coil Part number 0430 25 0911 00 Snap mounting AgCdO 1 form A DC coil 1-1415404-1 0430 25 1011 00 1.0mm plate 1 NO contact 1-1415404-3 0430 25 2811 00 AC coil 1-1415404-6
