102MC REDLION

Document overview

  • Manufacturer or author: Provided By www.digicamel.com(FREE DATASHEET DOWNLOAD SITE)
  • PDF pages: 3

Technical content

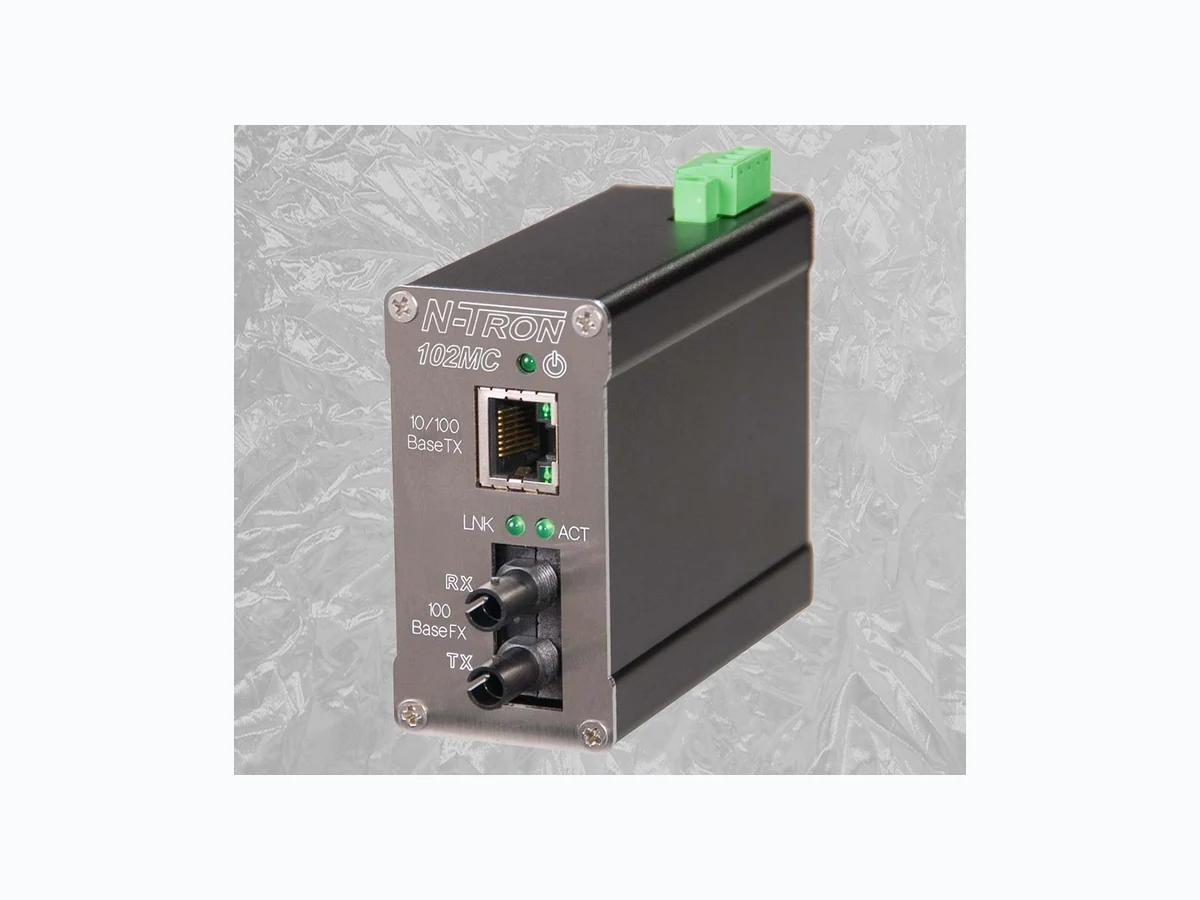

Industrial Media ConverterTHE INDUSTRIAL NETWORK COMPANY The N-TRON® 102MC is an unmanaged 10/100BaseTX to 100BaseFX Industrial Media Converter. It is housed in a hardened, metal, DIN-Rail enclosure, and is designed for use in industrial data acquisition, control, and Ethernet I/O applications. PRODUCT FEATURES

  • Compact, space saving footprint
  • Full IEEE 802.3 Compliance
  • American Bureau of Shipping (ABS) Type Approval
  • EN50155 for Railway applications
  • Converts 10/100BaseTX to 100BaseFX
  • Unmanaged Operation
  • Extended Environmental Speci fi cations
  • -40ºC to 80ºC Operating Temperature
  • >2M Hours MTBF
  • RJ-45 Port Supports Full/Half Duplex Operation
  • LED Link/Activity Status Indication
  • Store-and-forward Technology
  • RJ-45 Port Auto Senses Speed and Flow Control
  • MDIX Auto Cable Sensing (RJ-45)
  • Hardened Metal DIN-Rail Enclosure
  • Redundant Power Inputs (10-30 VDC)
  • ESD Protection Diodes on RJ-45 Port
  • Surge Protection Diodes on Power Inputs PRODUCT OVERVIEW The 102MC Industrial Media Converter is designed to allow the connection of 10/100BaseTX Ethernet devices to your 100BaseFX fi ber cabling infrastructure. The 102MC provides one RJ-45 auto sensing 10/100BaseTX port and one 100BaseFX port. The RJ-45 port is full/half duplex capable, using "state of the art" Ethernet switching technology. The 102MC auto-negotiates the speed and fl ow control capabilities of the TX copper port connection, and configures itself automatically. The 100BaseFX fi ber optic port utilizes industry standard ST or SC connectors and is confi gured for full duplex operation. Both multimode and singlemode fi ber models are available. Unlike most media converters the 102MC uses switchingtechnology. This means that 10Mbps devices can be connected today and upgraded to 100Mbps devices later. The switching fabric simply scales up or down automatically to match speci fi c network environments. The 102MC supports up to 2,000 MAC addresses, enabling these products to support extremely sophisticated and complex network architectures. The N-TRON 102MC is well suited to convert 10/100 BaseTX industrial devices to fi ber, allowing you to take advantage of the inherent advantages of fi ber based infrastructure. Compared to copper based systems, fi ber provides increased noise immunity and longer cable lengths. The 102MC has extended operating environmental specifi cations to meet the harsh needs of the industrial environment. For cost savings and convenience the media converter can be DIN-Rail mounted alongside Ethernet I/O or other industrial equipment. The unique compact size provides a small footprint, conserving space in the most critical dimension. The 102MC can also be panel mounted if desired. To increase reliability, the 102MC includes redundant power inputs. LEDs are provided to display the link status and activity of each port, as well as power on/off status.

THE INDUSTRIAL NETWORK COMPANY BENEFITS Industrial Media Converter

  • Compact Size, Small Footprint
  • Converts 10/100BaseTX to 100BaseFX
  • High Reliability/Availability
  • Extended Environmental Speci  cations
  • Hardened Metal DIN-Rail Enclosure
  • High Performance
  • High MTBF >2M Hours (measured)
  • ESD Protection Diodes on RJ-45 Ports
  • Surge Protection Diodes on Power Inputs Ease of Use
  • Plug & Play Operation
  • RJ-45 Auto Sensing 10/100BaseTX Port
  • RJ-45 Port Auto Senses Duplex, Speed, and Cable Type
  • Compact DIN-Rail Package Increased Performance
  • Full Wire Speed Capable
  • 100BaseFX Fiber Uplink
  • Full Duplex Capable
  • Eliminates Network Collisions
  • Increases Network Determinism 102MC SPECIFICATIONS Case Dimensions Height: 2.9" (7.4 cm) Width: 1.5" (3.9 cm) Depth 3.6" (12.3 cm) Weight: 0.5 lbs. (0.22 kg) DIN-Rail: 35mm Electrical Input Voltage: 10-30 VDC Input Current: 140mA@24V BTU/hr: 11.5 @24VDC Inrush: 8.5Amp/0.7ms@24V Environmental Operating Temperature: -40 oC to 80oC Storage Temperature: -40 oC to 85oC Operating Humidity: 10% to 95% (Non Condensing) Operating Altitude: 0 to 10,000 ft. Network Media 10BaseT: >Cat3 Cable 100BaseTX: >Cat5 Cable 100BaseFX Multimode: 50-62.5/125μm Singlemode: 7-10/125μm Connectors 10/100BaseTX: One (1) RJ-45 TX Port 100BaseFX: One (1) ST or SC Duplex Port Recommended Wiring Clearance Front: 4" (10.16 cm) Top: 1" (2.54 cm) Regulatory Approvals FCC Title 47 Part 15 Subpart BClass A ICES-003- Class A CE: EN61000-6-2,4 UL Listed (US and Canada) per ANSI/ISA-12.12.01-2000, Class I, Div 2, Groups A,B,C,D,T5; EN55011 Class A GOST-R Certifi ed RoHS Compliant ABS Type Approval for Shipboard Applications DNV Type Approval Certifi cation EN50155 for Railway Applications Designed to comply with: IEEE 1613 for Electric Utility Substations NEMA TS1/TS2 for Traffi c Control Equipment ® 2010 N-TRON, Corp. N-TRON and the N-TRON logo are trademarks of N-TRON, Corp. Product names mentioned herein are for identi fi cation purposes only and may be trademarks and/or registered trademarks of their respective company. Specifi cations subject to change without notice. The responsibility for the use and application of N-TRON products rests with the end user. N-TRON makes no warranties as to the fi tness or suitability of any N-TRON product for any specifi c application. N-TRON Corporation shall not be liable for any damage resulting from the installation, use, or misuse of this product. Printed in USA. Contact Information N-TRON Corp. N-TRON Asia N-TRON Europe GmbH 820 S. University Blvd., Suite 4E Suite #: 2267, 22/F, One Lujiazui Alte Steinhauserstr 19 Mobile, AL 36609 USA 68 Yin Cheng Road Center, 6330 Cham / Zg Switzerland TEL: (251) 342-2164 Pudong New Area TEL: +41 41 7406636 FAX: (251) 342-6353 200120 Shanghai, P.R. China FAX: +41 41 7406637 Website: www.N-TRON.com TEL: +86 (0) 21 6194 6777 Email: N-TRON_info@N-TRON.com FAX: +86 (0) 21 6194 6699 Fiber Transceiver Characteristics Fiber Length 2km* 15km 40km 80km** TX Power Min -19dBm -15dBm -5dBm -5dBm RX Sensitivity Max -31dBm -31dBm -34dBm -34dBm Wavelength 1310nm 1310nm 1310nm 1550nm * Multimode Fiber Optic Cable ** Singlemode Fiber Optic Cable

As the global experts in communication, monitoring and control for industrial automation and networking, Red Lion has been delivering innovative solutions for over forty years. Our award-winning technology enables companies worldwide to gain real-time data visibility that drives productivity. Product brands include Red Lion, N-Tron and Sixnet. With headquarters in York, Pennsylvania, the company has offices across the Americas, Asia-Pacific and Europe. For more information, please visit www.redlion.net. Red Lion is a Spectris company.www.redlion.net Connect. Monitor. Control. ADLD0326 071613 ©2013 Red Lion Controls Americas sales@redlion.net Asia-Pacific asia@redlion.net Europe Middle East Africa europe@redlion.net +1 (717) 767-6511 102MC with Standard DIN rail Mount Optional 100-MDR-1 Metal DIN Rail Mount THE INDUSTRIAL NETWORK COMPANY ® 2010 N-TRON, Corp. N-TRON and the N-TRON logo are trademarks of N-TRON, Corp. Specifi cations subject to change without notice. Printed in USA.

Ordering Information

102MC-XX 100BaseFX multimode  ber 102MCE-XX-YY 100BaseFX singlemode  ber NTPS-24-1.3 DIN-Rail Power Supply 24V@1.3 Amp 100-MDR-1 Metal Din Rail Option* Where "XX" is: ST for ST style  ber connector SC for SC style  ber connector Where "YY" is: 15 for 15km max.  ber segment length 40 for 40km max.  ber segment length 80 for 80km max.  ber segment length * MDR option must be speci  ed with switch order - not  eld upgradable
